SANlight STIXX Undercanopy 150x300 cm SET B

Product detailed description

The most intense undercanopy set for an area of 150x300 cm

SANlight STIXX Undercanopy 150x300 SET B is the most powerful undercanopy lighting variant in the STIXX set range - for a large 150x300 cm area and the highest density of underlighting. It is suitable for intensive cultivation, where you want to illuminate the lower levels deeply and precisely control plant development. It is based on six Undercanopy STIXX 6-150 luminaires, the most of any set in the range.

Parameters

• Recommended area: approx. 150x300 cm
• Variant: SET B (6 luminaires, highest intensity)

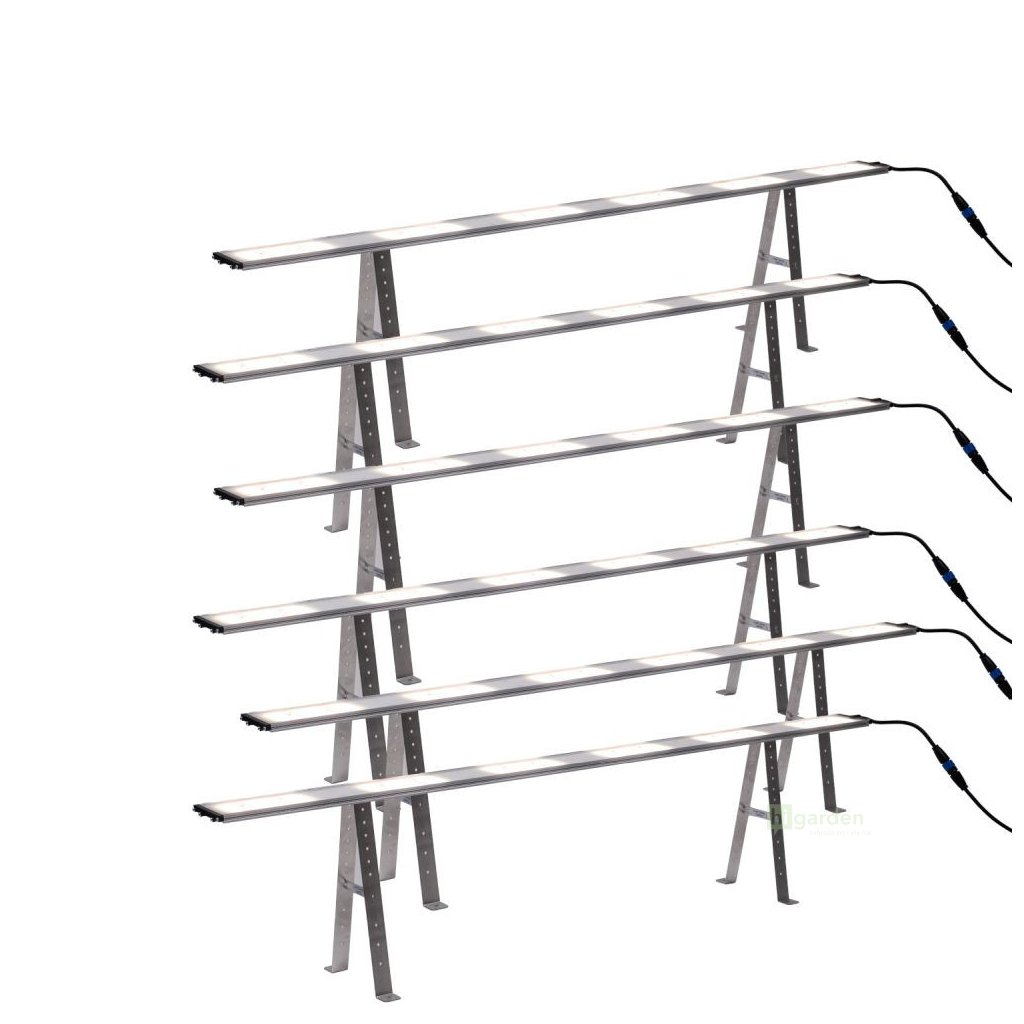

• Luminaires: 6x Undercanopy STIXX 6-150
• Driver included: Driver Set STIXX 3/6, 910 W
• Splitters: 5x T-Splitter
• Luminaire protection rating: IP68
• Dimmer: not included, purchased separately

Compatibility

Compatible:

• Complete ready-to-connect set: 6 Undercanopy STIXX 6-150 luminaires, STIXX 3/6 910 W driver, 5x T-Splitter, 150 cm extension cable, 25 cm cable and EVO power cable
• SANlight M-Dimmer / Bluetooth Dimmer - purchased separately

Incompatible:

• Other STIXX models on a shared driver - only luminaires of the same model
• SANlight STIXX 50 - closed system
• EVO / Q-Series and FLEX II cabling - different connectors than M19

What is in the set

According to SANlight's official recommendation, the set contains six Undercanopy STIXX 6-150 luminaires, Driver Set STIXX 3/6 910 W, five T-Splitter splitters, 150 and 25 cm extension cables, and an EVO mains power cable. The 910 W driver powers all six 6-150 luminaires (nominal input 846 W). The dimmer is not part of any undercanopy set (confirmed by SANlight's official recommendation); for regulation, the magnetic M-Dimmer or SANlight Bluetooth Dimmer is purchased separately.

Frequently asked questions

How does SET B differ from SET A for 150x300?

Both are undercanopy sets for an area of 150x300 cm using STIXX 6-150 luminaires. SET B has six luminaires, five T-Splitter splitters and the most powerful STIXX 3/6 910 W driver, so it delivers the highest density of underlighting in the entire range - aimed at intensive cultivation. SET A, by contrast, is a four-luminaire, gentler variant with a 610 W driver.

Can the driver handle all six luminaires?

Yes. Six STIXX 6-150 luminaires have a nominal input of 846 W, and the set includes the Driver Set STIXX 3/6 910 W, which, according to SANlight's official recommendation, powers them all. The modules are connected using five T-Splitter splitters, and unused DC ports on the driver are fitted with a terminating cap.

Is a dimmer included in the set?

No, the dimmer is not included and is purchased separately (magnetic M-Dimmer or SANlight Bluetooth Dimmer). The Driver Set STIXX 3/6 910 W, five splitters and the power cable are included in the package. Regulation runs on the driver via its blue connector.
