SANlight STIXX 2-60 Set LED 94W - 254 μmol/s (AS5010)

Product detailed description

Ready-made pair of STIXX 2-60 for small spaces

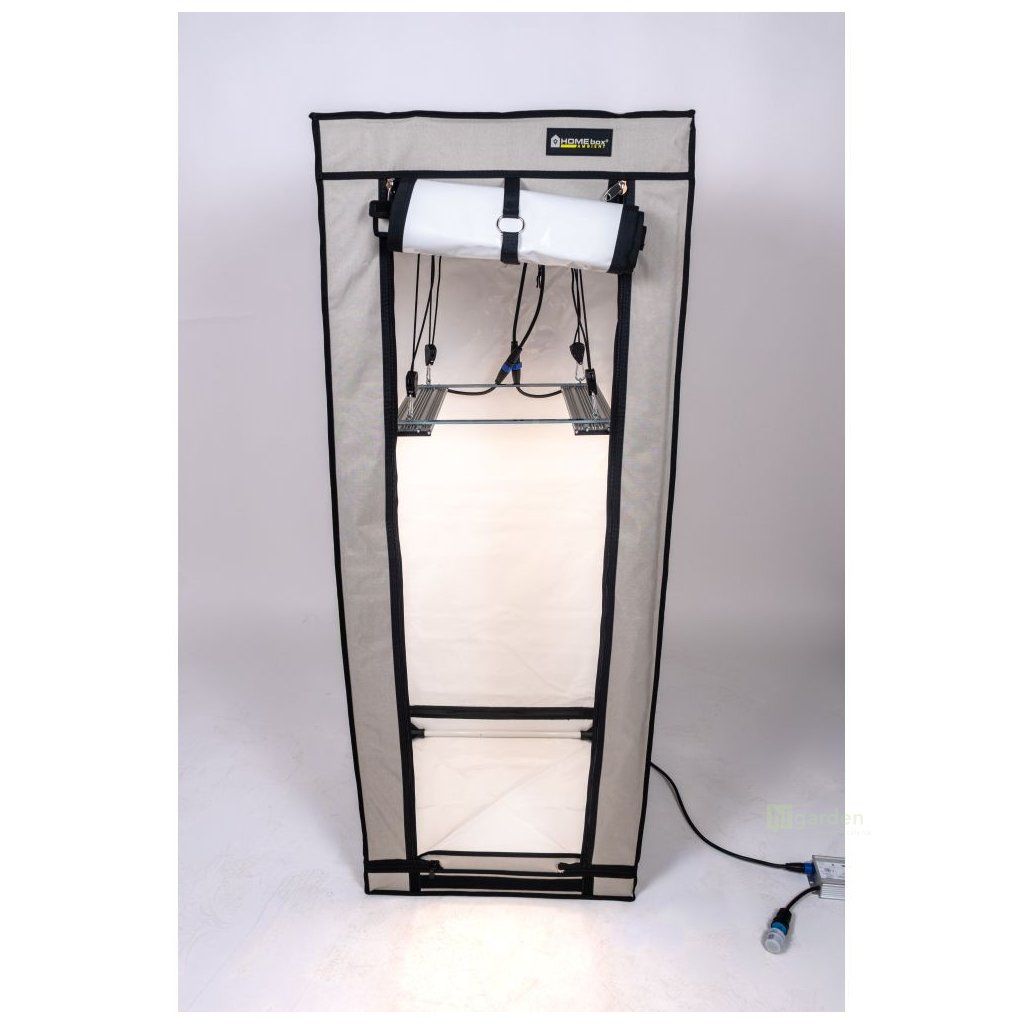

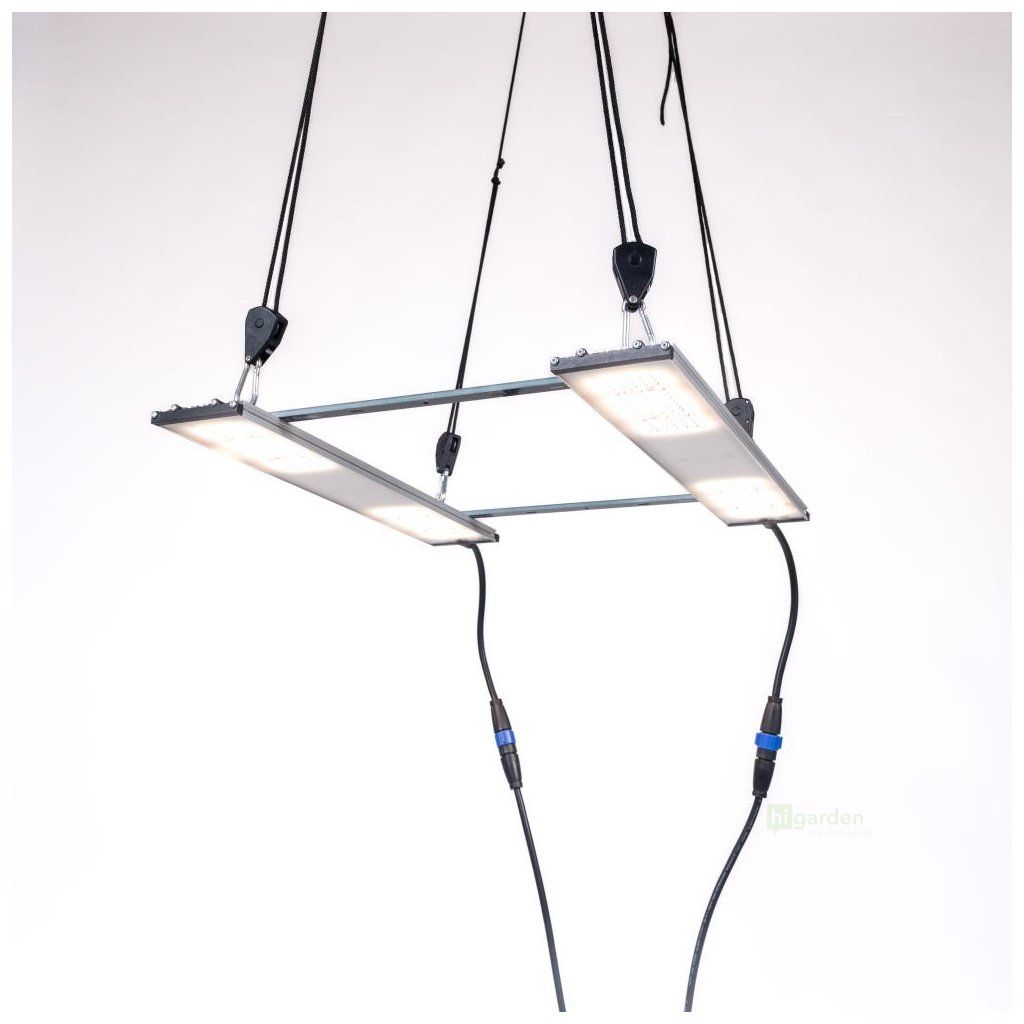

SANlight STIXX 2-60 Set is a set built on two STIXX 2-60 luminaires with a total input of 94 W and a flux of 254 µmol/s - the main lighting for smaller tents, low shelves and vertical tiers. Even light distribution without sharp hotspots and IP68 protection remain the same as with the individual luminaires.

Parameters

• Set: 2x SANlight STIXX 2-60 luminaire
• Total input: 94 W (2x 47 W)
• PPF photon flux: 254 µmol/s (2x 127 µmol/s)
• Beam angle: 90/135°
• Spectrum: full spectrum 400-780 nm
• Luminaire protection: IP68
• Module connector: M19 5-PIN
• LM90 lifetime: 53,000 h
• Warranty: 3 years

Compatibility

Compatible:

• Core of the set: 2 STIXX 2-60 luminaires; according to the sister 3-80 set, it is usually complete including the STIXX 2 driver, dimmer and cabling (we are verifying the contents of the 2-60 set)
• Expansion with additional STIXX 2-60 luminaires and M19 extension cables

Incompatible:

• Other STIXX models on a shared driver - only luminaires of the same model
• SANlight STIXX 50 - closed system
• EVO / Q-Series and FLEX II cabling - different connectors than M19

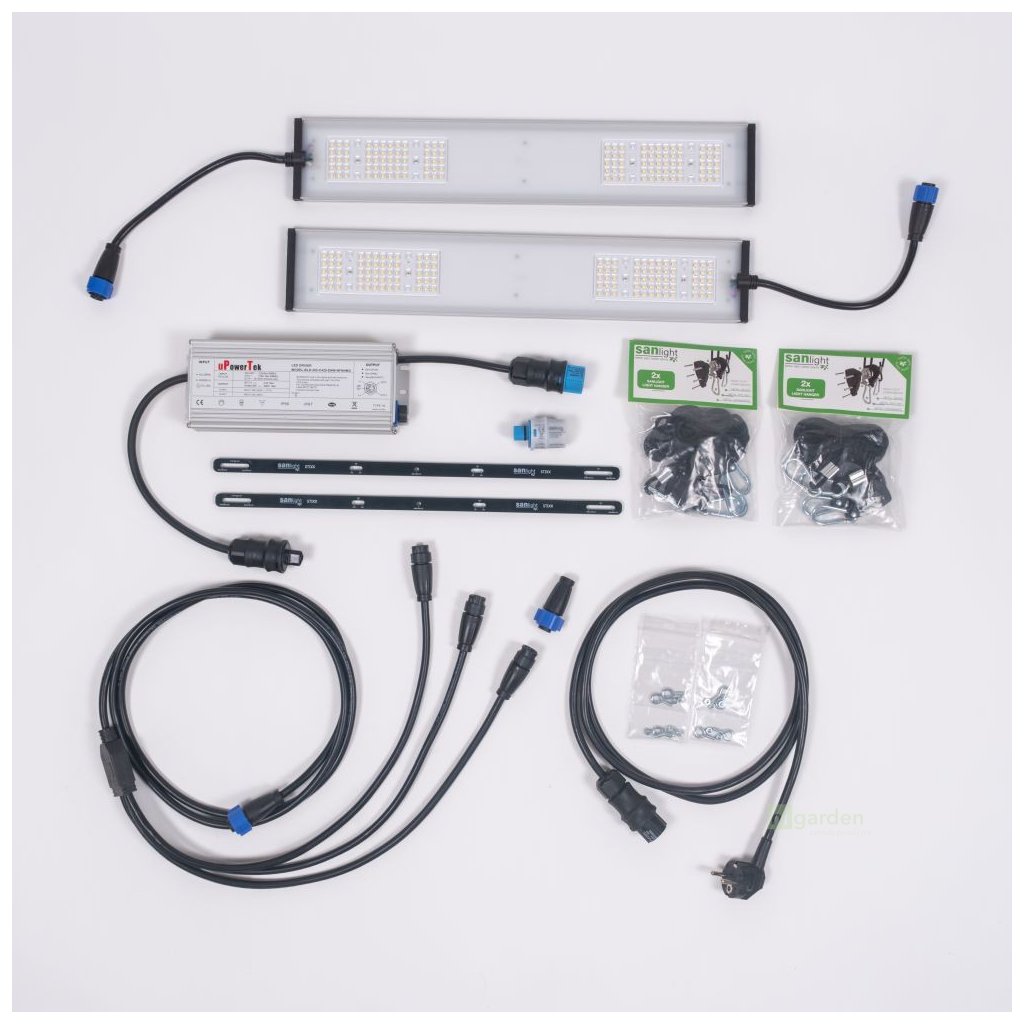

What is usually in the box

The certain core of the set is two STIXX 2-60 luminaires (2x 47 W = 94 W) - this follows directly from the name and output of the set. The sister STIXX 3-80 Set is officially supplied complete with driver, dimmer and cabling, so the two-module 2-60 set is probably assembled in the same way. However, we have not yet been able to find direct official confirmation of the box contents for the 2-60 variant, so we will be happy to verify the exact contents - especially the driver model - before you order.

Set, or individual luminaires?

The individual STIXX 2-60 luminaire is sold without a driver or dimmer, and these are purchased separately. The set is designed as a ready-made solution for two luminaires - suitable when you know you will be lighting with two 2-60 units and do not want to deal with power supply and control piece by piece.

Frequently asked questions

Does the 2-60 set include a driver and dimmer?

The certainty is a pair of STIXX 2-60 luminaires with a total output of 94 W. The sister STIXX 3-80 Set is officially supplied with driver, dimmer and cabling, so the 2-60 set is probably complete in the same way - however, direct confirmation from the manufacturer for this variant is still missing, so we will verify the exact box contents before you order.

Can I add another luminaire to the 2-60 set?

Yes, but only the same model. One STIXX driver always takes only identical luminaires - STIXX 2-60 with STIXX 2-60. Expansion is handled with additional 2-60 luminaires, extension cables and M19 splitters; unused DC ports on the driver are fitted with a termination cap. A combination with other STIXX models on a shared driver is not possible.

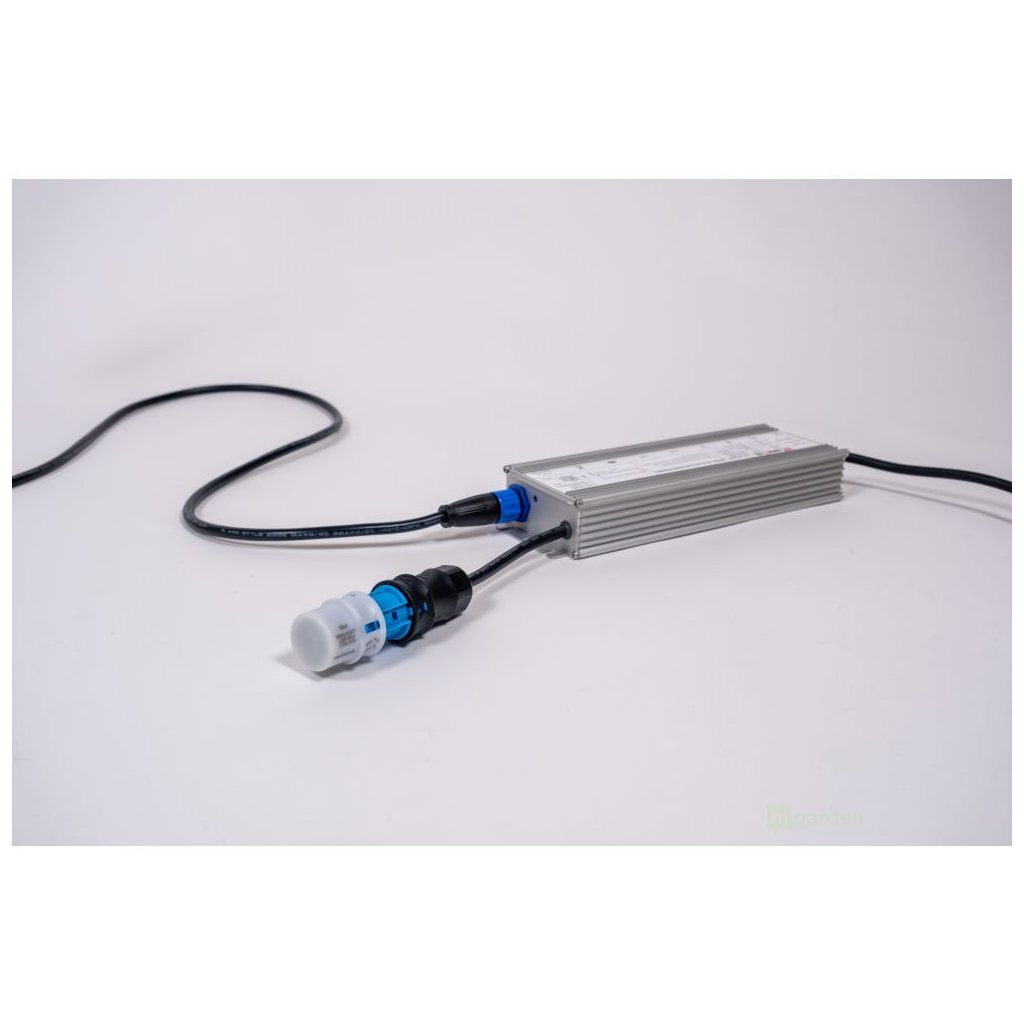

How are the luminaires in the set dimmed?

Dimming runs on the driver via its blue connector. Depending on the supplier's configuration, the set usually includes a magnetic SANlight M-Dimmer; alternatively, a Bluetooth Dimmer or a 0-10V signal can be used. The driver recognises the number of connected modules and distributes power between them, so you control both luminaires at once.
