SANlight STIXX Undercanopy 120x240 cm SET

Product detailed description

Undercanopy set for a long 120x240 cm area

SANlight STIXX Undercanopy 120x240 is a ready-made undercanopy lighting solution for an elongated 120x240 cm area, matching the width of standard large tents. On long dense benches, top light does not reach the lower layers evenly - this set distributes light from below along the entire length and evens out crop quality from edge to edge.

Parameters

• Recommended area: approx. 120x240 cm
• Purpose: undercanopy lighting for the lower layers of plants
• Luminaires: 4x Undercanopy STIXX 5-120
• Driver included: Driver Set STIXX 5, 610 W
• Beam angle: 90/135°
• Luminaire protection: IP68
• Dimmer: not included, purchased separately

Compatibility

Compatible:

• Complete ready to connect: 4 Undercanopy STIXX 5-120 luminaires, driver STIXX 5 610 W, 3x T-Splitter, 150 cm extension cable, 25 cm cable and EVO power cable
• SANlight M-Dimmer / Bluetooth Dimmer - purchased separately

Incompatible:

• Other STIXX models on a shared driver - only luminaires of the same model
• SANlight STIXX 50 - closed system
• EVO / Q-Series and FLEX II cabling - different connectors than M19

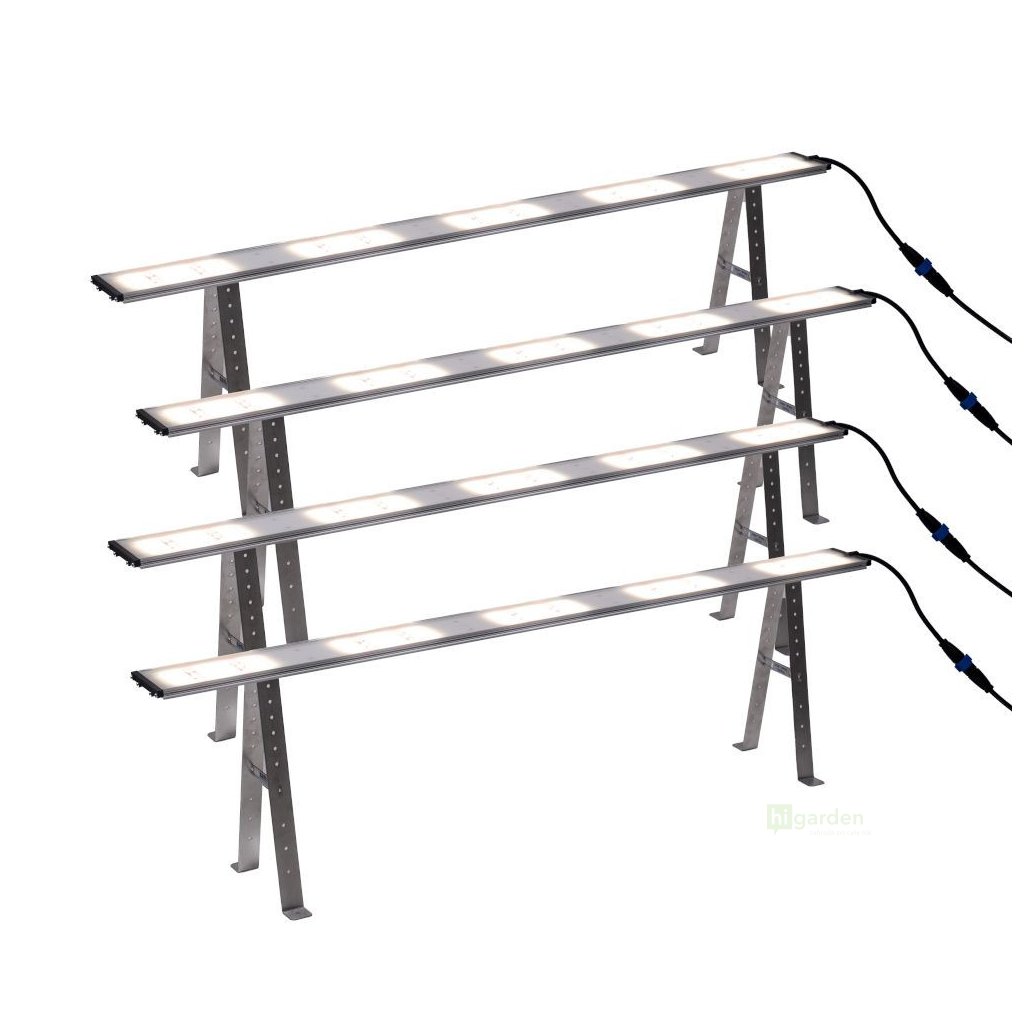

What is in the set

According to SANlight's official recommendation, the set contains:

• 4x Undercanopy STIXX 5-120
• 1x Driver Set STIXX 5, 610 W
• 3x T-Splitter distributor
• 1x 150 cm extension cable and 1x 25 cm
• 1x EVO power cable to mains

The dimmer is not part of any undercanopy set (confirmed by SANlight's official recommendation); for control, the magnetic M-Dimmer or SANlight Bluetooth Dimmer is purchased separately.

Frequently asked questions

For what size area is the 120x240 set?

The set is intended for undercanopy lighting on an elongated area of around 120x240 cm, i.e. the width of standard large tents, and is based on four Undercanopy STIXX 5-120 luminaires. According to SANlight's official recommendation, it also includes the Driver Set STIXX 5 610 W, three T-Splitters and cabling. The dimmer is purchased separately.

Does the set supplement the top light, or replace it?

It supplements it. The undercanopy set provides lighting for the lower layers and works together with the main top lighting. It illuminates the shadow under the canopy and improves the quality of lower flowers, but it does not replace the main light shining on the crop from above.

How is the set controlled?

Control runs on the driver via the blue connector. There is no dimmer in the set, so you can add the magnetic M-Dimmer or SANlight Bluetooth Dimmer, or alternatively a 0-10V signal. The driver recognises the number of connected modules and distributes power between them, so you dim the entire long assembly at once.
