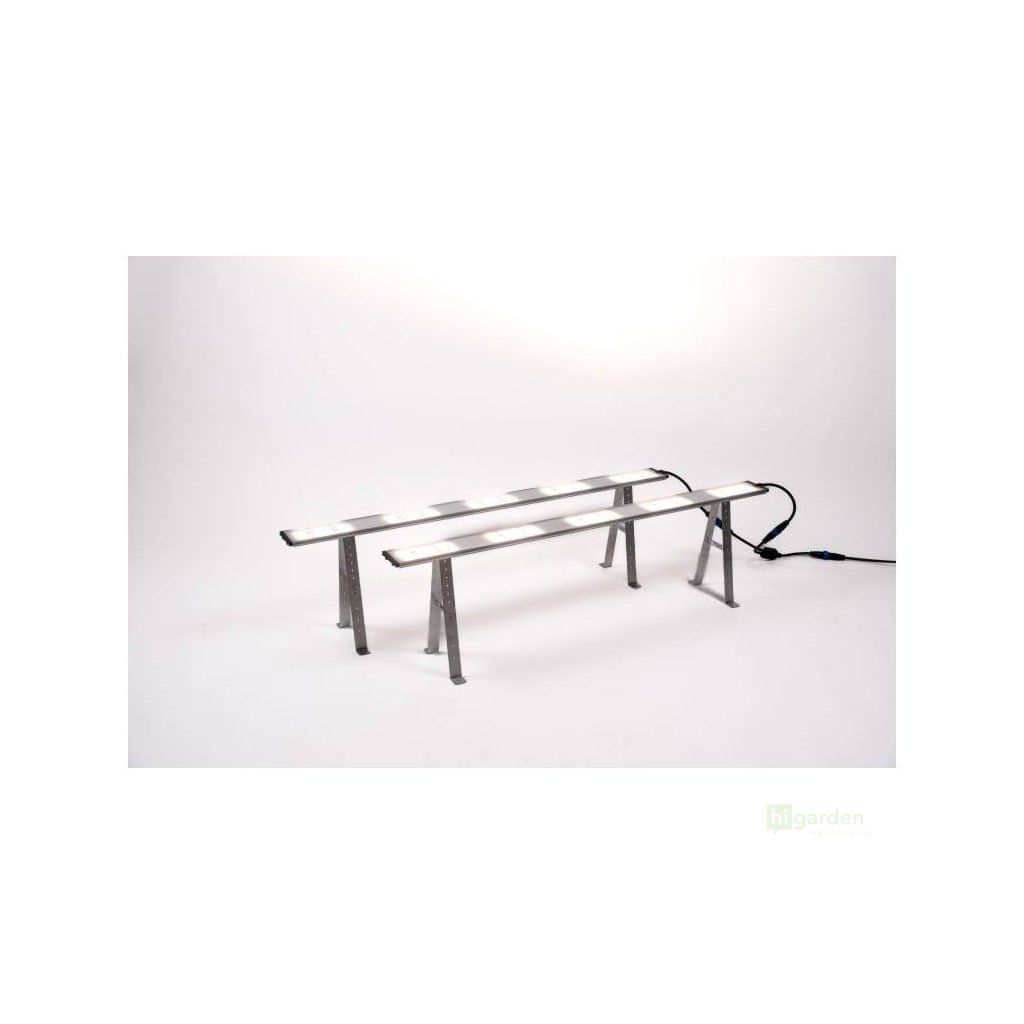

SANlight STIXX Undercanopy 120×120 cm SET

Product detailed description

Undercanopy set for a standard 120x120 cm tent

SANlight STIXX Undercanopy 120x120 is a ready-made undercanopy lighting solution for the most common 120x120 cm tent size. In denser growth, the top light does not reach the lower levels and the lower flowers lag behind - this set adds more intense lighting from below and helps bring out the quality of the entire crop without having to increase the output of the main light.

Parameters

• Recommended area: approx. 120x120 cm
• Purpose: undercanopy lighting for the lower levels of plants
• Luminaires: 2x Undercanopy STIXX 5-120
• Driver included: Driver Set STIXX 5, 250 W
• Beam angle: 90/135°
• Luminaire protection: IP68
• Dimmer: not included, purchased separately

Compatibility

Compatible:

• Complete for connection: 2 Undercanopy STIXX 5-120 luminaires, STIXX 5 250 W driver, T-Splitter, 150 cm extension cable, 25 cm cable and EVO power cable
• SANlight M-Dimmer / Bluetooth Dimmer - purchased separately

Incompatible:

• Other STIXX models on a shared driver - only luminaires of the same model
• SANlight STIXX 50 - closed system
• EVO / Q-Series and FLEX II cabling - different connectors than M19

What is in the set

According to SANlight's official recommendation, the set contains:

• 2x Undercanopy STIXX 5-120
• 1x Driver Set STIXX 5, 250 W
• 1x T-Splitter distributor
• 1x 150 cm extension cable and 1x 25 cm cable
• 1x EVO mains power cable

The dimmer is not part of any undercanopy set (confirmed by SANlight's official recommendation); for control, the magnetic M-Dimmer or SANlight Bluetooth Dimmer is purchased separately.

Frequently asked questions

What size area is the 120x120 set for?

The set is intended for undercanopy lighting over an area of around 120x120 cm and is based on two Undercanopy STIXX 5-120 luminaires. According to SANlight's official recommendation, it also includes the Driver Set STIXX 5 250 W, T-Splitter and cabling, so it is ready for connection. The dimmer is purchased separately.

Is undercanopy added to the top light, or instead of it?

It is added to it. The undercanopy set is supplementary lighting for the lower levels of the crop and works together with the main overhead lighting, which shines from above. The aim is to illuminate the shade under the canopy and improve the lower flowers - you are not replacing the main light with it.

How is the set controlled?

Control takes place on the driver via the blue connector. The dimmer is not included in the set, so you can add the magnetic M-Dimmer or SANlight Bluetooth Dimmer, or a 0-10V signal. The driver detects the number of connected modules and distributes the power between them, so you dim the entire assembly at once.
