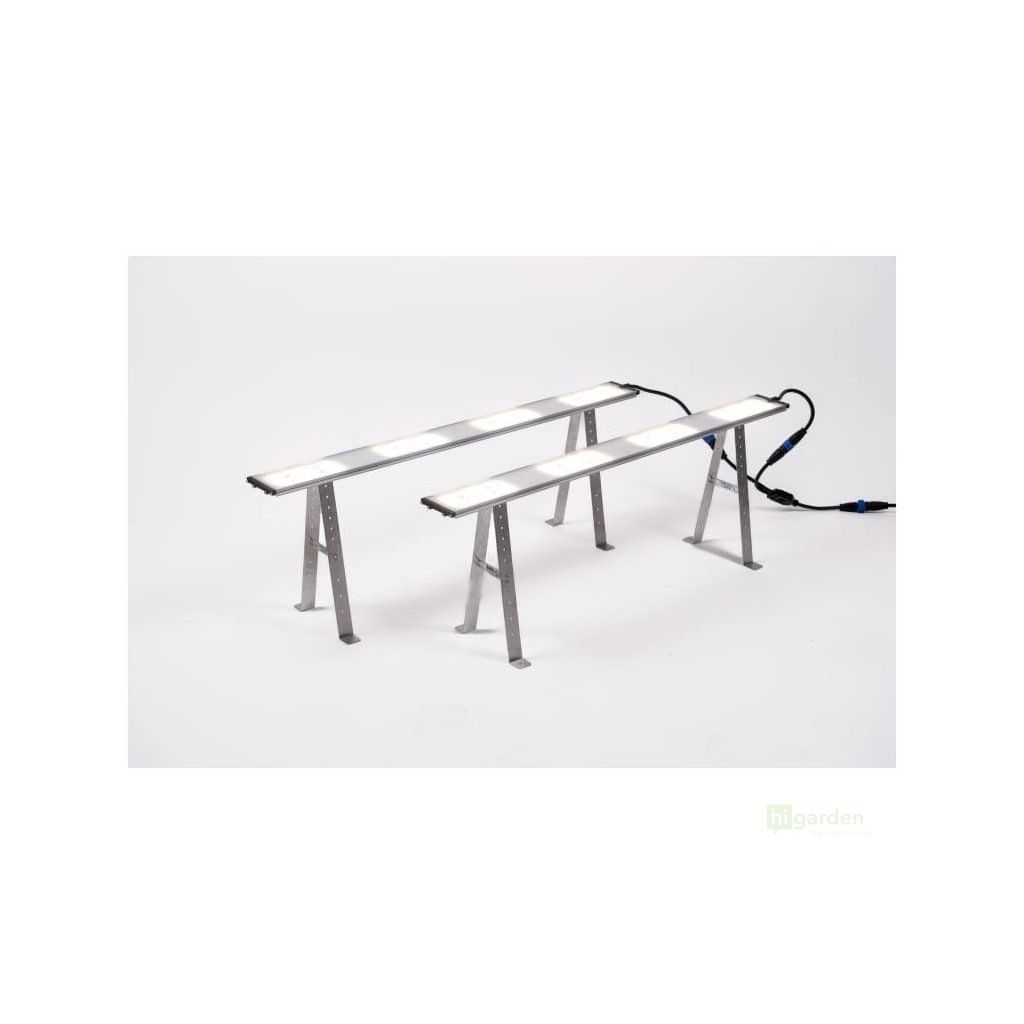

SANlight STIXX Undercanopy 100x100 cm SET

Product detailed description

Ready-made undercanopy lighting for an area of 100x100 cm

SANlight STIXX Undercanopy 100x100 is a ready-made set for supplementary lighting of the lower parts of plants, where you do not want to select the components one by one. In denser growth, the top light does not penetrate the lower branches and the fruits there remain sparser - this set adds light from below and evens out the growth across an area of around 100x100 cm.

Parameters

• Recommended area: approx. 100x100 cm
• Purpose: undercanopy supplementary lighting of the lower parts of plants
• Lights: 2x Undercanopy STIXX 4-100
• Driver included: Driver Set STIXX 4, 215 W
• Beam angle: 90/135°
• Light protection rating: IP68
• Dimmer: not included, purchased separately

Compatibility

Compatible:

• Complete for connection: 2 Undercanopy STIXX 4-100 lights, STIXX 4 215 W driver, T-Splitter, 150 cm extension cable and EVO power cable
• SANlight M-Dimmer / Bluetooth Dimmer - purchased separately

Incompatible:

• Other STIXX models on a shared driver - only lights of the same model
• SANlight STIXX 50 - closed system
• EVO / Q-Series and FLEX II cabling - different connectors than M19

What is in the set

According to SANlight's official recommendation, the set contains:

• 2x Undercanopy STIXX 4-100
• 1x Driver Set STIXX 4, 215 W
• 1x T-Splitter distributor
• 1x 150 cm extension cable
• 1x EVO power cable to mains

The dimmer is not part of any undercanopy set (confirmed by SANlight's official recommendation); for control, the magnetic M-Dimmer or SANlight Bluetooth Dimmer is purchased separately.

Frequently asked questions

What do I get in the 100x100 set?

According to SANlight's official recommendation, the package contains two STIXX 4-100 undercanopy lights, Driver Set STIXX 4 215 W, T-Splitter, 150 cm extension cable and EVO power cable. The set is therefore ready for connection. The dimmer is not included and is purchased separately.

Does the undercanopy set replace the main lighting?

No. The undercanopy set is supplementary lighting for the lower parts - it is added to the upper main light that shines on the growth from above. The aim is to get light where the top light does not penetrate and improve the quality of the lower flowers; you do not replace the main lighting with it.

How is the set dimmed?

Dimming runs on the driver via its blue connector. The dimmer is not included in the set, so for control you add the magnetic M-Dimmer or SANlight Bluetooth Dimmer, or a 0-10V signal. The driver recognises the number of connected modules and distributes the power between them, so you control the whole set at once.
