SANlight Driver Set STIXX 5, 250 W (AI5104)
Code: N52824



Related products
Product detailed description

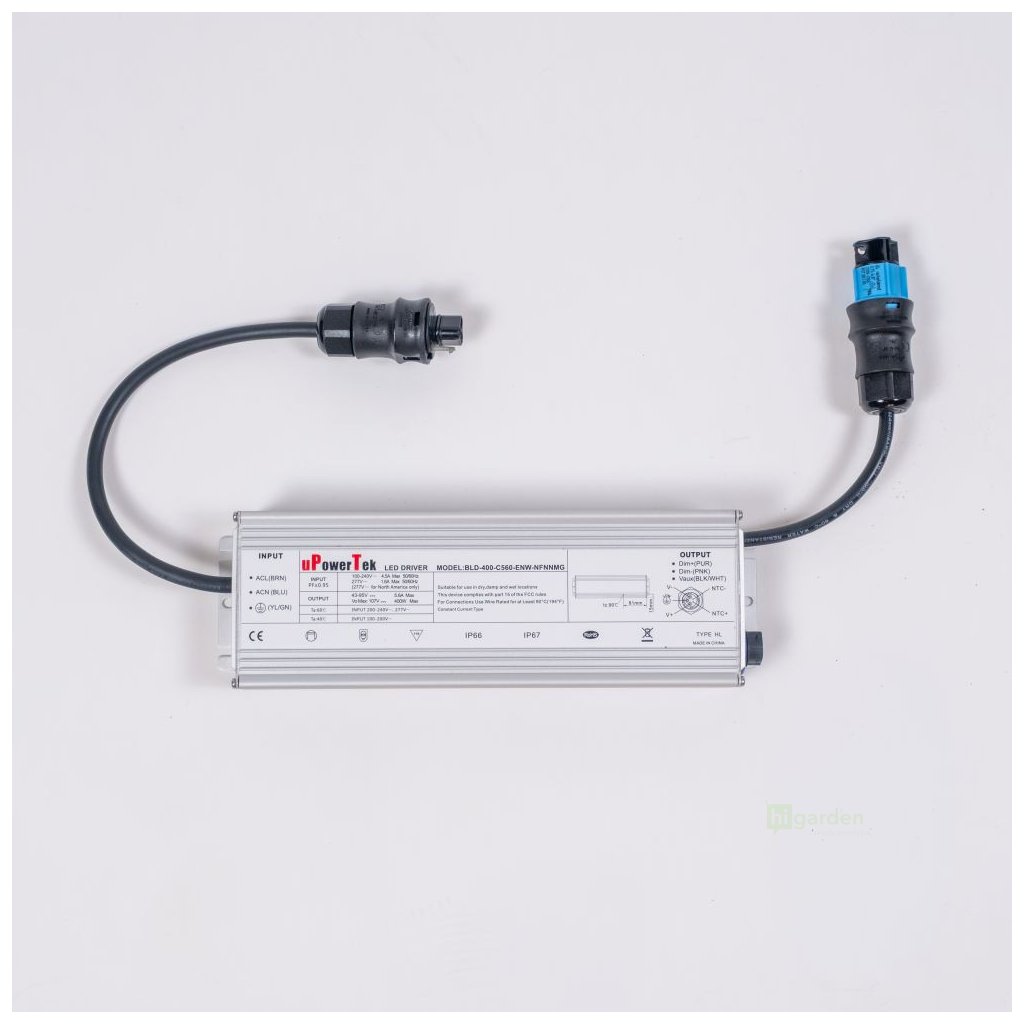

Input power supply for the STIXX 5 range
SANlight Driver Set STIXX 5, 250 W is the smallest Smart Driver for STIXX 5-120 lights – the most powerful linear lights in the STIXX range. At full power, it can run two lights, ideally above one smaller but illuminated grow tent. The driver is intended exclusively for the STIXX 5 range.

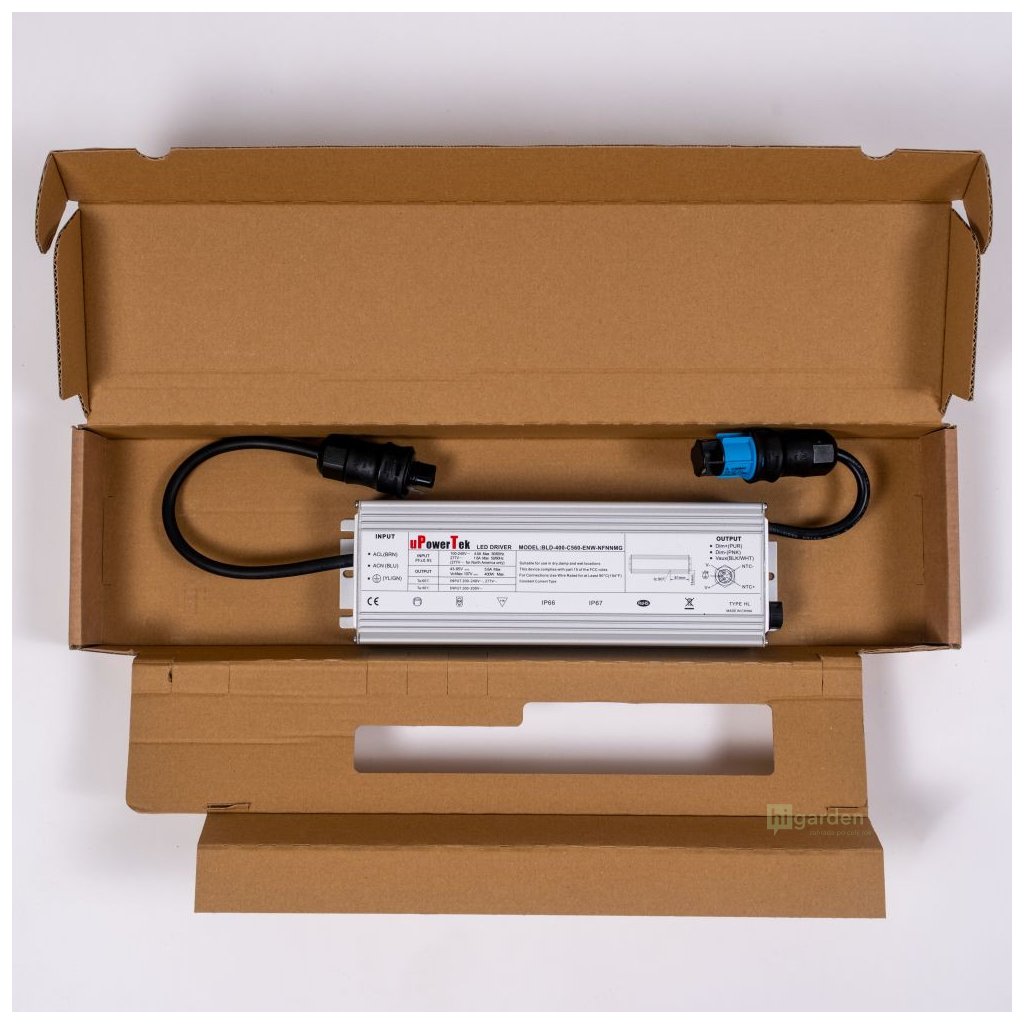

It is purchased separately, without lights or cables. To switch on, it requires STIXX 5-120 lights, which are simply non-illuminating lights without a power supply; the driver is therefore an essential accessory for them.
Power cable for connecting the driver
A separate SANlight power cable, which is not included, is required to connect the driver to the mains. You can choose from two compatible variants:
- SANlight power cable for Q-Series Gen2 – variant with a straight connector.
- Angled SANlight power cable for EVO/Q-Series – variant with an angled connector.
Both cables are used to power this driver from the mains. Cables and splitters for connecting the driver to STIXX lights are selected separately according to the setup.
Specifications
- Type: power driver (Smart Driver) for the STIXX range
- Maximum output power: 250 W
- Designed for: STIXX 5-120 lights (same range only)
- At full power (official SANlight table): two lights (2x 117 W = 234 W)
- Rated power consumption of one light: 117 W
- Max. output current: 2.6 A
- Typical output voltage: 96 V DC
- Dimensions (L x W x H): 281 x 90 x 41.5 mm
- Weight: 1.9 kg
- Input voltage: 120-240/277 V AC, 50/60 Hz

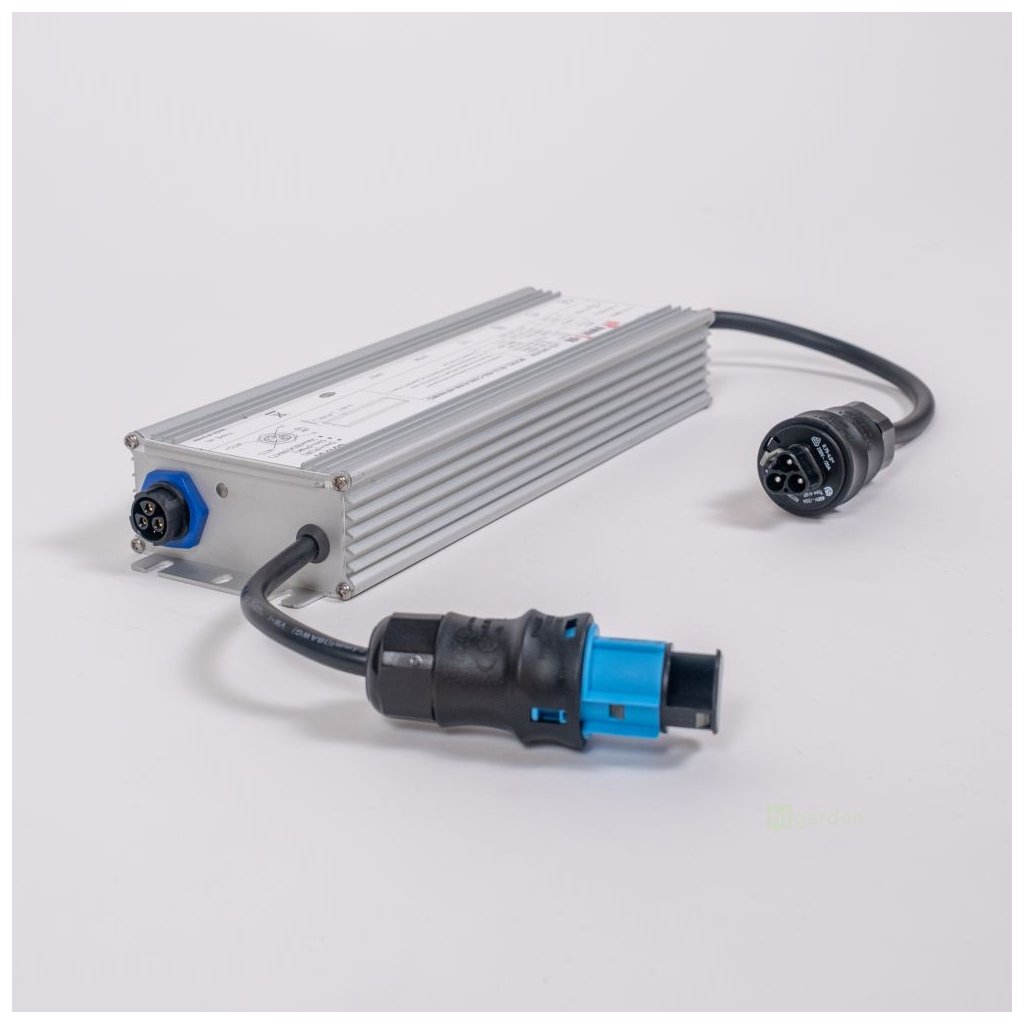

- Dimming: blue connector on the driver (M-Dimmer, Bluetooth Dimmer or 0-10V)
- Unused DC ports: termination plug (mandatory)
- Water resistance: M19 connector on the light is IP68; the driver's mains plug is not water-resistant
Compatibility
Compatible:
- SANlight STIXX 5-120 and Undercanopy STIXX 5-120 lights – two lights at full power
- SANlight termination plug (AI5010) for unused DC ports on the driver
- SANlight dimmers M-Dimmer and Bluetooth Dimmer, or a 0-10V signal (blue connector on the driver)
- M19 extension cables and splitters (5 PIN) from STIXX accessories for connecting multiple lights
Not compatible:
- Ostatní STIXX ranges (2-60, 3-80, 4-100 and 6-150) – the driver is intended only for its own range
- Mixing different STIXX models on one driver – identical lights are required
- STIXX 50 – a closed system with its own power supply and different cabling
- EVO and FLEX II lights – different connector and power supply
When to consider a more powerful driver straight away

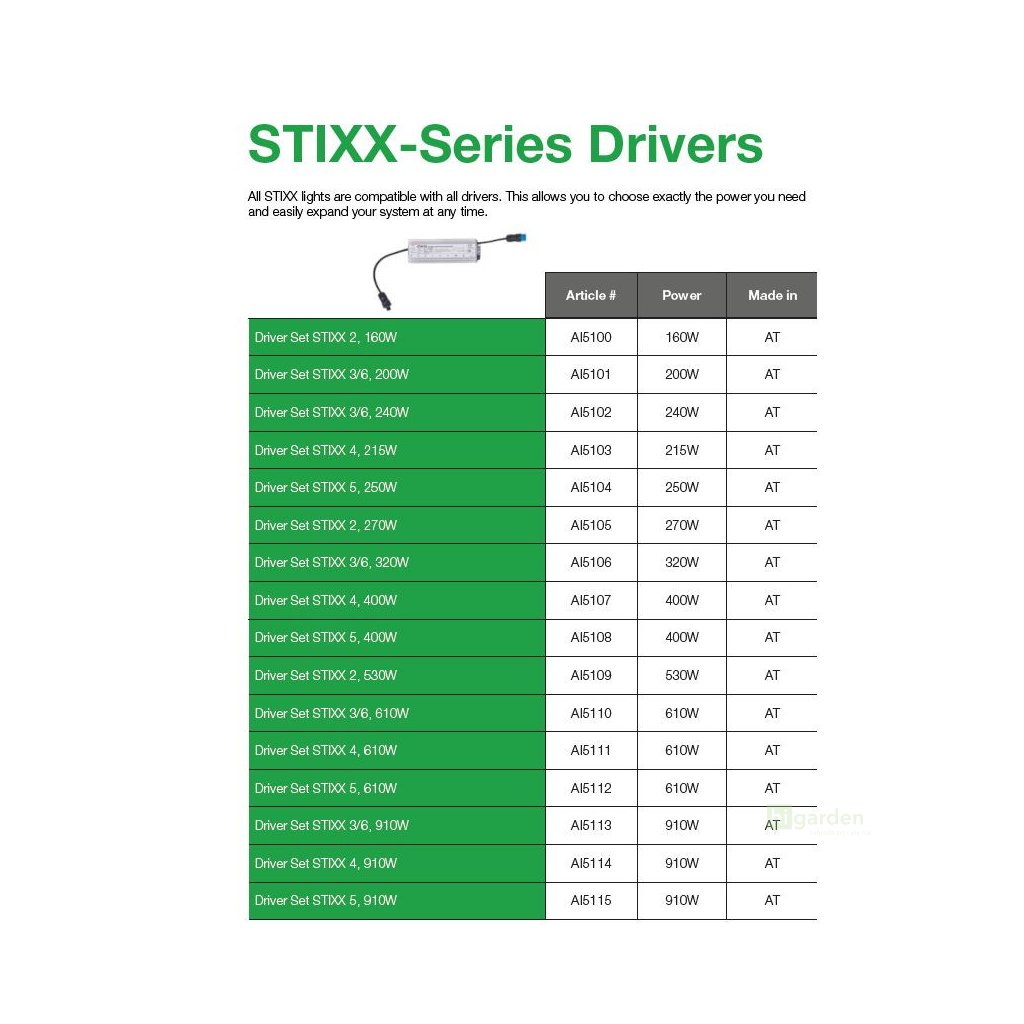

According to the official SANlight table, the 250 W input power supply can run two STIXX 5-120 lights at full power. The key decision is whether you will remain with two lights: the driver cannot be upgraded later; the entire unit must be replaced. If you plan to use three 5-120 lights, buy the 610 W version straight away (the 400 W version can also run only two at full power, but with greater reserve). You do not need to arrange brightness control in advance – a dimmer can be added to the driver at any time.
How to dim and terminate the driver
The driver has a blue connector for dimming – connect an M-Dimmer or Bluetooth Dimmer SANlight to it, or send a 0-10V signal, and all lights will dim simultaneously. Any unused ports must be sealed with a termination plug; otherwise, you risk damaging the system.
IP rating and clearances
The IP68 rating applies to the M19 connector on the light; the driver's mains plug is not water-resistant. Do not stack drivers on top of each other; leave a gap of at least 10 mm between them.
Frequently asked questions
How many STIXX 5-120 lights can this driver run?
Two – it powers a pair of STIXX 5-120 lights (2x 117 W = 234 W) at full power, as stated in the official SANlight table. You can connect a third light, but they will then switch to reduced brightness. If you are aiming for three lights at full power, start with the 610 W driver straight away.
Can different STIXX ranges be mixed on one power supply?
No. One driver always powers identical lights from the same range; the manufacturer expressly prohibits combining STIXX 5-120 with another STIXX model on one driver because each range has a different power consumption. If you need different ranges, purchase a separate driver for each one. Connect multiple pieces of the same model using M19 cables and splitters.
Do I need a termination plug for the driver?
Yes. The driver provides more DC ports than you will typically use, and unused ports are closed with a termination plug (AI5010). Without it, the system may be damaged, so consider it an essential part of the setup. It is supplied separately, not with the driver or lights.
