SANlight EVO LED Set 60 - 200W for 60x60 cm 3 µmol/J - V1.5

Product detailed description

Ready-made LED set for a 60x60 cm tent

SANlight EVO LED Set 60 is for growers who want quality light for a small tent without assembling components one by one. At its core is one EVO 3-60 fixture with a power draw of 200 W and a photon flux of 545 µmol/s, which evenly covers an area of 60x60 cm. Thanks to the high efficiency of the EVO series, the set keeps energy use low throughout the cycle.

Parameters

• Fixture in the set: 1x SANlight EVO 3-60
• Power draw: 200 W
• Photon flux PPF: 545 µmol/s
• Module efficiency: >3 µmol/J (SANlight data)
• Recommended area: 60x60 cm
• Spectrum: full, 400-780 nm
• Protection rating: IP65
• Supply voltage: 100-240/277 VAC, 50/60 Hz
• LM90 lifespan: >90,000 h
• Set weight: 6.55 kg
• Warranty: 3 years

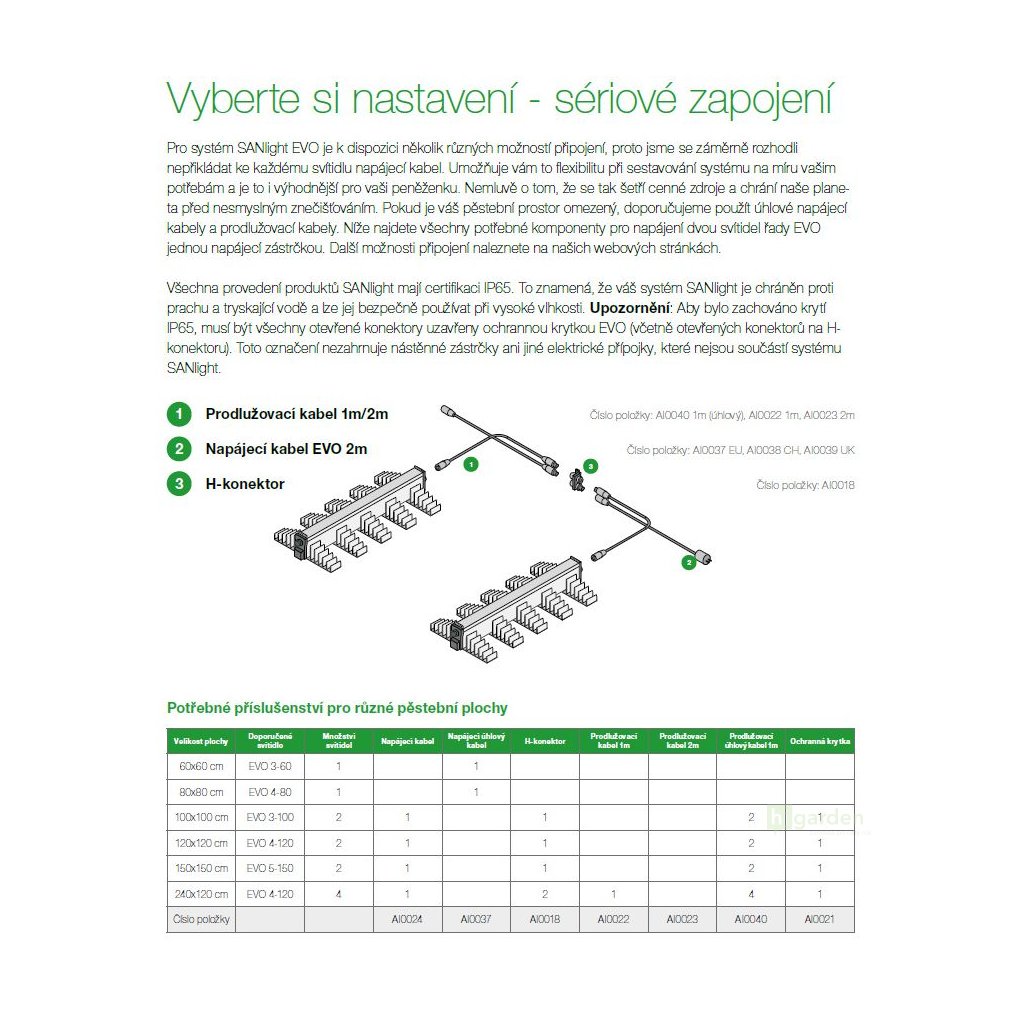

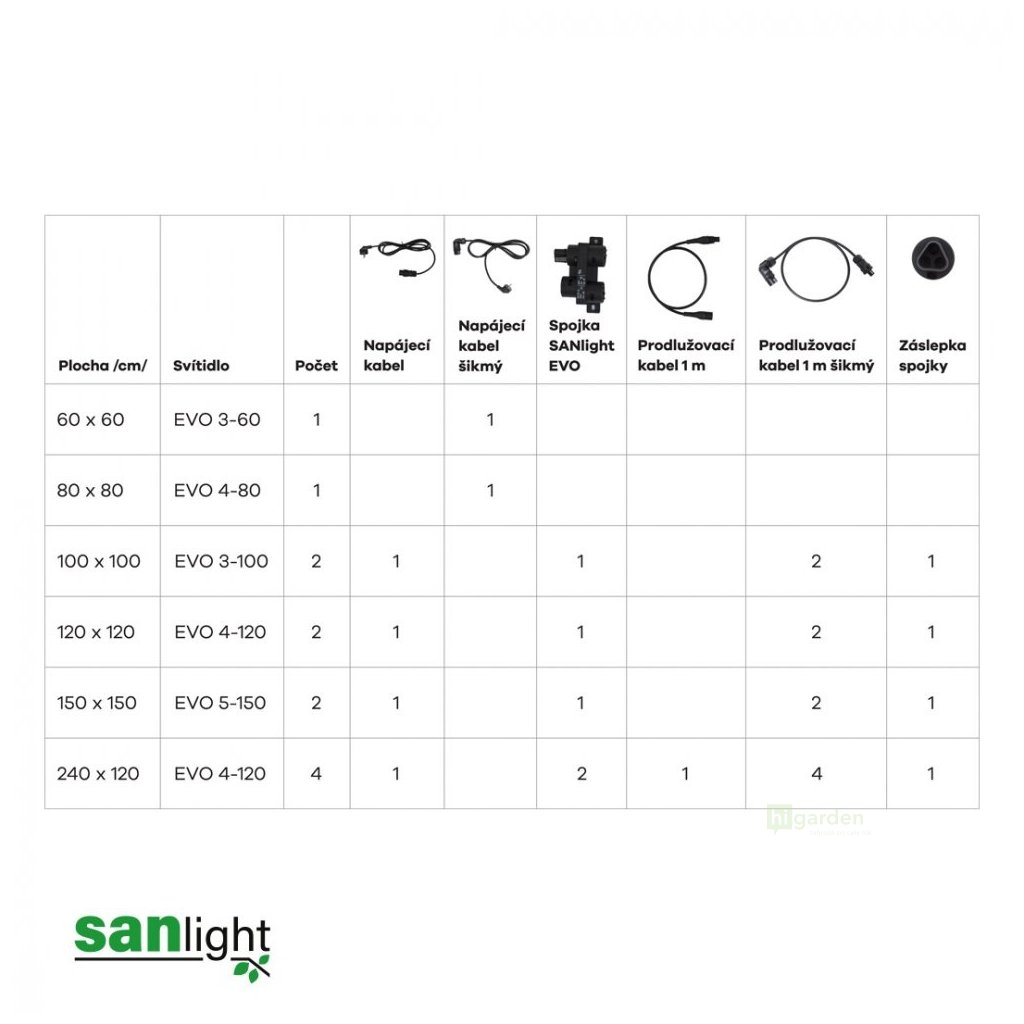

Compatibility

Compatible:

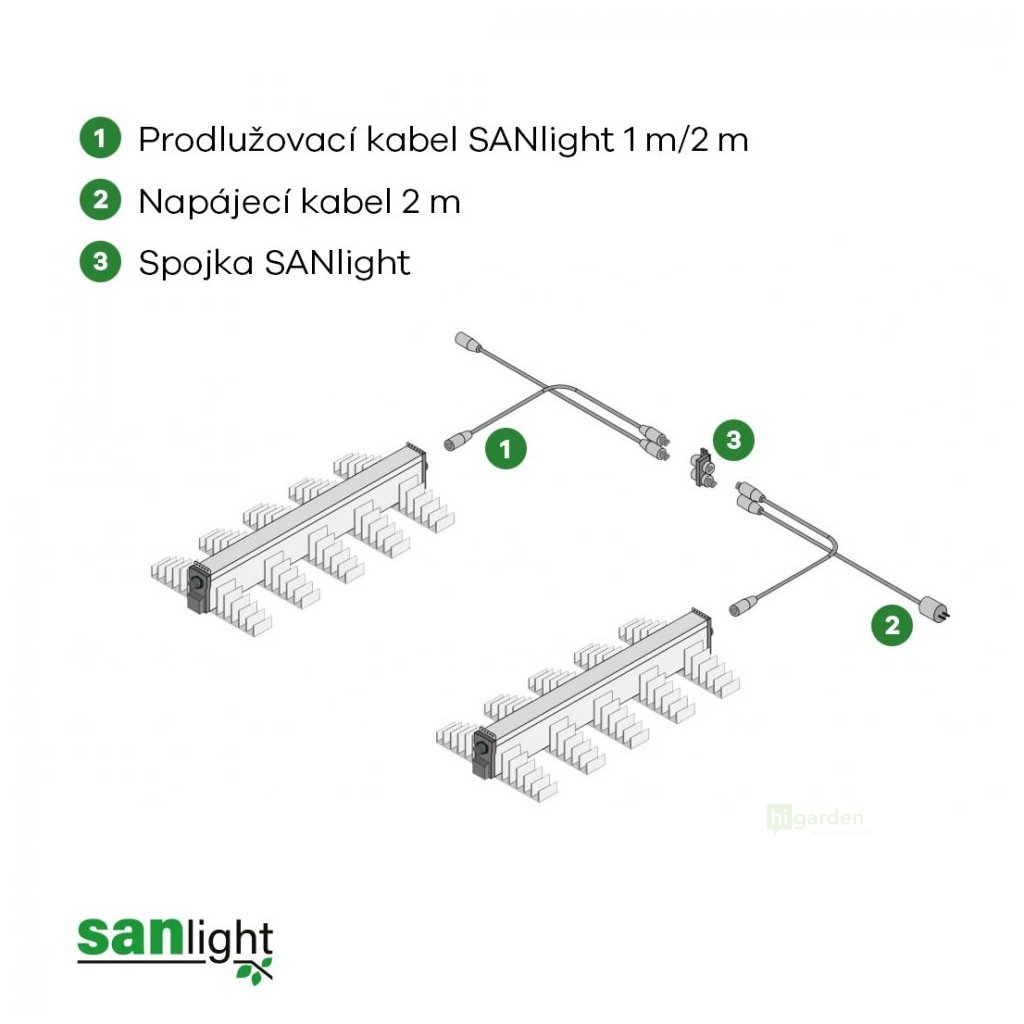

• SANlight extension cable for EVO/Q-Series Gen2 in 1 and 2 m versions or angled 1 m version for a longer supply lead (Wieland RST20i3 connector)

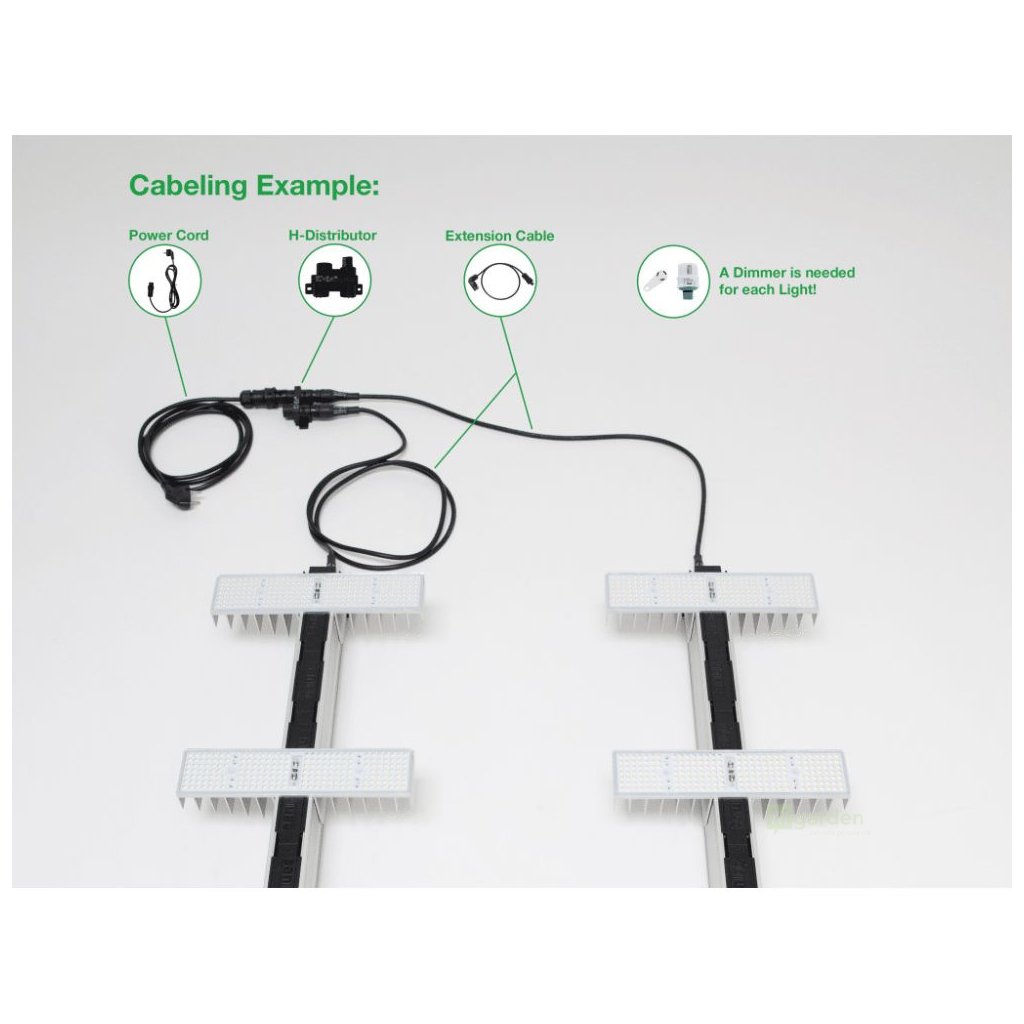

• Power distributors for connecting additional fixtures to one supply: 4-way connector and Wieland splitter
• Dimmers for the blue control connector: SANlight Bluetooth Dimmer or replacement M-Dimmer additionally or instead of the supplied one
• SANlight ratchet hanger as a height-adjustable alternative to the supplied hangers
• Adapters for control via an external controller: GrowControl and Trolmaster

Incompatible:

• EVO Compact 400V cabling and connector (different connector - AC Power Plug 400V, not Wieland RST20i3)
• STIXX series cabling and drivers (different system - M19 5-PIN connector)
• FLEX II power supplies and cabling (different connector - WDC19)

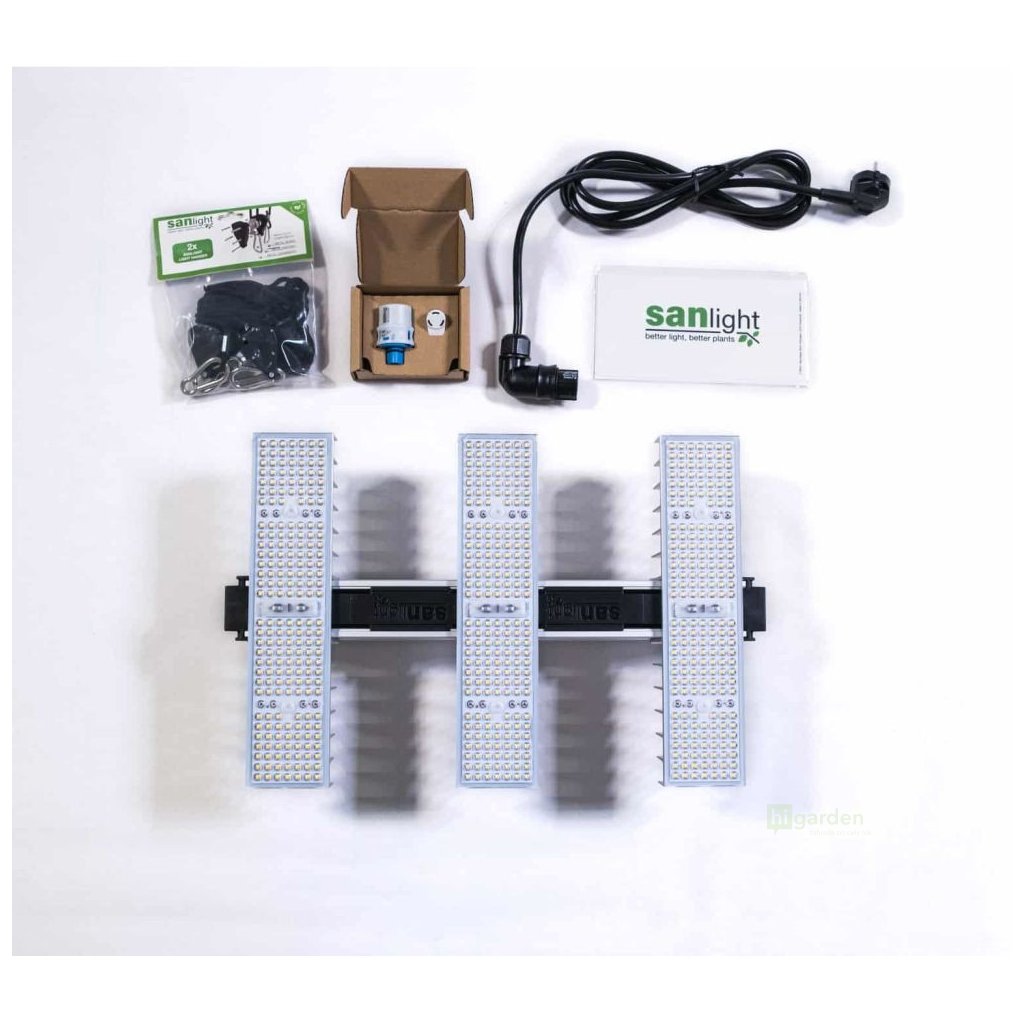

What is in the box

The set is factory-assembled as a ready-to-hang solution and contains:

• 1x SANlight EVO 3-60 LED fixture (200 W)
• 1x power cable
• 2x SANlight hangers, each with a load capacity of 34 kg
• 1x SANlight M-Dimmer

The SANlight EVO 3-60 fixture itself is otherwise sold without a cable or dimmer - in the set you get them together, including accessories.

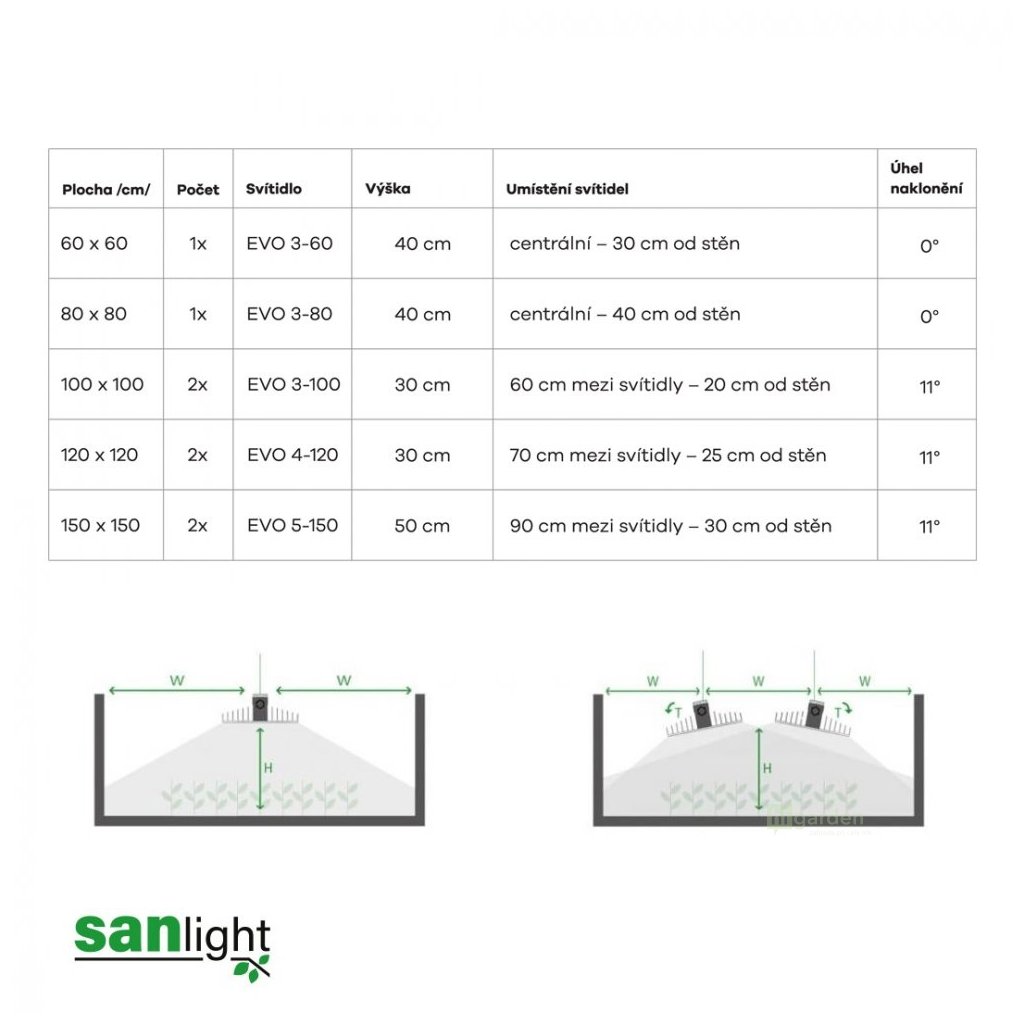

Which set size to choose

Set 60 is the smallest in the range and is aimed at one 60x60 cm tent or a few plants. If you need to light a larger area, choose the more powerful EVO LED Set 80 (265 W, 80x80 cm). In both cases, the light is from the same EVO 1.5 series; only the power and covered area differ.

Frequently asked questions

What size area is Set 60 for?

The set is designed for a 60x60 cm tent. One EVO 3-60 fixture delivers 200 W of power draw and 545 µmol/s of photon flux, which is enough for this area throughout the entire growing cycle. For a larger tent, choose a set with higher power, because one 3-60 fixture is sized precisely for 60x60 cm.

Do I need to buy anything else with the set?

For basic operation, no - the box includes the fixture, power cable, two hangers and the magnetic M-Dimmer, so you only need to hang up and connect the set. You may want to buy a ratchet hanger later for easy height adjustment or another fixture when expanding the space. Substrate, fertilisers and extraction are not part of the lighting set.

How is the fixture dimmed in the set?

The set is equipped with the magnetic SANlight M-Dimmer, which connects to the blue control connector on the fixture and sets the output in fixed steps. If you want to control the light wirelessly, the M-Dimmer can be replaced with the SANlight Bluetooth Dimmer or an external 0-10V controller.
