SANlight EVO 6-120 400W LED 3 µmol/J - V1.5

Product detailed description

Highest power class

SANlight EVO 6-120 is the main LED light of the EVO 1.5 series in the highest power class of 400 W. It delivers 1090 µmol/s of photon flux and SANlight states a module efficiency of over 3 µmol/J for the EVO series. IP65 protection shields the light and connectors from dust and splashing water even during demanding year-round operation. The spectrum consists of red and far-red OSRAM LEDs supplemented by white Seoul Semiconductor (WICOP) diodes.

Parameters

• Model: SANlight EVO 6-120
• Power input: 400 W
• Photon flux PPF: 1090 µmol/s
• Module efficiency: >3 µmol/J
• Spectrum: full spectrum 400-780 nm (blue 16 %, green 37 %, red 43 %, FarRed 4 %)
• LED chips: OSRAM (red and far-red) + Seoul Semiconductor WICOP (white)
• Dimensions: length 1018 mm, width 291 mm, height 116 mm
• Weight: 7.0 kg
• Protection: IP65
• Supply voltage: 100-240/277 VAC, 50/60 Hz
• Beam angle: 90-112°
• LM90 lifespan: >90,000 h
• Connector: Wieland RST20i3 (power), separate blue connector (dimming)
• Warranty: 3 years

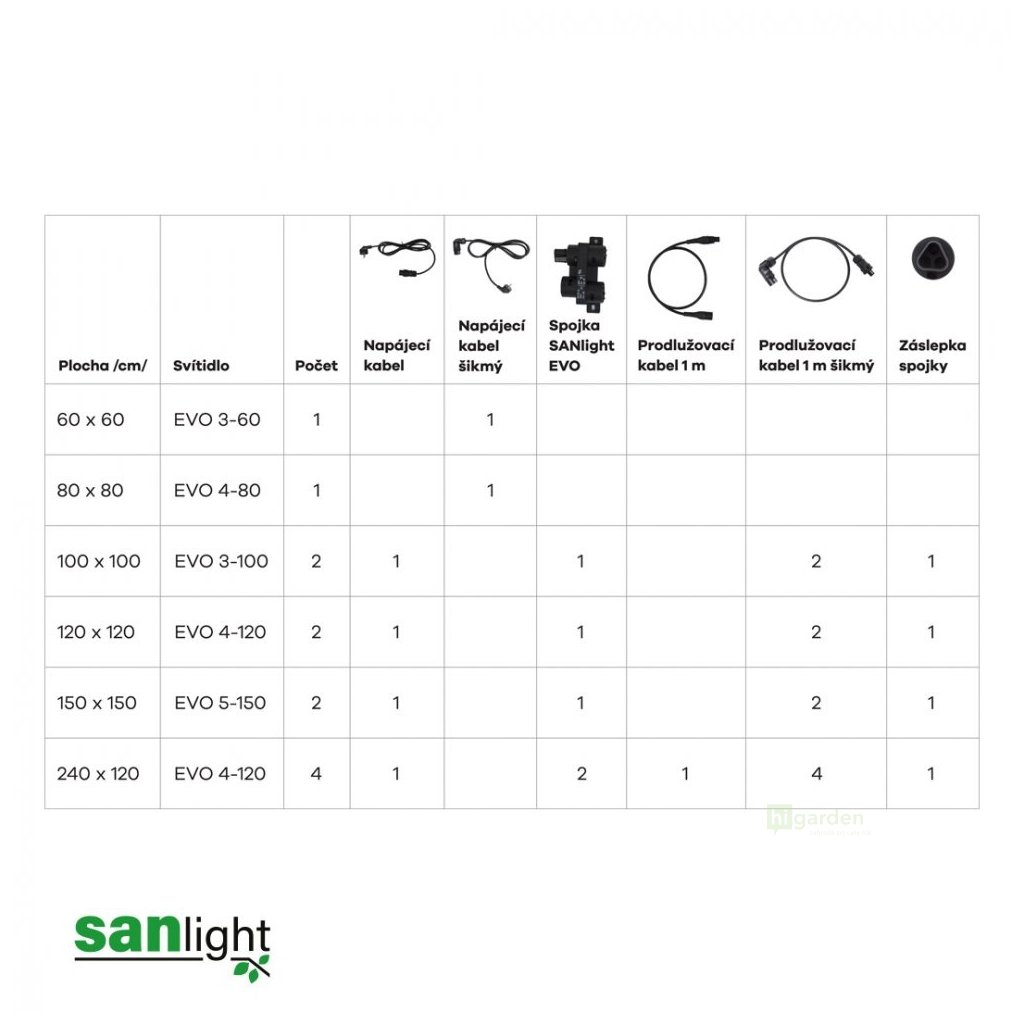

Compatibility

Compatible:

• Wieland RST20i3 power cables: straight (16151), angled (39019), Q-Series (SANACQ)
• EVO/Q-Series Gen2 extension cables (25077 1m/2m, 39373 angled 1m)

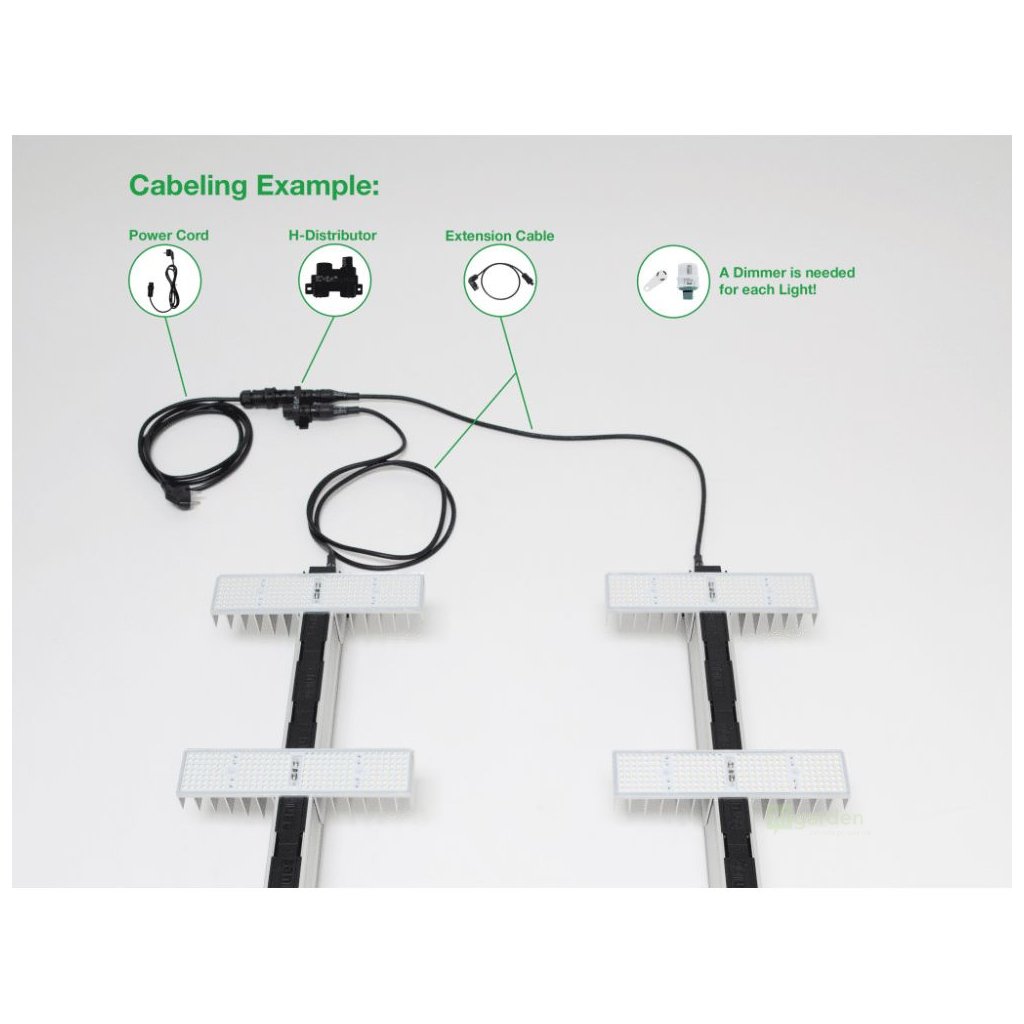

• Wieland connector - 4-way distributor (22264) and splitter connector (39725) for powering multiple lights
• Dimmers via blue connector: Bluetooth Dimmer (22261), M-Dimmer (22255)
• Control adapters: GrowControl (N41607), Trolmaster (N41606); blanking plug for unused connector (22267)

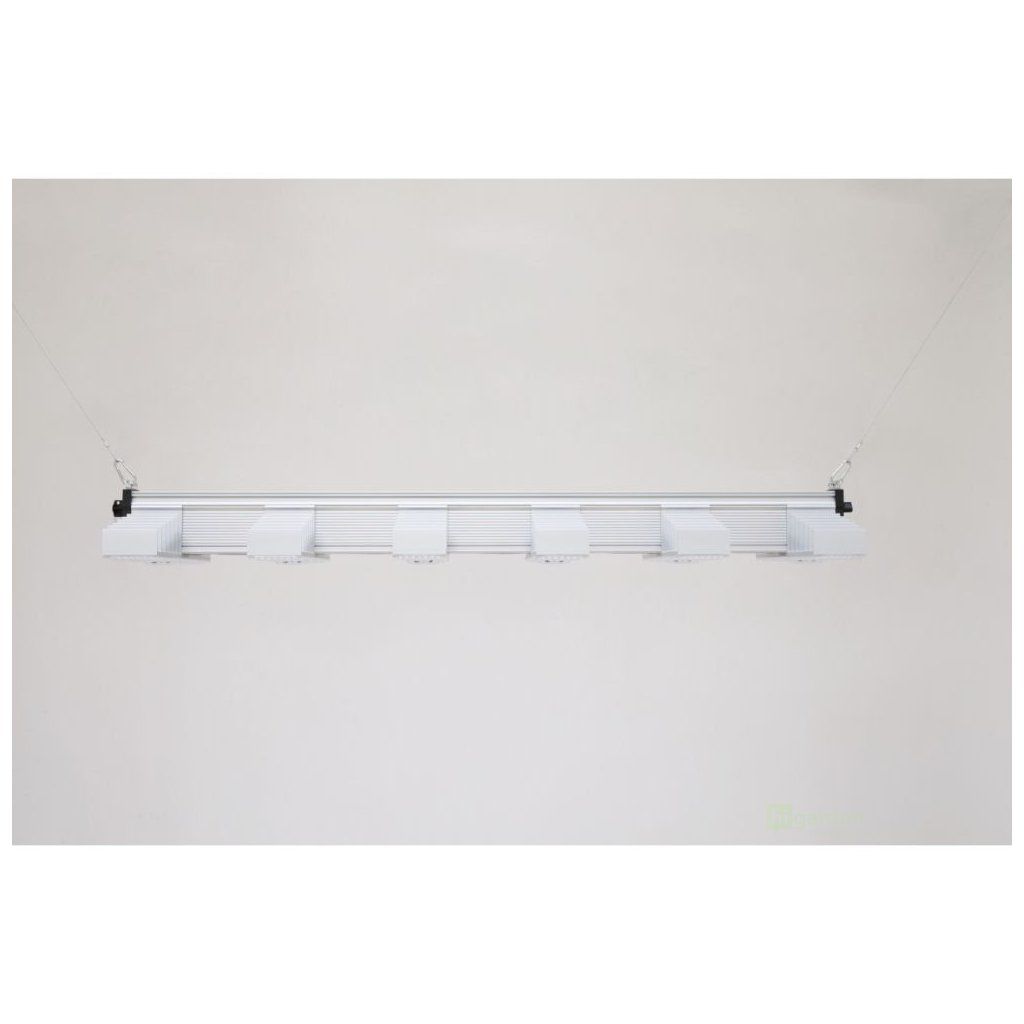

• Suspension: ratchet hanger Light Hanger Ratchet (N52170) with a load capacity of 60 kg - universal, connector-independent

Incompatible:

• EVO Compact 400 V cabling - connector N50243 is for the 400 V version of Compact, it does NOT fit these lights
• STIXX (M19 5-PIN system) - different connector
• FLEX II (WDC19/WDC21 system) - different connector

Highest power on the 5-120 length

EVO 6-120 is the most powerful class in the range - 400 W and 1090 µmol/s in a 1018 mm body, the same length as the EVO 5-120. The manufacturer does not specify a recommended area for it; thanks to the highest photon density, it is a choice for the most demanding growers and higher intensity. The longer EVO 6-150 has the same output in a longer body.

Choose the power cable separately

The light is supplied without a power cable - this is SANlight's intention, because every installation has a different distance to the socket and some users need a straight input, others an angled one. You therefore need to buy a straight power cable or an angled cable with a Wieland RST20i3 connector for EVO 1.5 and Q-Series Gen2. Which is which can be found in the Compatibility section above.

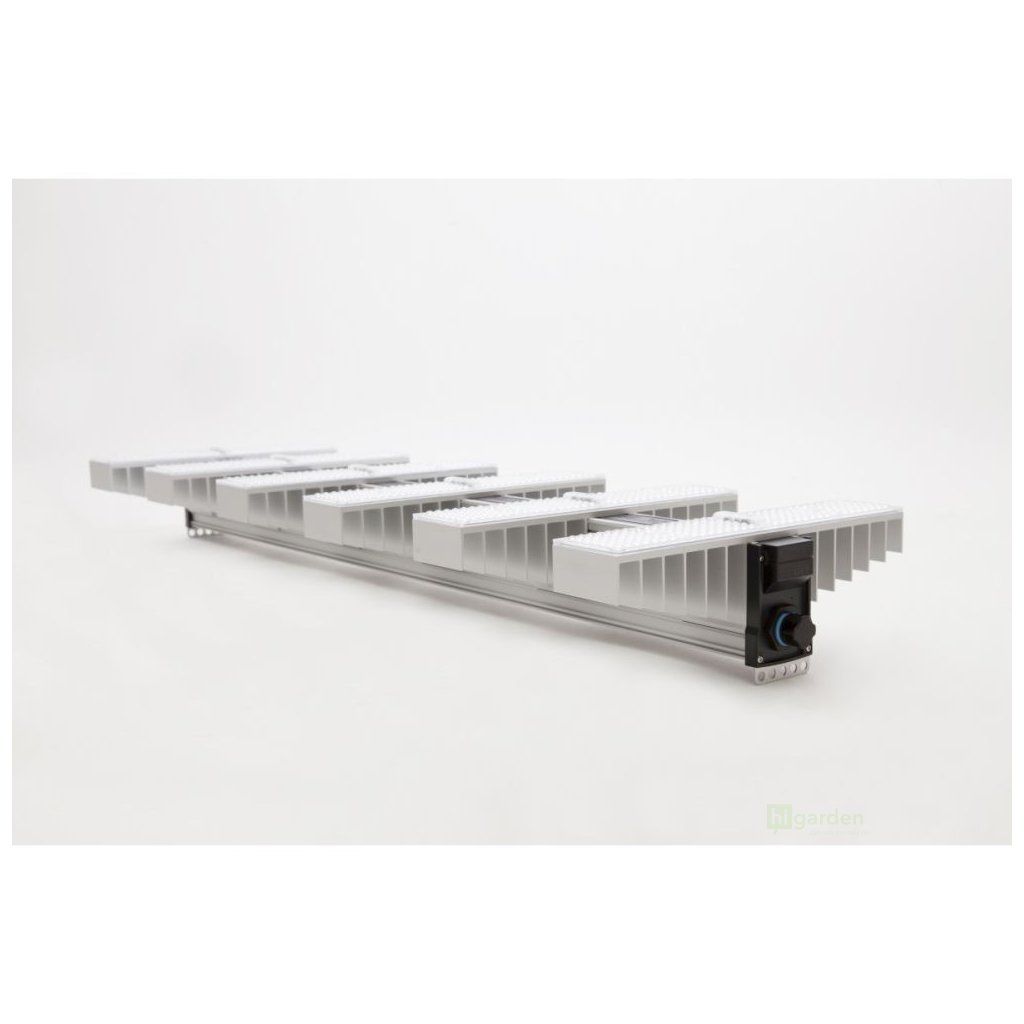

Dimming and control

The light is controlled via a separate blue connector. You can attach the magnetic M-Dimmer or SANlight Bluetooth Dimmer with phone control to it, or control it with an external 0-10V controller via an adapter cable. Power and dimming are two separate sockets, so do not confuse them.

Frequently asked questions

Does the EVO 6-120 light come with a power cable?

No. SANlight deliberately supplies the EVO 6-120 without a power cable so that you can choose the version according to your installation. To get it working, you need one power cable with a Wieland RST20i3 connector - straight, or angled if you run the supply close to the body. Both are available from us separately and installation takes a few minutes.

Does the cabling from the EVO 6-120 also fit STIXX, FLEX II or EVO Compact?

No. The EVO 6-120 uses the Wieland RST20i3 power connector, common to the entire EVO 1.5 and Q-Series Gen2 range. It does not fit EVO Compact in the 400 V version (that one has connector N50243) or the STIXX (M19) and FLEX II (WDC) ranges - they have their own cabling. When buying a cable, stick to the EVO/Q-Series version.

How is the EVO 6-120 dimmed?

The light has a separate blue dimming connector. You can connect the magnetic M-Dimmer or SANlight Bluetooth Dimmer to it, which you control via an app on your phone. Alternatively, you can regulate the EVO 6-120 with an external 0-10V controller via an adapter cable. The power and dimming connectors are two separate sockets.
