SANlight EVO 3-60 200W LED 3 µmol/J - V1.5

Product detailed description

Compact professional LED for 60x60 cm

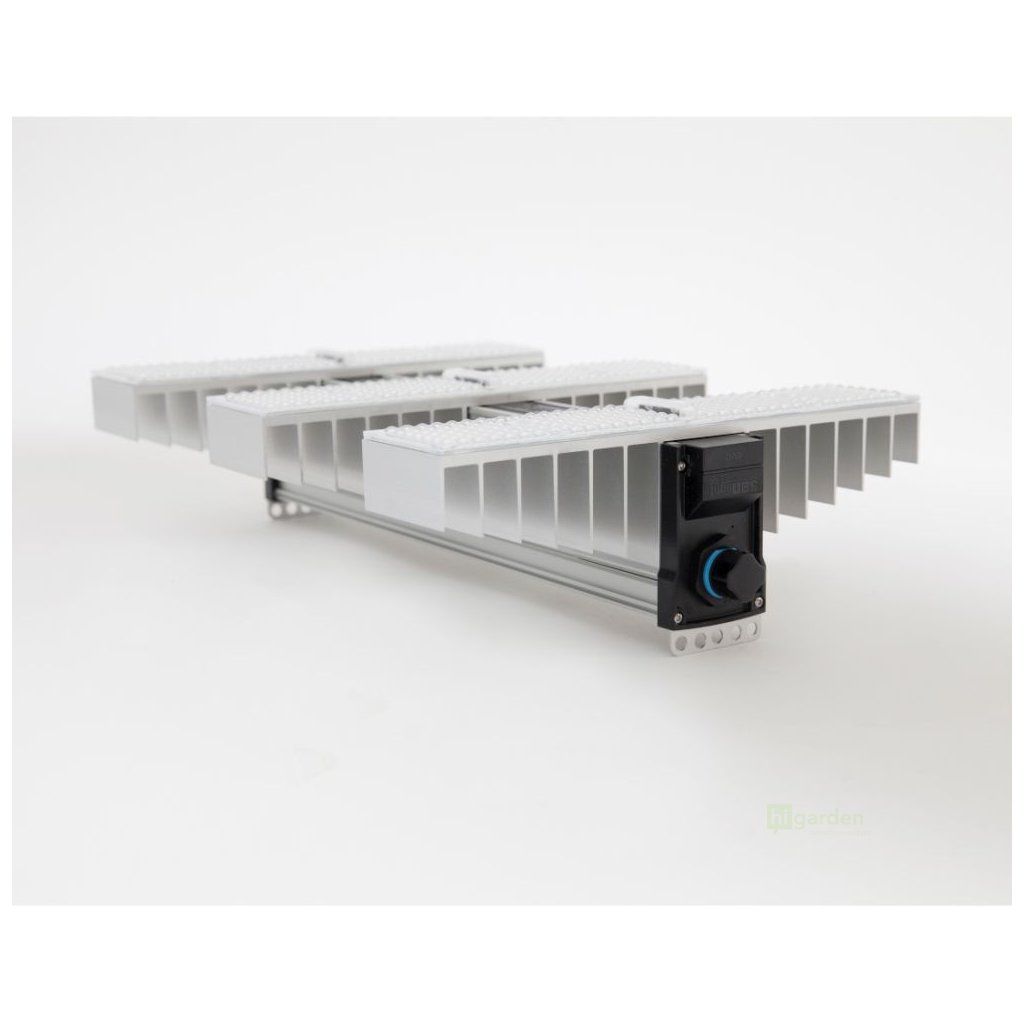

SANlight EVO 3-60 is the main (top light) LED luminaire of the EVO 1.5 series for smaller spaces - one luminaire is designed for an area of 60x60 cm. At an input power of 200 W it delivers 545 µmol/s of photon flux, and SANlight states a module efficiency of over 3 µmol/J for the EVO range. IP65 protection shields the body and connectors from dust and splashing water. It is fitted with red and far-red OSRAM LED chips complemented by white Seoul Semiconductor diodes (WICOP technology).

Parameters

• Model: SANlight EVO 3-60
• Input power: 200 W
• Photon flux PPF: 545 µmol/s
• Module efficiency: >3 µmol/J
• Spectrum: full spectrum 400-780 nm (blue 16 %, green 37 %, red 43 %, FarRed 4 %)
• LED chips: OSRAM (red and far-red) + Seoul Semiconductor WICOP (white)
• Dimensions: length 468 mm, width 291 mm, height 116 mm
• Weight: 3.5 kg
• Recommended area: 60x60 cm (1 luminaire)
• Protection: IP65
• Supply voltage: 100-240/277 VAC, 50/60 Hz
• Beam angle: 90-112°
• LM90 lifetime: >90,000 h
• Connector: Wieland RST20i3 (power supply), separate blue connector (dimming)
• Warranty: 3 years

Compatibility

Compatible:

• Wieland RST20i3 power cables: straight (16151), angled angled (39019), Q-Series (SANACQ)
• Extension cables EVO/Q-Series Gen2 (25077 1m/2m, 39373 angled 1m)

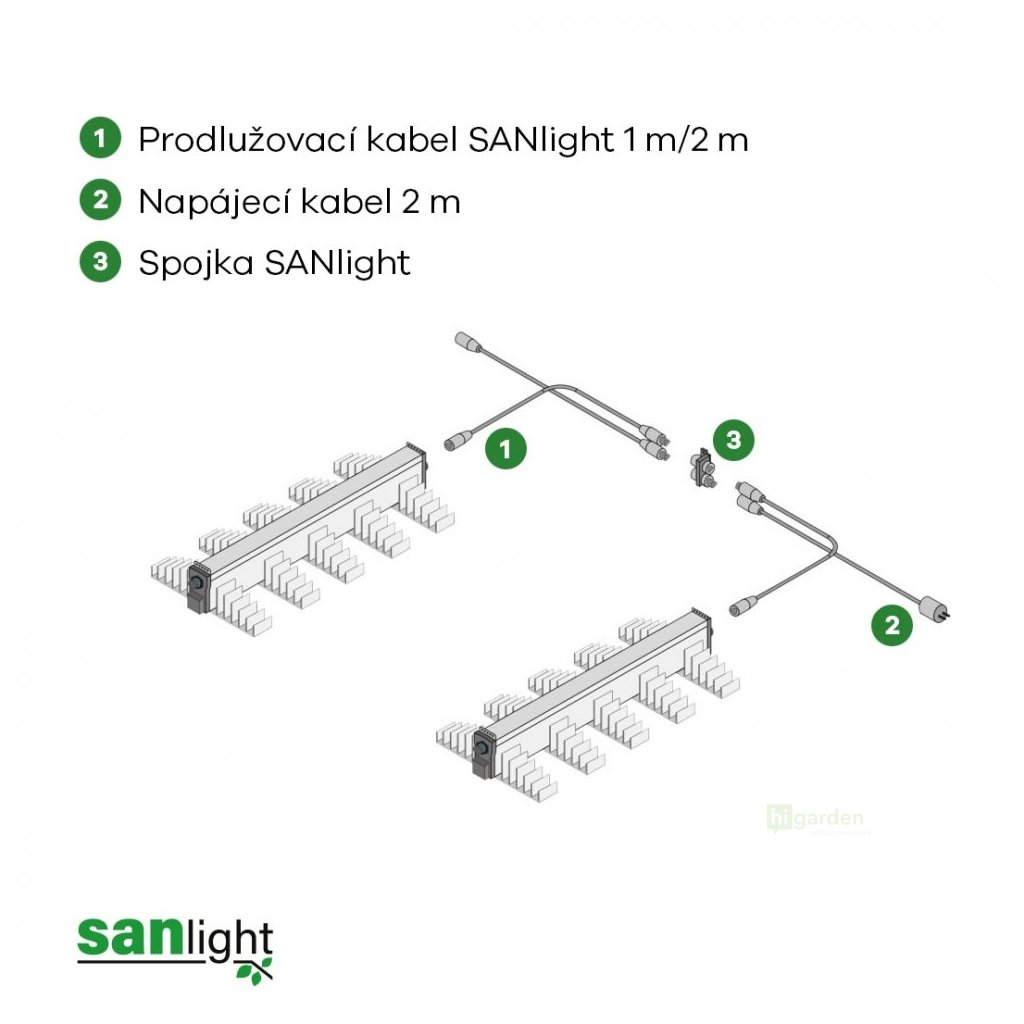

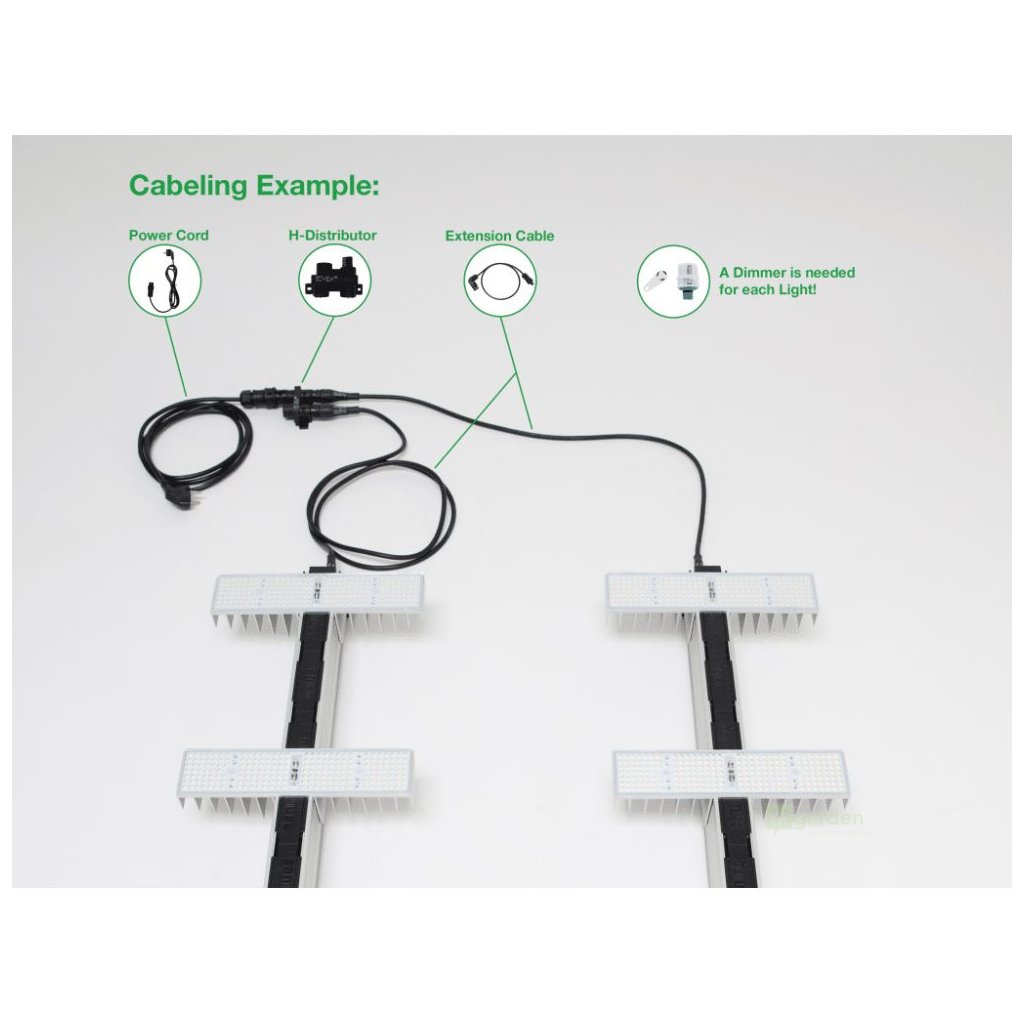

• Wieland connector - 4-way splitter (22264) and splitter (39725) for powering multiple luminaires
• Dimmers via blue connector: Bluetooth Dimmer (22261), M-Dimmer (22255)
• Control adapters: GrowControl (N41607), Trolmaster (N41606); cap for unused connector (22267)

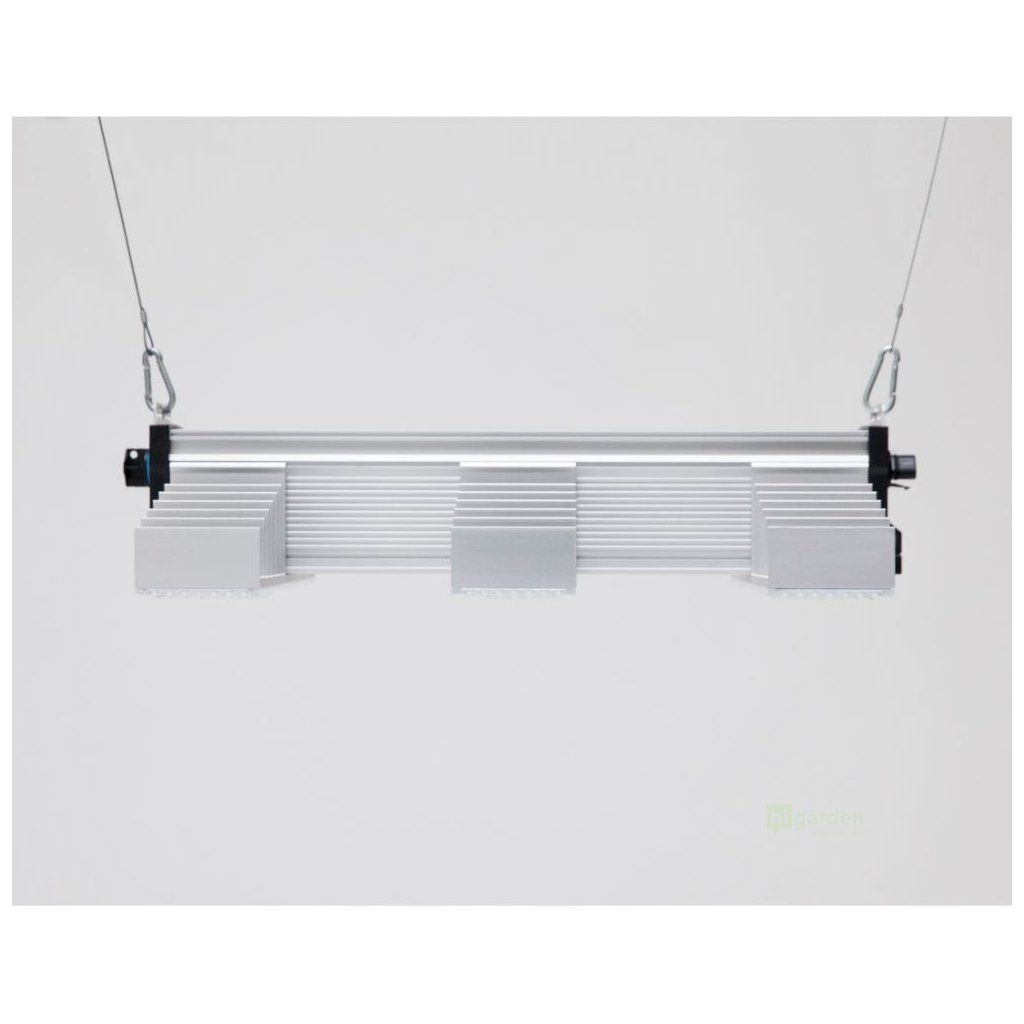

• Suspension: ratchet hanger Light Hanger Ratchet (N52170) with a load capacity of 60 kg - universal, independent of the connector

Incompatible:

• EVO Compact 400 V cabling - connector N50243 is for the 400V version of the Compact, it does NOT fit these luminaires
• STIXX (M19 5-PIN system) - different connector
• FLEX II (WDC19/WDC21 system) - different connector

Which size to choose

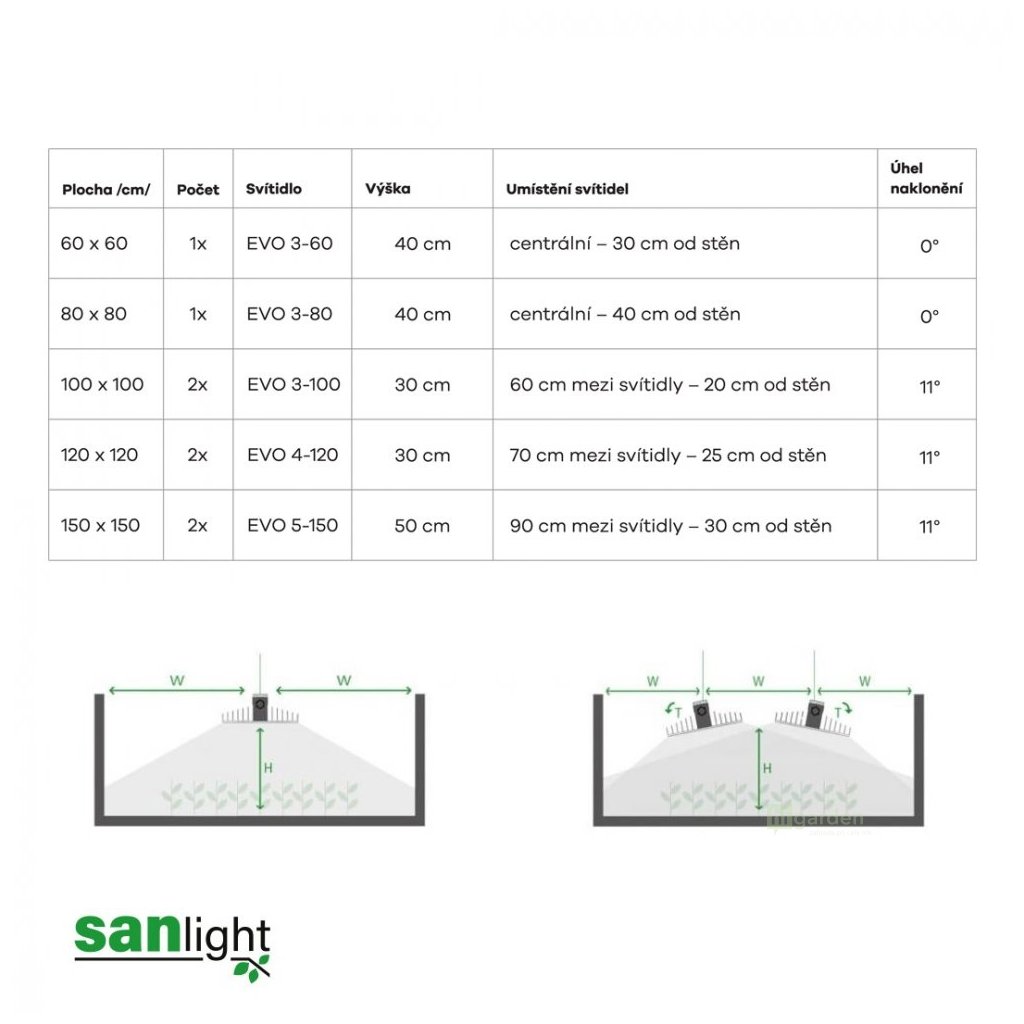

The EVO 3 range is an efficient power class - 200 W and 545 µmol/s. The models differ in length and the area they cover: one EVO 3-60 (468 mm) lights up a 60x60 cm space. For an 80x80 cm tent, choose the EVO 3-80; for a full square metre, choose a pair of EVO 3-100.

You choose the power cable separately

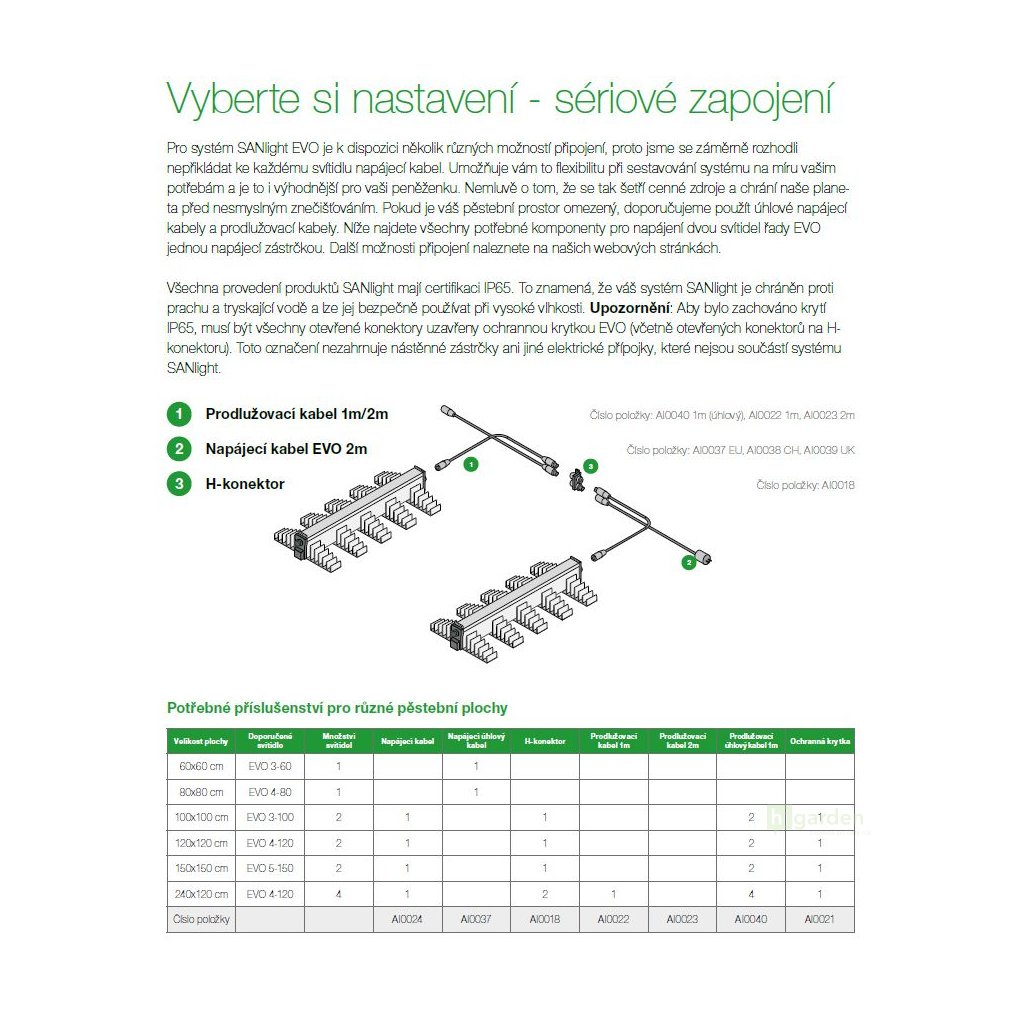

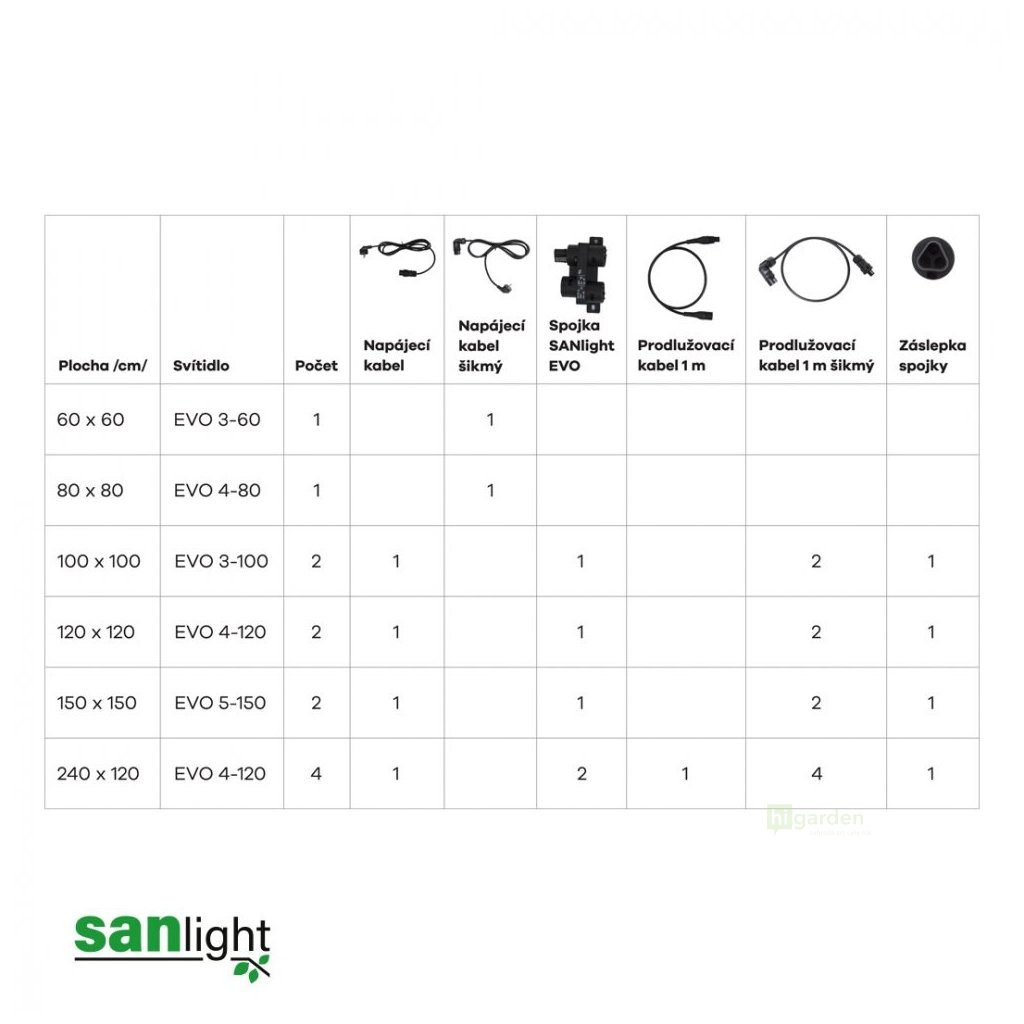

The luminaire is supplied without a power cable - this is intentional on SANlight's part, because every installation has a different distance to the socket and some users need a straight input, others an angled one. So you need to buy either a straight power cable or an angled (angled) cable with a Wieland RST20i3 connector for EVO 1.5 and Q-Series Gen2. Which is which can be found in the Compatibility section above.

Dimming and control

The luminaire is controlled via a separate blue connector. You can attach the magnetic M-Dimmer or SANlight Bluetooth Dimmer with phone control, or control it with an external 0-10V controller via an adapter cable. Power supply and dimming are two separate sockets, so do not confuse them.

Frequently asked questions

Does the EVO 3-60 luminaire come with a power cable in the package?

No. SANlight deliberately supplies the EVO 3-60 without a power cable so that you can choose the version according to your installation. To get it up and running, you need one power cable with a Wieland RST20i3 connector - straight, or angled if you run the supply close to the body. Both are available separately from us, and installation takes a few minutes.

Does the cabling from EVO 3-60 also fit STIXX, FLEX II or EVO Compact?

No. EVO 3-60 uses the Wieland RST20i3 power connector, common to the entire EVO 1.5 and Q-Series Gen2 range. It does not fit EVO Compact in the 400 V version (that one has connector N50243) or the STIXX (M19) and FLEX II (WDC) ranges - they have their own cabling. When buying a cable, stick to the EVO/Q-Series version.

How is the EVO 3-60 dimmed?

The luminaire has a separate blue dimming connector. You connect the magnetic M-Dimmer or SANlight Bluetooth Dimmer to it, which you control via the app on your phone. Alternatively, you can regulate the EVO 3-60 with an external 0-10V controller via an adapter cable. The power and dimming connectors are two separate sockets.
