SANlight EVO 6-150 400W LED 3 µmol/J - V1.5

Product detailed description

Flagship model for the largest installations

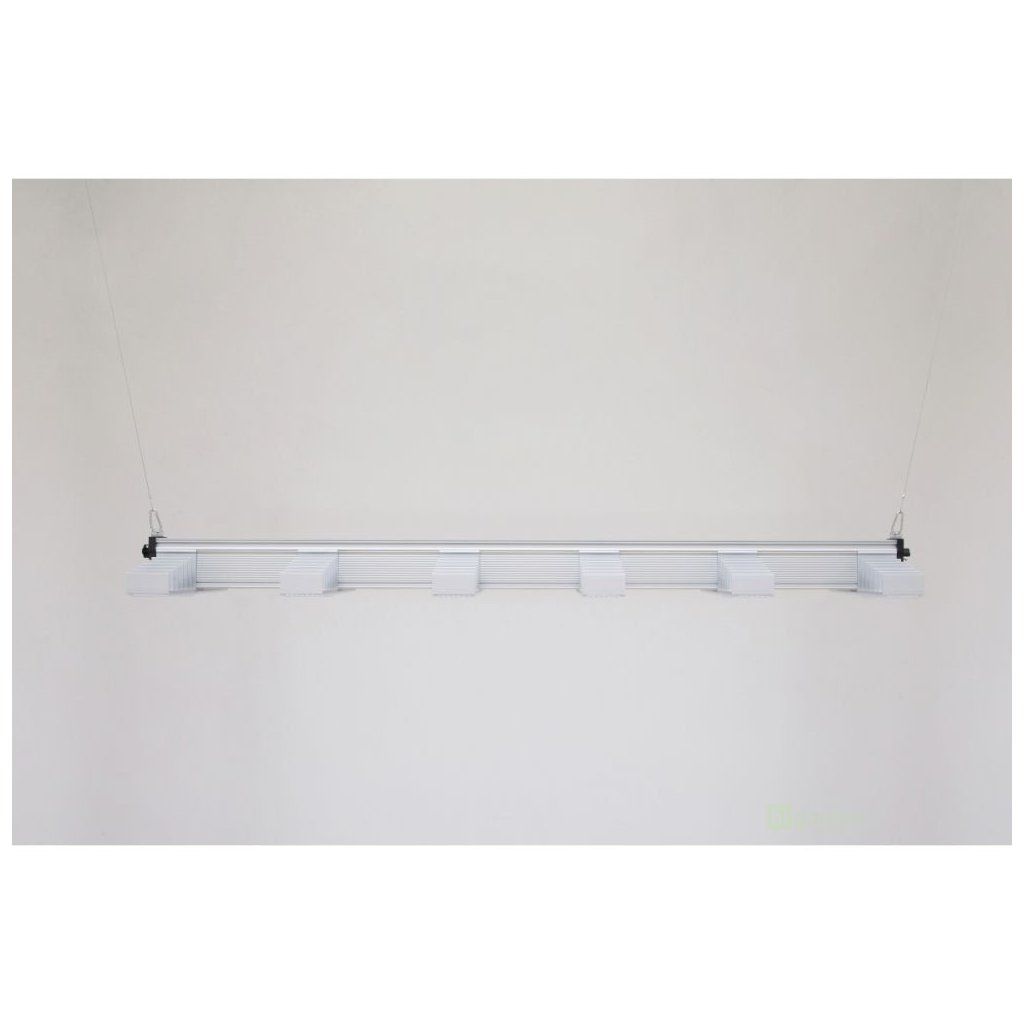

SANlight EVO 6-150 is the flagship (top light) LED luminaire of the EVO 1.5 series - the highest power class of 400 W in the longest version. It delivers 1090 µmol/s of photon flux and SANlight states a module efficiency of over 3 µmol/J for the EVO series. IP65 protection ensures resistance to dust and splashing water in large and commercial spaces. It is fitted with red and far-red OSRAM LED chips supplemented by white Seoul Semiconductor diodes (WICOP technology).

Parameters

• Model: SANlight EVO 6-150
• Power input: 400 W
• Photon flux PPF: 1090 µmol/s
• Module efficiency: >3 µmol/J
• Spectrum: full spectrum 400-780 nm (blue 16 %, green 37 %, red 43 %, FarRed 4 %)
• LED chips: OSRAM (red and far-red) + Seoul Semiconductor WICOP (white)
• Dimensions: length 1318 mm, width 291 mm, height 116 mm
• Weight: 7.5 kg
• Protection: IP65
• Supply voltage: 100-240/277 VAC, 50/60 Hz
• Beam angle: 90-112°
• LM90 lifespan: >90,000 h
• Connector: Wieland RST20i3 (power), separate blue connector (dimming)
• Warranty: 3 years

Compatibility

Compatible:

• Wieland RST20i3 power cables: straight (16151), angled angled (39019), Q-Series (SANACQ)
• EVO/Q-Series Gen2 extension cables (25077 1m/2m, 39373 angled 1m)
• Wieland coupler - 4-way distributor (22264) and splitter connector (39725) for powering multiple luminaires
• Dimmers via the blue connector: Bluetooth Dimmer (22261), M-Dimmer (22255)
• Control adapters: GrowControl (N41607), Trolmaster (N41606); blanking plug for unused connector (22267)
• Suspension: ratchet hanger Light Hanger Ratchet (N52170) with a load capacity of 60 kg - universal, connector-independent

Incompatible:

• EVO Compact 400 V cabling - connector N50243 is for the 400 V version of Compact, it does NOT fit these luminaires
• STIXX (M19 5-PIN system) - different connector
• FLEX II (WDC19/WDC21 system) - different connector

Flagship performance in the longest body

EVO 6-150 combines the highest output in the range (400 W, 1090 µmol/s) with the longest 1318 mm body - the same length as the EVO 5-150. The manufacturer does not specify a particular area for it; it is a light for the largest and most demanding installations. The shorter EVO 6-120 offers the same output in a higher density.

You need a power cable to get it running

The power cable is not included in the package - you choose it according to your installation. You can use a straight power cable, or the angled variant when you route the supply close to the body. Both have a Wieland RST20i3 connector for EVO 1.5 and Q-Series Gen2 (an overview of matching and non-matching systems is in the Compatibility section).

Dimming and control

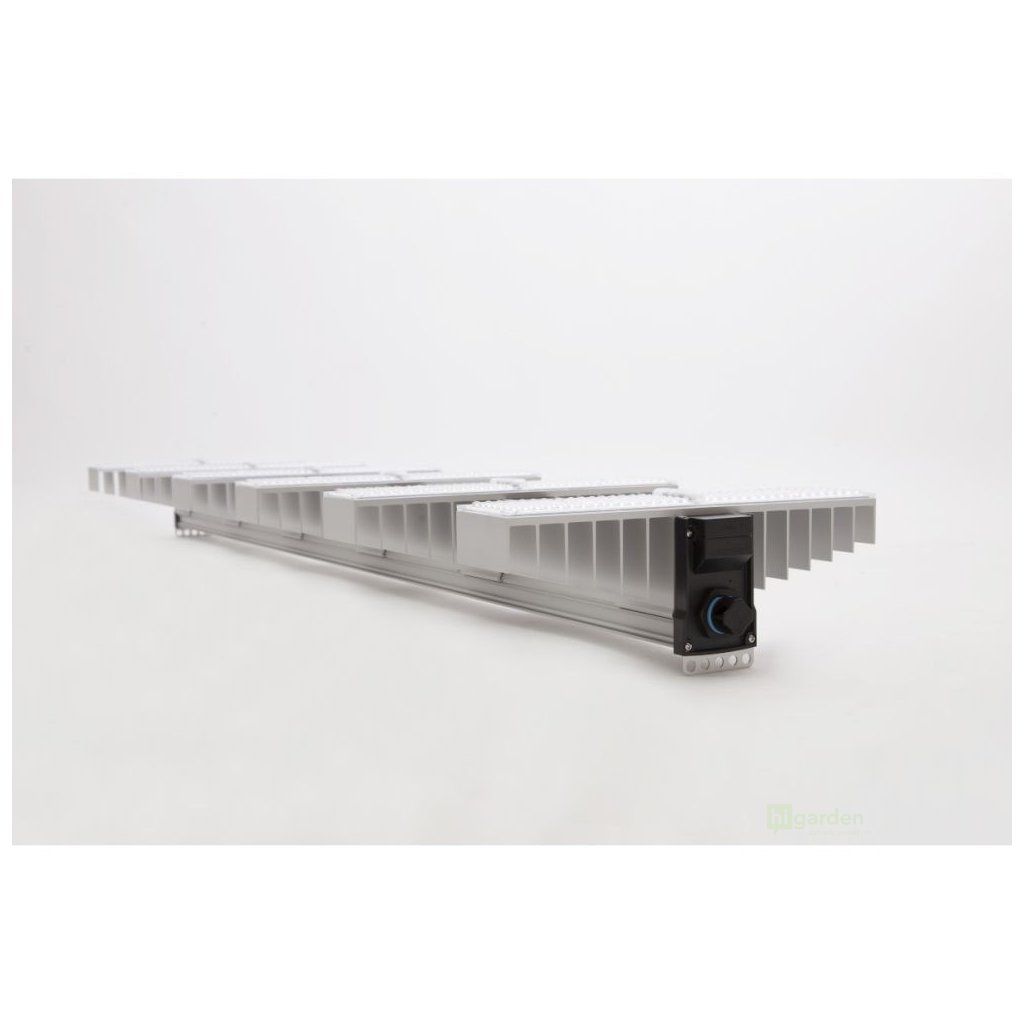

The luminaire is controlled via a separate blue connector. You can attach the magnetic M-Dimmer or SANlight Bluetooth Dimmer with phone control to it, or control it with an external 0-10V controller via an adapter cable. Power and dimming are two separate sockets, do not confuse them.

Connecting multiple luminaires

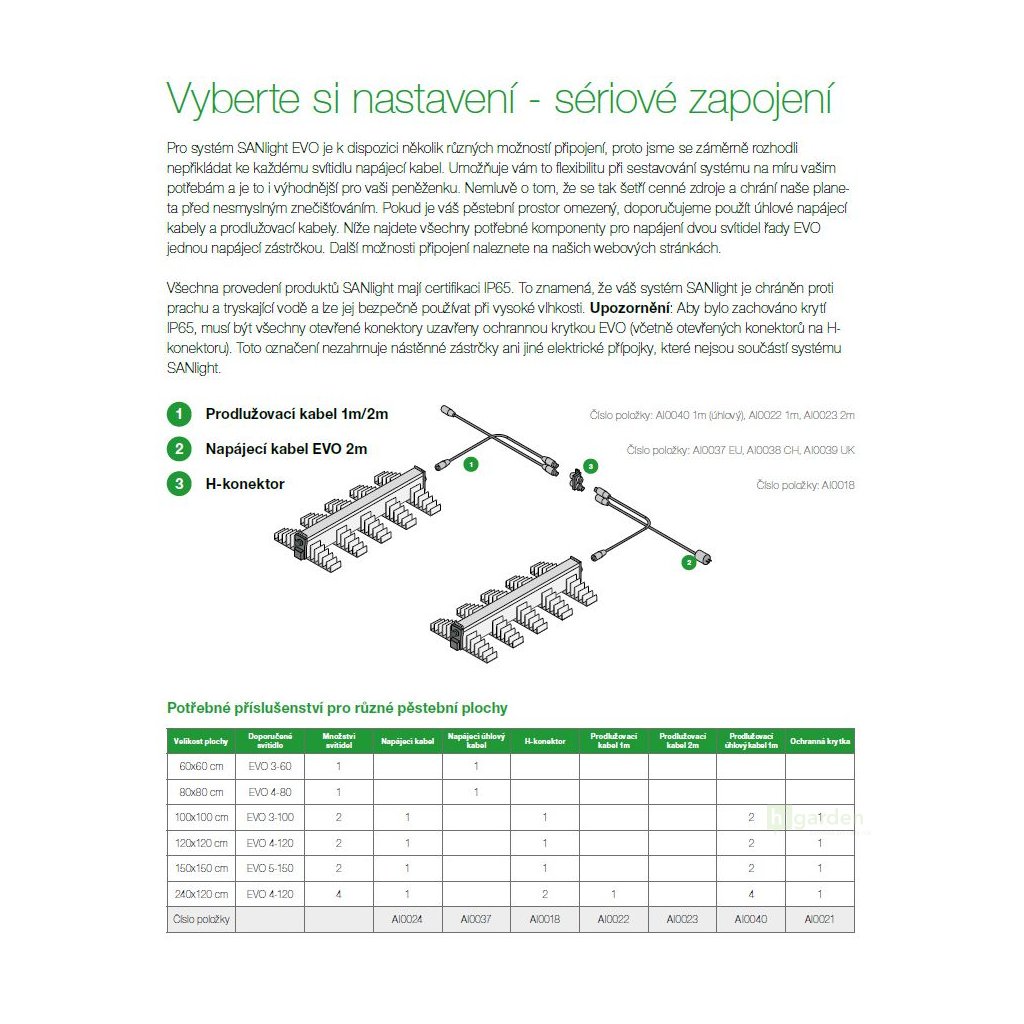

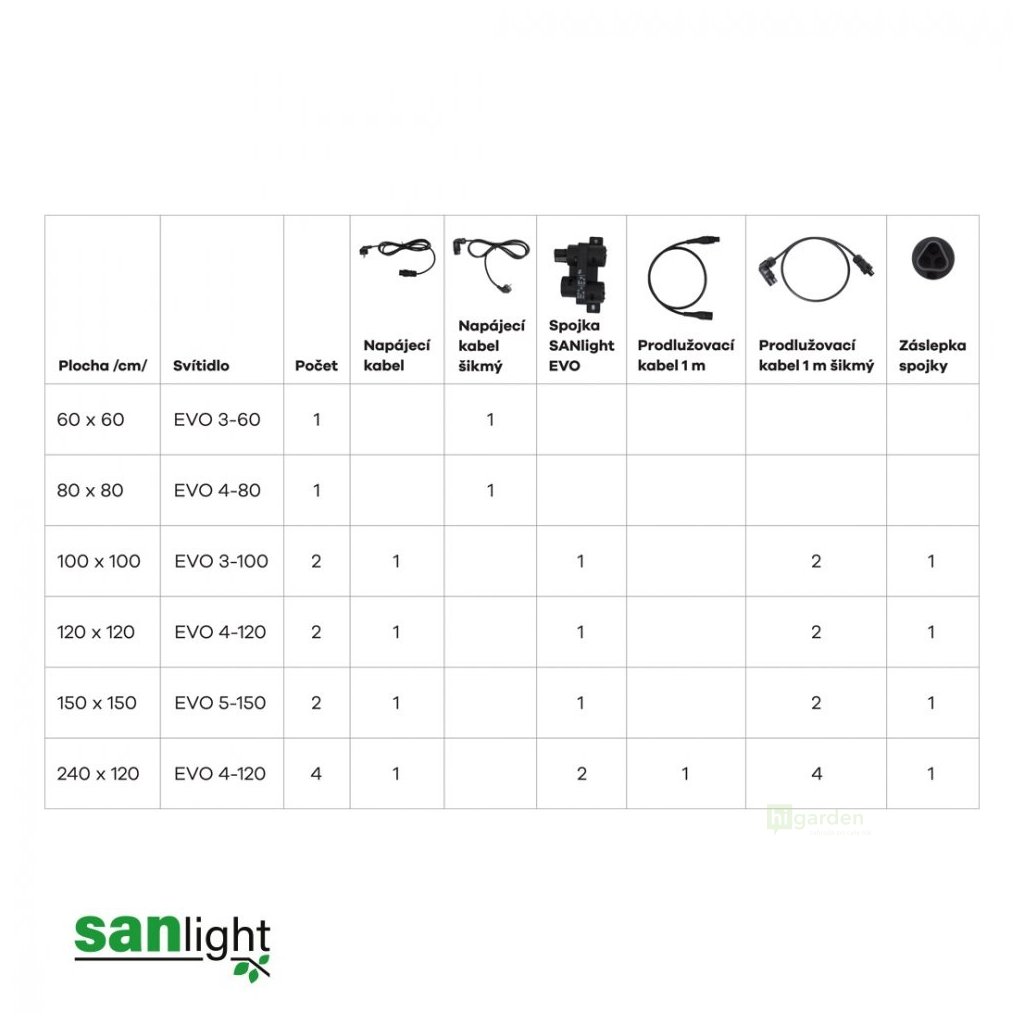

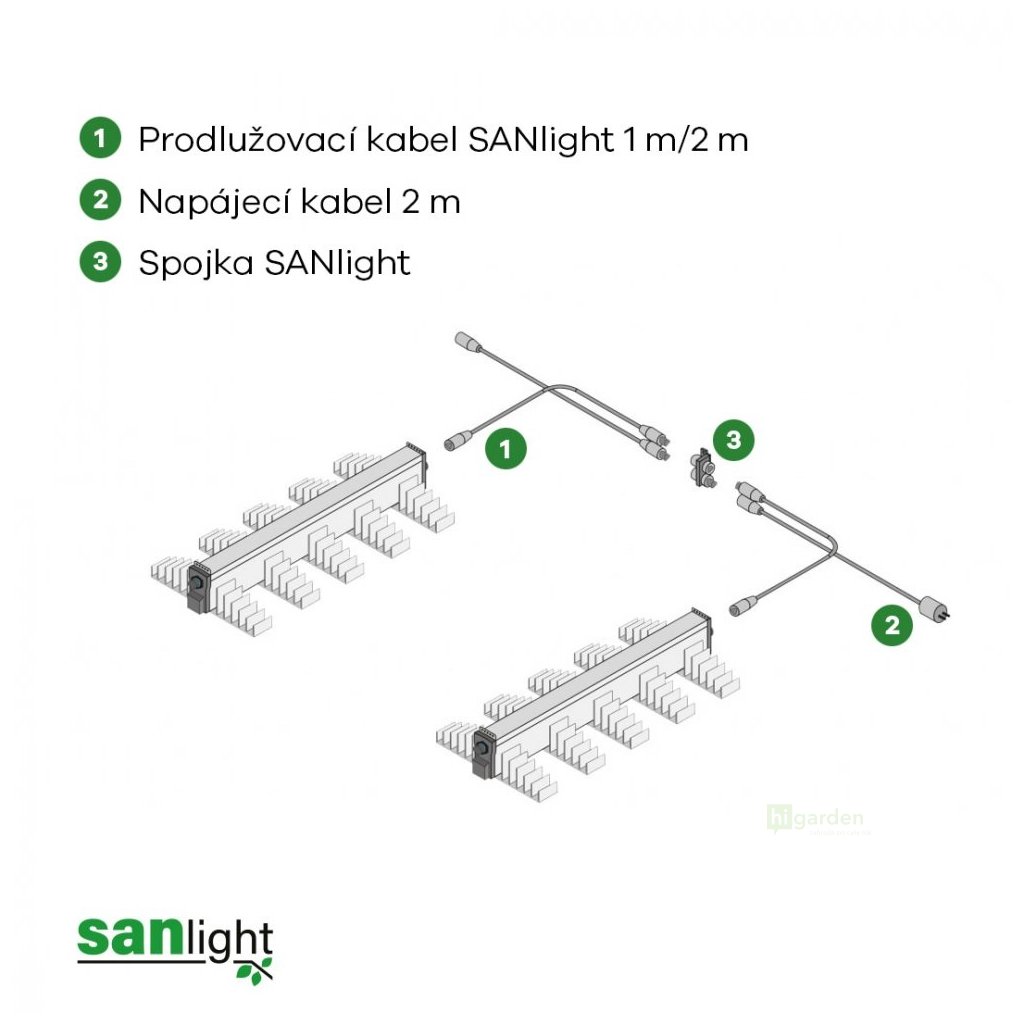

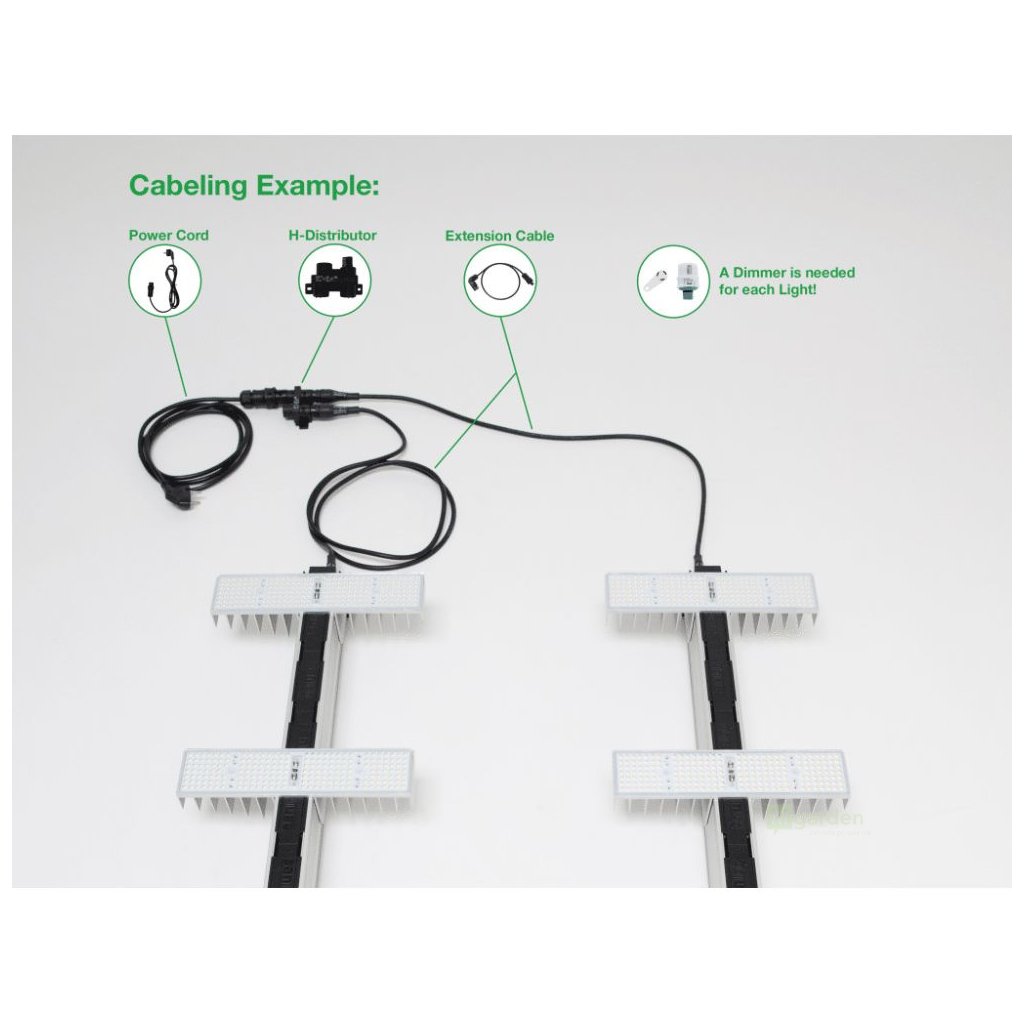

For large areas, the luminaire is installed in multiple units. To power them from one supply, use a Wieland coupler (4-way distributor), which distributes the mains to individual luminaires. The dimming signal can then be split to all luminaires at once.

Frequently asked questions

Does the cabling from EVO 6-150 also fit STIXX, FLEX II or EVO Compact?

No. EVO 6-150 uses the Wieland RST20i3 power connector, common to the entire EVO 1.5 and Q-Series Gen2 range. It does not fit EVO Compact in the 400 V version (that one has connector N50243) or the STIXX (M19) and FLEX II (WDC) ranges - they have their own cabling. When buying a cable, stick to the EVO/Q-Series variant.

Is a power cable included with the EVO 6-150 luminaire?

No. SANlight deliberately supplies the EVO 6-150 without a power cable so that you can choose the variant according to your installation. To get it running, you need one power cable with a Wieland RST20i3 connector - straight, or angled when you route the supply close to the body. Both are available from us separately and installation takes a few minutes.

Can I connect more than one EVO 6-150 to one supply?

Yes. In a larger space, the EVO 6-150 is often arranged in rows of two or more units side by side. To power them from one supply, use a Wieland coupler (distributor), which splits the mains to several luminaires. You can then dim each one separately, or together via a dimming signal splitter.
