SANlight EVO 4-100 265W LED 3 µmol/J - V1.5

Product detailed description

Professional LED light for maximum yield on 100x100 cm

SANlight EVO 4-100 is the main (top light) LED light in the EVO 1.5 range for growers who want to get the most out of their space. It is a powerful solution for an area of 100x100 cm - it delivers 725 µmol/s of photon flux at a power input of 265 W, and SANlight states a module efficiency of over 3 µmol/J. For the highest intensity (typically with added CO2), two lights are used on this area. IP65 protection means the light can withstand dust and splashing water in a typical grow space.

Parameters

• Power input: 265 W
• Photon flux PPF: 725 µmol/s
• Module efficiency: >3 µmol/J
• Recommended area: 100x100 cm
• Spectrum: full spectrum 400-780 nm (blue 16 %, green 37 %, red 43 %, FarRed 4 %)
• Dimensions: 818 x 291 x 116 mm
• Weight: 4.8 kg
• Protection: IP65
• Supply voltage: 100-240/277 VAC, 50/60 Hz
• Beam angle: 90-112°
• Operating temperature: 5-30 °C
• Humidity resistance: max. 99 % RH
• LM90 lifespan: >90 000 h
• Connector: Wieland RST20i3 (power supply), separate blue connector (dimming)
• Warranty: 3 years

Compatibility

Compatible:

• Power cable with Wieland RST20i3 connector - straight and angled

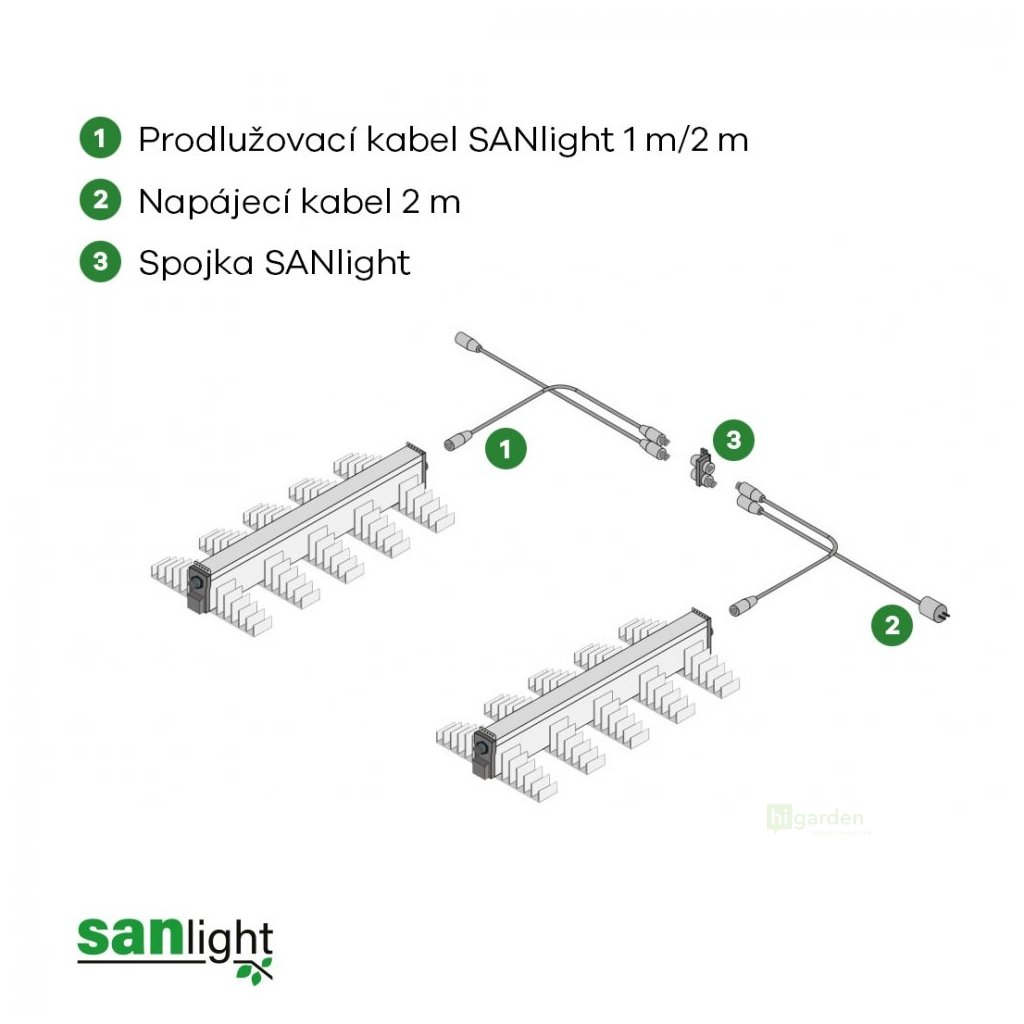

• Extension cables SANlight (1 m / 2 m) and angled extension 1m for chaining multiple lights
• Wieland 4-way distributor (connector) and splitter for powering multiple lights from one supply
• SANlight dimmers M-Dimmer and Bluetooth Dimmer (blue connector)
• External controllers via GrowControl adapter or Trolmaster adapter
• Height-adjustable suspension Light Hanger Ratchet
• Other lights in the EVO 1.5 and Q-Series Gen2 ranges (same wiring)

Incompatible:

• EVO Compact in the 400 V version - different power connector (AC Power Plug 400V)
• STIXX range - different wiring (M19 5-PIN)
• FLEX II range - different wiring (WDC19, DC)

Quality LED chips

EVO 4-100 combines red OSRAM LEDs with white Seoul Semiconductor WICOP diodes - this is the basis on which the EVO range builds its wide full spectrum from 400 to 780 nm for the entire plant cycle.

The cable is sold separately - and that is intentional

The EVO is supplied without a power cable. SANlight does this deliberately: every grower has a different installation, a different distance to the socket, and wants either a straight or angled input. You therefore buy a straight power cable for the light, or an angled cable if you need to route the supply close to the body.

Dimming and chaining

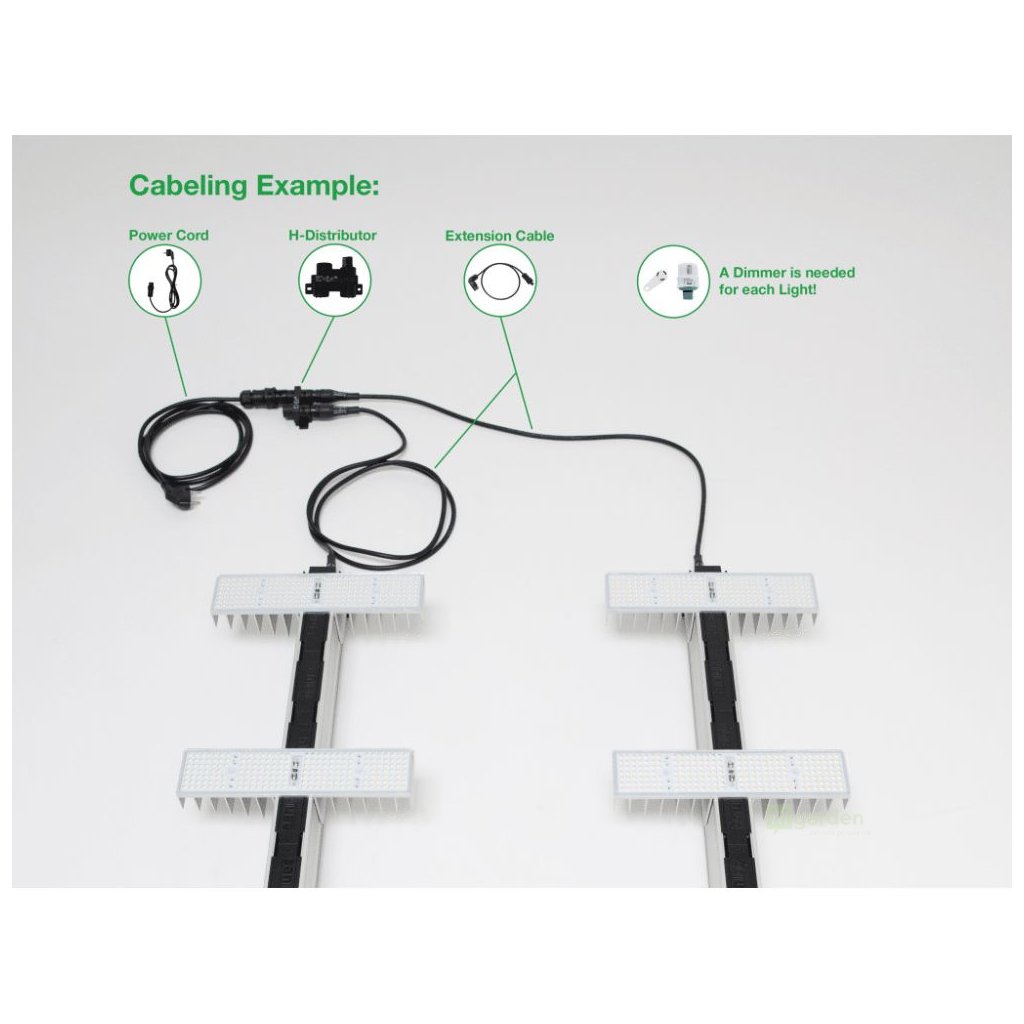

EVO 4-100 is dimmed via the separate blue connector using the magnetic M-Dimmer or Bluetooth Dimmer, or via a 0-10V controller with an adapter. If you want to power more lights from one supply, use a Wieland distributor (connector).

Frequently asked questions

Is a power cable included in the package?

No. SANlight supplies the EVO 4-100 intentionally without a power cable so that you can choose the version according to your installation. To get it running, you need one power cable with a Wieland RST20i3 connector - either straight or angled. Both are available separately from us, and installation takes just a few minutes.

Will any power cable fit the EVO 4-100?

No. The EVO 4-100 uses the Wieland RST20i3 connector, the same as the entire EVO 1.5 and Q-Series Gen2 range - the straight and angled SANlight power cables fit this. It does not fit the EVO Compact 400 V version or the STIXX and FLEX II ranges, which have their own wiring (see the Compatibility section).

How is the EVO 4-100 dimmed?

The light has a separate blue dimming connector. You connect the magnetic M-Dimmer or SANlight Bluetooth Dimmer to it, which you control via an app on your phone. Alternatively, the EVO can be regulated by an external 0-10V controller via an adapter cable. The power and dimming connectors are two separate sockets, so do not confuse them.
