SANlight EVO LED Set 100 - 400W for 100x100cm 3 µmol/J - V1.5

Product detailed description

Complete lighting set for a 100x100 cm tent

SANlight EVO LED Set 100 (Item AS1112) is a ready-made set for growers who do not want to assemble the components themselves. The core consists of two EVO 3-100 luminaires with a total input of 400 W and a flux of 1090 µmol/s for a 100x100 cm tent - and the power cable, hangers and dimmers are already in the package. Unlike the standalone EVO luminaire, you do not need to buy the cable or dimmer separately.

Parameters

• Set: 2x SANlight EVO 3-100 luminaire
• Total input: 400 W (2x 200 W)
• PPF photon flux: 1090 µmol/s (2x 545 µmol/s)
• Module efficiency: >3 µmol/J
• Recommended area: 100x100 cm
• Luminaire protection: IP65
• Supply voltage: 100-240/277 VAC, 50/60 Hz
• LM90 lifetime: >90 000 h
• Set weight: 14.6 kg
• Warranty: 3 years

Compatibility

Compatible:

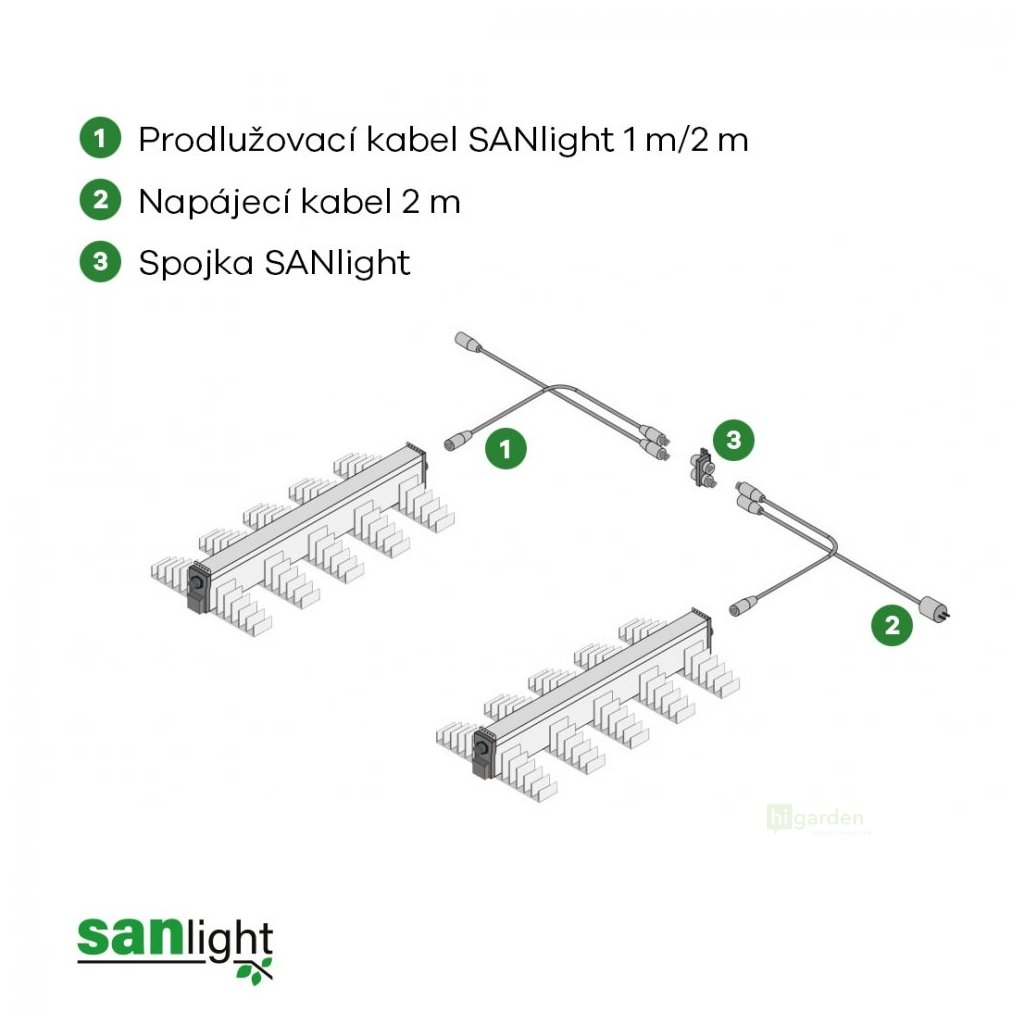

• Expansion with an additional EVO 3-100 luminaire via Wieland distributor (connector) or splitter
• Extension of the supply with an extension cable (1 m / 2 m) or angled 1 m version
• SANlight dimmers M-Dimmer and Bluetooth Dimmer (blue connector)
• Replacement or height-adjustable Light Hanger Ratchet (ratchet)
• Wiring for EVO 1.5 and Q-Series Gen2 (Wieland RST20i3)

Incompatible:

• EVO Compact in the 400 V version - different power connector
• STIXX series - different wiring (M19 5-PIN)
• FLEX II series - different wiring (WDC19, DC)

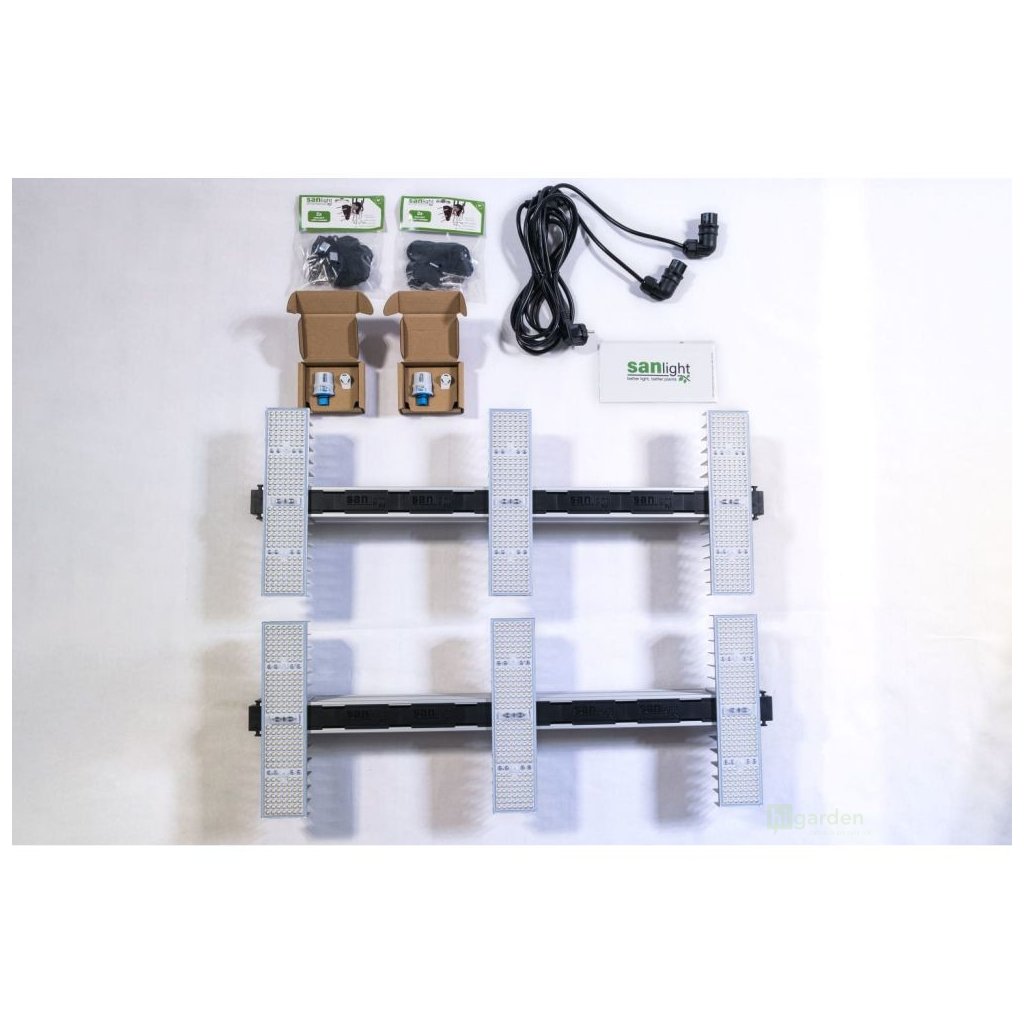

What is in the package

• 2x SANlight EVO 3-100 LED luminaire (200 W)
• 1x power Y cable (total length 3.30 m; from plug to splitter 1.80 m, from splitter to luminaire 1.50 m)
• 4x SANlight hanger (2 sets of 2 pcs, load capacity 4x 34 kg)
• 2x SANlight M-Dimmer (magnetic dimmer)

The individual luminaire from the set is SANlight EVO 3-100 - when you want to expand the space, you can buy another piece separately.

Luminaire in the set: EVO 3-100

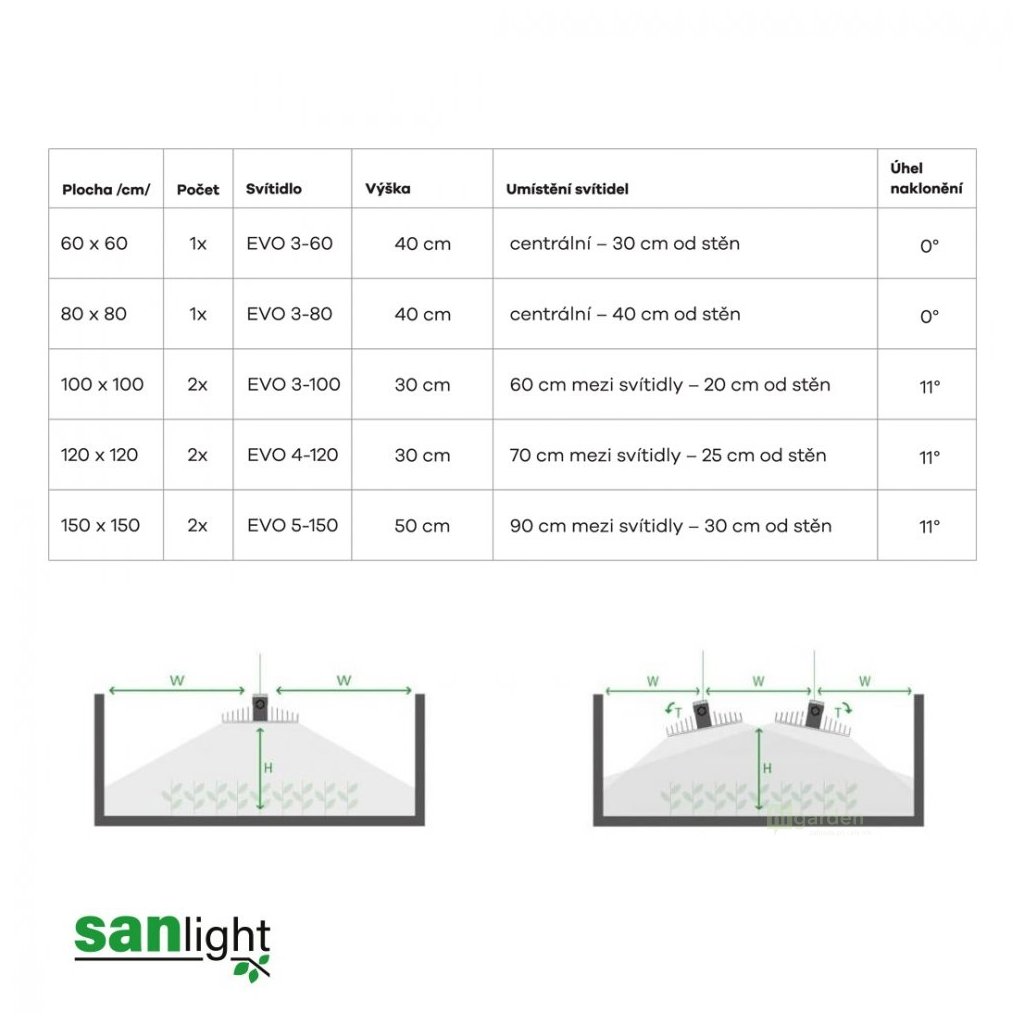

Each of the two units is a SANlight EVO 3-100 (200 W, PPF 545 µmol/s). The module measures 818 x 291 x 116 mm (length x width x height) and weighs 4.1 kg - slim enough not to cast shade in a 100x100 cm tent and to be comfortably tilted to the required angle. The light is emitted at an angle of 90-112°, so the pair of modules covers the area evenly and without dark corners. An operating temperature of 5-30 °C and resistance to up to 99% relative humidity mean that the set can also handle a more humid flowering phase without problems, and IP65 protection shields the modules against dust and splashing water.

Ready-to-run: set vs standalone luminaire

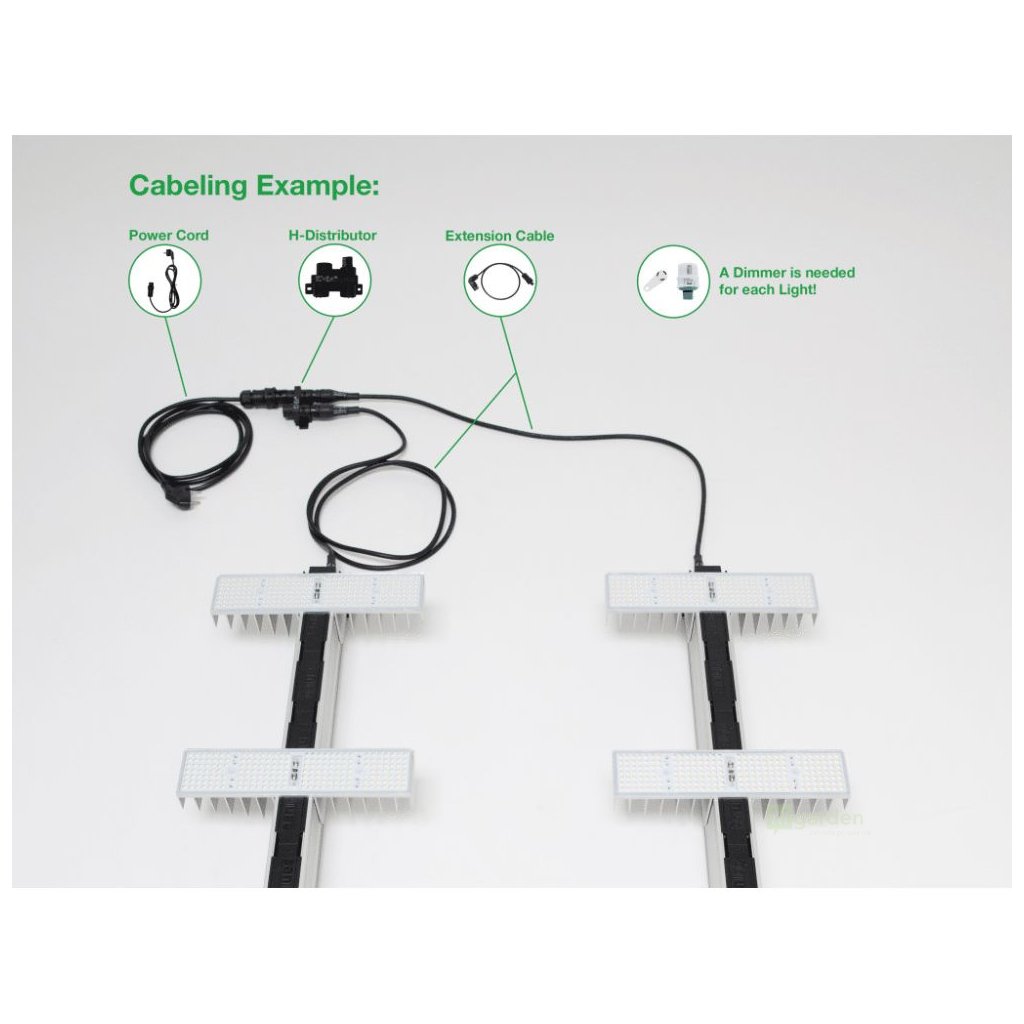

The standalone EVO is supplied without a cable or dimmer - you have to buy them separately. This set includes both, so you can hang it straight away on the supplied hangers, connect the Y cable to one socket and set the intensity with the included M-Dimmers. The Y cable has 1.80 m from the plug to the splitter and another 1.50 m from the splitter to each luminaire, so you can comfortably reach both modules even into the corners of the tent. You save time and the hassle of deciding what fits with what.

Frequently asked questions

How many luminaires are in the set and for what area?

The set contains two EVO 3-100 luminaires with a total input of 400 W and a flux of 1090 µmol/s, intended for a growing area of 100x100 cm. Both luminaires are powered from one supply thanks to the included Y cable (total length 3.30 m), so you only need one socket for installation.

Do I need to buy anything extra for the set?

Not for basic operation. The package includes a power Y cable, four hangers (2 sets of 2 pcs) with a load capacity of 4x 34 kg and two magnetic M-Dimmers for dimming. You unpack the set, hang it up and connect it. You will only need to buy more when you expand the space with another luminaire or replace the hangers with ratchet ones.

How is the set dimmed?

A magnetic SANlight M-Dimmer is supplied with each luminaire, which connects to the blue dimming connector and sets the output in fixed steps using a magnetic key. If you want to control the lights via your phone, the M-Dimmer can be replaced with a SANlight Bluetooth Dimmer or an external 0-10V controller.
