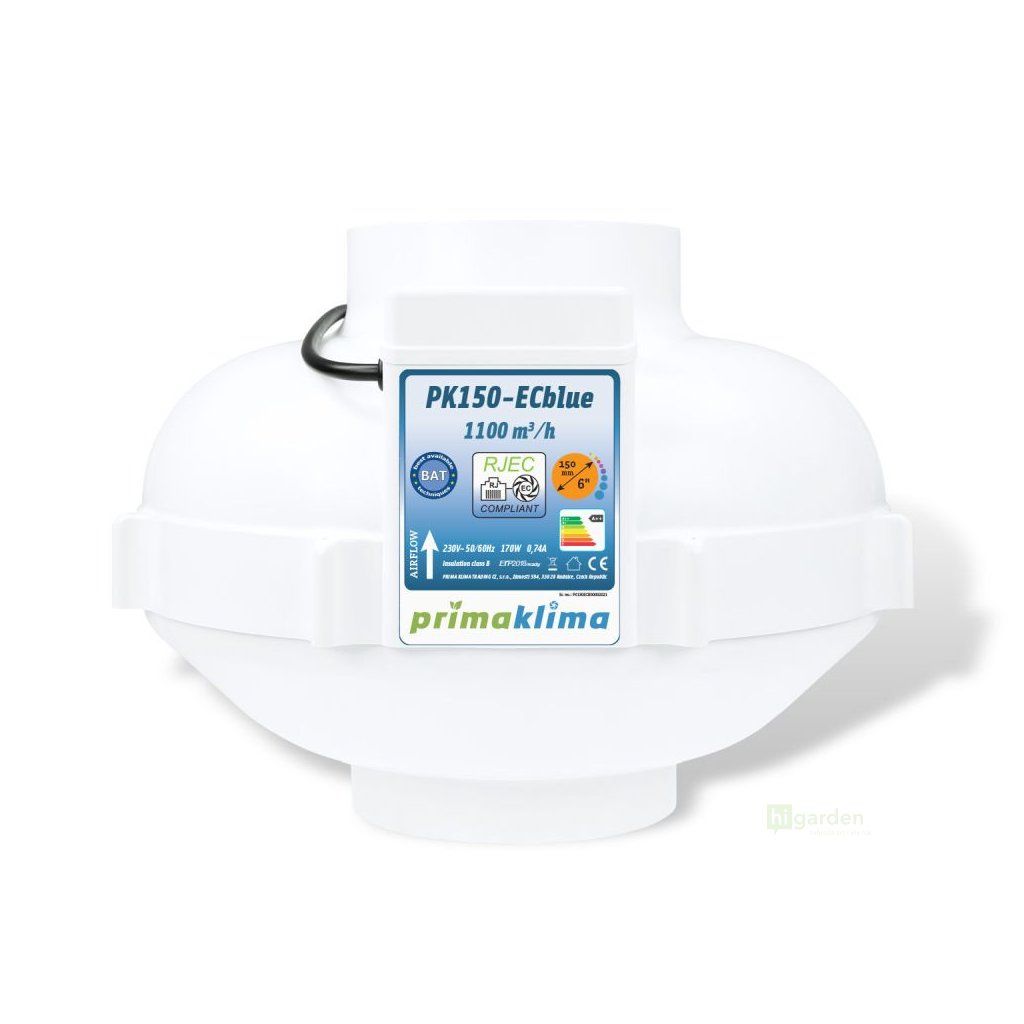

Prima Klima fan PK150-ECblue 150 mm, 1100 m3/h, EC motor

Product detailed description

The fan with an EC motor ebm-papst, Prima Klima PK150-ECblue, is suitable for ventilation systems with a diameter of 150 mm. The Swiss motor guarantees above-standard performance and service life.

The fan with an EC motor ebm-papst, Prima Klima PK150-ECblue is suitable for ventilation systems with a diameter of 150mm.
The Swiss motor guarantees above-standard performance and service life.

Prima Klima duct fans with a high-quality EC motor are very quiet and at the same time very powerful with adequate consumption.
The housing is made of durable and heat-resistant polyamide (nylon) plastic.
Optimal airflow is ensured by aerodynamically shaped blades. The fan is equipped with overheating protection and is highly impact-resistant.

Another advantage is the low weight. 100% efficient performance for a long time is ensured in combination with Prima Klima odour filters. We supply all Prima Klima radial fans with brackets, a cable and a plug for the socket.

With the external switch Prima Klima ECTC-1M, the output can be regulated; otherwise, the fan is single-speed only.

It is equipped with an RJ45 connector.

Functions and benefits:
- premium ebm-papst motor
- temperature and speed setting using the Prima Klima ECTC-1M digital controller.

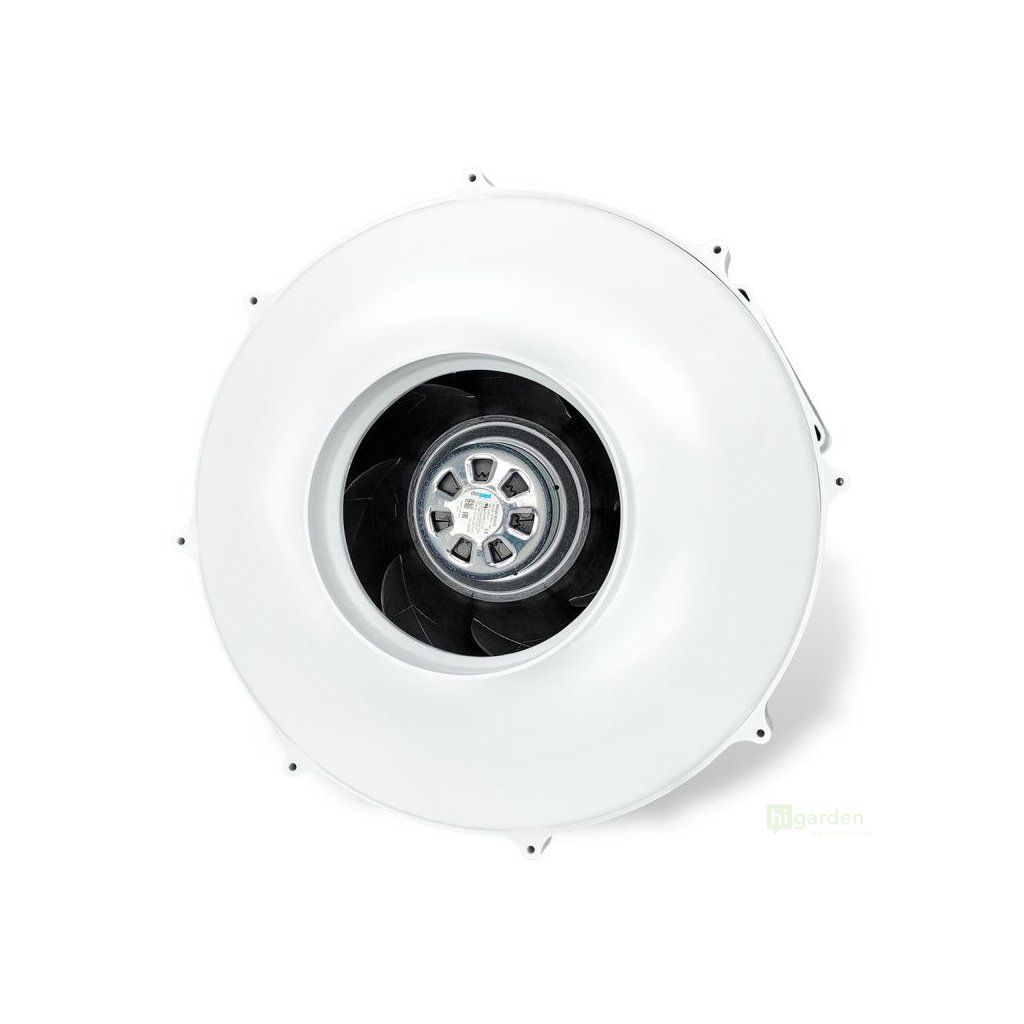

- impeller with backward-curved blades
- low energy efficiency
- low noise emissions
- aerodynamically optimised shape
- impact-resistant and durable housing made of non-flammable polyamide (nylon)
- connection and control system integrated into the housing

Specifications:
- flange: 150mm
- max. airflow: 1100m3/h
- power: 0-170W
- AC Input: 230V 50/60Hz 0.74A
- max temperature: 50°C
- dimensions: 338x243mm (h/w)
- weight: 4.22kg

Recommended accessories - ECTC-1M digital controller.
