Lumatek Digital Panel - Controller PLUS 2.0 (HID+LED)

Code: 96421
Free shipping
Brand: Lumatek
€614,90 €409,90 €338,76 excl. VAT
In Stock
Delivery offer

New and improved version of the former Lumatek Control Panel. It's compatible with Controllable ballasts and Zeus LED panels. It's also compatible with the new PRO ATTIS line. The Controller Plus 2.0 is a dual signal digital lighting controller that offers precise external control of your Lumatek lighting fixtures, drivers and ballasts. Using innovative technology, this controller smartly monitors your grow room temperatures, light timing & intensity automation, safety-controlled dimming and switching On/Off.

Detailed information

Product detailed description

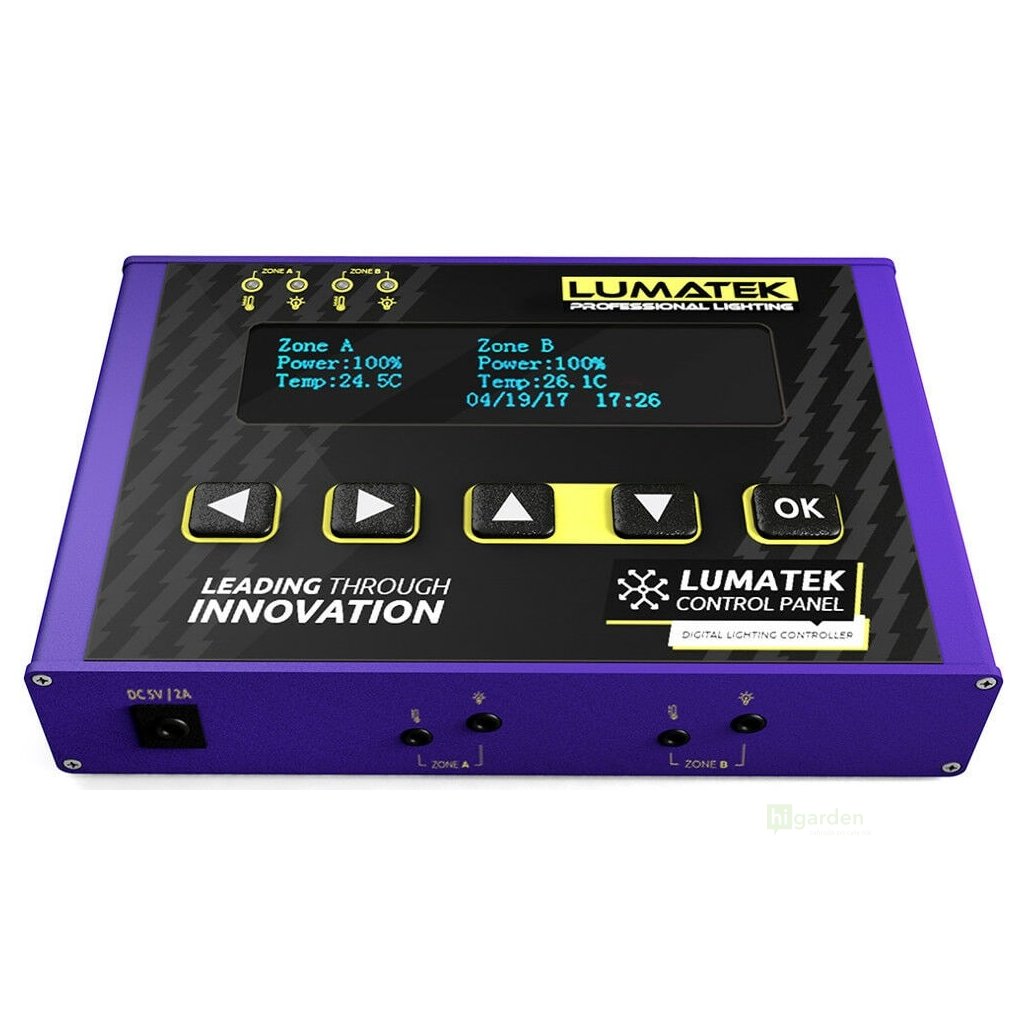

The LUMATEK Digital Panel PLUS 2.0 (HID+LED) is a dual signal digital lighting controller that offers precise external control of your Lumatek lighting fixtures, drivers and ballasts. Using innovative technology, this controller smartly monitors your grow room temperatures, light timing & intensity automation, safety-controlled dimming and switching On/Off. Simply connect it to your Lumatek Controllable Fixtures, Drivers or Ballasts and easily regulate your grow room environment.

The Lumatek Digital Panel Plus 2.0 is a dual signal twin channel digital lighting controller with each of the two channels (Zones) capable of controlling up to 200 Lumatek controllable HID fixtures or ballasts with a digital RS485 signal or up to 50 LED drivers with analogue 0-10V signal. It is possible to use each Zone to control fixtures in two independent separate rooms or to control up to 400 fixtures in one room with two different light source types.

Each Channel (Zone) can control same-powered ballasts/drivers; Zone A can control the same-powered ballasts/drivers as Zone B or Zone B can be set to control different powered ballasts/drivers eg: Zone A can be set to control 600W LED fixtures and Zone B set to control 600W or 315W HID ballasts.

ControllerPlus_Plan

Features:

  • Connectable with Lumatek Controllable HID ballasts & fixtures; 315W, 600W, 630W & 1000W
  • Connectable with Lumatek Controllable LED drivers & fixtures; 90W, 465W, 600W & 1000W.
  • Dual signal RS485 digital for HID and 0-10V analog protocol for LED
  • Automate switching, timing and dimming
  • Simulate sunrise and sunset periods (0-30 min period)
  • Temperature-control dimming & switching for safety control
  • Automate light intensity and PPFD
  • Control up to 400 ballasts (200 on the A channel, 200 on the B channel) or up to 100 LED lights (50 on the A channel, 50 on the B channel)
  • Regulate power (down to 1%)
  • Protection against short-circuiting and overheating (10 - 50°C)
  • Simple setup

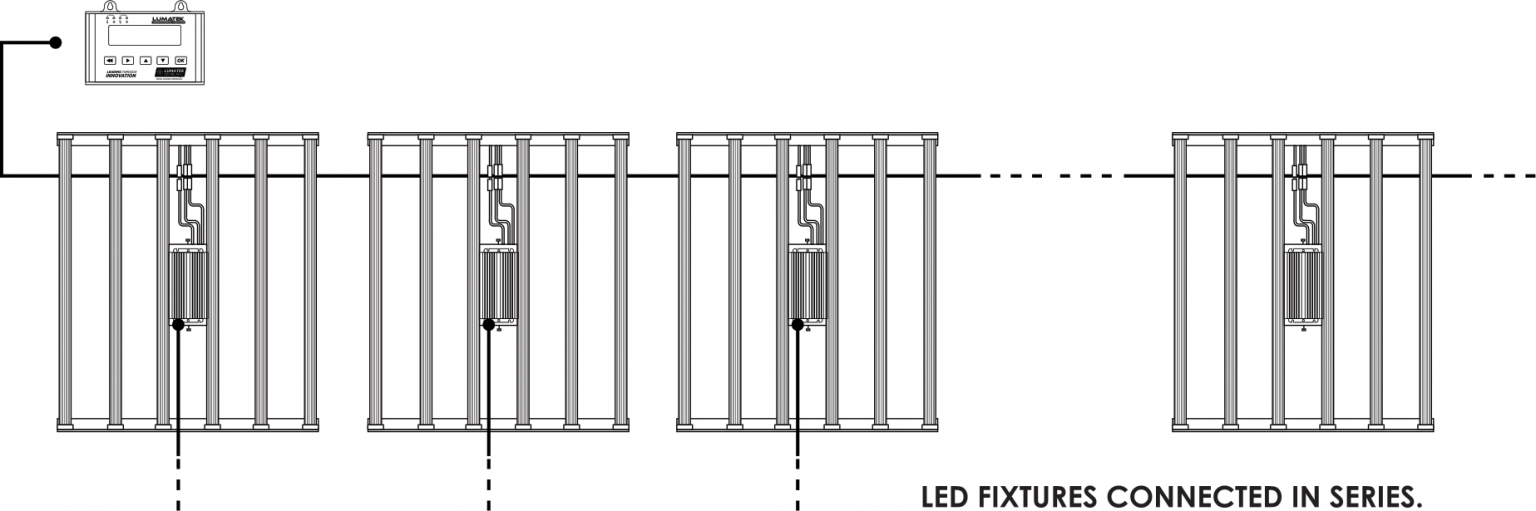

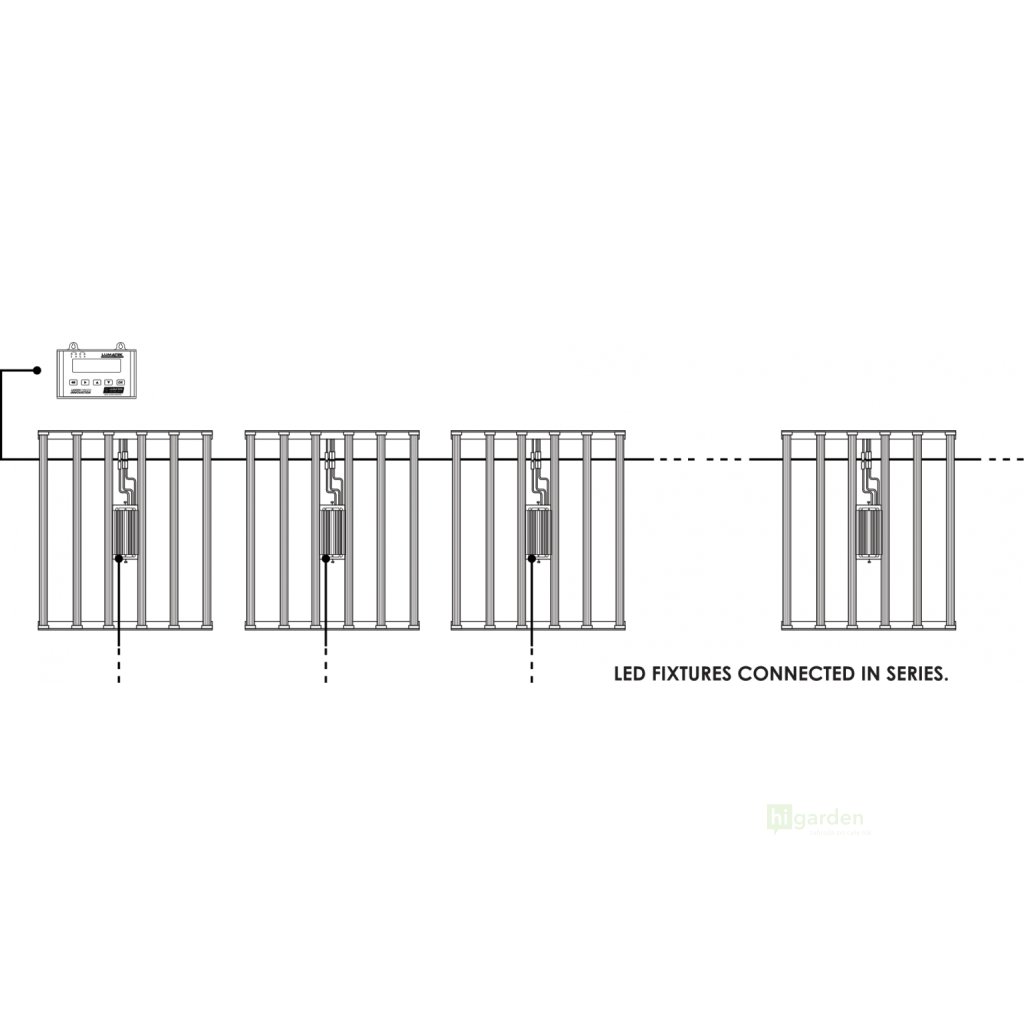

ControlPanel_Connected_In_Series-1536x511

Technical details:
Power: Adaptor 100 - 240V AC 50/60Hz – DC 5V/2A

Matching HID ballasts: 315W, 600W, 630W, 1000W
Matching LED drivers: All Lumatek Controllable LED Drivers
Power dimming range: 10% - 115%
Power regulation accuracy: 1%
Temperature-controlled safety dimming range: 0oC-40oC
Temperature-controlled safety switching range: 10oC-50oC
Sunrise and sunset duration: 0-30 min
Dimensions: 125mm x 80mm x 25mm
Maximum amount of ballasts/drivers per channel: 200 (RS485) HID or 50 (0-10V) LED
Maximum amount of ballasts/drivers per controller: 400 (RS485) HID or 100 (0-10V) LED
24 hours timing and light switching

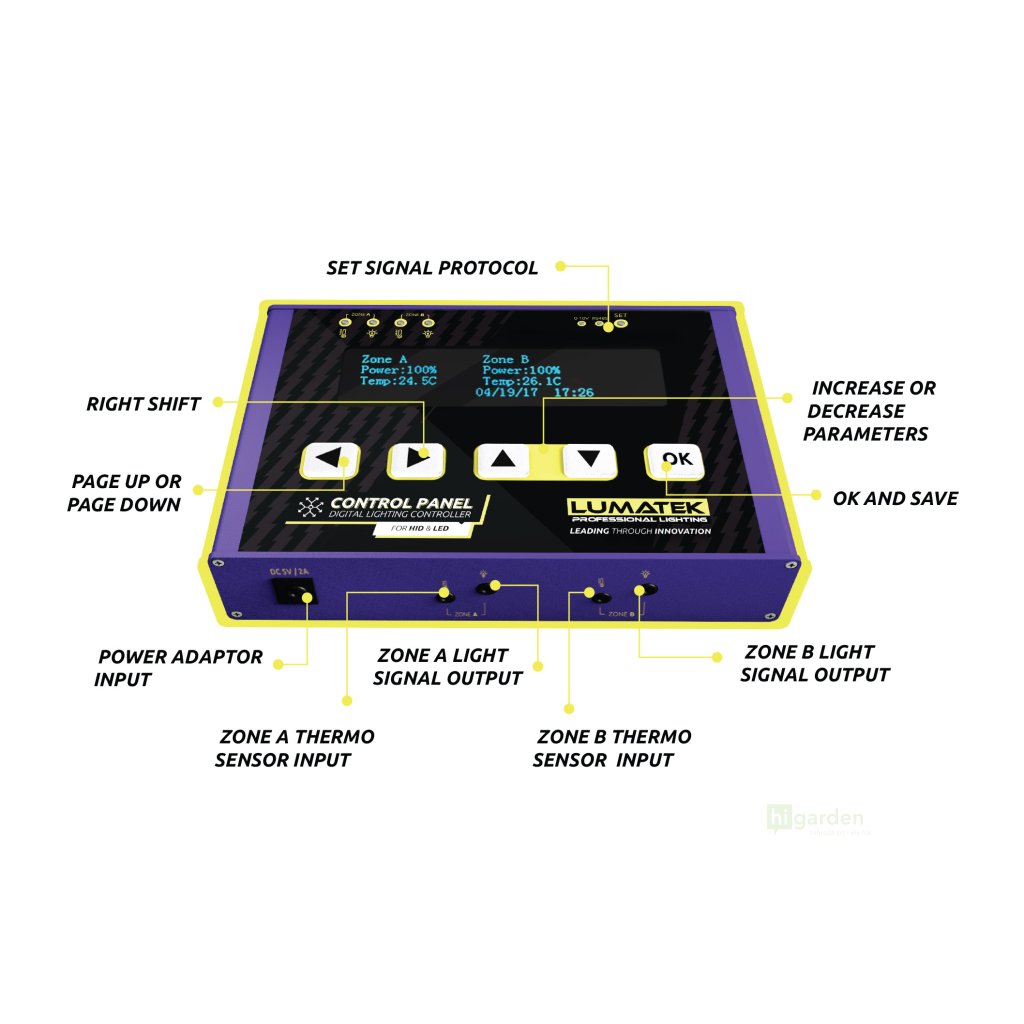

controllerplus_instructions

Items included:
1 x Lumatek Digital Panel Plus 2.0
1 x Power adaptor and cable
2 x Temperature sensor 5m cable (one for each channel)
2 x HID control link cable 5m (plug 2 devices into the controller, one for each channel - e.g. CMH, HPS ballasts)
2 x LED control link cable (plug 2 devices into the controller, one for each channel - e.g. CMH, HPS ballasts. If you need to plug more lights into one zone, you need to buy an additional Daisy Chain 5m cable.
