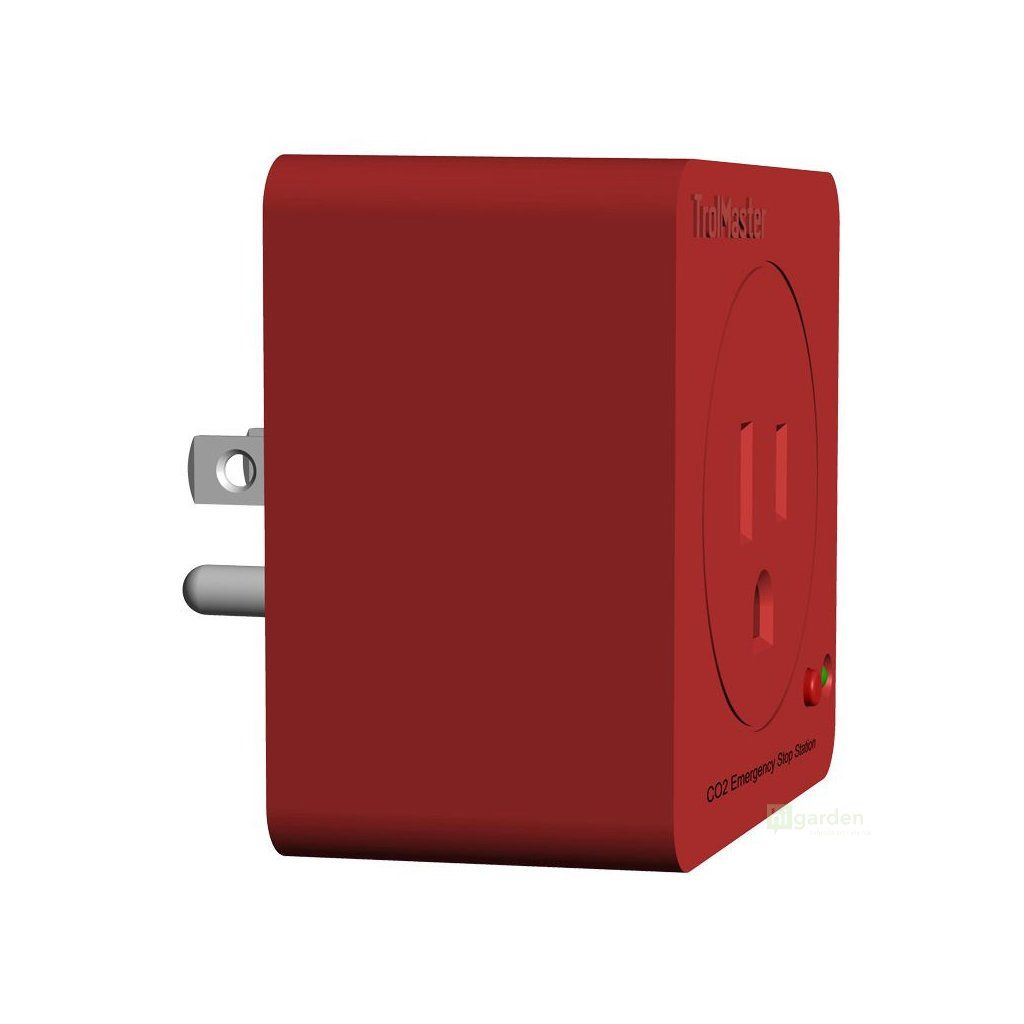

Trolmaster CO2 Emergency Stop Station & Cable set (DSE-1E)

The picture is illustrative. The product is supplied in the EU version including an adapter for seamless connection to the Czech network.

The DSE-1 CO2 Emergency Stop Station provides a simple way to shut off the CO2 supply when any malfunction or high CO2 level is detected. It is a 120V controlled outlet that powers the CO2 solenoid valves in normal operation. Carbon-X will then automatically shut off power to the DSE-1 if any fault or high CO2 level is detected in any of the installed CO2 sensors. If the DSE-1 loses communication with the Carbon-X, the power supply is also shut off.

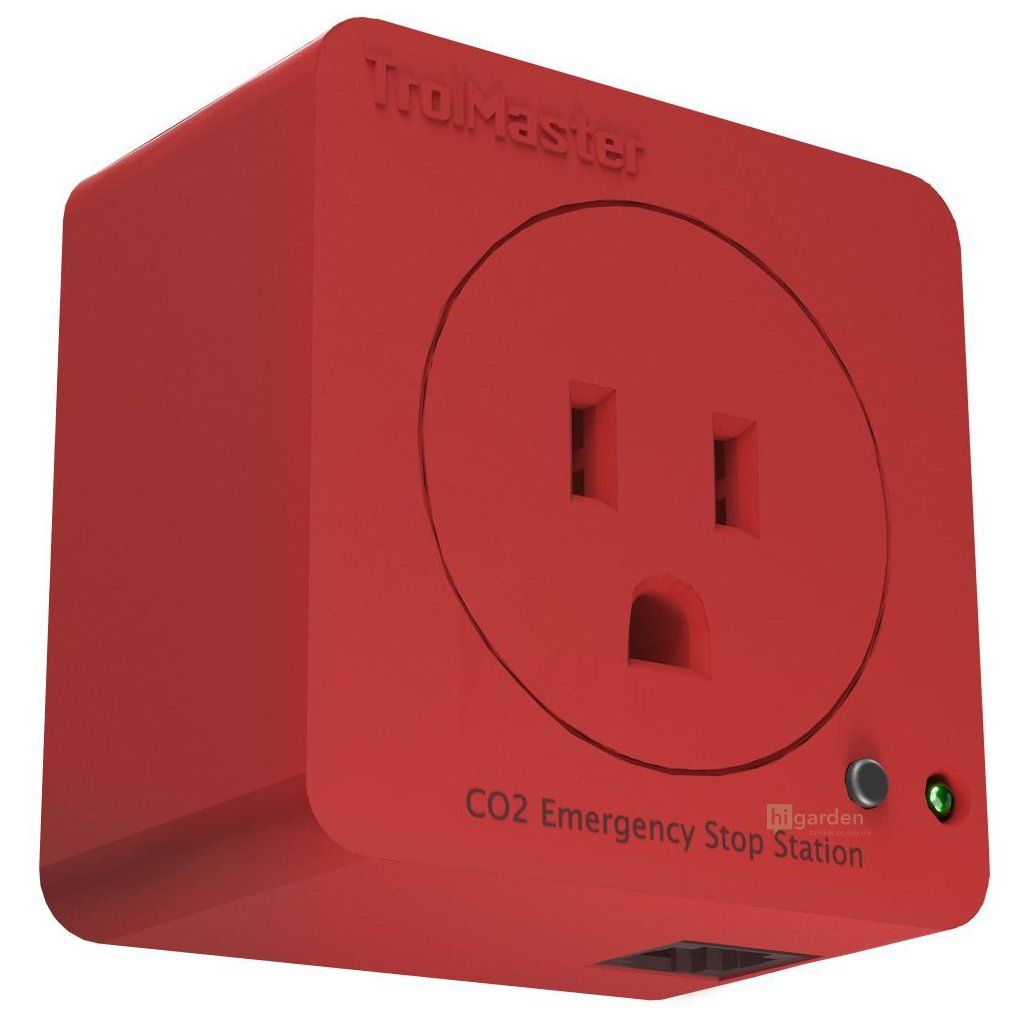

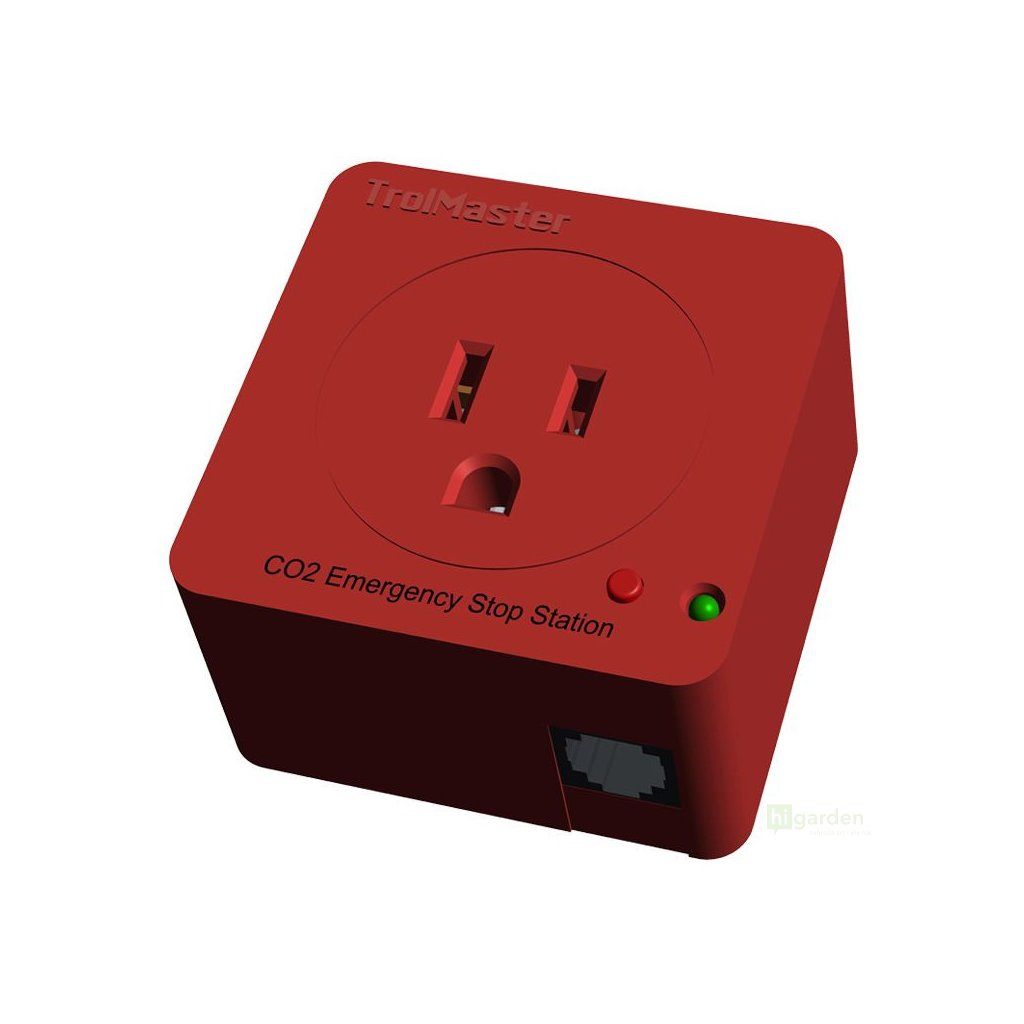

LED indication:
- Flashing green FAST: If the LED is flashing fast, it means that the module has not been addressed to the controller OR that the module does not have a good connection to the controller.
- Press the small button on the module to address/connect the module when it is first installed.
- SLOW: If you see a slowly flashing green LED, it means that the module is addressed and connected to the controller and the module is currently off.
BLINKING GREEN: If you see the LED steady (not flashing), it means the modules are addressed, connected and currently powered on.
- Flashing RED: If you see the LED turn to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from power.

Main advantages:
- Power LED indicator
- RJ12 cable socket
- Addressing
- Plug & Play

Package includes:
- 1 x Emergency Stop Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
