Trolmaster 240V Temperature Device Station (DST-2E) DE

Product detailed description

The image is illustrative. We supply the product in the EU version including an adapter for trouble-free connection to the Czech mains.

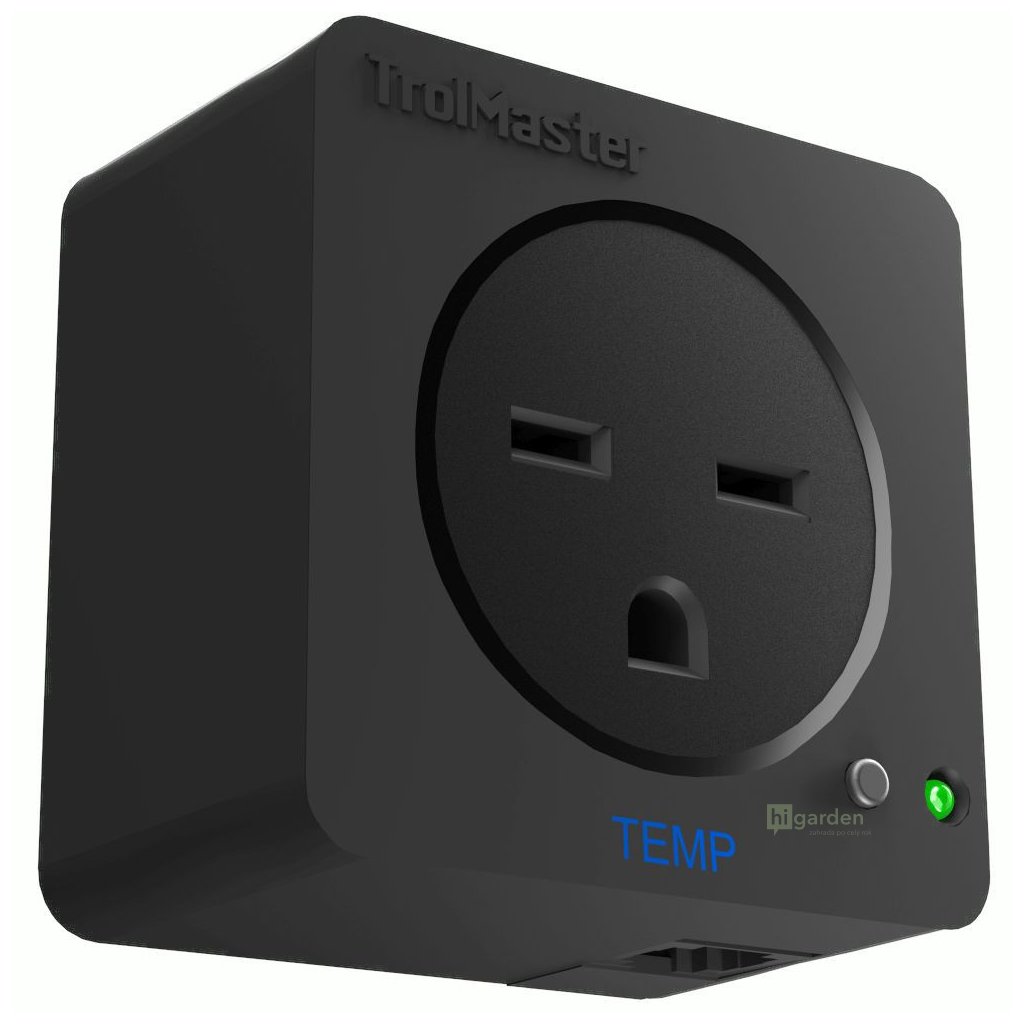

TrolMaster DST-2 temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x system. This module enables control of any heating or cooling device according to the worldwide voltage standard (100-240 V AC, 50/60 Hz), up to 10 amps.

LED indication:
- flashing green FAST: If the LED flashes quickly, it means that the module has not been addressed to the control unit OR that the module does not have a good connection with the control unit.
- by pressing the small button on the module, the module is addressed/linked during the first installation.
- slowly flashing green SLOW: If you see a slowly flashing green LED, it means that the module is addressed and connected to the control unit and the module is currently switched off.
- SOLID green: If you see that the LED is lit continuously (not flashing), it means that the modules are addressed, connected and currently switched on.
- flashing red: If the LED indicator changes to flashing red, it means that the module is overloaded. To reset the overload, disconnect the module from the power supply.
- by pressing and holding the button on the DST-2 module, users can manually reset the module and switch it on/off.

Main advantages:
- power LED indicator
- RJ12 cable socket
- addressing
- plug & Play

Package contains:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter

Technical specification:
- voltage: 240 VAC, 50/60Hz
- current: 10A
- operating temperature: 0-50 °C
- operating humidity: - weight: 0.34 kg
