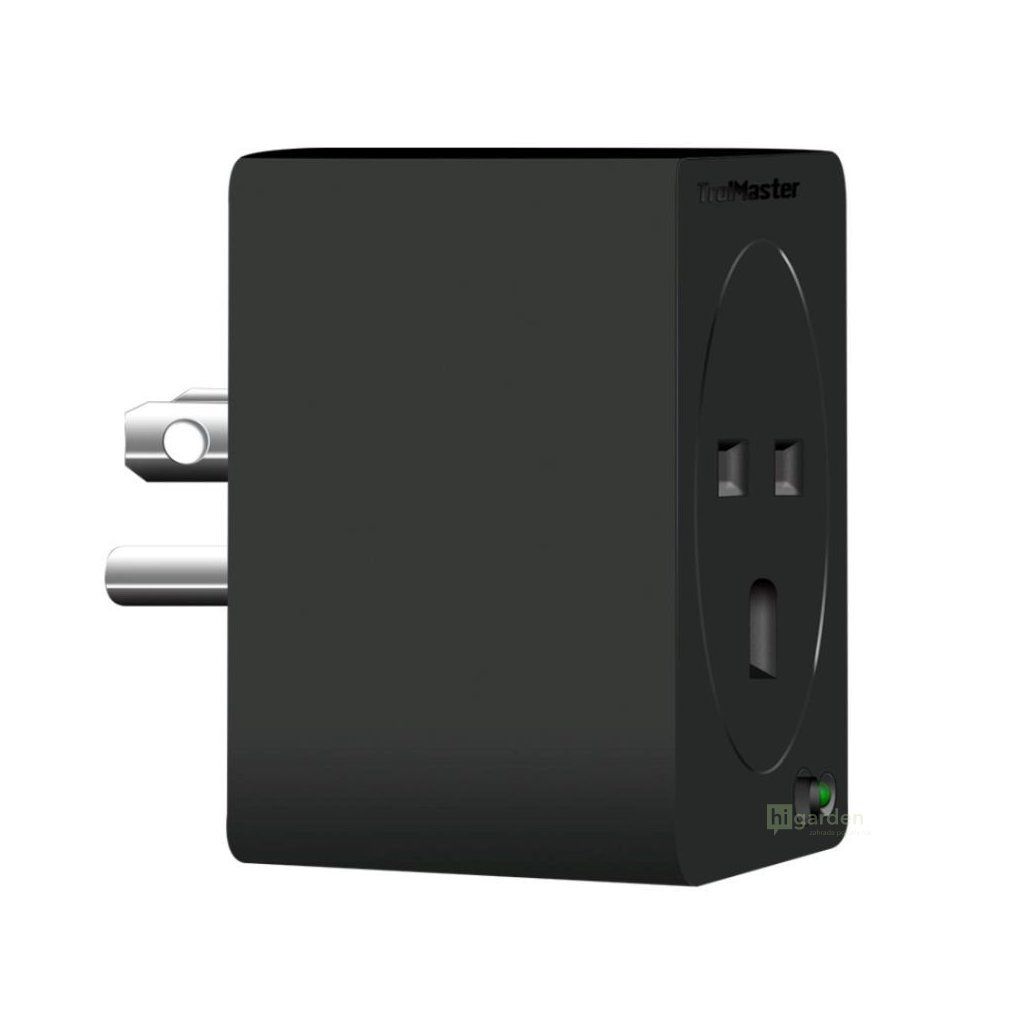

Trolmaster 240V Humidity Device Station (DSH-2E) DE

Product detailed description

The image is illustrative. We supply the product in the DE version

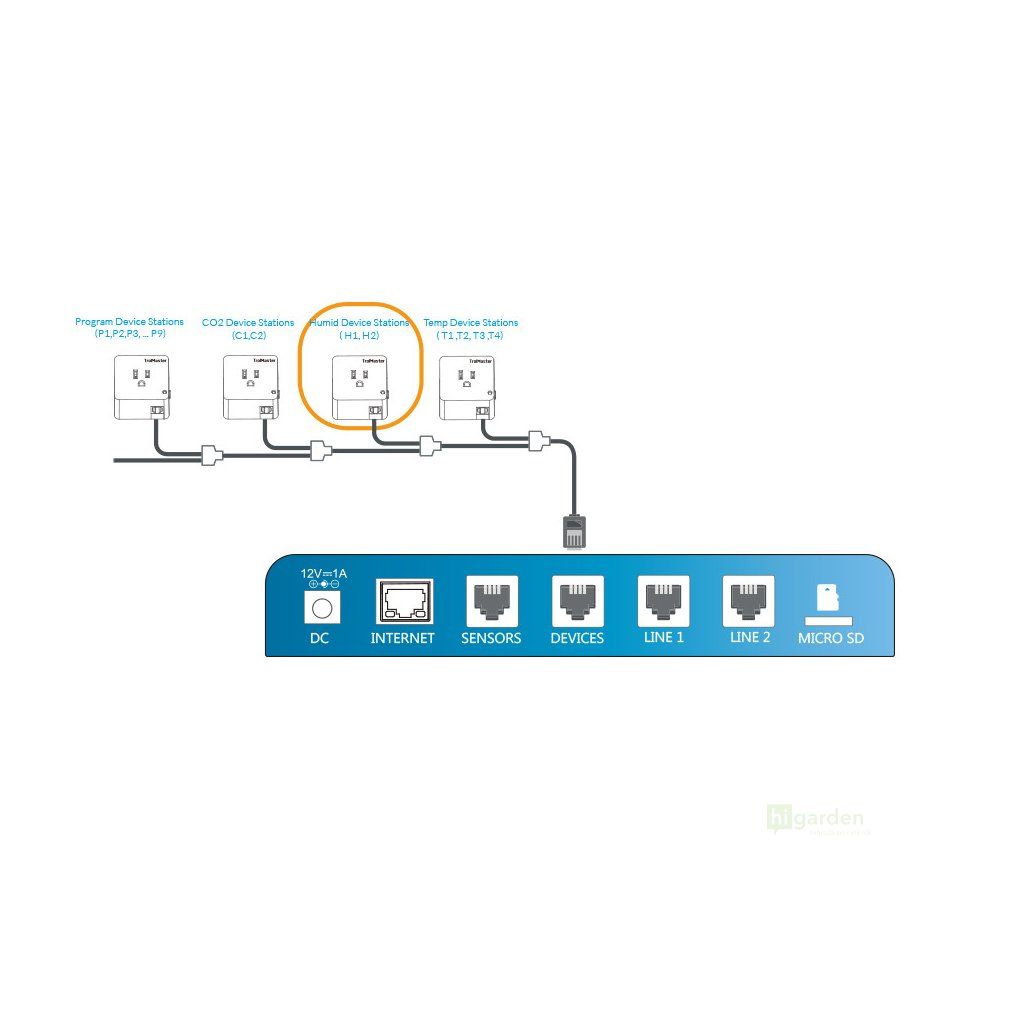

TrolMaster DSH-2 humidity/device control modules allow the user to easily connect and control standard humidifying or dehumidifying equipment to the Hydro-X unit. This module allows control of any humidifying or dehumidifying equipment according to the world voltage standard (100-240 VAC, 50/60 Hz), up to 10 amperes.

Use with dehumidifiers that have a consumption lower than 7 A to prevent current overload.

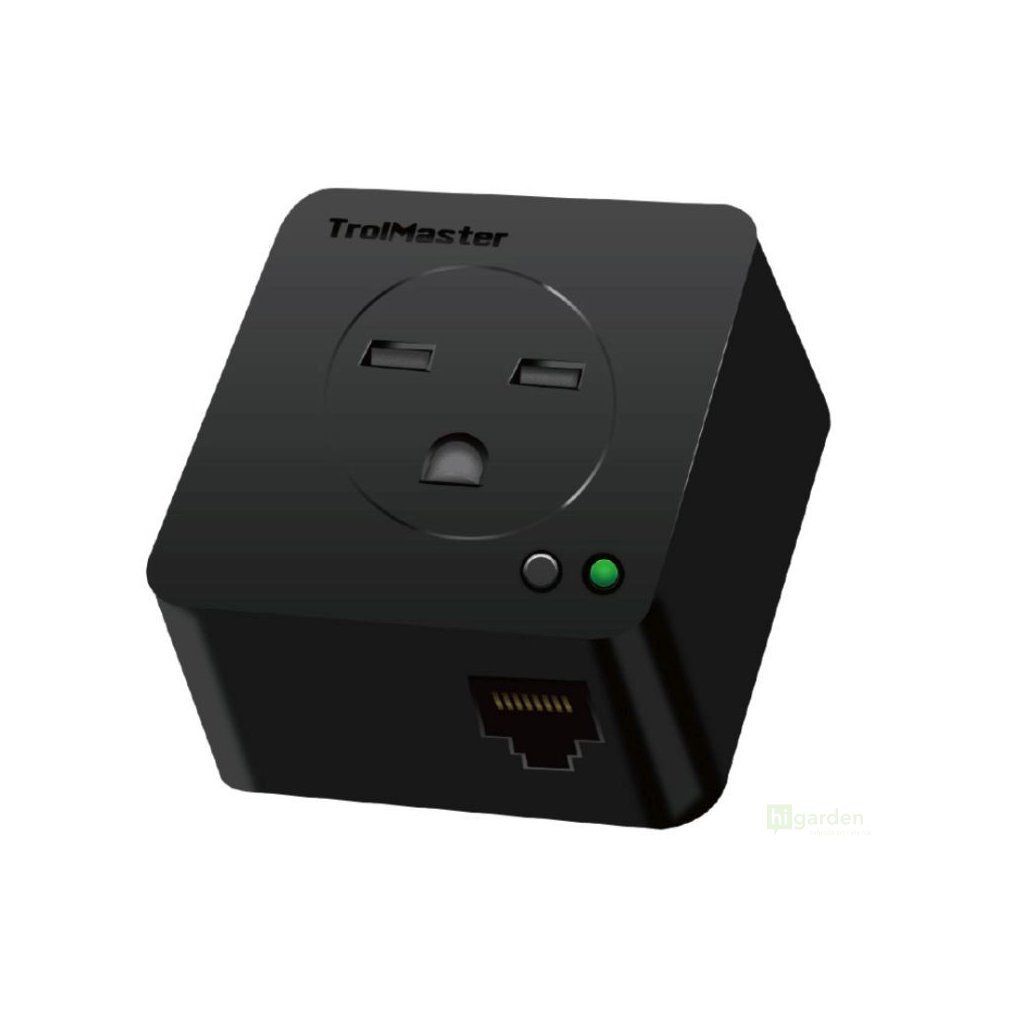

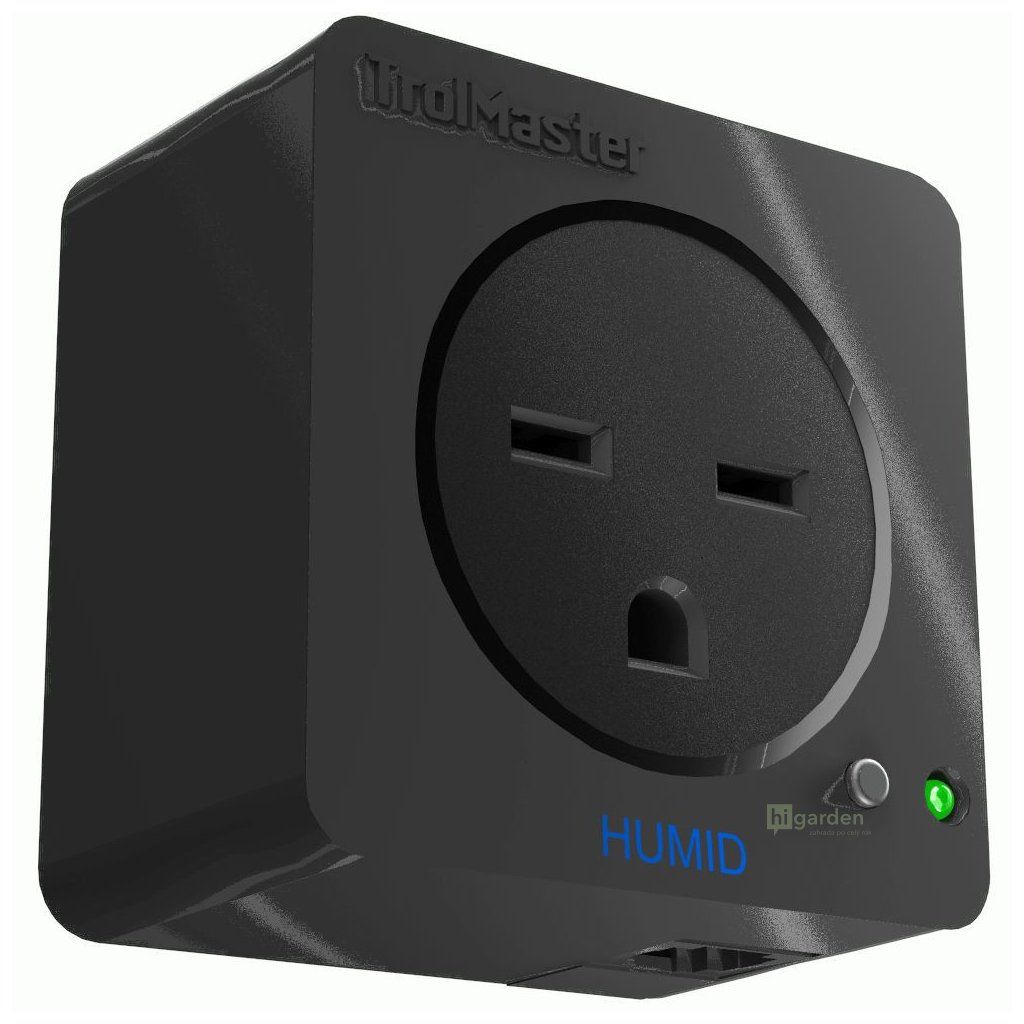

LED indication:
- Flashing green FAST: If the LED flashes quickly, it means that the module has not been addressed to the control unit OR that the module does not have a good connection with the control unit.
- Pressing the small button on the module addresses/connects the module during the first installation.
- Slowly flashing green SLOW: If you see a slowly flashing green LED, it means that the module is addressed and connected to the control unit and the module is currently switched off.
- STEADY green: If you see that the LED is lit continuously (not flashing), it means that the modules are addressed, connected and currently switched on.
- Flashing red: If the LED indicator changes to flashing red, it means that the module is overloaded. To reset the overload, disconnect the module from the power supply.
- By pressing and holding the button on the DSH-2 module, users can manually override the module and switch it on/off.

Package includes:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter

Technical specification:
- input voltage: 240V AC, 50/60 Hz
- output current: 10A
- output voltage: 100-240V AC, 50/60 Hz
- operating temperature: 0-50 °C
- operating humidity: < 90% RH
