SANlight EVO 3-100 200W LED 3 µmol/J - V1.5

Product detailed description

Energy-saving class for a longer area

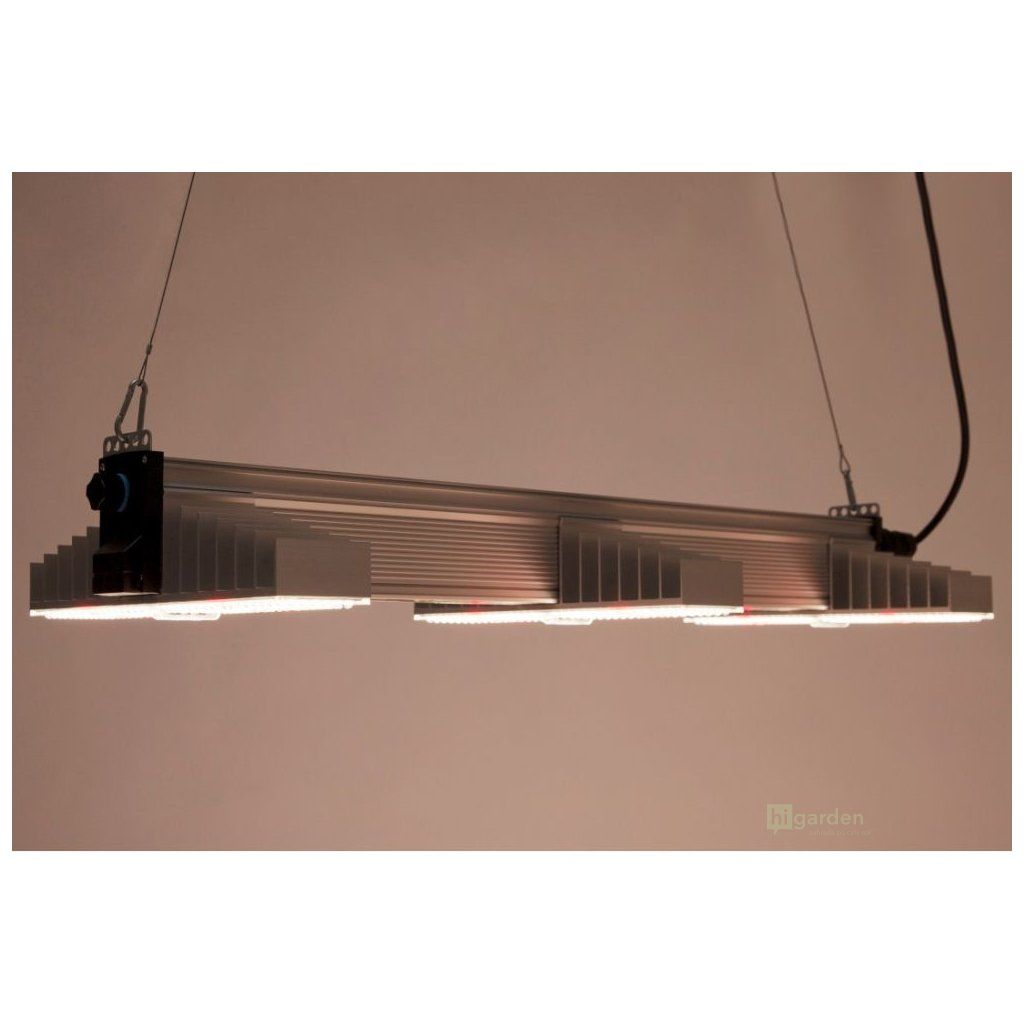

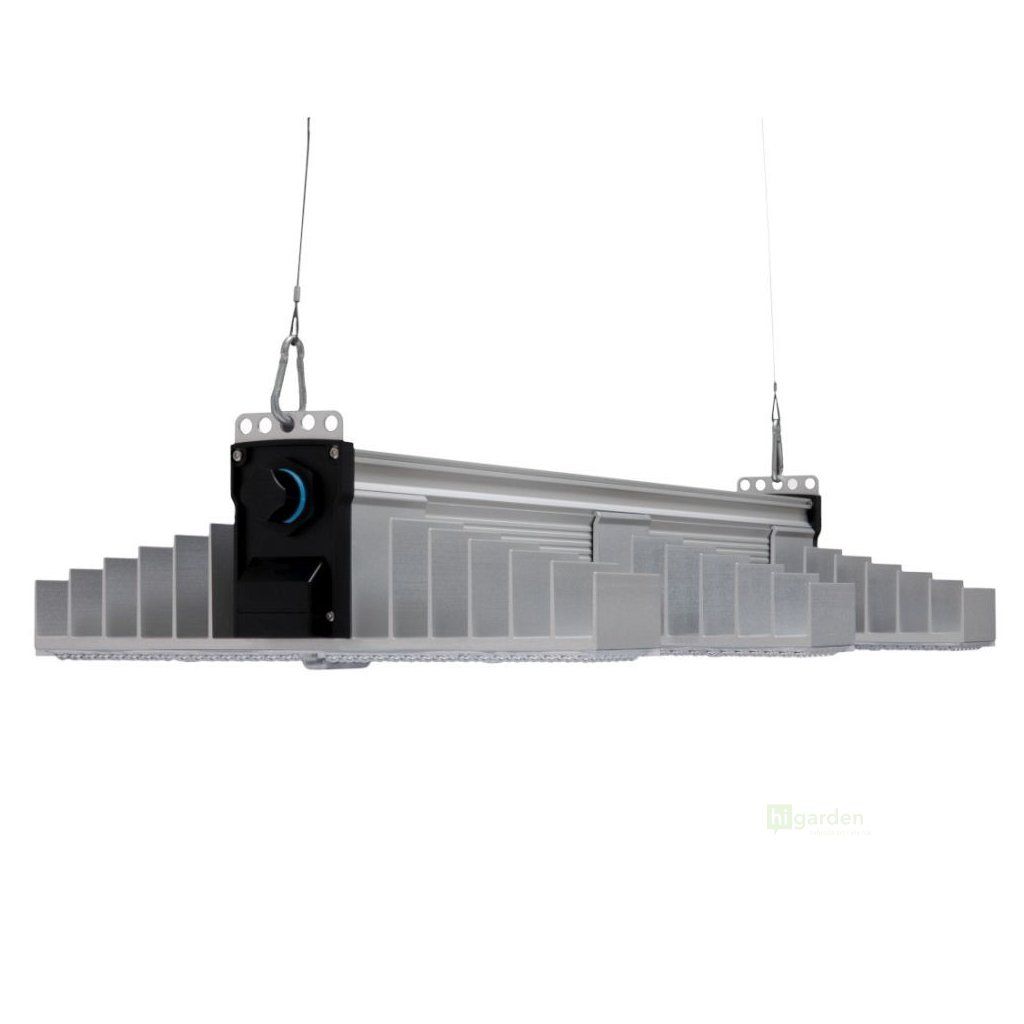

SANlight EVO 3-100 is the main LED light of the EVO 1.5 series in the 200 W energy-saving class, the longest in this class. It delivers 545 µmol/s of photon flux and SANlight states a module efficiency of over 3 µmol/J for the EVO series. IP65 protection shields the body and connectors from dust and splashing water, so it is also suitable for a more humid grow space. It is fitted with red and far-red OSRAM LED chips supplemented by white Seoul Semiconductor diodes (WICOP technology).

Parameters

• Model: SANlight EVO 3-100
• Power input: 200 W
• Photon flux PPF: 545 µmol/s
• Module efficiency: >3 µmol/J
• Spectrum: full spectrum 400-780 nm (blue 16 %, green 37 %, red 43 %, FarRed 4 %)
• LED chips: OSRAM (red and far-red) + Seoul Semiconductor WICOP (white)
• Dimensions: length 818 mm, width 291 mm, height 116 mm
• Weight: 4.1 kg

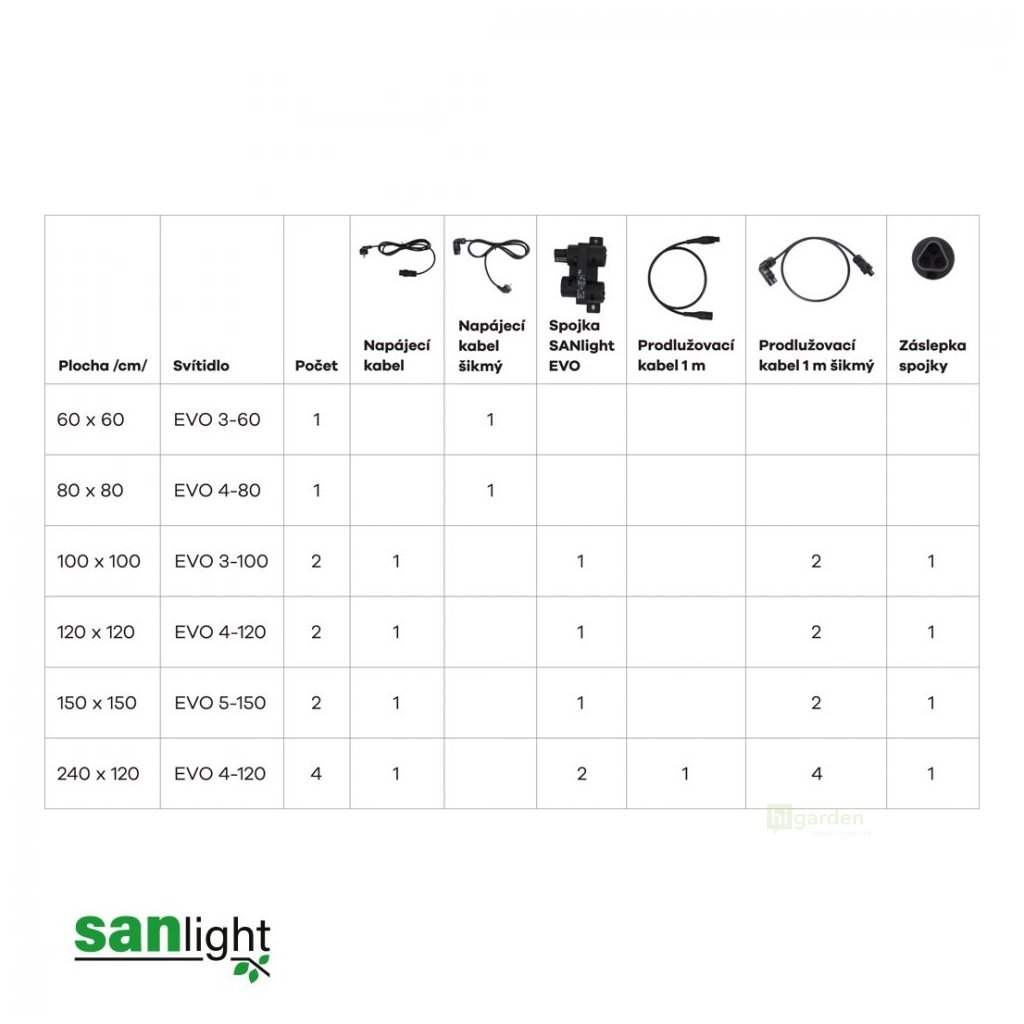

• Recommended area: 100x100 cm (2 lights) or depth 100 cm (1 light)
• Protection: IP65
• Input voltage: 100-240/277 VAC, 50/60 Hz
• Beam angle: 90-112°
• LM90 lifetime: >90,000 h
• Connector: Wieland RST20i3 (power), separate blue connector (dimming)
• Warranty: 3 years

Compatibility

Compatible:

• Wieland RST20i3 power cables: straight (16151), angled (39019), Q-Series (SANACQ)
• EVO/Q-Series Gen2 extension cables (25077 1 m/2 m, 39373 angled 1 m)
• Wieland connector - 4-way distributor (22264) and splitter (39725) for powering multiple lights
• Dimmers via blue connector: Bluetooth Dimmer (22261), M-Dimmer (22255)
• Control adapters: GrowControl (N41607), Trolmaster (N41606); blanking plug for unused connector (22267)
• Suspension: ratchet hanger Light Hanger Ratchet (N52170) with a load capacity of 60 kg - universal, connector-independent

Incompatible:

• EVO Compact 400 V cabling - connector N50243 is for the 400 V version of the Compact, it DOES NOT FIT these lights
• STIXX (M19 5-PIN system) - different connector
• FLEX II (WDC19/WDC21 system) - different connector

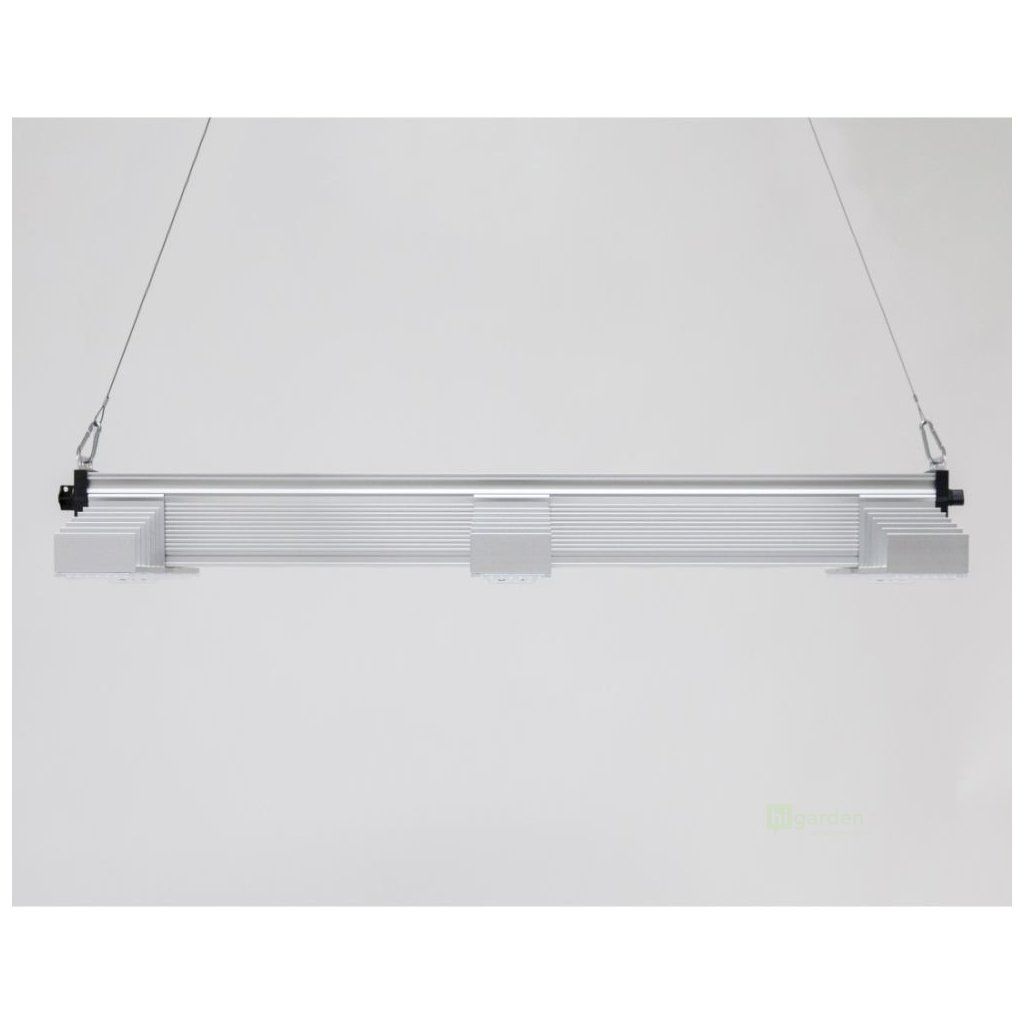

The longest body in the energy-saving class

EVO 3-100 measures 818 mm and spreads its 545 µmol/s across the greatest length in the 200 W class. One light is intended for a space with a depth of 100 cm; for a full square metre (100x100 cm), SANlight recommends two EVO 3-100 units. If you want higher density over a shorter section, choose the 3-80.

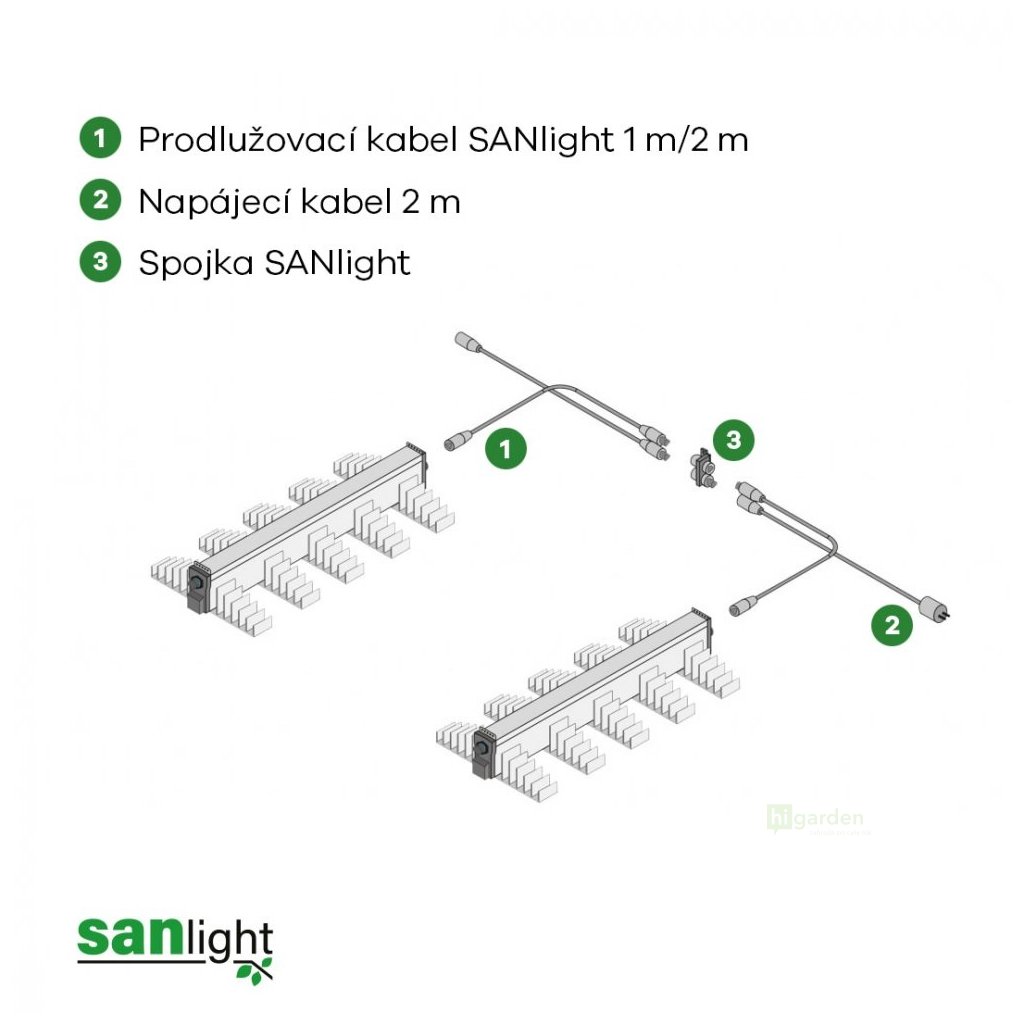

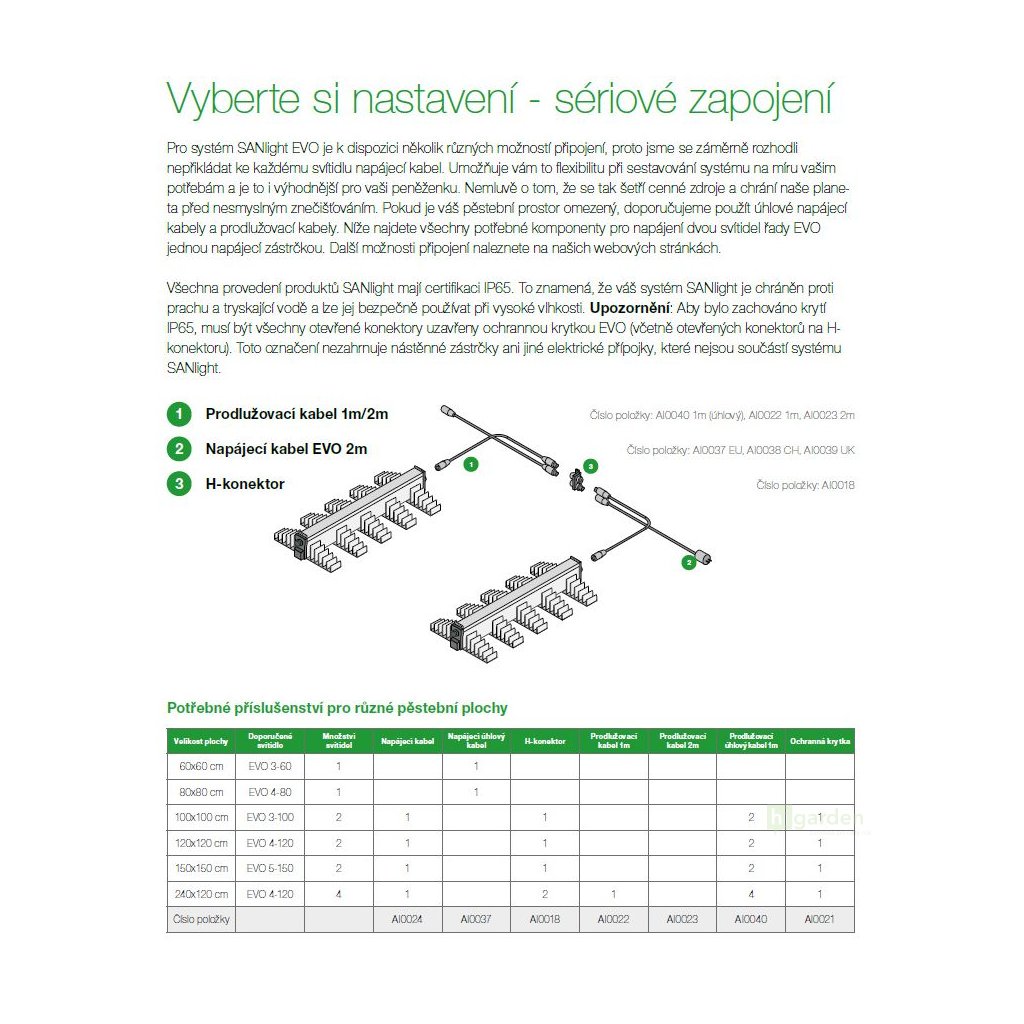

You choose the power cable separately

The light is supplied without a power cable - this is SANlight's intention, because every installation has a different distance to the socket and some users need a straight input, others an angled one. You therefore need to buy either a straight power cable or an angled cable with a Wieland RST20i3 connector for EVO 1.5 and Q-Series Gen2. Which is which can be found in the Compatibility section above.

Dimming and control

The light is controlled via a separate blue connector. You can attach the magnetic M-Dimmer or SANlight Bluetooth Dimmer with phone control to it, or control it with an external 0-10V controller via an adapter cable. Power and dimming are two separate sockets, so do not confuse them.

Frequently asked questions

Is a power cable included with the EVO 3-100 light?

No. SANlight deliberately supplies the EVO 3-100 without a power cable so that you can choose the version according to your installation. To get it working, you need one power cable with a Wieland RST20i3 connector - straight, or angled if you run the supply close to the body. Both are available separately from us and installation takes a few minutes.

Does the cabling from EVO 3-100 also fit STIXX, FLEX II or EVO Compact?

No. EVO 3-100 uses the Wieland RST20i3 power connector, common to the entire EVO 1.5 and Q-Series Gen2 range. It does not fit EVO Compact in the 400 V version (that one has connector N50243) or the STIXX (M19) and FLEX II (WDC) ranges - they have their own cabling. When buying a cable, stick to the EVO/Q-Series version.

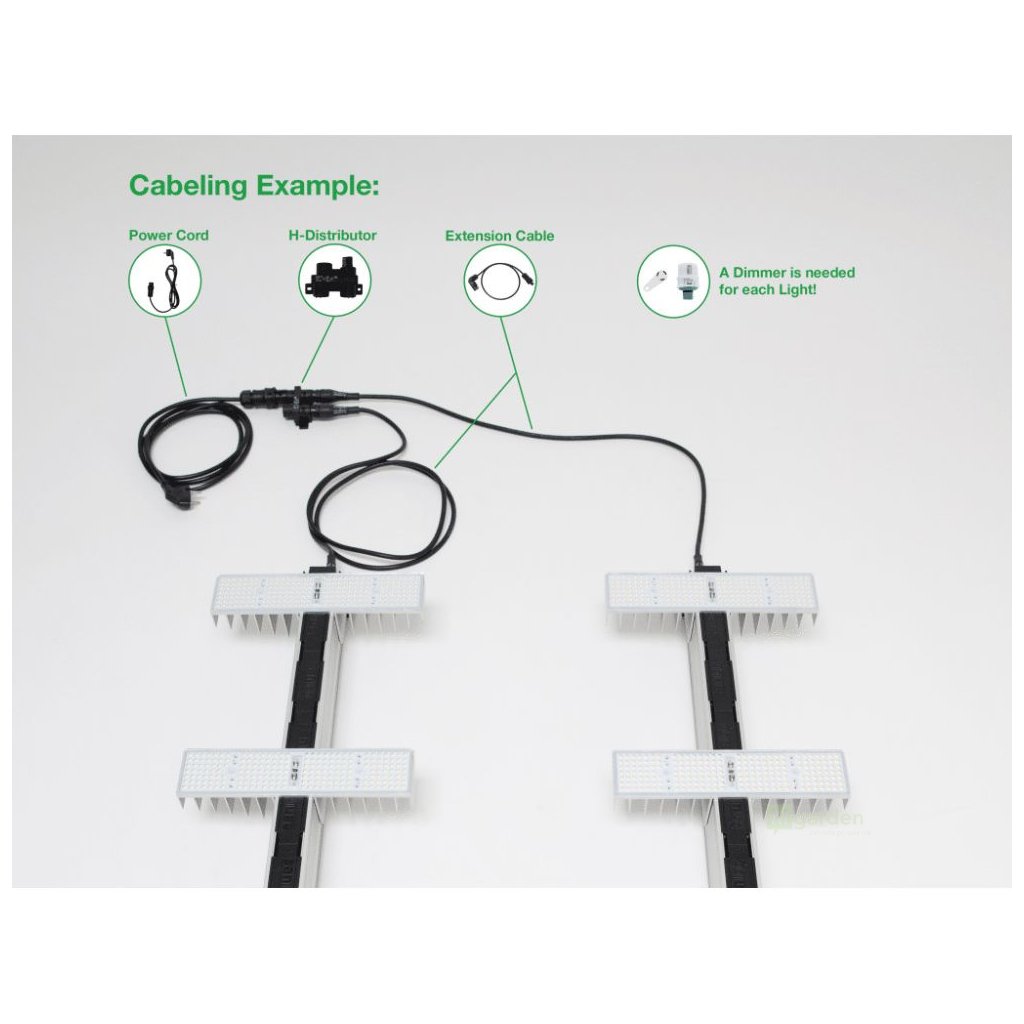

Can I connect several EVO 3-100 units to one supply?

Yes. In a larger space, EVO 3-100 units are often arranged in pairs or more side by side. To power them from one supply, use a Wieland connector (distributor), which splits the mains to several lights. You can then dim each one separately, or together via a dimming signal splitter.
