Prima Klima EC-THC fan 250 mm - 1450 m3/h, EC motor and speed control according to temperature and humidity

Product detailed description

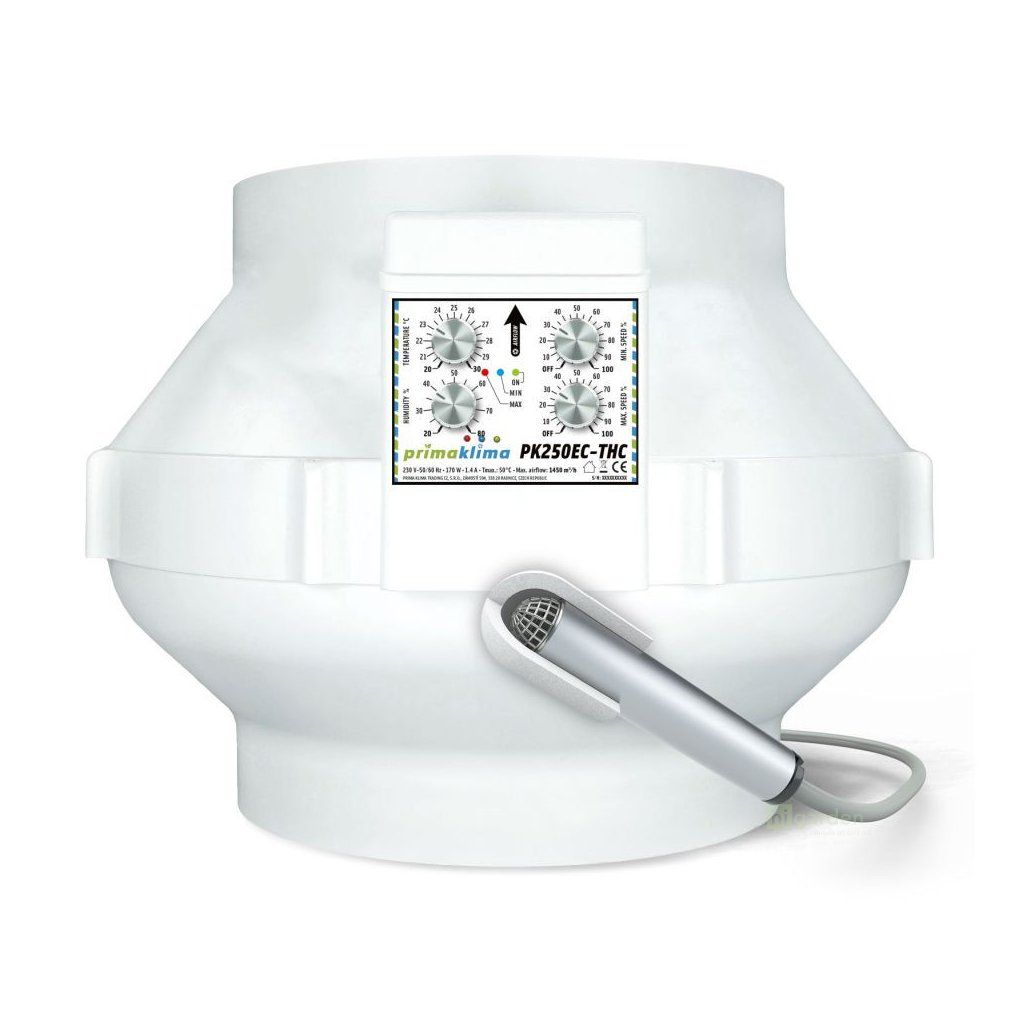

The PK250EC-THC duct fan is equipped with a high-quality ebm-papst EC motor with very low energy consumption. Thanks to integrated control, it enables automatic regulation according to temperature and humidity.

The fan is designed for efficient and quiet operation in ventilation systems. Its aerodynamically optimised shape and robust construction made of non-flammable polyamide ensure reliable performance and long service life.

Advantages:

• Control according to temperature, humidity and rpm
• Impeller with backward-curved blades
• Low energy consumption
• Low noise level
• Aerodynamically optimised shape
• Durable and impact-resistant design made of non-flammable polyamide (nylon)
• Integrated control and connection system

Technical specification:

• Flange: 250 mm
• Max. airflow: 1450 m³/h
• Power input: 0–170 W
• Voltage: 230 V, 50/60 Hz
• Current: 0.74 A
• Max. operating temperature: 50 °C
• Dimensions: 376 × 276 mm
• Weight: 3.9 kg
