AC Infinity CLOUDRAY A6, Grow Tent Clip Fan 150 mm, EC motor, 10-Stage Dynamic Wind Modes and Fan Speeds
Code: AC-CCA6



Related products
Product detailed description
A circulator you can aim and leave to work

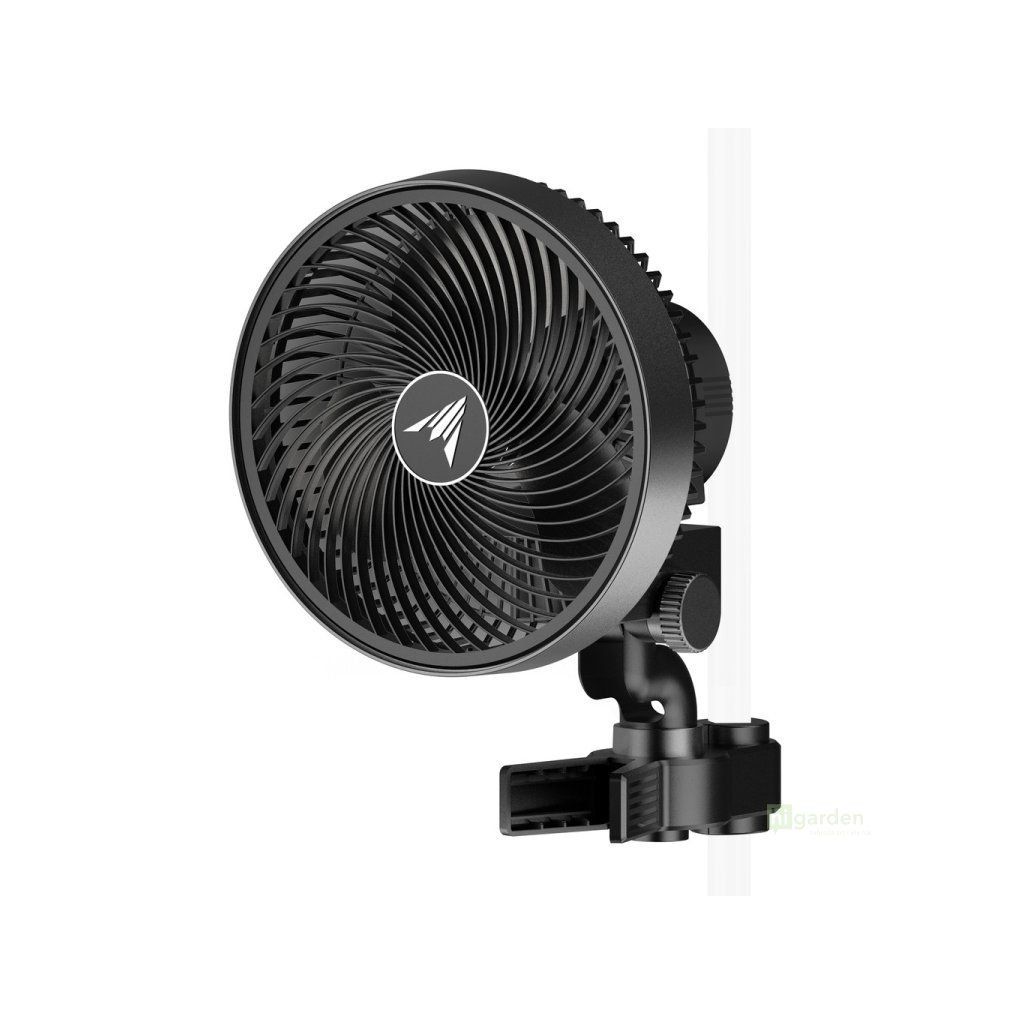

The CLOUDRAY A6 is a clip-on circulating fan with a diameter of 150 mm. It is secured at any height on a grow tent pole using a metal screw-on bracket and manually aimed at one fixed spot – into a corner, towards a hotspot beneath the grow light or between plants where airflow from the main extract fan does not reach. It is a circulating device, not an extract fan: it simply moves and mixes the air inside the tent, without exchanging it for outside air.
Manual tilt and rotation
The airflow direction is set manually by rotating the mount through 90° and tilting the head through 55°. Once set, the angle remains fixed until you adjust it again. The clamp is a compact metal construction with vice-like clamping for a secure fit on tent poles.
10 speeds, 10 Dynamic Wind modes
The fan offers 10 digitally adjustable speeds and 10 Dynamic Wind modes, which vary the airflow strength and simulate changing outdoor airflow. It is controlled directly on the fan body.
EC motor and durability
The brushless EC motor, with carbon steel gears and double ball bearings, runs quietly (31 dBA) and has a lifespan of up to 67,000 hours. The motor can be mounted horizontally or vertically. The IP-54 protection rating protects the device against dust and splashing water, and the fan has ETL certification (No. 5027708).
Expansion via the UIS platform
The CLOUDRAY A6 is part of the UIS™ platform. The fan cable can be connected to the UIS port on a smart controller, such as the CONTROLLER AI+ or Controller 69 Pro (sold separately), providing control via the AC Infinity WiFi app, climate triggers, timers and advanced automation in addition to manual control on the fan body.
Technical specifications
- Diameter (impeller): 150 mm
- Maximum airflow rate: 553 m³/h
- Noise level: 31 dBA
- Static pressure: 25 Pa
- Power consumption: 7.5 W
- Current: 0.14 A
- Voltage: 100-240 V AC
- Protection rating: IP-54
- Bearings: Double ball bearings
- Mounting: Horizontal or vertical
- Lifespan: 67,000 hours
- Rotation range (mount): 90°
- Tilt angle: 55° (manual)
- Speeds / wind modes: 10 / 10, no automatic oscillation
- Dimensions: 24.7 x 30.0 cm
- Cable length to plug: 2.44 m
Package contents
- 1× CLOUDRAY A6 circulating fan
- 1× screw-on bracket
- 1× extension cable
- 4× cable ties
- 1× cable holders
Related products
- CLOUDRAY S6 – the same 150 mm diameter, with motorised automatic oscillation (10 levels) instead of manual tilt.
- CLOUDLINE A6 – an inline extract fan of the same diameter for air exchange; the CLOUDRAY A6 only circulates air inside the tent.
- Controller 69 Pro – when connected to the UIS port on this smart controller (available separately), the CLOUDRAY A6 can be controlled via the AC Infinity WiFi app.
- CLOUDRAY A9 – a larger variant with a diameter of 225 mm for a larger tent.
The AC Infinity grow tent system guide explains how to combine extraction and circulation in a tent.
Frequently asked questions
I have an extract fan, so why would I also need a CLOUDRAY A6 circulator?
An extract fan (e.g. CLOUDLINE) exchanges the air in the tent for outside air – it draws air in and expels it. The CLOUDRAY A6, on the other hand, simply moves the air inside the tent and directs it towards a specific spot the extract airflow does not reach. These are two different functions that complement each other.
How many CLOUDRAY circulators do I need for one tent?
It depends on the tent size and plant layout – the CLOUDRAY A6 covers an area within a 90° rotation and 55° tilt from its mounting point, meaning one chosen spot or direction. Larger tents therefore often use several pieces positioned in different corners or at different heights.
How does the CLOUDRAY A6 differ from the CLOUDRAY S6?
Both have a diameter of 150 mm, 10 speeds and 10 Dynamic Wind modes. The A6 can only be adjusted manually (55° tilt, 90° rotation) and stays in a fixed position, while the S6 also has motorised automatic oscillation with 10 levels.
