AC Infinity CLOUDRAY S6, Grow Tent Clip Fan 150 mm, EC Motor, Automatic Oscillation, 10-Stage Dynamic Wind Modes and Fan Speeds
Code: AC-CCS6



Related products
Product detailed description
The fan that oscillates for you

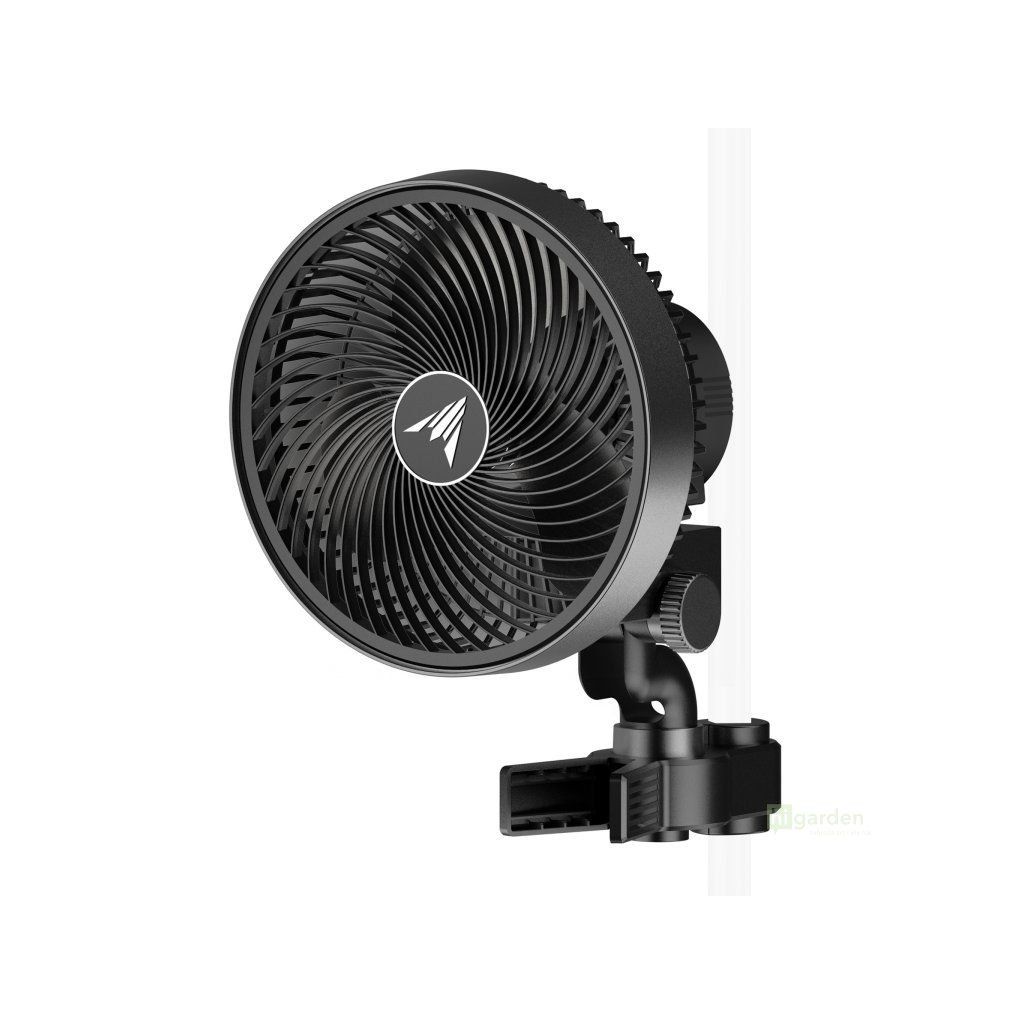

The CLOUDRAY S6 is a 150 mm clip-on circulating fan, secured to a grow tent pole with a metal clamp. Unlike the A6 range, it has motorised automatic oscillation – it turns by itself and distributes airflow throughout the space, so there is no need to redirect it manually. It is a circulating fan, not an extract fan.
10 levels of automatic oscillation
Oscillation can be set to 10 levels – from a narrow beam aimed at a specific spot to wide coverage of the space within a 90° rotation range. The manual 55° head tilt is retained as an addition to automatic rotation.
Speeds and Dynamic Wind modes on top of oscillation
The fan also offers 10 digitally adjustable speeds and 10 Dynamic Wind modes, which alternate airflow strength and simulate changing outdoor airflow. Everything is controlled directly on the fan body.
EC motor with oscillation drive
The brushless EC motor, with carbon steel gears and double ball bearings, runs quietly (31 dBA) and has a lifespan of up to 67,000 hours. Its 11 W power consumption is higher than that of the manual A-series (7.5 W) – it also powers the oscillation motor. The motor can be mounted horizontally or vertically. The IP-54 protection rating protects the unit from dust and splashing water; the fan is ETL certified (No. 5027708).
UIS platform and smart controller
The CLOUDRAY S6 is part of the UIS™ platform. The fan cable can be connected to the UIS port of a smart controller, such as the CONTROLLER AI+ or Controller 69 Pro (sold separately), giving you control via the AC Infinity WiFi app, climate triggers, timers and advanced automation, in addition to control on the fan body.
Technical specifications
- Diameter (impeller): 150 mm
- Maximum airflow: 553 m³/h
- Noise level: 31 dBA
- Static pressure: 25 Pa
- Power consumption: 11 W
- Current: 0.14 A
- Voltage: 100-240 V AC
- Protection rating: IP-54
- Bearings: Double ball bearings
- Mounting: Horizontal or vertical
- Lifespan: 67,000 hours
- Oscillation: Automatic, 10 levels, 90° range
- Tilt angle: 55° (manual)
- Dimensions: 24.7 x 30.0 cm
- Plug cable length: 2.44 m
Package contents
- 1× CLOUDRAY S6 circulating fan
- 1× clamp mount
- 1× extension cable
- 4× cable ties
- 1× cable holders
Related products
- CLOUDRAY A6 – the same 150 mm diameter without motorised oscillation, with manual tilt only.
- CLOUDRAY S9 – a larger 225 mm variant with the same automatic oscillation, for larger tents.
- Controller 69 Pro – when connected to this smart controller’s UIS port (sold separately), the CLOUDRAY S6 can be controlled via the AC Infinity WiFi app.
For information on how to combine extraction and circulation in a tent, see the AC Infinity grow tent system guide.
Frequently asked questions
Why choose the oscillating CLOUDRAY S6 instead of a fixed-position fan?
Motorised oscillation (10 levels) distributes airflow throughout the space by itself, so air does not circulate in just one fixed spot as it does with a manually positioned model. Oscillation can be narrowed to a specific spot or widened for broader coverage.
What is the difference between the CLOUDRAY S6 and CLOUDRAY A6?
Both have a 150 mm diameter, 10 speeds and 10 Dynamic Wind modes. The S6 also oscillates automatically at 10 levels, while the A6 has manual tilt only. They also differ in power consumption – the S6 uses 11 W compared with 7.5 W for the A6 because it also powers the oscillation motor.
What size tent is the CLOUDRAY S6 suitable for?
This 150 mm model has a flow rate of 553 m³/h – the same airflow specifications as the A6, but with automatic distribution throughout the space thanks to oscillation. The CLOUDRAY range includes the 225 mm S9 variant for larger tents and rooms.
