AC Infinity CLOUDRAY A9, Grow Tent Clip Fan 225 mm, EC Motor, 10-stage Dynamic Wind Modes and Fan Speeds
Code: AC-CCA9



Related products
Product detailed description
When a 150 mm circulator is not enough for your tent

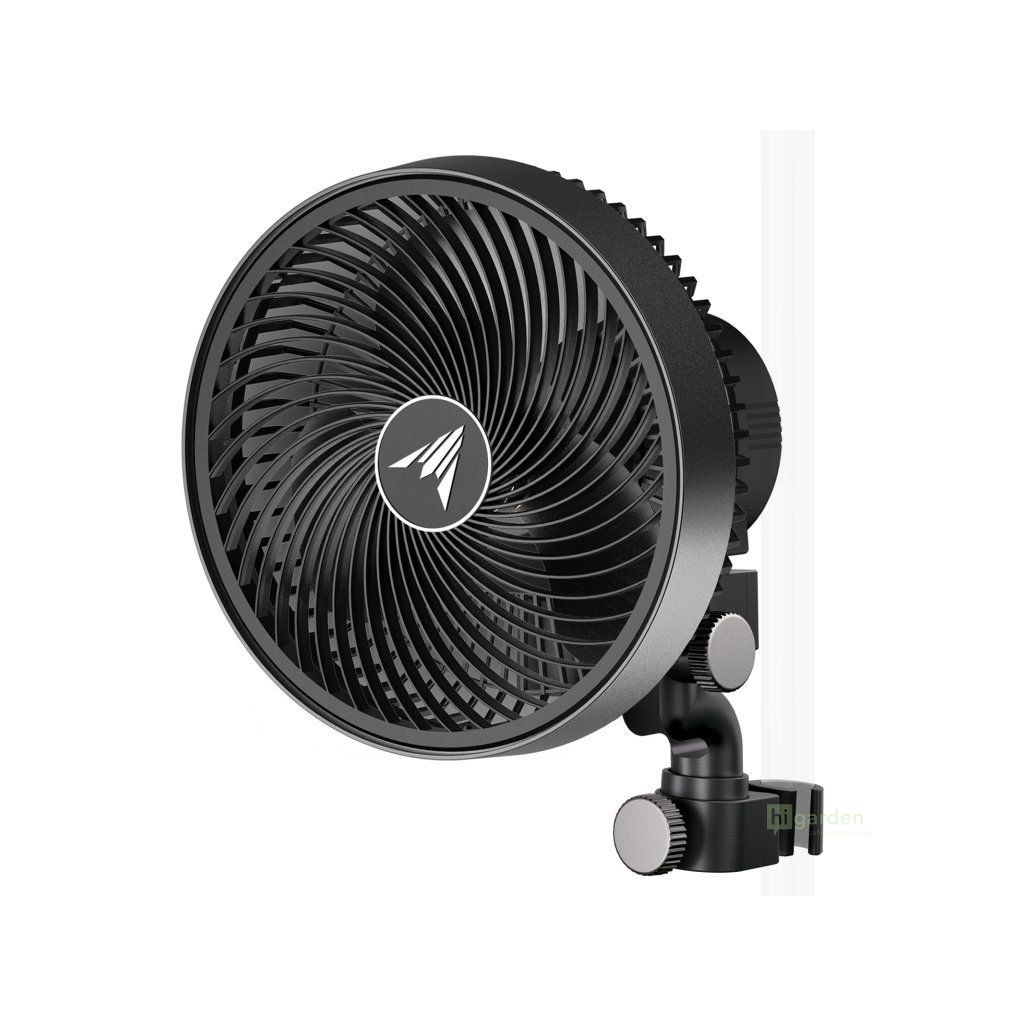

CLOUDRAY A9 is a clip-on circulating fan with a 225 mm impeller diameter – a larger variant than the 150 mm A6 model, with a higher maximum flow rate of 688 m³/h. It is designed for larger grow tents and rooms where a smaller 150 mm circulator would not be enough to move the entire volume of air. It attaches directly to a tent pole using a metal screw-on mount; it is a circulating device, not an extractor.
One powerful, precisely directed airflow
The airflow direction on the A9 is adjusted manually only – by rotating the mounting through 90° and tilting the head through 55°. The fan therefore maintains one selected direction until you adjust it manually; the CLOUDRAY A9 does not have motorised oscillation.
Speed control and Dynamic Wind
There are 10 digitally adjustable speeds and 10 Dynamic Wind modes, which vary the airflow strength and simulate changing outdoor airflow. The controls are directly on the fan body.
EC motor
A brushless EC motor with carbon steel gears and double ball bearings drives the 225 mm impeller at a noise level of 35 dBA. The IP-54 protection rating protects the device against dust and splashing water.
Optional control via UIS
CLOUDRAY A9 is part of the UIS™ platform. The fan cable can be connected to the UIS port of a smart controller, such as CONTROLLER AI+ or Controller 69 Pro (sold separately), giving you control via the AC Infinity WiFi app, climate triggers, timers and advanced automation in addition to the manual controls on the fan body.
Technical specifications
- Diameter (impeller): 225 mm
- Maximum airflow: 688 m³/h
- Noise level: 35 dBA
- Static pressure: 25 Pa
- Power consumption: 7.5 W
- Current: 0.14 A
- Voltage: 100-240 V AC
- Protection rating: IP-54
- Bearings: Double ball bearings
- Rotation range (mounting): 90°
- Tilt angle: 55° (manual)
- Speeds / wind modes: 10 / 10, without automatic oscillation
- Dimensions: 26.5 x 35.2 cm
- Power cable length: 2.44 m
Package contents
- 1× CLOUDRAY A9 circulating fan
- 1× screw-on mount
- 1× extension cable
- 4× cable ties
- 1× cable holders
Related products
- CLOUDRAY A6 – a smaller 150 mm variant for smaller tents, with the same manual tilt principle.
- CLOUDRAY S9 – the same 225 mm diameter, with the addition of motorised automatic oscillation.
- Controller 69 Pro – when connected to the UIS port of this smart controller (sold separately), CLOUDRAY A9 can be controlled via the AC Infinity WiFi app.
For details on how to combine extraction and circulation in your tent, see the AC Infinity system guide for grow tents.
Frequently asked questions
How do I know whether I need 150 mm (A6) or 225 mm (A9)?
The A9 has a larger 225 mm impeller compared with the A6’s 150 mm, and a higher maximum flow rate (688 m³/h compared with 553 m³/h), at the cost of a slightly higher noise level (35 dBA compared with 31 dBA). It is suitable where the smaller A6 is not enough to move the air throughout the entire space.
Where should I place the CLOUDRAY A9 in a grow tent?
The fan clips onto a tent pole and is manually adjusted by rotating it (90°) and tilting it (55°) in the required direction – typically so that the airflow reaches areas not covered by the main extraction system.
Can I control the CLOUDRAY A9 from a mobile app?
Only manual controls are available on the fan body. To control it via the AC Infinity app (WiFi/Bluetooth), you need to connect the fan to a UIS smart controller, such as CONTROLLER AI+ or Controller 69 Pro, which is sold separately.
