Q-Max EC Silenced Fan 2850 m3/h, 315 mm

Product detailed description

Quiet performance for demanding spaces

Do you need to ventilate a large space reliably and, above all, quietly? This fan is a top-class solution that combines exceptional performance of 2850 m3/h with exceptionally quiet operation. Thanks to its unique design, where the powerful motor is integrated directly into the silenced housing, you get a ventilation system that will not disturb you even under full load.

The quietest operation and maximum efficiency

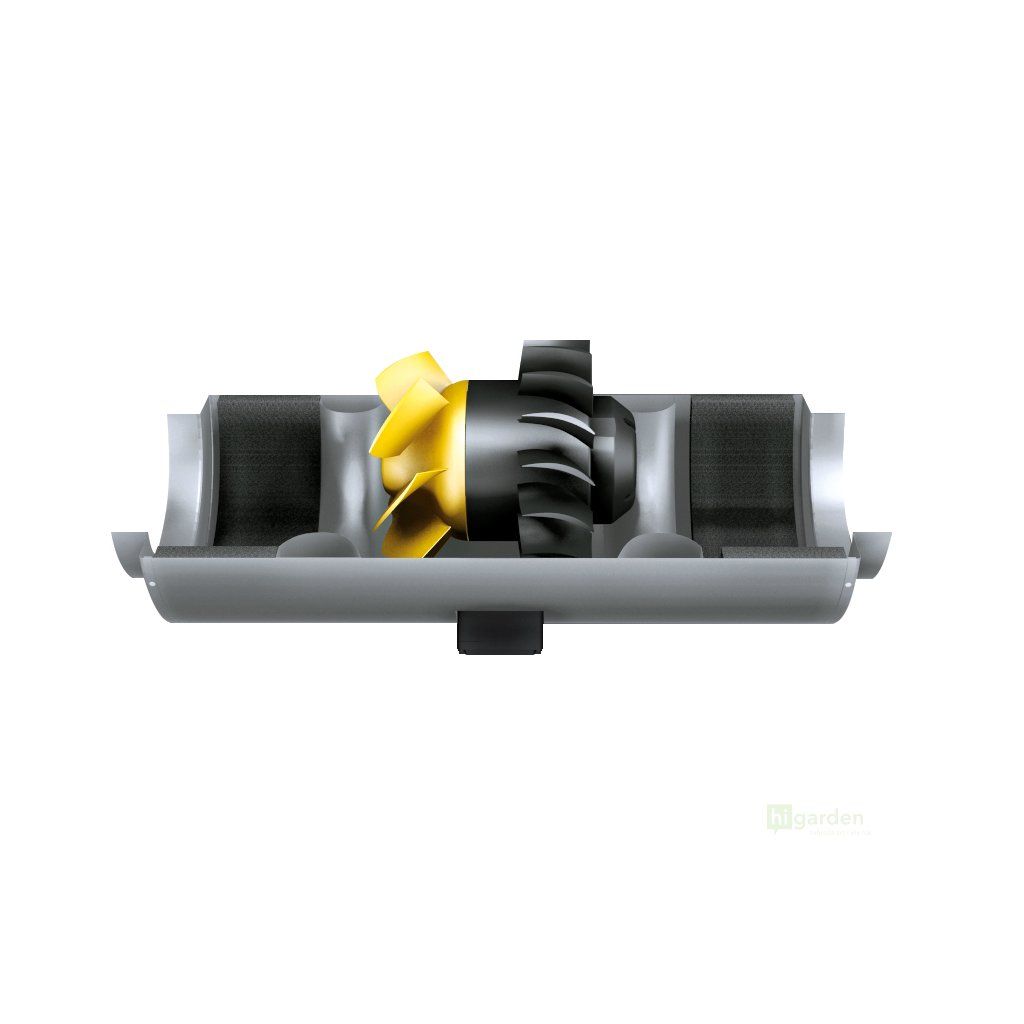

The secret of its quietness lies in the robust metal housing with internal acoustic insulation, which absorbs noise from the motor and the flowing air. The patented 3D rotor and stator system also ensures perfectly even airflow without turbulence, which further reduces noise and increases aerodynamic efficiency. The result is a powerful yet barely audible operation.

Advanced EC technology and easy control

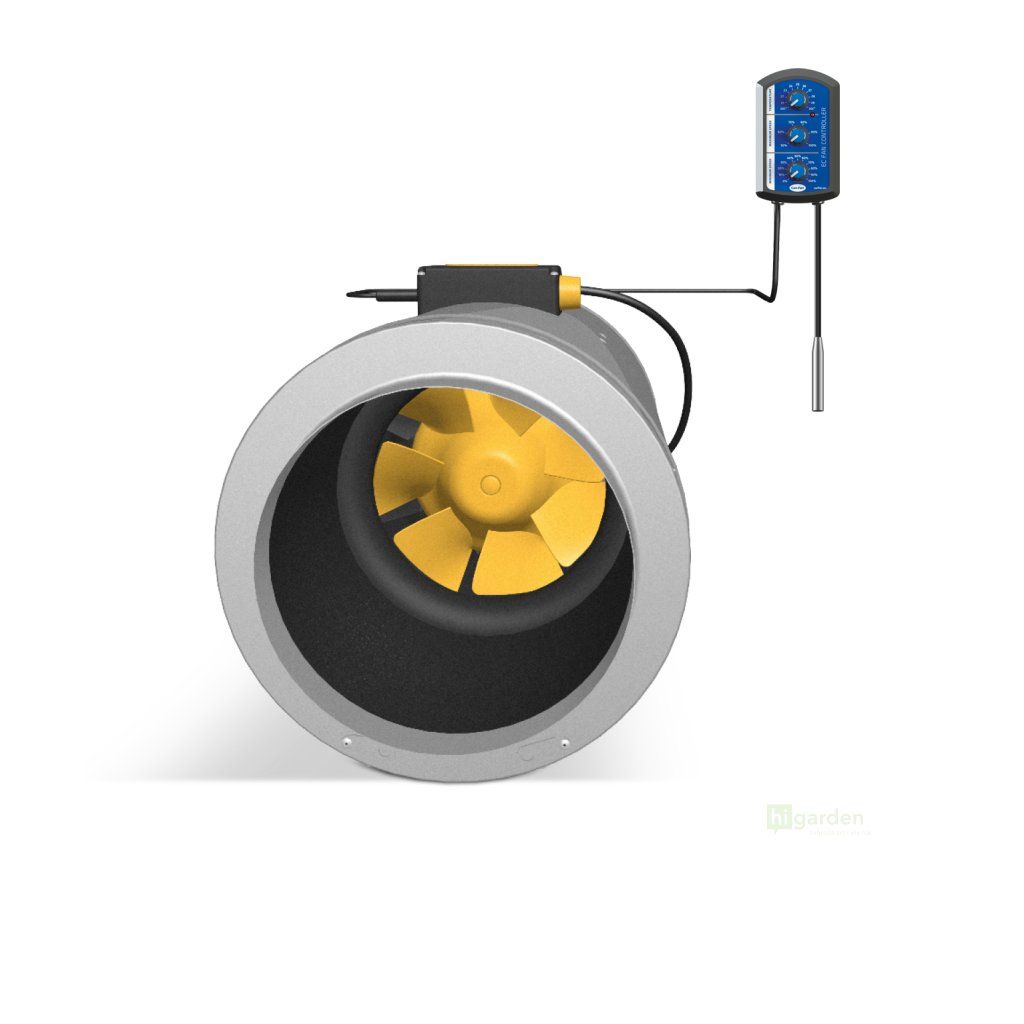

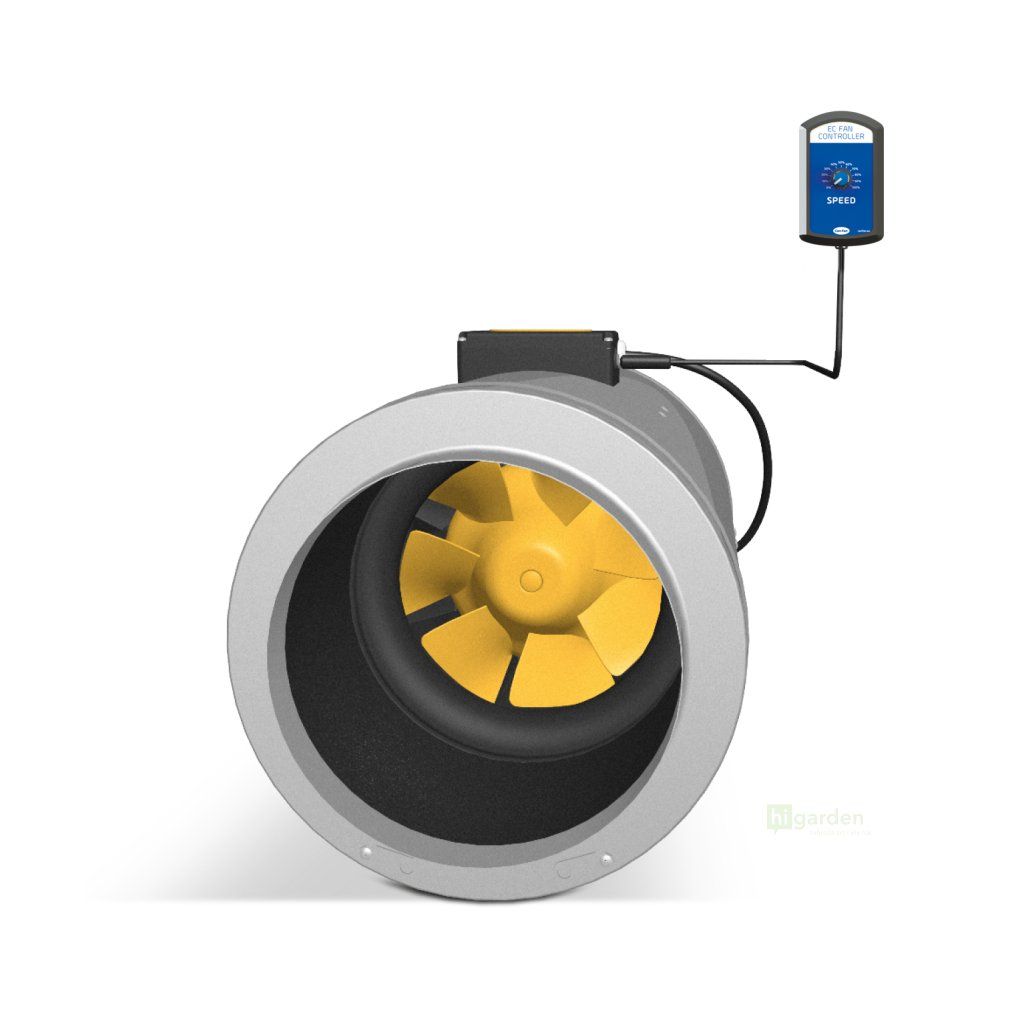

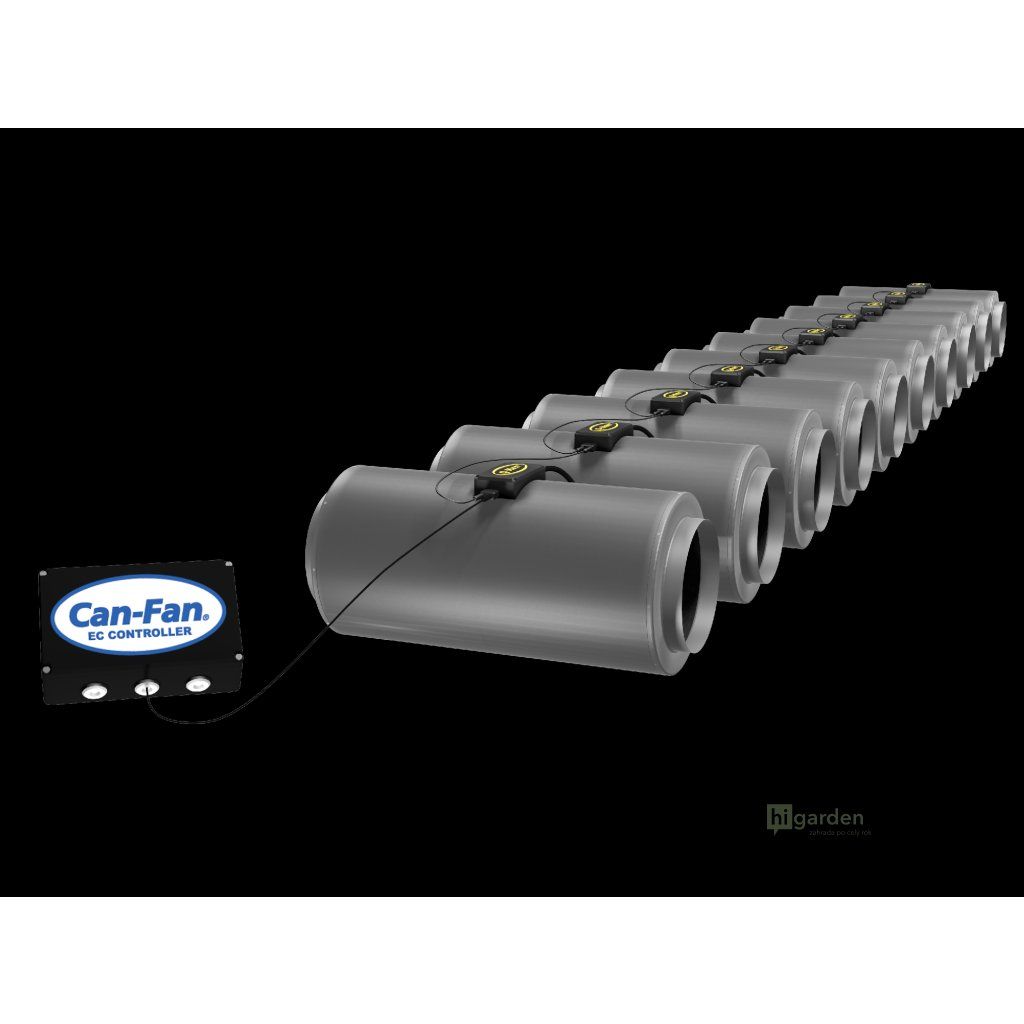

The heart of the fan is a modern EC motor, which guarantees not only high efficiency, but also significantly lower energy consumption compared with standard AC motors. It allows completely smooth speed control without any buzzing or vibrations. Using an external EC controller, you can also connect and synchronously control up to 10 of these fans at once, which is ideal for extensive systems.

Robust construction and versatile use

Thanks to its performance and quiet operation, this fan finds use in a wide range of environments. It is a perfect choice for ventilating growing spaces, workshops, warehouses, laboratories, studios and other places requiring constant and quiet air circulation. For growers of annual plants such as tomatoes, chilli peppers or herbs, it ensures an optimal climate for healthy growth and a rich harvest.

The entire construction is made in Germany, which guarantees precise workmanship and long service life. The integrated brackets also make wall or ceiling mounting easier.

Key benefits

• Extremely quiet operation – thanks to the integrated silencer and acoustic insulation.
• High efficiency – modern EC motor with low energy consumption.
• Huge performance – airflow of up to 2850 m3/h for large spaces.
• Smooth control – speed adjustment without unwanted noise.
• Robust metal body – ensures long service life and durability.
• Easy installation – integrated hanging brackets for quick mounting.

Parameters

• Airflow: 2850 m3/h
• Flange diameter: 315 mm
• Power consumption: 287 W
• Maximum current: 2 A
• Voltage: 230 V
• Noise level: 62 dB
• Weight: 18.5 kg
• Maximum operating temperature: 40 °C
