Q-Max EC silenced fan 3247 m3/h, 355 mm

Product detailed description

Professional silenced fan for maximum performance and quiet operation

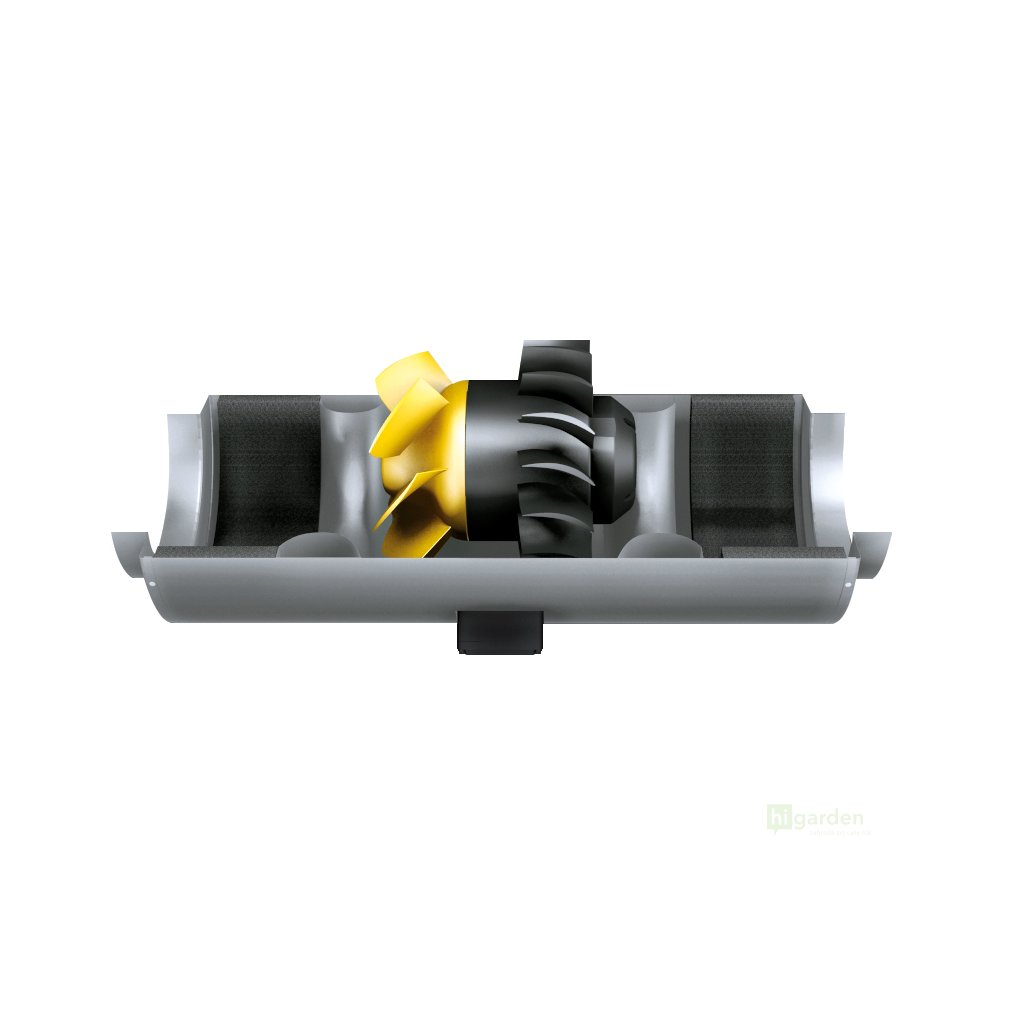

This top-class axial fan is designed for the most demanding applications where high airflow performance, minimal noise and maximum energy efficiency are required. Thanks to the combination of an advanced EC motor, a unique 3D rotor/stator system and a robust metal housing with an integrated noise suppressor, it offers completely quiet and smooth operation without any vibrations. German quality workmanship guarantees a long service life and reliability even in continuous operation.

Main advantages and features

• Extremely quiet operation: The robust metal body is completely silenced with high-quality acoustic foam, which, together with aerodynamically optimised airflow without turbulence, ensures the lowest possible noise level.
• Maximum efficiency with low consumption: The modern electronically commutated (EC) motor has significantly lower energy consumption than traditional AC fans, bringing substantial operating savings and a quick return on investment.

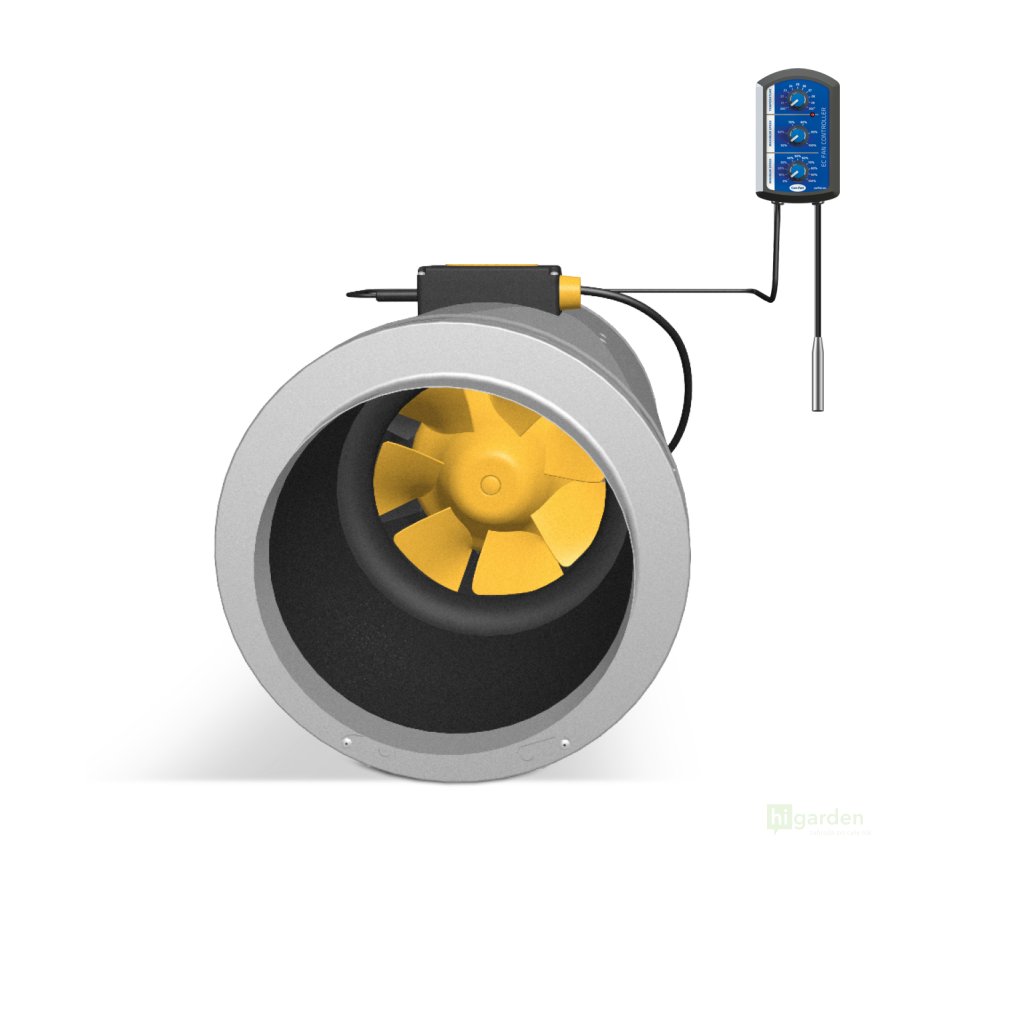

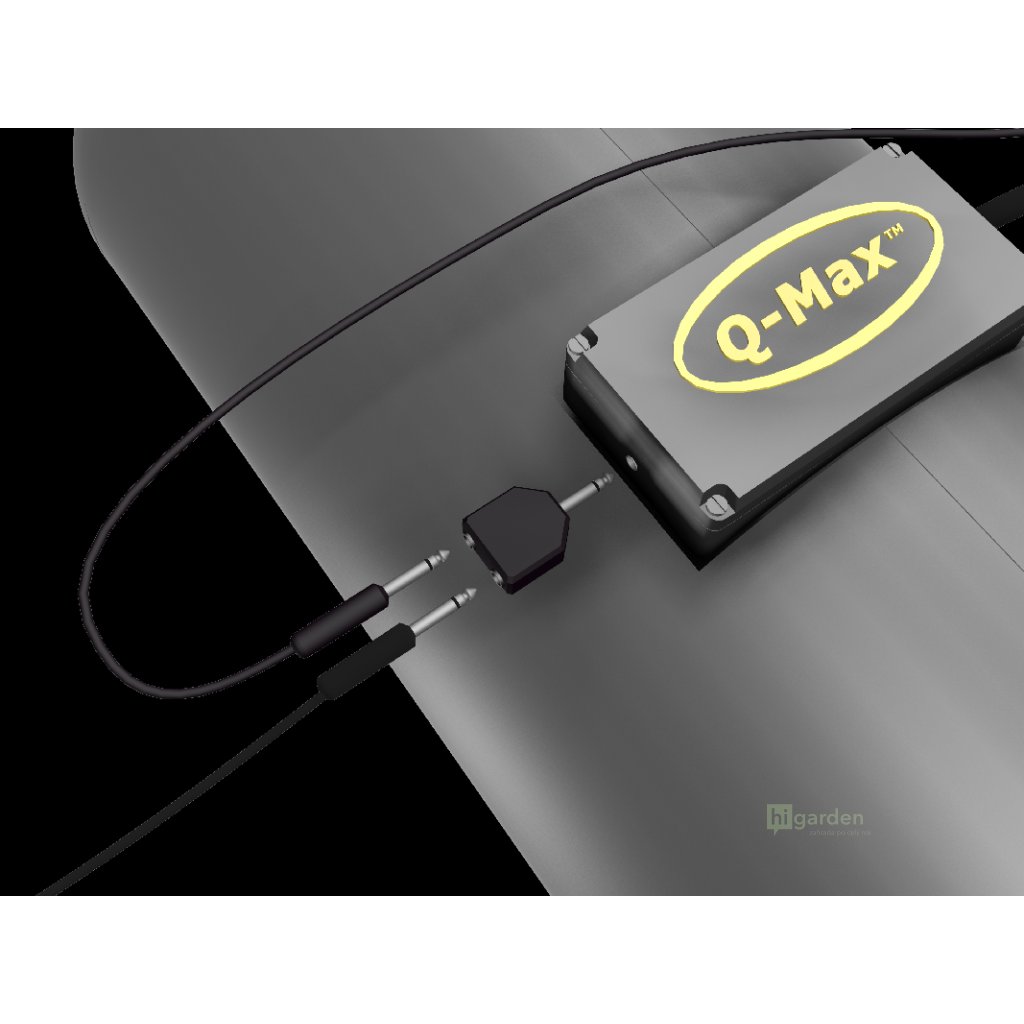

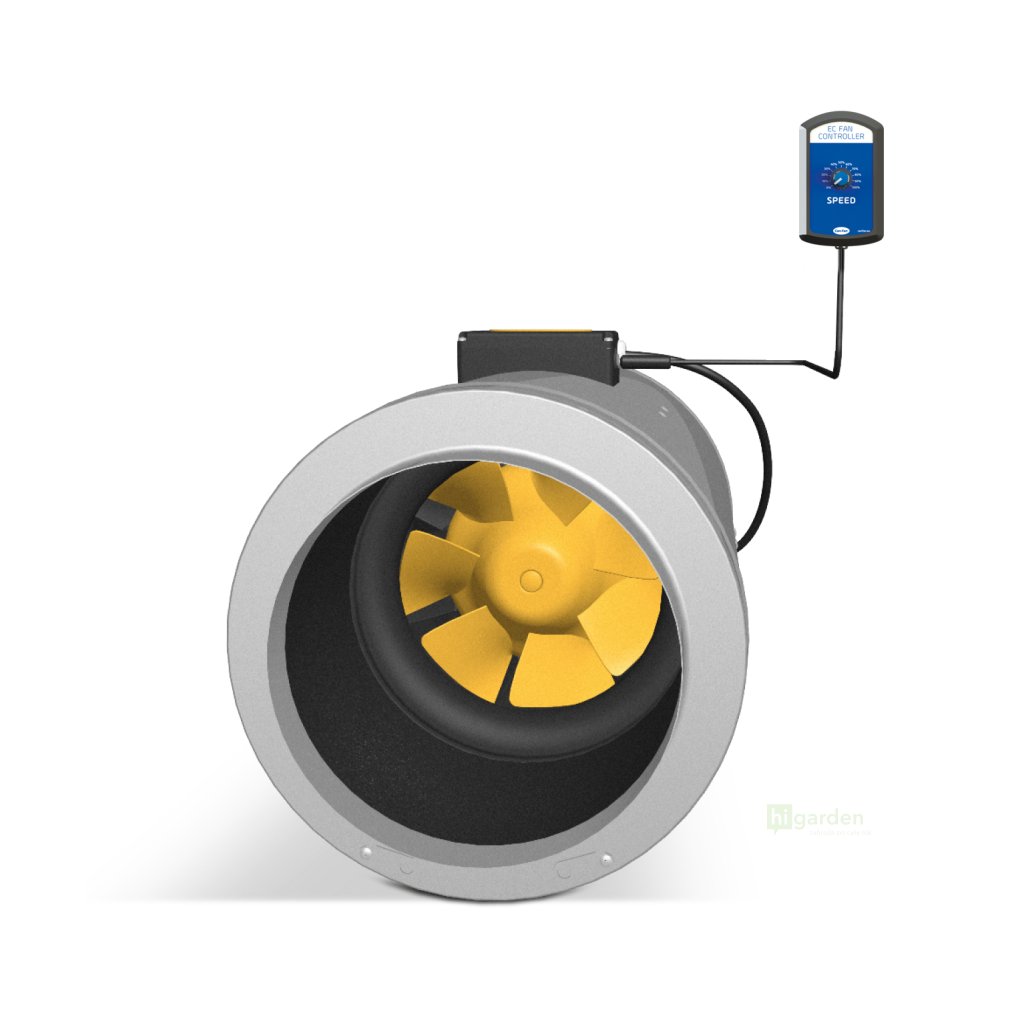

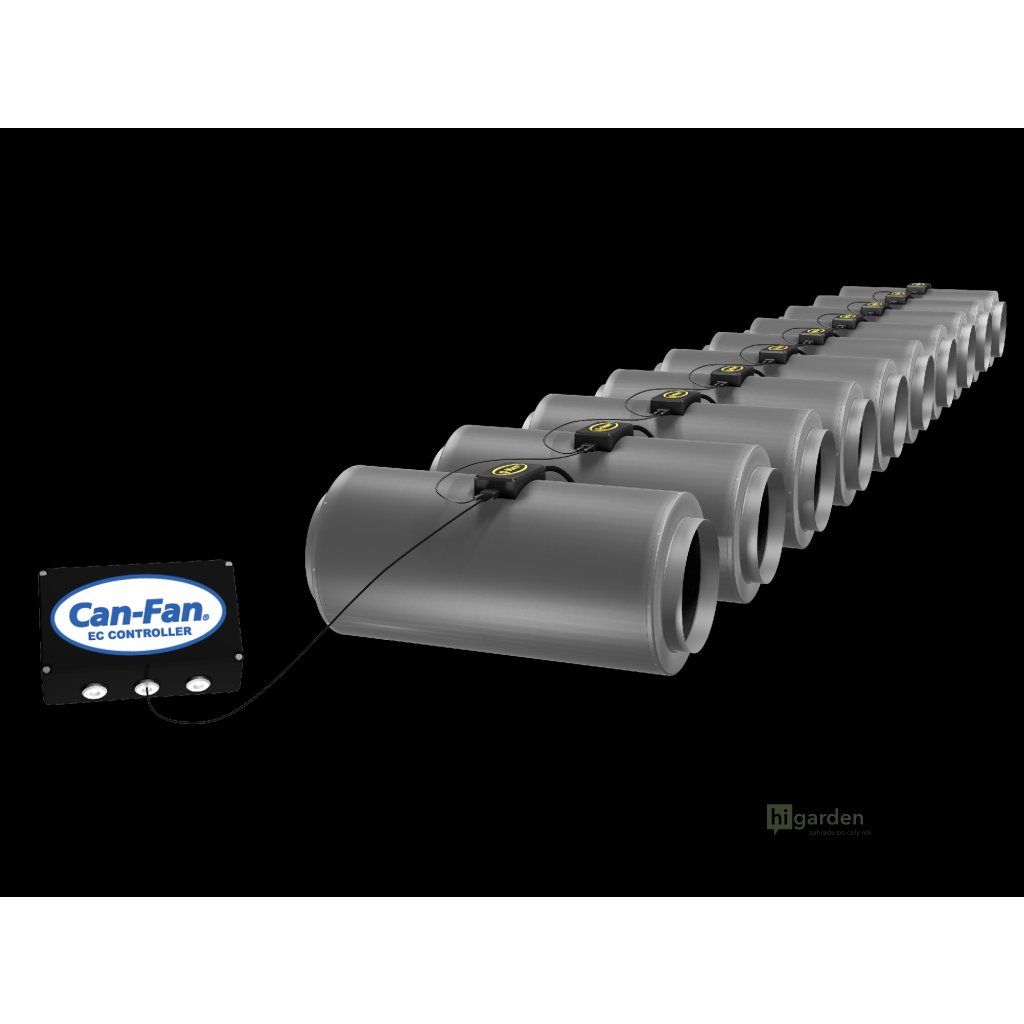

• Advanced control and scalability: The fan is fully controllable using an external EC controller. This allows you to smoothly change the speed without buzzing or loss of performance and connect up to 10 fans at once for synchronised control.

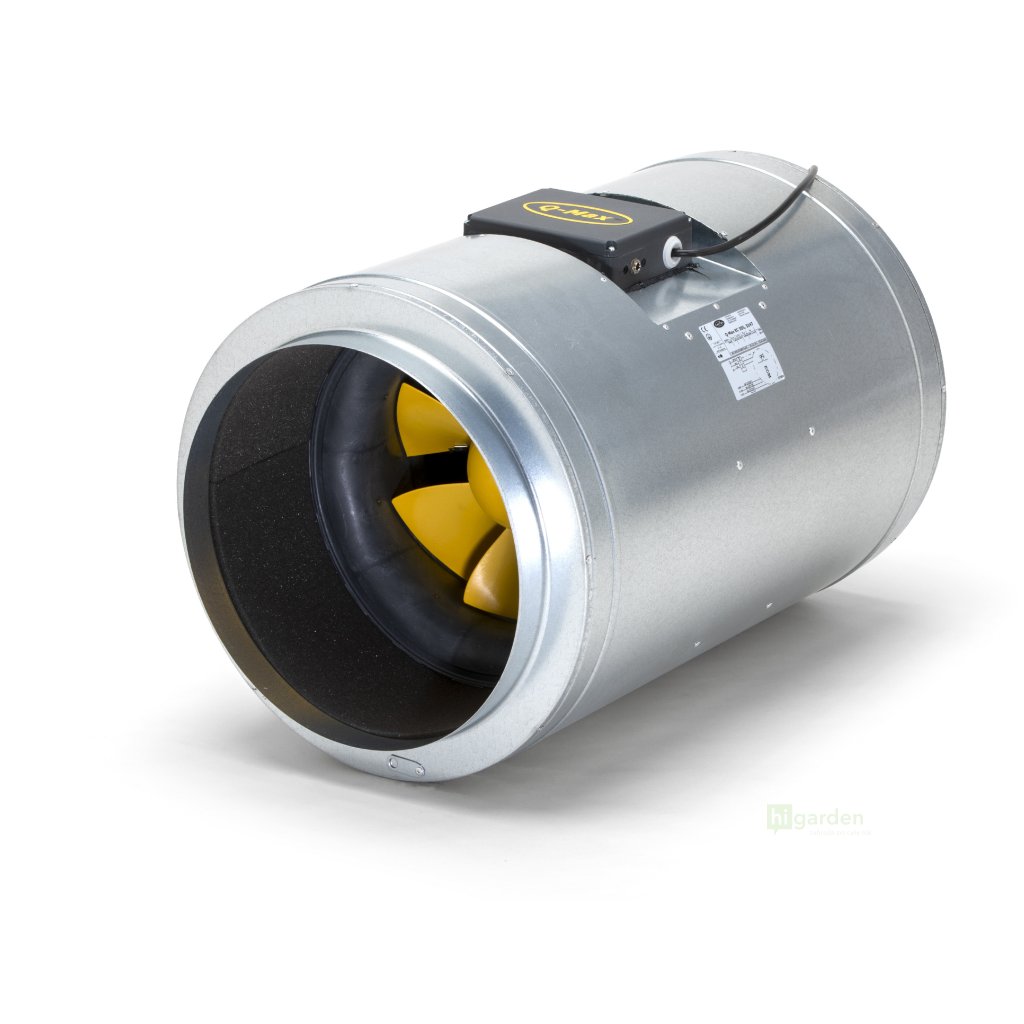

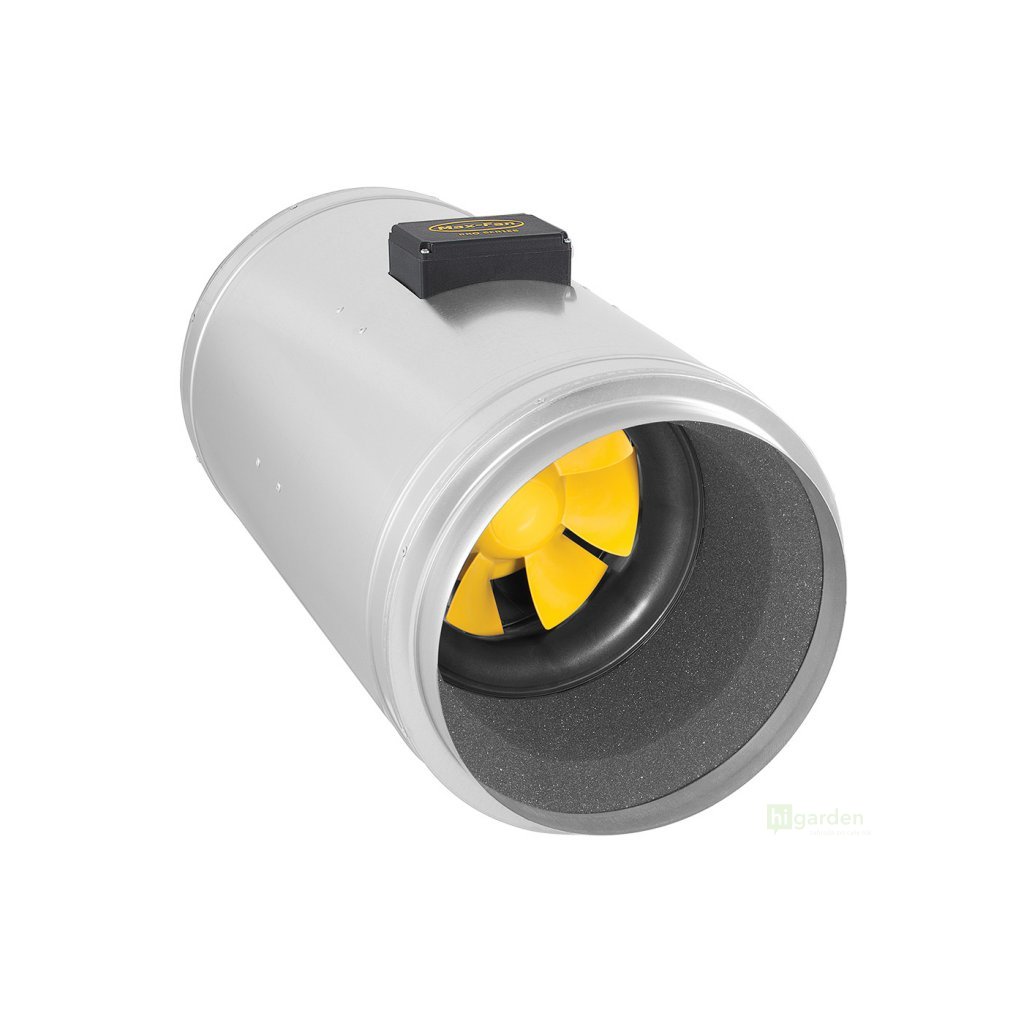

• Durable and reliable construction: The fan is made of high-quality materials, is compact and equipped with integrated hangers for easy and quick installation in any position.

Wide range of uses

Thanks to the combination of high performance and quiet operation, this fan is ideal not only for specialised growing applications, but also for a wide range of other commercial and domestic uses:

• Climate control in large growing spaces for growing tomatoes, peppers, herbs and other annual plants.
• Efficient ventilation of workshops, production halls, garages and storage areas.
• Heat extraction from technical rooms, server rooms and switchboards.
• Ensuring quiet and reliable air circulation in laboratories, offices or studios.
• Use in commercial kitchens, restaurants and other operations...

Parameters

• Airflow: 3247 m3/h
• Flange diameter: 355 mm
• Consumption: 266 W
• Voltage: 230 V
• Current: 1.9 A
• Noise level: 58 dB
• Motor technology: EC (electronically commutated)
• Speed control: Yes, using an external EC controller (not included)
