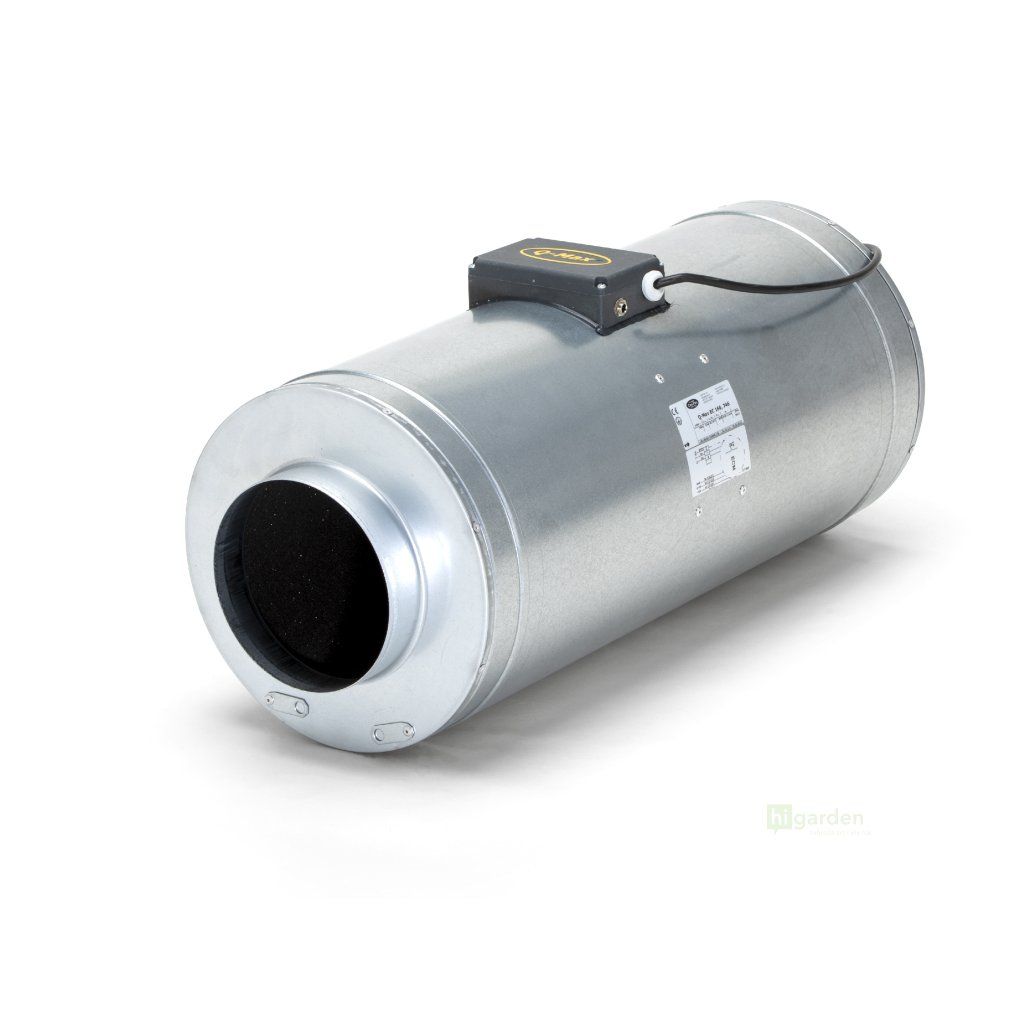

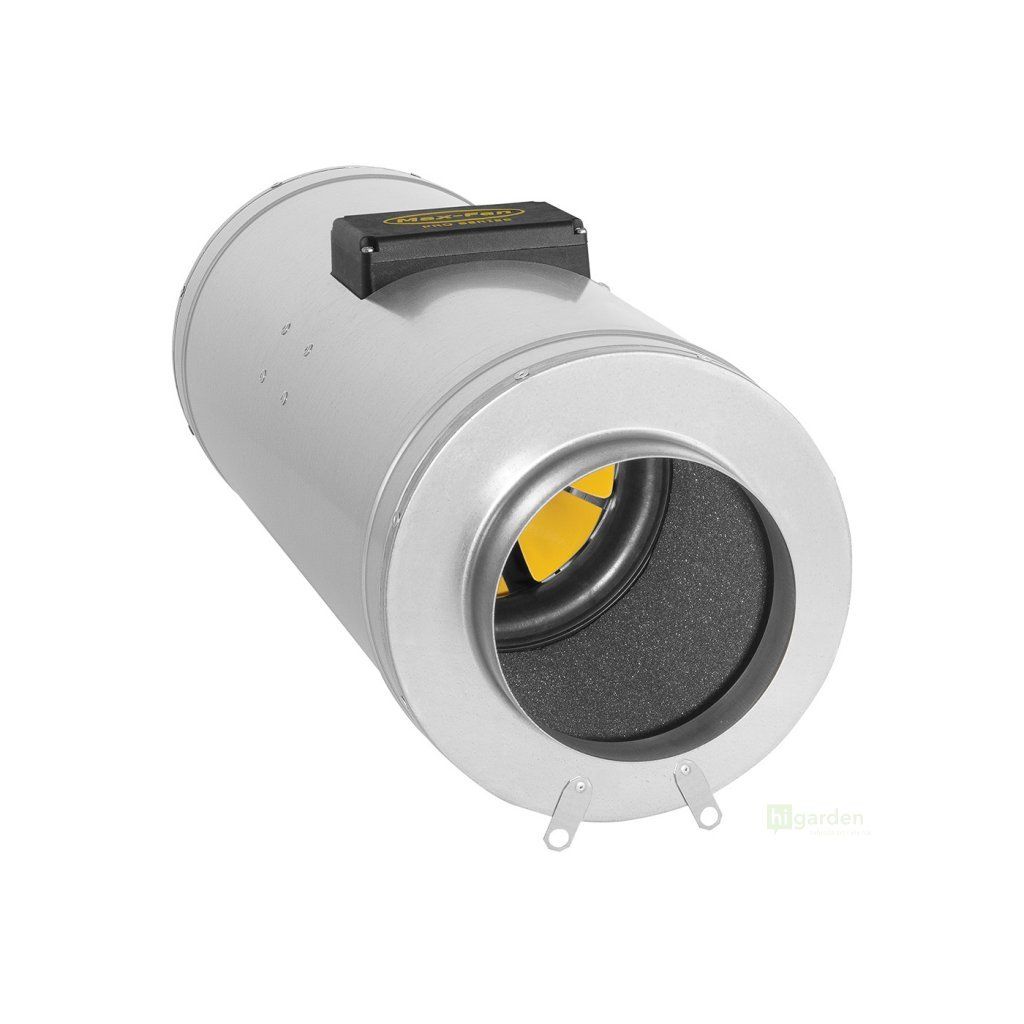

Soundproof fan Q-Max EC 746 m3/h, 160 mm
Code: 9421Product detailed description

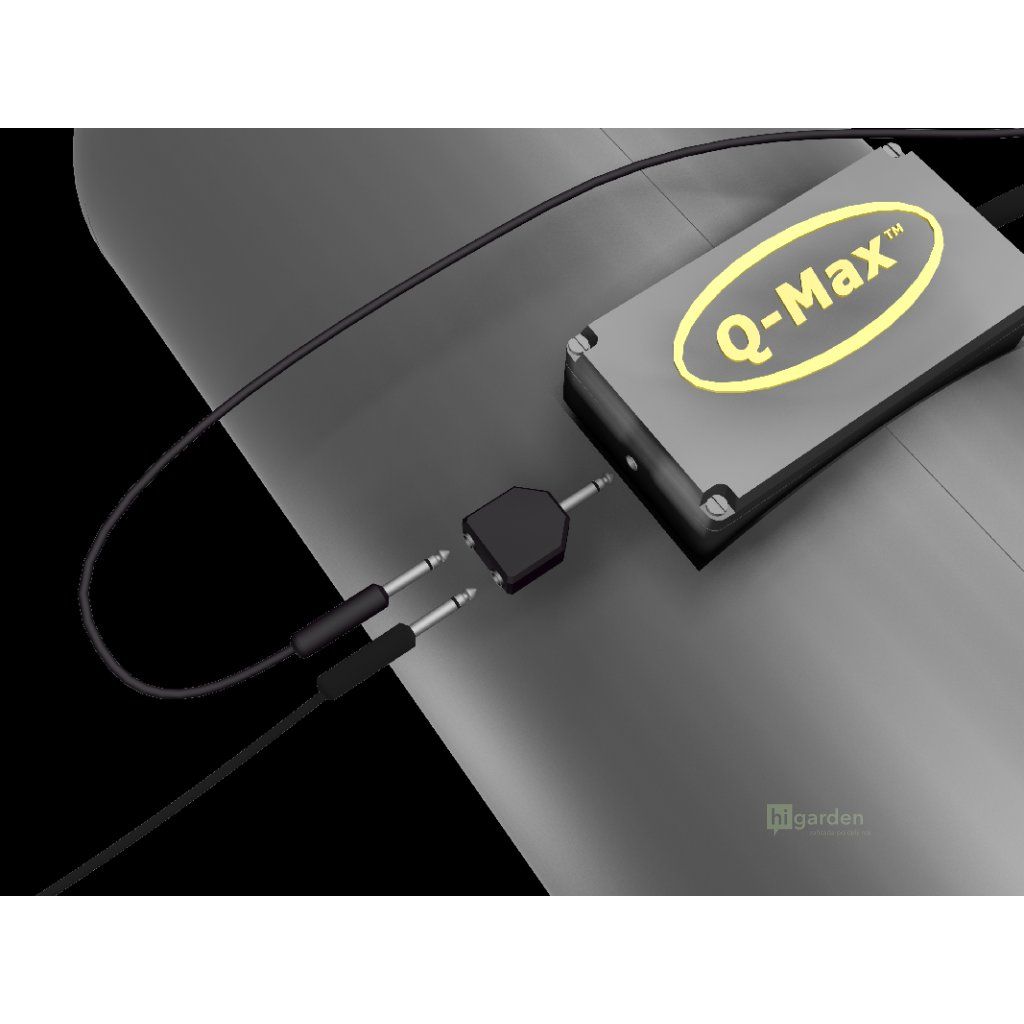

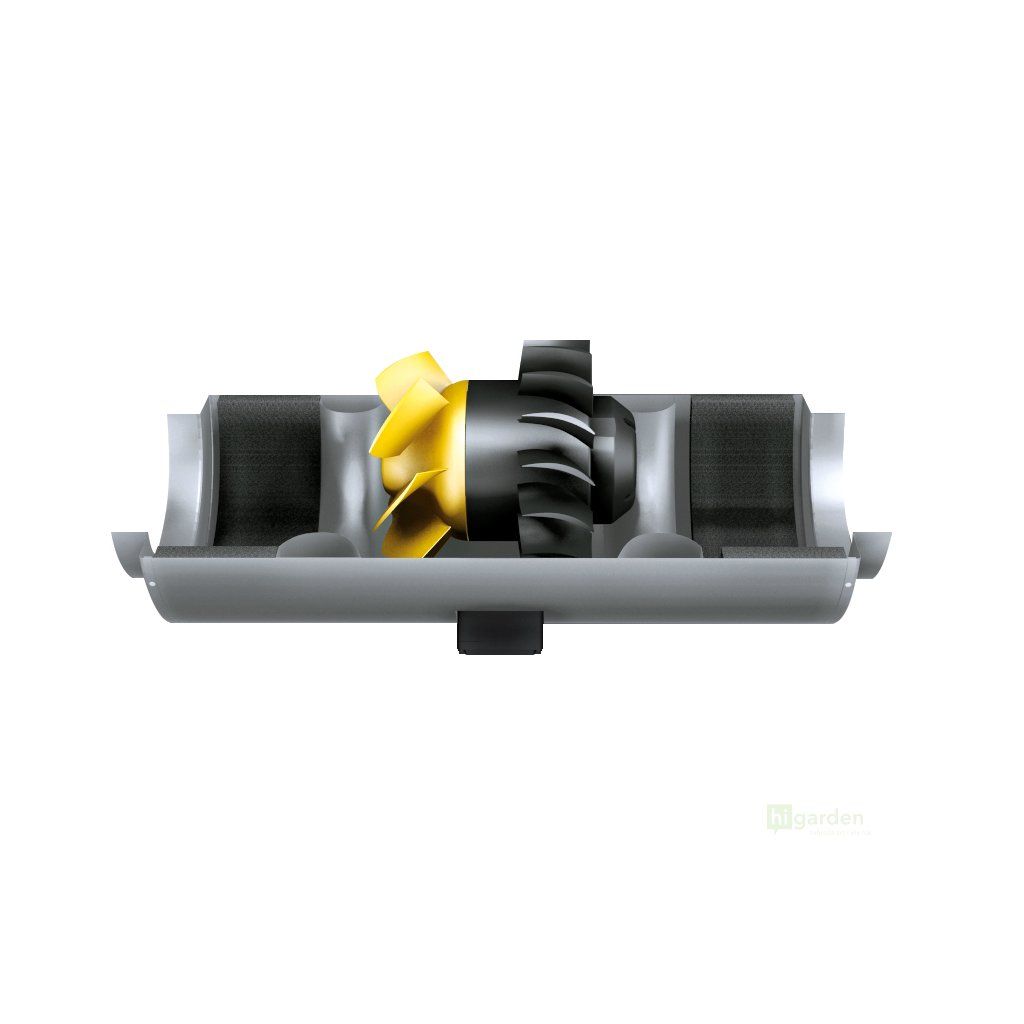

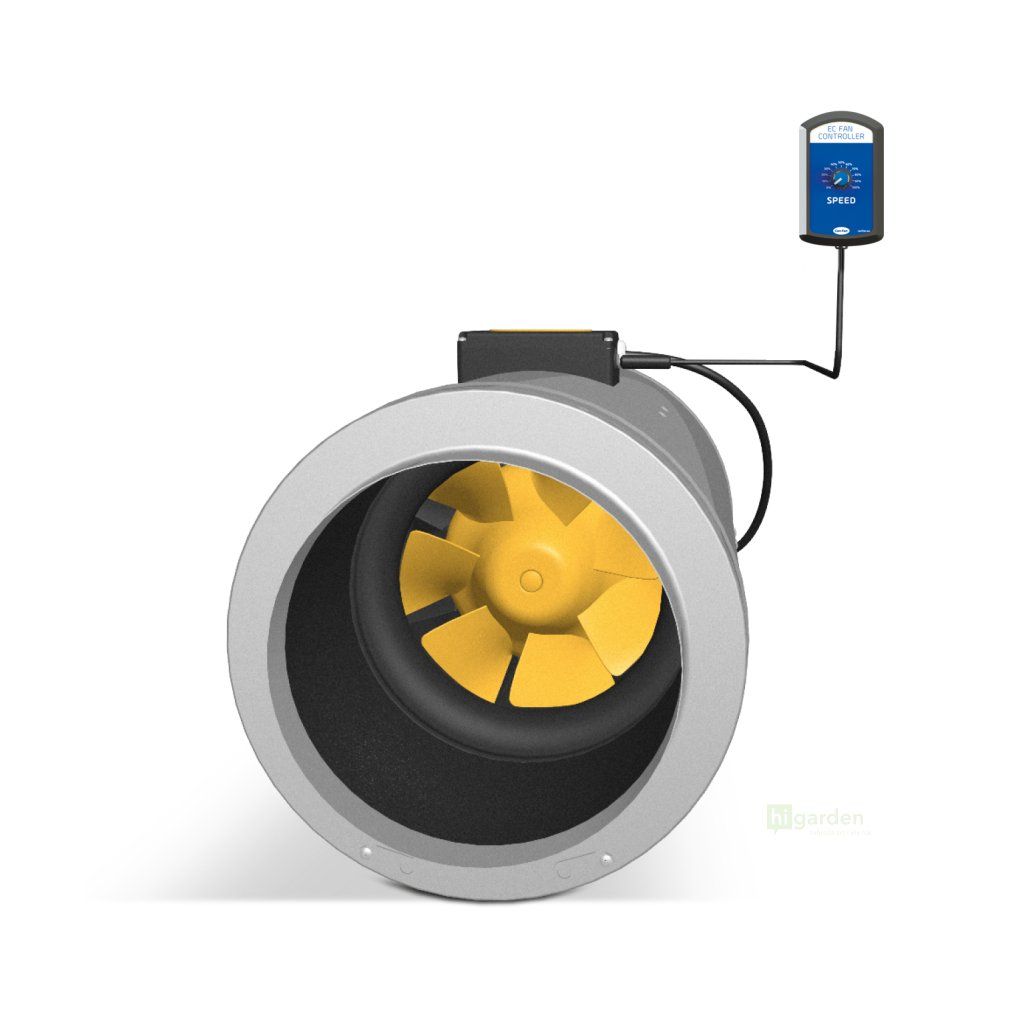

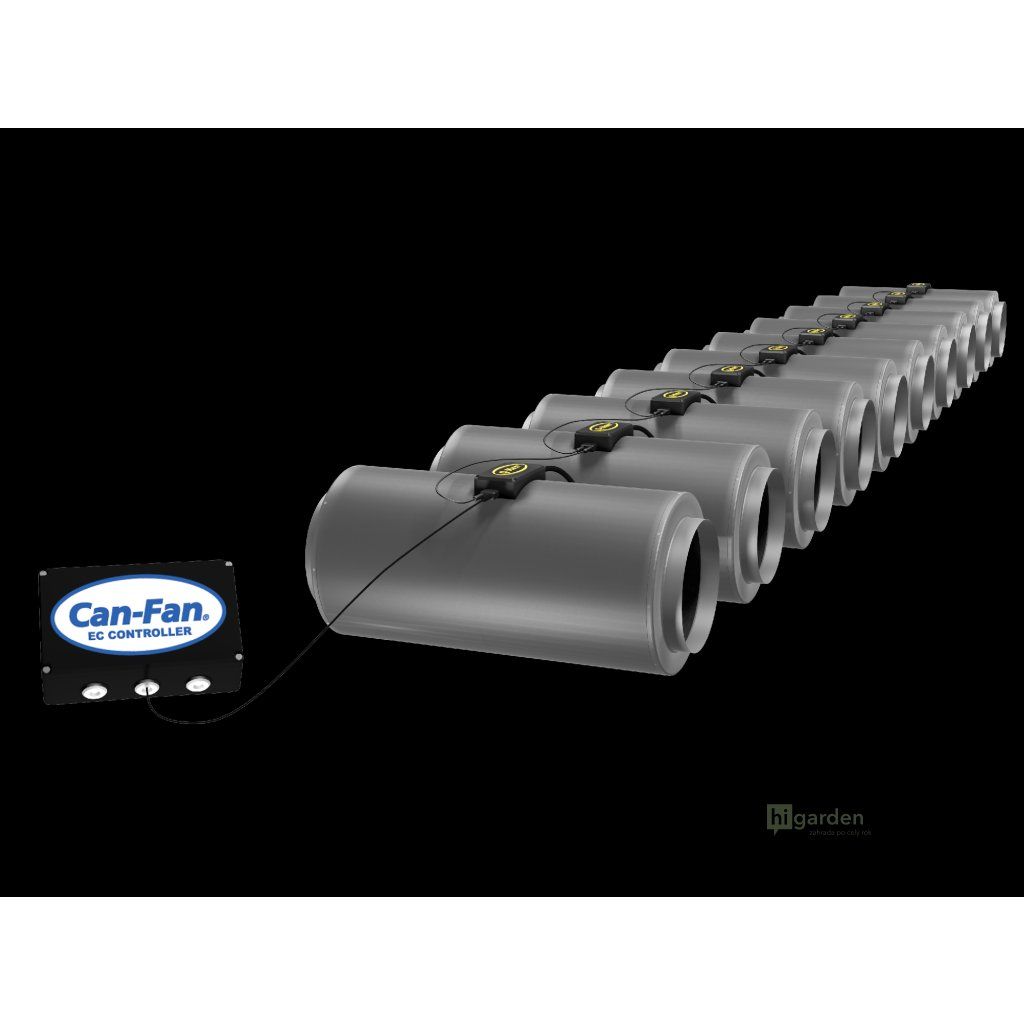

The Q-Max EC is an intake/exhaust fan with the absolute highest aerodynamic efficiency and unrivalled energy consumption thanks to its new 3D rotor/stator. The motor is integrated in a soundproof silencer. This fan guarantees the quietest operation and quietest airflow noise levels. The powerful but quiet operation of the Q Max EC is the result of a uniform flow without turbulence. Using the controller we can regulate the speed, it is possible to connect up to 10 EC motor fans and control them at the same time with the EC Fan Can. The Q Max EC fan is German made, compact, easy to maintain and clean. The integrated hinges ensure easy installation.
The quiet operation of the Q-Max is the result of the high-quality insulation of the metal casing, the even air flow without turbulence and the smooth three-stage control. The entire range meets the mandatory ErP requirements for all fans on the EU market.
Here you can find the specifications of the Q-Max EC160-746.
Maximum operating air temperature is 40 °C.
Voltage: 230 V
Max. current: 0.6 A
Consumption: 55 W
Speed: 3740 rpm
Flow rate: 746m3/h
Noise: 51 dB
Additional parameters
| Category: | Can-Fan Q-Max - Silent Ventilators |
|---|---|
| Flange (mm): | 160 |
| Speed Control: | No regulation, Silent |
| Technology: | Axial |
| Airflow (m3/h): | 746 |
| PFHGX: | Levné, Nejprodávanější, Doporučené, Kvalitní, Značkové, Základní |
| Power/Airflow: | 746 m3/h |
| Power consumption: | 67 W |
| Current: | 0,6 A |
| Voltage: | 230 V |
