Q-Max EC Silenced Fan 2000 m3/h, 250 mm
Code: 9423Related products
Product detailed description

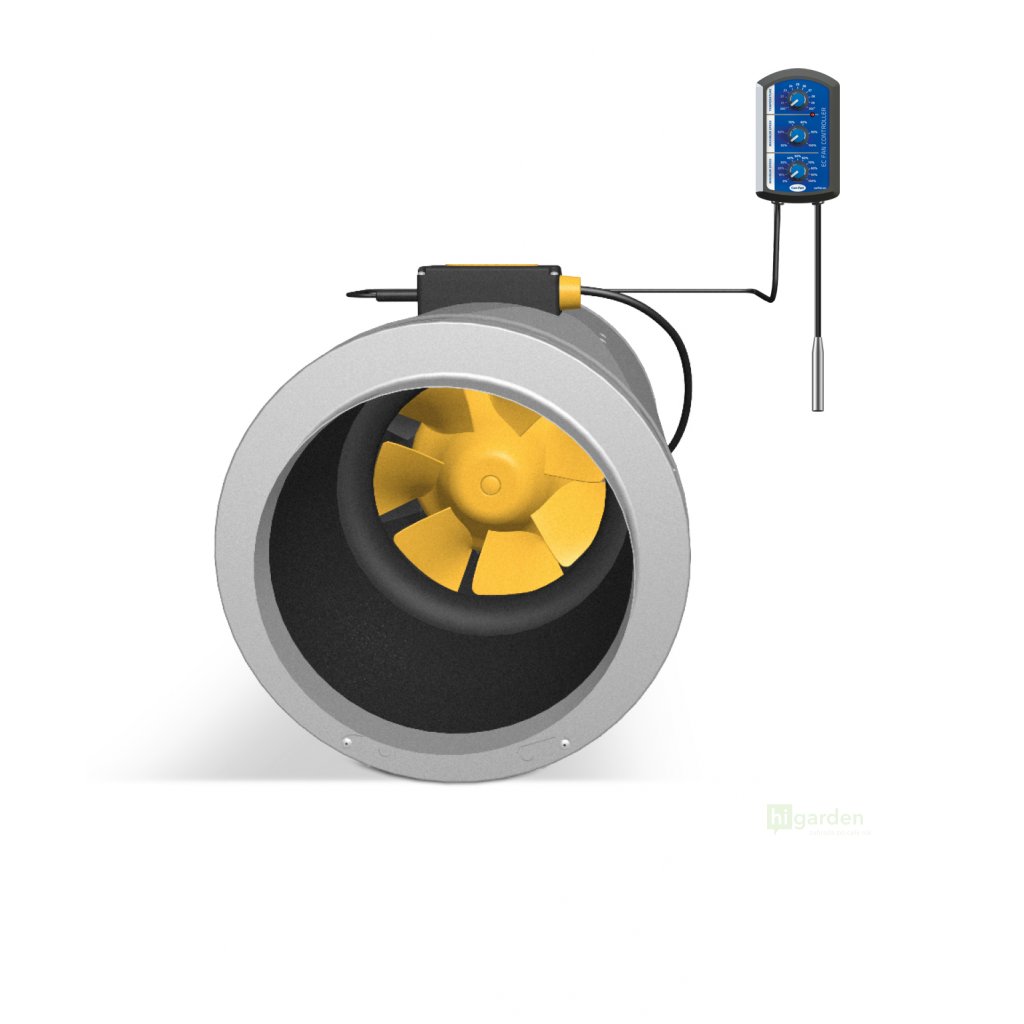

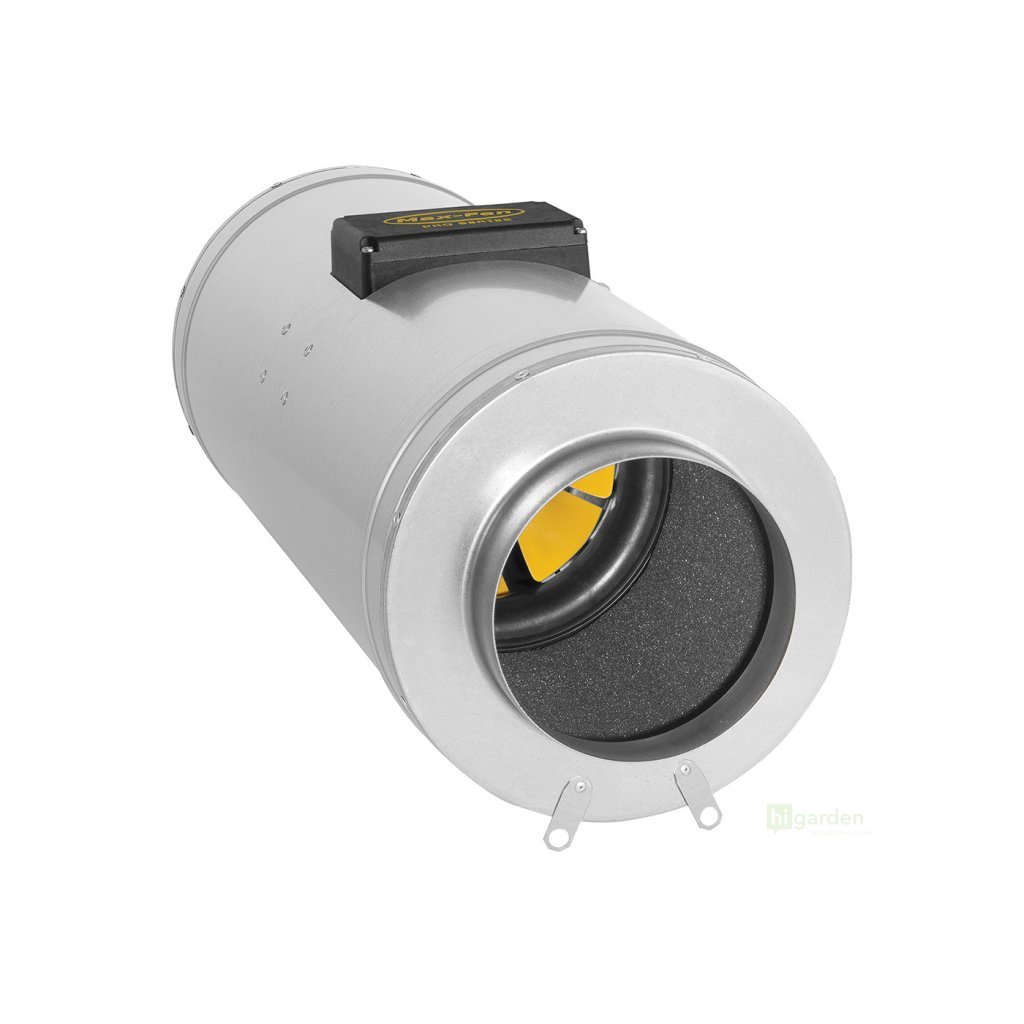

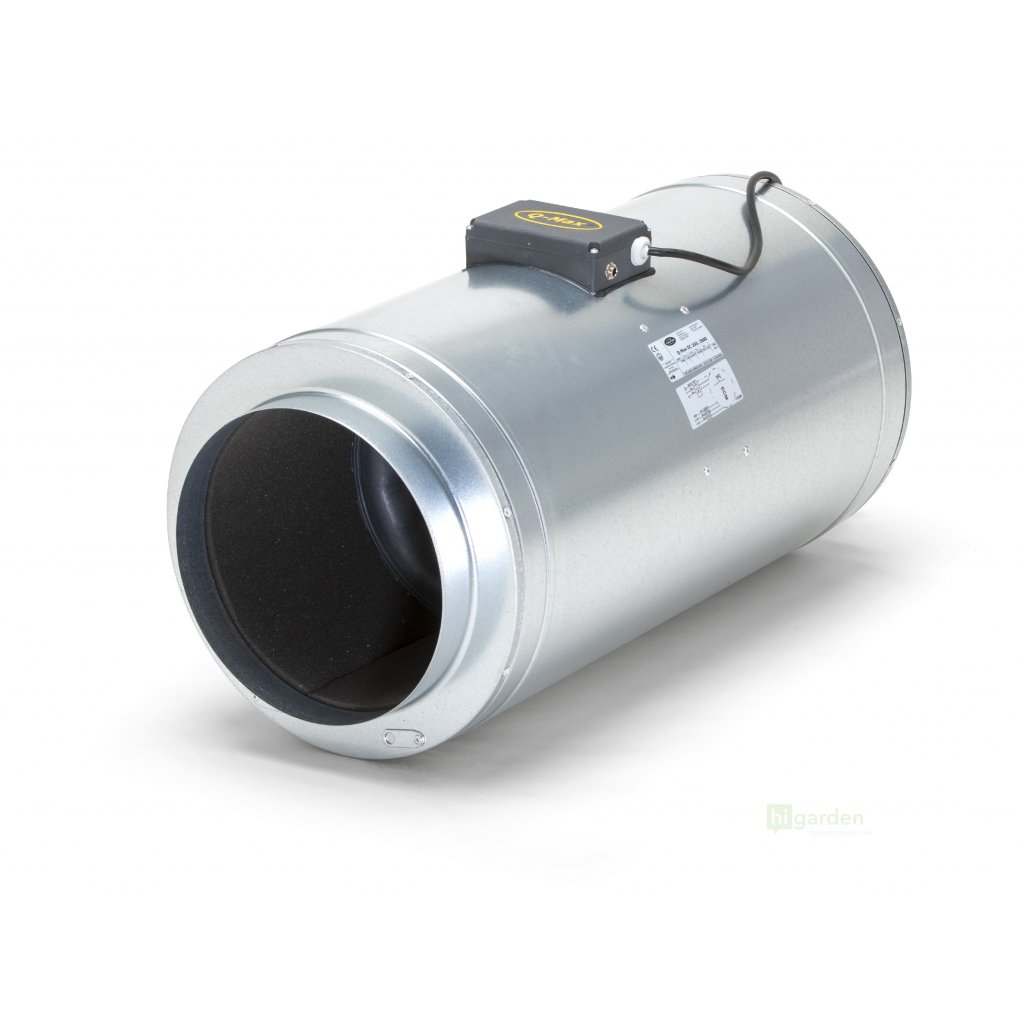

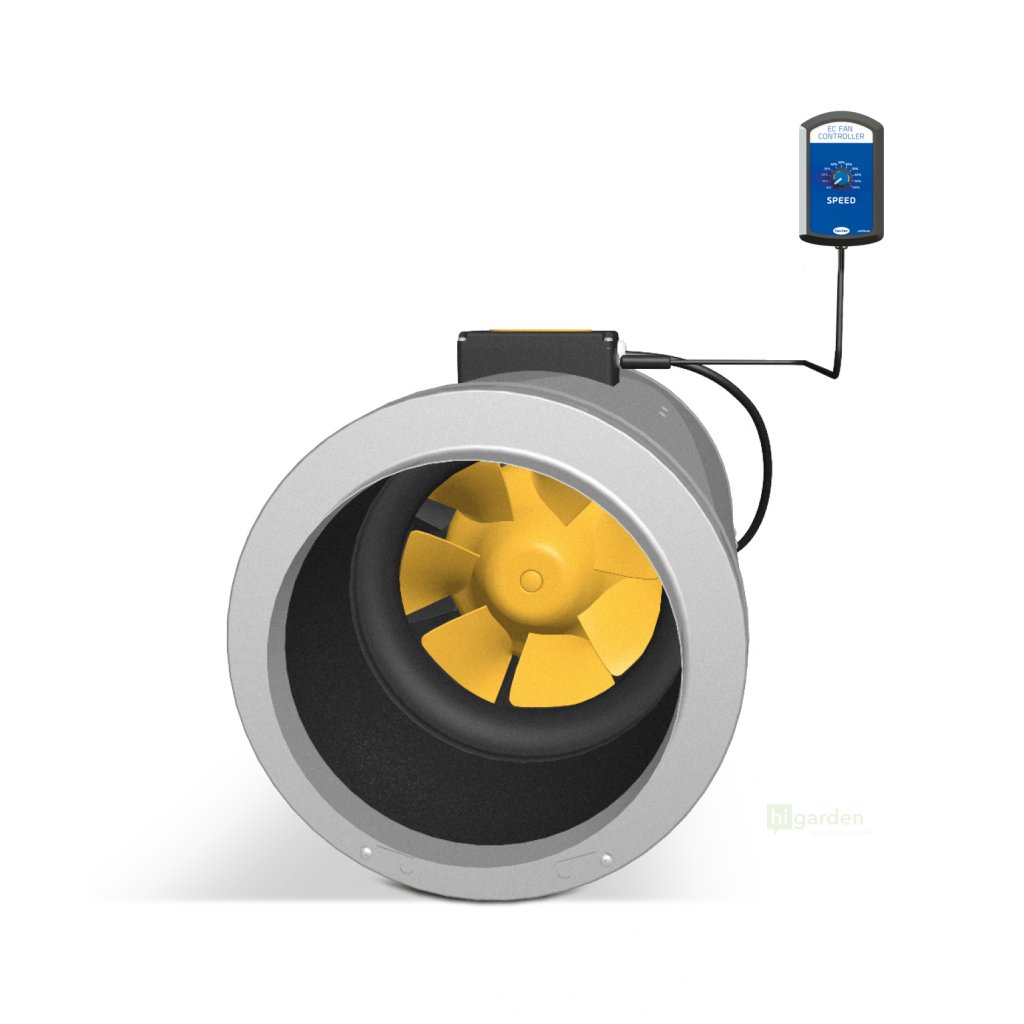

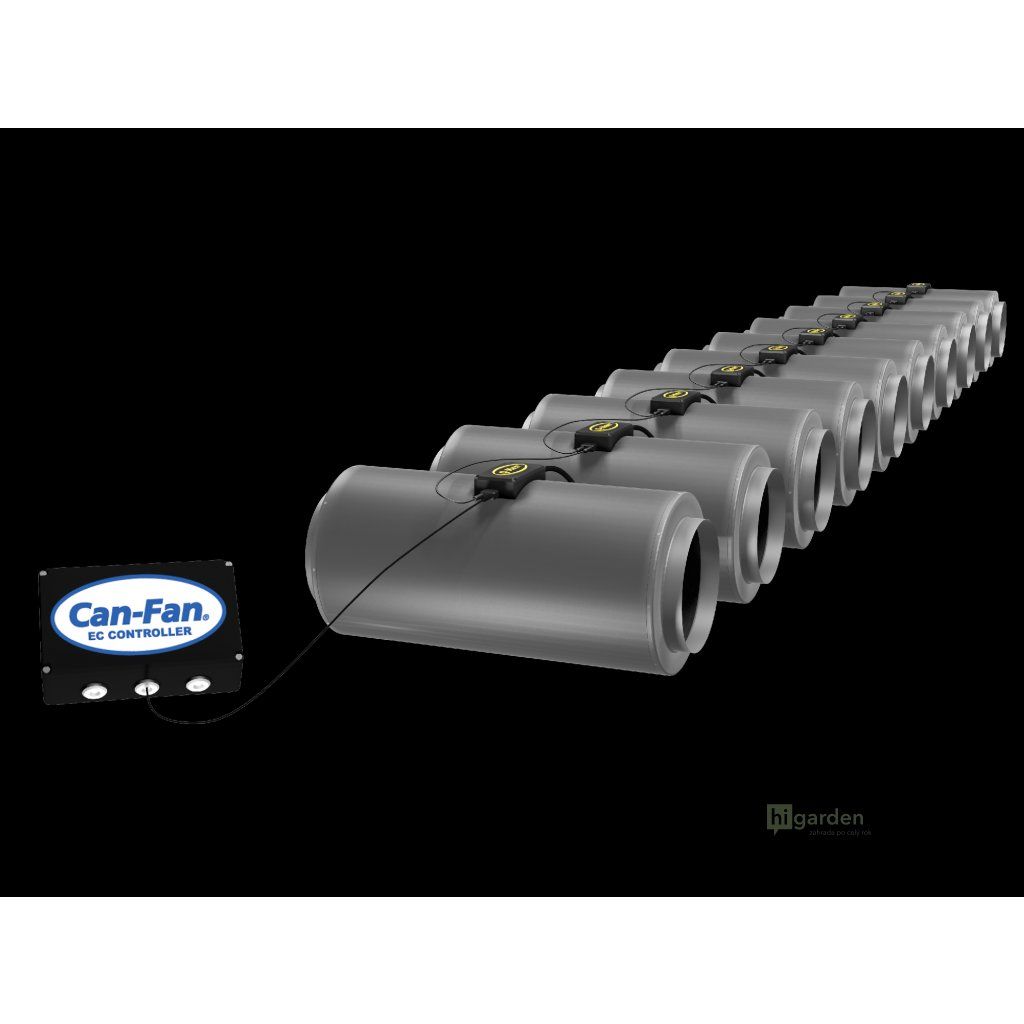

Q-Max EC is an intake/extract fan with absolutely the highest aerodynamic efficiency and unrivalled energy efficiency thanks to the new 3D rotor/stator. The motor is integrated into the silenced noise attenuator. This fan guarantees the quietest operation and the quietest levels of airflow noise. The powerful yet quiet operation of the Q Max EC is the result of even flow without turbulence. Using the controller, we can regulate the speed; it is possible to connect up to 10 EC motor fans and control them at once using the EC Fan Can controller. The Q Max EC fan is made in Germany, compact, easy to maintain and clean. Integrated hangers ensure easy installation.

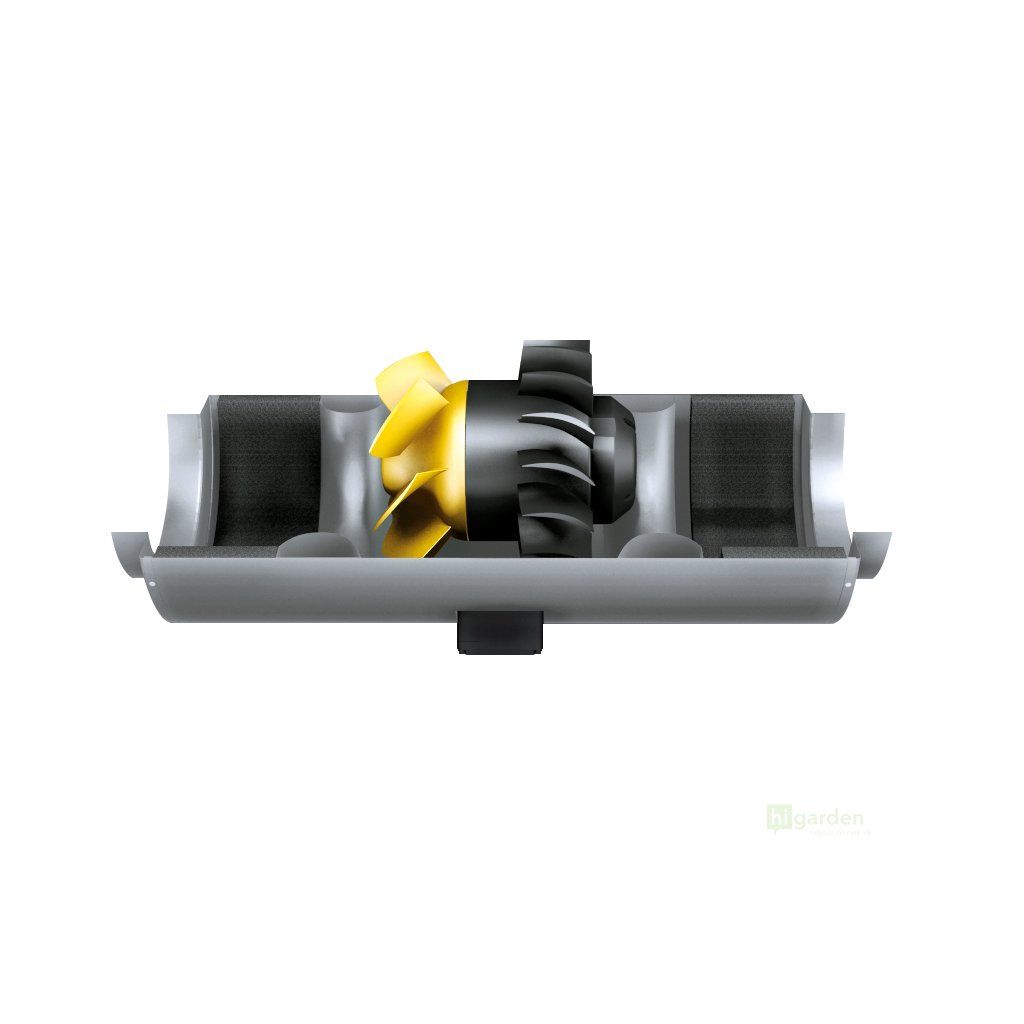

The quiet operation of the Q-Max device is the result of high-quality insulation of the metal casing, even airflow without turbulence and smooth three-stage control. The entire range meets the mandatory ErP requirements for all fans on the EU market.
The maximum operating air temperature is 40 °C.
Voltage: 230 V
Max. current: 1.7 A
Power consumption: 250 W
Speed: 3827 rpm
Flow: 2000 m3/h
Noise: 61 dB Length: 676mm Width: 359mm
Additional parameters
| Category: | Can-Fan Q-Max Silenced Fans |
|---|---|
| EAN: | 8718836156625 |
| Flange (mm): | 250 |
| Speed Control: | No regulation, Silent |
| Technology: | Axial |
| Airflow (m3/h): | 2000 |
| PFHGX: | Levné, Best-selling, Doporučené, High-quality, Značkové, Základní |
| Power/airflow rate: | 2000 m3/h |
| Power consumption: | 313 W |
| Current: | 2,1 A |
| Voltage: | 230 V |
