Trolmaster Low-Volt Station (DSV-1)
Code: N43243Related products
Product detailed description

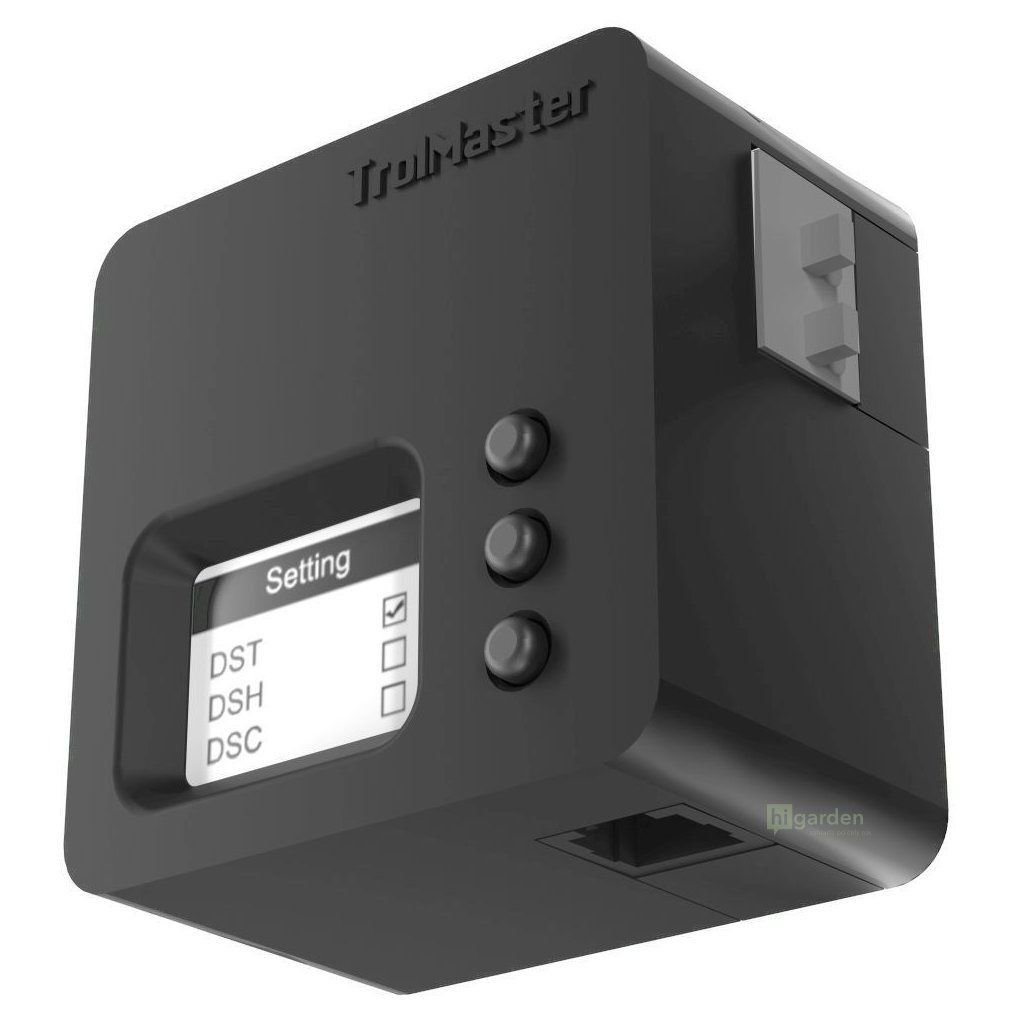

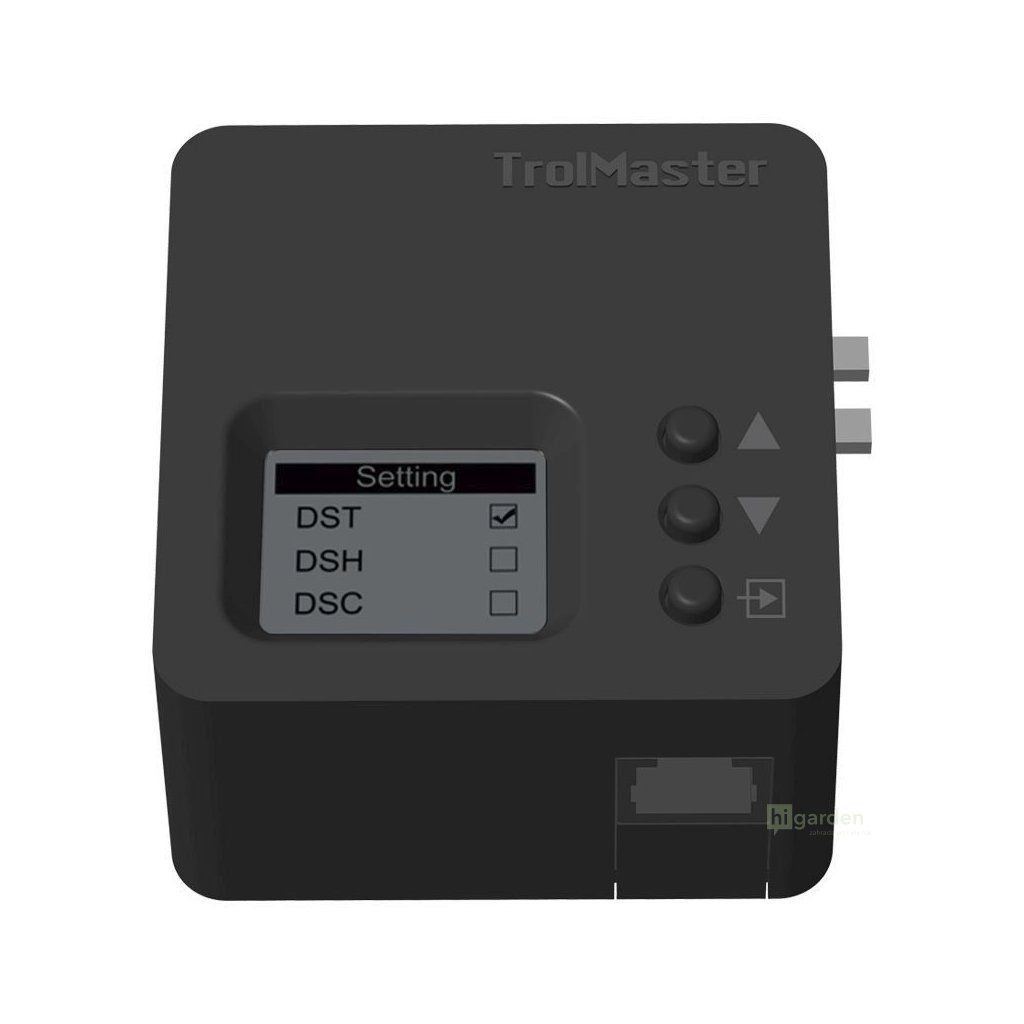

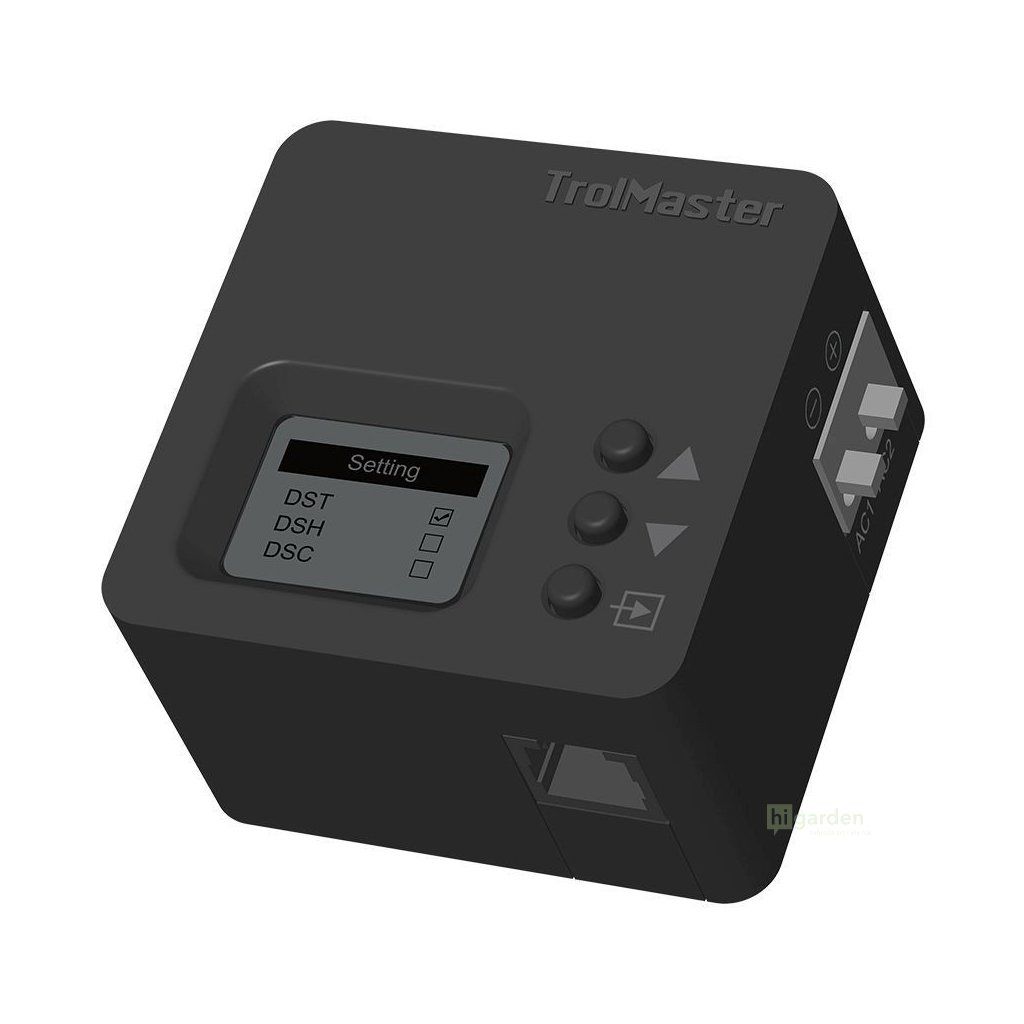

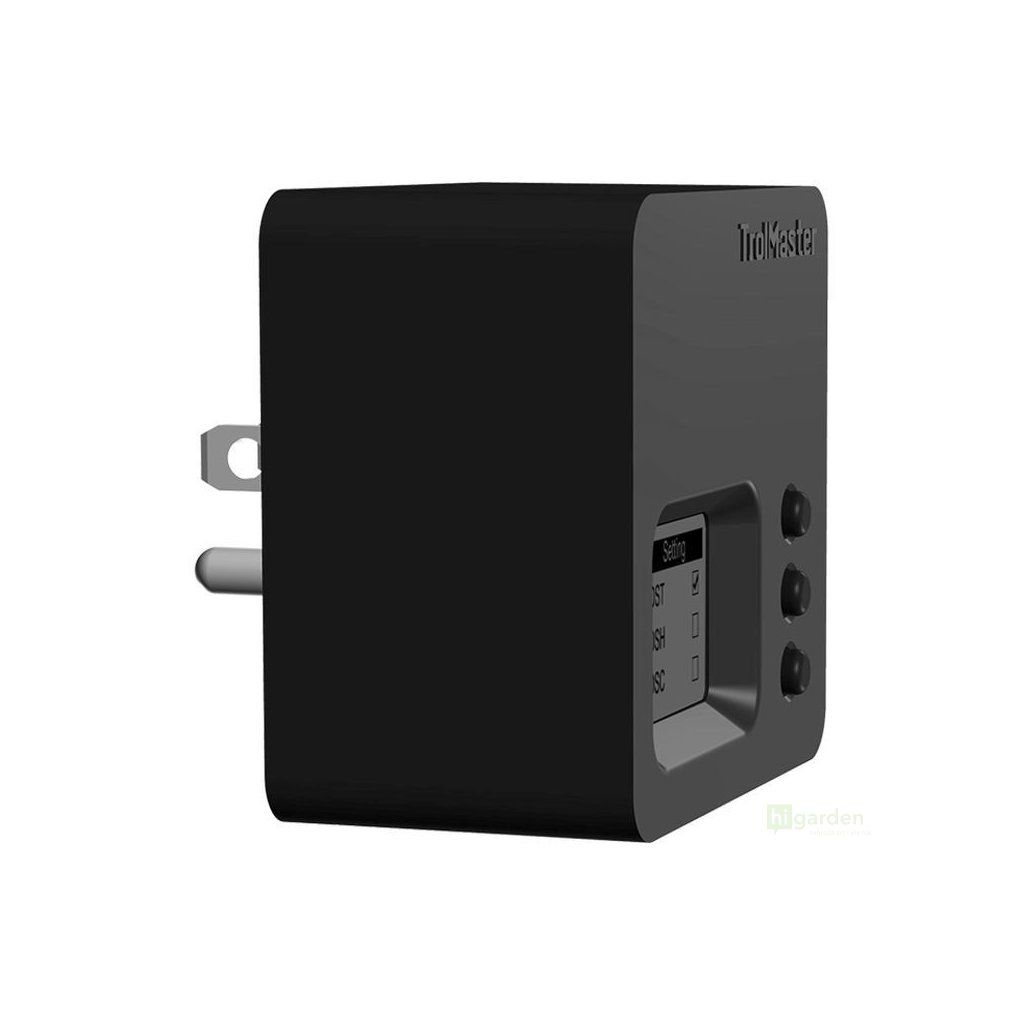

Trolmaster DSV-1 is a low-voltage output module that can be used with Hydro-X and Aqua-X controllers. The DSV-1 module can be addressed so that it can be used as a device module for temperature, humidity, CO2 or timer measurement.
The user can choose multiple voltage outputs. The DSV-1 module can output 12 or 24 VDC up to 0.5 A or 12 or 24 VAC up to 4.8 VA. Once configured, it activates the low-voltage device connected to the DSV-1 module.
This allows the user to directly connect low-voltage devices such as solenoids, valves, audiovisual alarms or any other devices that require 12 to 24 V AC or DC power to operate.
*By pressing and holding the top button on the DSV-1, users can manually control the module and switch it on/off.
Features:
- LCD display, easy operation
- Seamless connection with Hydro-X and Hydro-X Pro
- Assignment to multiple purposes
- Plug & Play
Package contains:
- 1 x Low-Volt Station DSV-1
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Additional parameters
| Category: | Trolmaster |
|---|---|
| EAN: | 6970207971530 |
