TD Mixvent 500/160 three-speed fan

Product detailed description

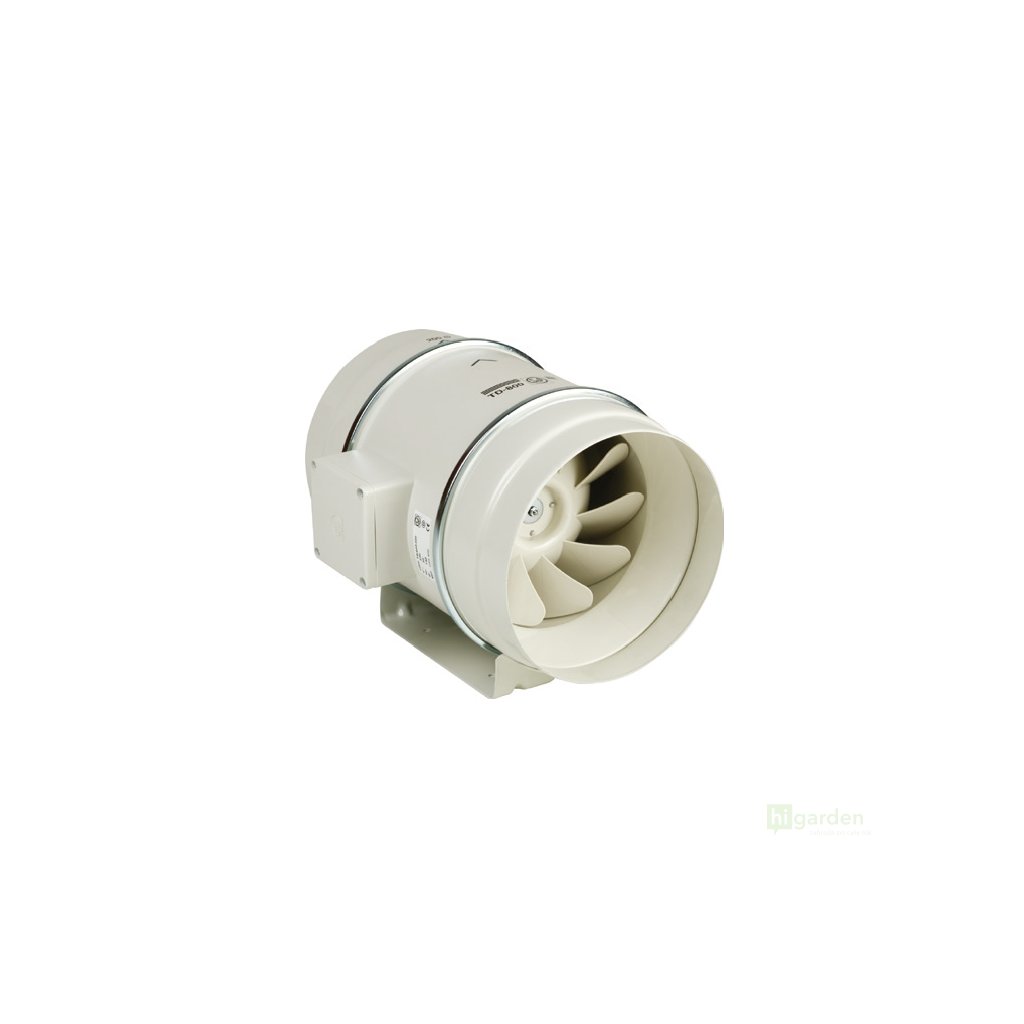

The TD-800 fan housing is made of plastic. The housing consists of a mounting rail with two spigots and a motor, which is connected to the spigots by quick-release clamps. The design allows the motor section to be removed without the need to disconnect the ducting.

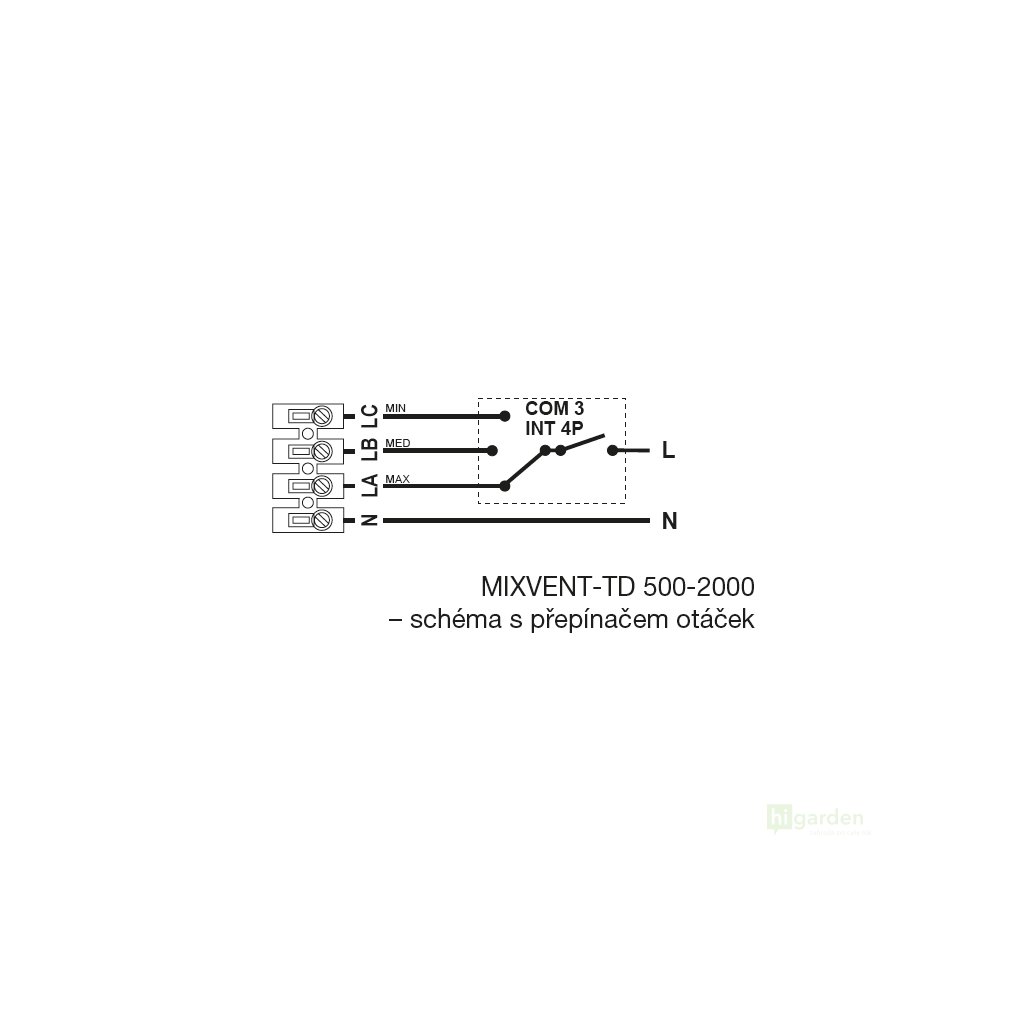

The fan motors TD- 500 to TD-2000 have triple winding. On motors with triple winding (TD 500 – TD 2000), the speed is switched in three stages using COM 3 or INT 4P controllers, or voltage control can be used with REB controllers (continuous control) or REV (five-stage control). The terminal block is located on the fan housing.

Installation of the fans is possible in any fan position. The housing must not transfer mechanical stress from the ducting. A flexible connection to the ducting must be used.

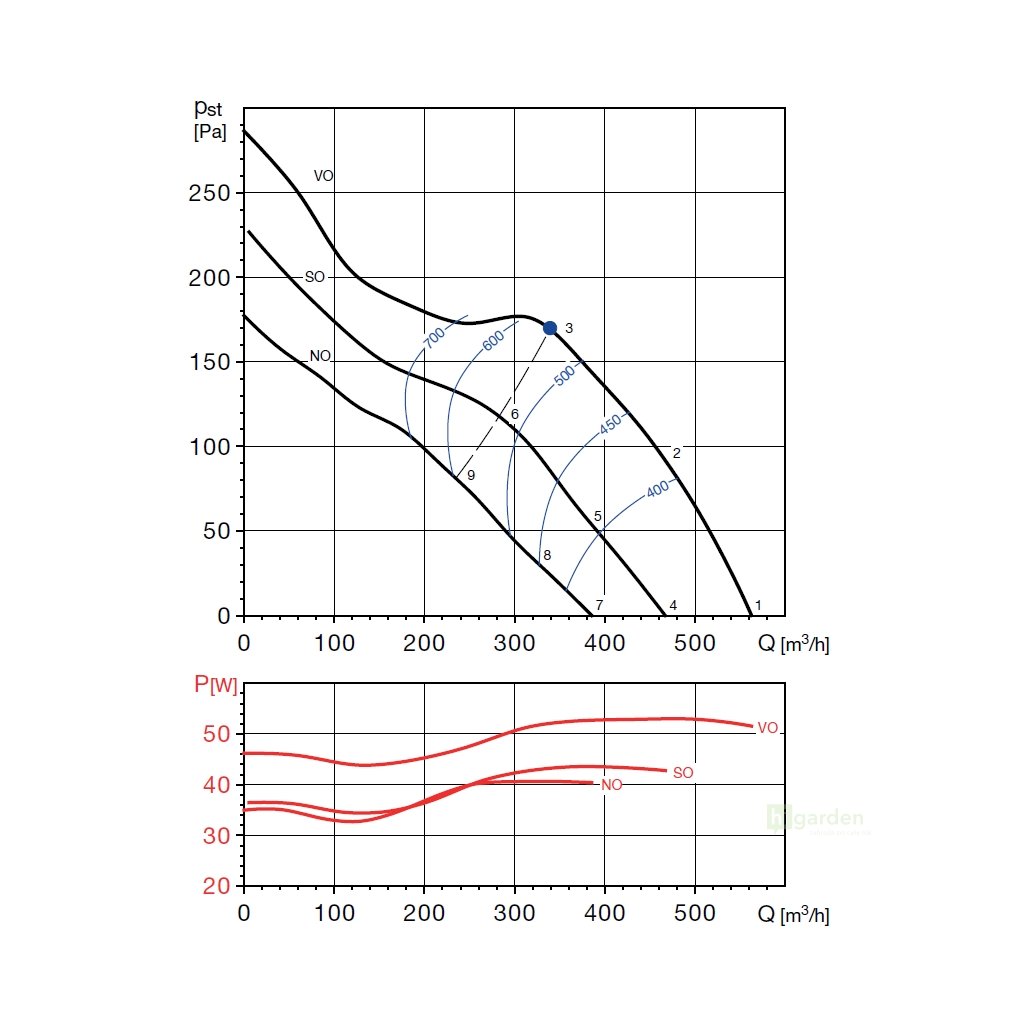

Parameters:
- air flow: 560/470/390 m³/h
- speed: 2590/2150/1820 rpm
- duct diameter: 160 mm
- power: 53/44/41 W
- voltage: 230V
- current: 0.21/0.19/0.18 A
- protection rating: IP44
- max. temperature: -20 to +40 °C

Operating instructions here: TD instructions
Product information catalogue: TD catalogue

Dimensions (in mm):

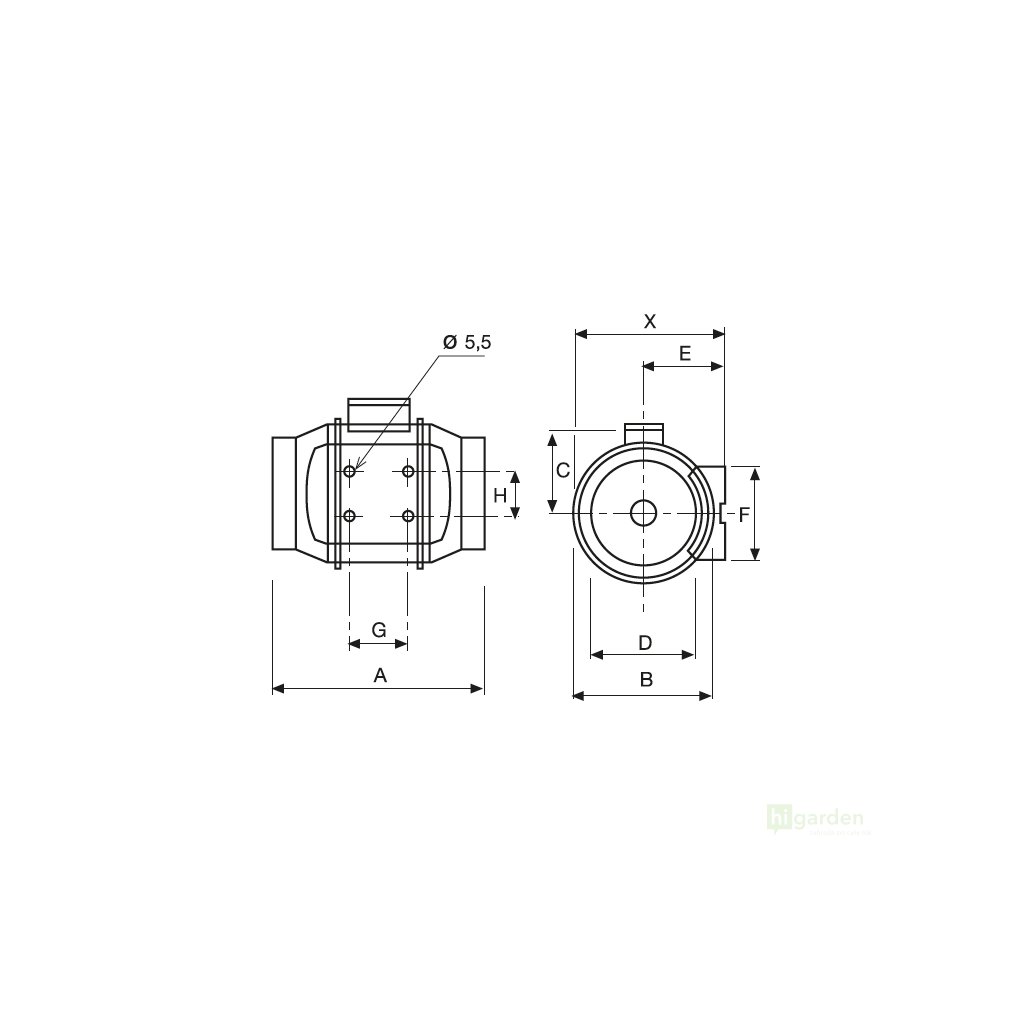

*the fan drawing can be found in the photo gallery
