Prima Klima fan 1180 m3/h, 160 mm, EC motor with thermal control (PK160EC-TC)

Product detailed description

Prima Klima PK160EC-TC - quiet and efficient extract, 160 mm diameter and 1180 m3/h

Prima Klima PK160EC-TC is a duct radial fan with an efficient EC motor. It draws in air and easily overcomes the resistance of a carbon filter and ducting; the impeller with backward-curved blades and the aerodynamic housing made of non-flammable polyamide (nylon) keep operation quiet and reliable. The connection and control technology is integrated into the housing.

What EC motor means

EC motor (electronically commutated, from the German manufacturer ebm-papst) is a type of motor - efficient, quiet and with smooth electronic speed control built directly into the motor. Unlike a classic AC motor, the speed is not throttled by a lossy dimmer, so the fan draws only as much energy as it really needs for the given airflow - even at lower speeds. The result is lower consumption, less noise and a longer service life. EC refers to the motor, not the way it is connected to another device.

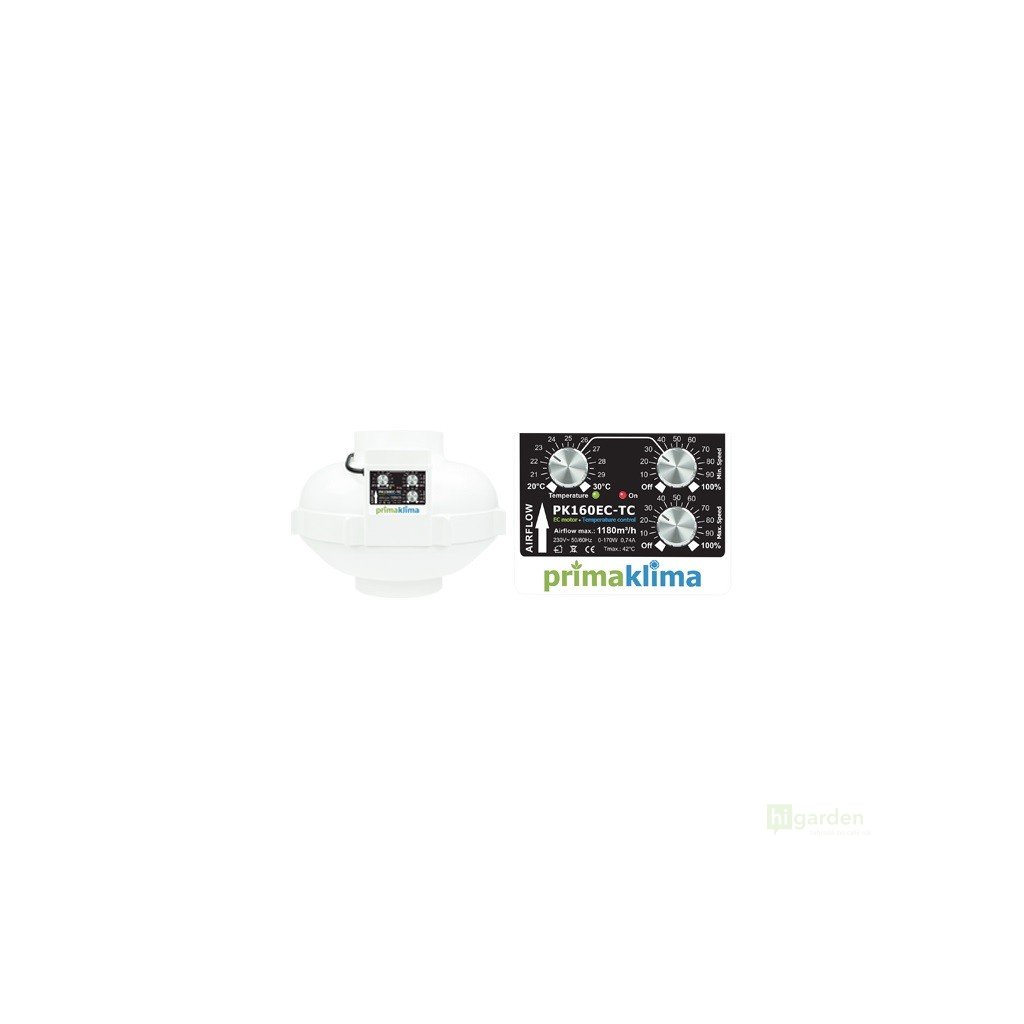

Built-in temperature-based control

The control unit is built directly into the fan body and is operated with three rotary controls: target temperature (range 20-30 °C), maximum speed and minimum speed. The fan maintains the set minimum, and when the temperature exceeds the target, it smoothly increases up to the set maximum. It handles everything itself, without an external controller.

Why it pays off

The combination of the EC motor and built-in control means the lowest operating costs and peace of mind: the fan uses only as much energy as the given airflow requires, and noise stays at a minimum even at higher output.

Which tent it suits and how to size it

With a maximum airflow of 1180 m3/h, the fan is suitable for a large 150x150 cm tent or a smaller growroom. The fan diameter, filter flange and ducting should all be the same (160 mm) - otherwise unnecessary resistance, loss of performance and noise will occur. A carbon filter and bends reduce the actual airflow, so choose the fan with a reserve above the space requirement.

Parameters

• Manufacturer code: PK160EC-TC
• Flange: 160 mm
• Max. airflow: 1180 m3/h
• Power input: 0-170 W (adjustable)
• Motor: EC, smooth speed control
• Control: built-in temperature-based, thermal protection
• Max. operating temperature: 42 °C
• Power supply: 230 V, 50/60 Hz, 0.74 A
• Dimensions: 340 x 242 mm
• Weight: 3.34 kg
• Mounting: supplied brackets

Suitable accessories for the fan

For odour extraction, fit a 160 mm Industry carbon filter of the same diameter, distribute the air with 160 mm ducting and extend the life of the carbon with the V300S pre-filter. You can mount the fan securely on the wall bracket. You can find other sizes and ranges in the Prima Klima fans category - take a look at PK150EC-TC 1100 m3/h, PK250EC-TC 1450 m3/h, THC version with humidity control.

Frequently asked questions

What size tent is the fan suitable for?

The maximum airflow of 1180 m3/h at a diameter of 160 mm covers a large 150x150 cm tent or a smaller growroom. Allow for a reserve: a carbon filter and duct bends reduce the actual airflow of the setup, so choose the fan with a comfortable margin above the tent's needs rather than exactly at the limit.

What is the difference between the -TC and -THC versions?

The -TC suffix means built-in temperature-based control: the fan automatically increases speed when the temperature rises above the set limit. The -THC version controls temperature and air humidity at the same time, keeping the climate within the target range (close to the VPD principle). For cultivation, humidity is just as important as temperature, so -THC is the more advanced option.

Do I need an external controller for the fan?

No. The control is built directly into the fan body, controls the speed itself and works without any additional device. Only owners of ECblue series models, which do not have built-in control, buy an external controller separately.

Not sure about choosing the right size or assembling your ventilation system? We can advise you at info@higarden.cz or at the store in Prague.
