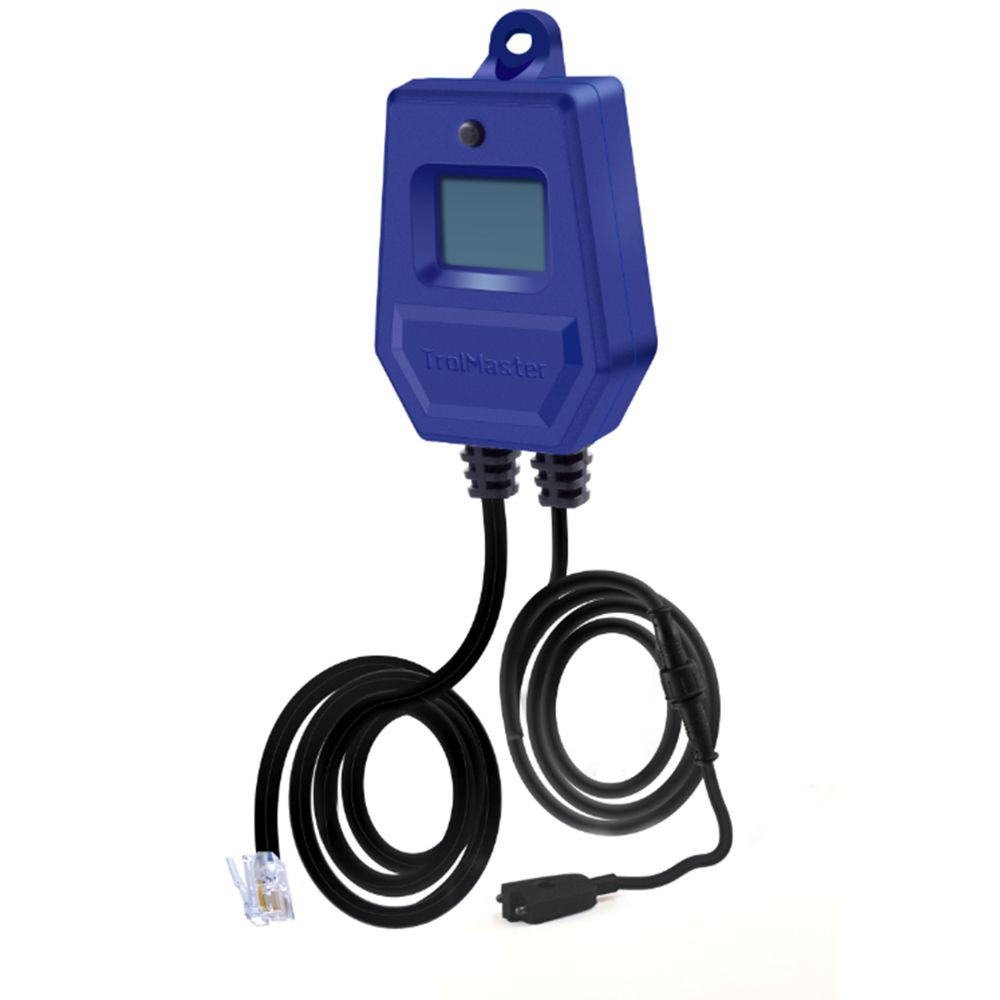

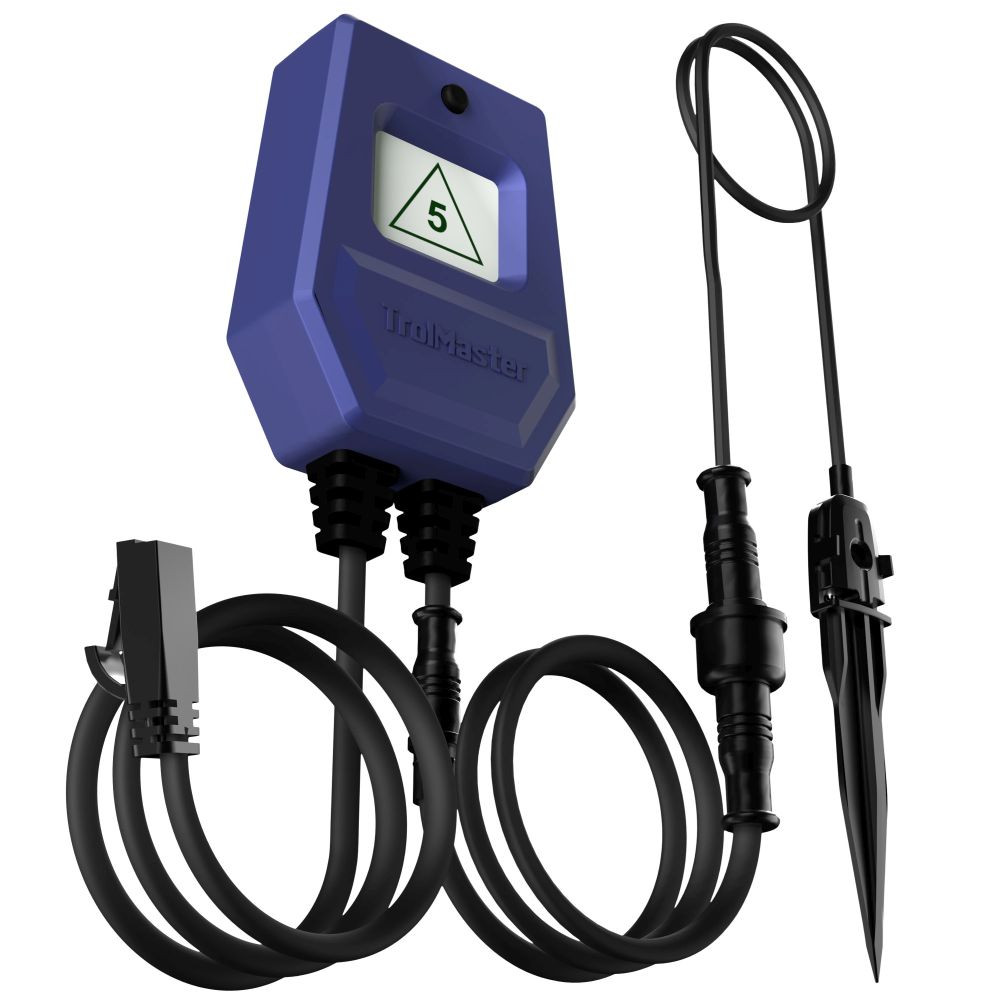

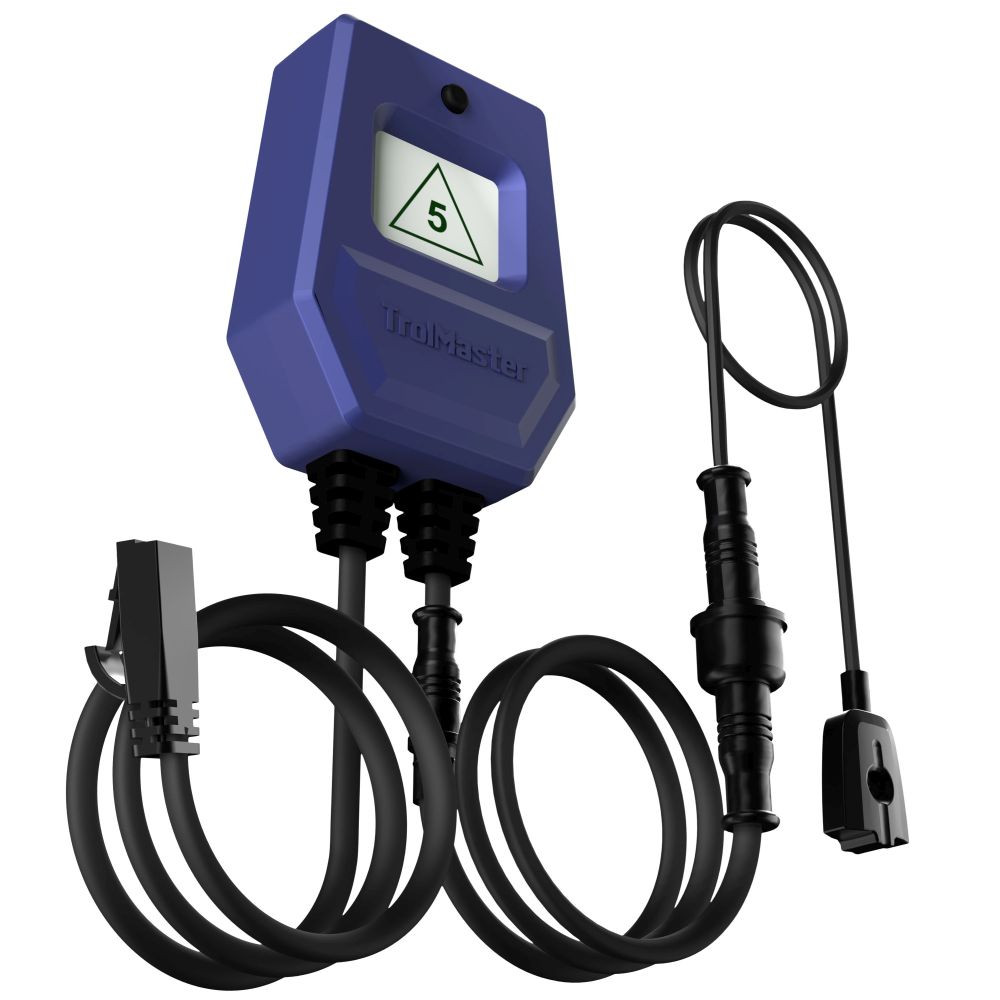

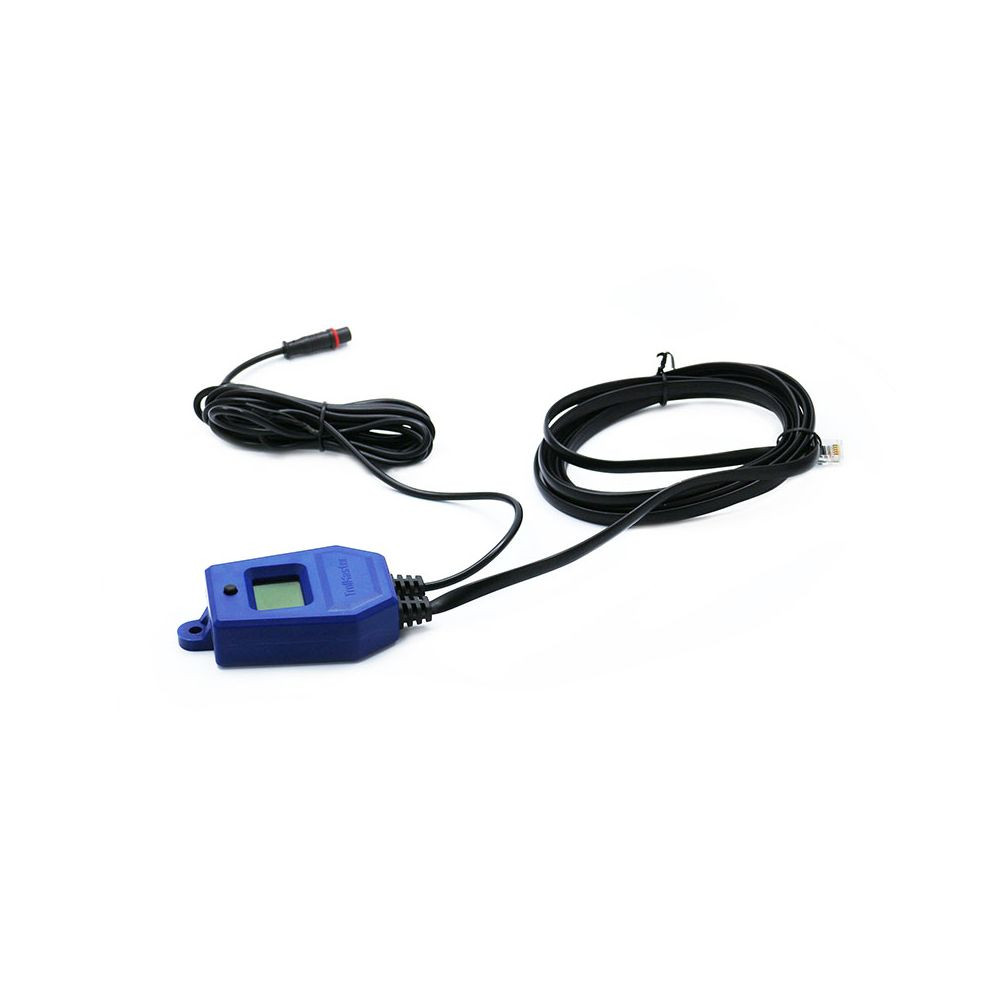

Trolmaster Water Detector-Monitor (WD-1)

Product detailed description

The WD-1 water detector can be used in one of two ways. First, it can be used to simply monitor a floor or area for the presence of water as a leak detector. The second way is to use the WC-1 as a monitor for water control. In this mode of use, the water detector is placed where water runoff will accumulate (or where water enters the growing medium). Each output (solenoid or pump) on the Aqua-x system can be "assigned" to a specific WD-1. Every time the solenoid or pump assigned to the WD-1 is activated by the Aqua-X system, the WD-1 must detect water within the adjustable delay time. If water is not detected (pump or solenoid failure), Aqua-x sends a user alert with a notification of "irrigation failure". Up to 25 WD-1 devices can be connected to one Aqua-X unit.

To activate the new automatic filling function on Aqua-X Pro, use two water detectors (WD-1/2). One water detector will be placed at the bottom of the nutrient tank and one at the top of the tank. When the liquid level drops below the lower sensor, Aqua-X Pro activates the solenoid or pump and the tank is refilled up to the sensor at the top.

*WD sensors can only detect leaks of tap water, well water or nutrient water. Reverse osmosis / RO water may have such a low dissolved solids content that the water detector will not be able to detect RO water leaks.

Package contains:

• 1 x Water Detector
• 1 x Touch Spot
• 1 x RJ12 T-Splitter
• 1 x 16ft RJ12 Cable
