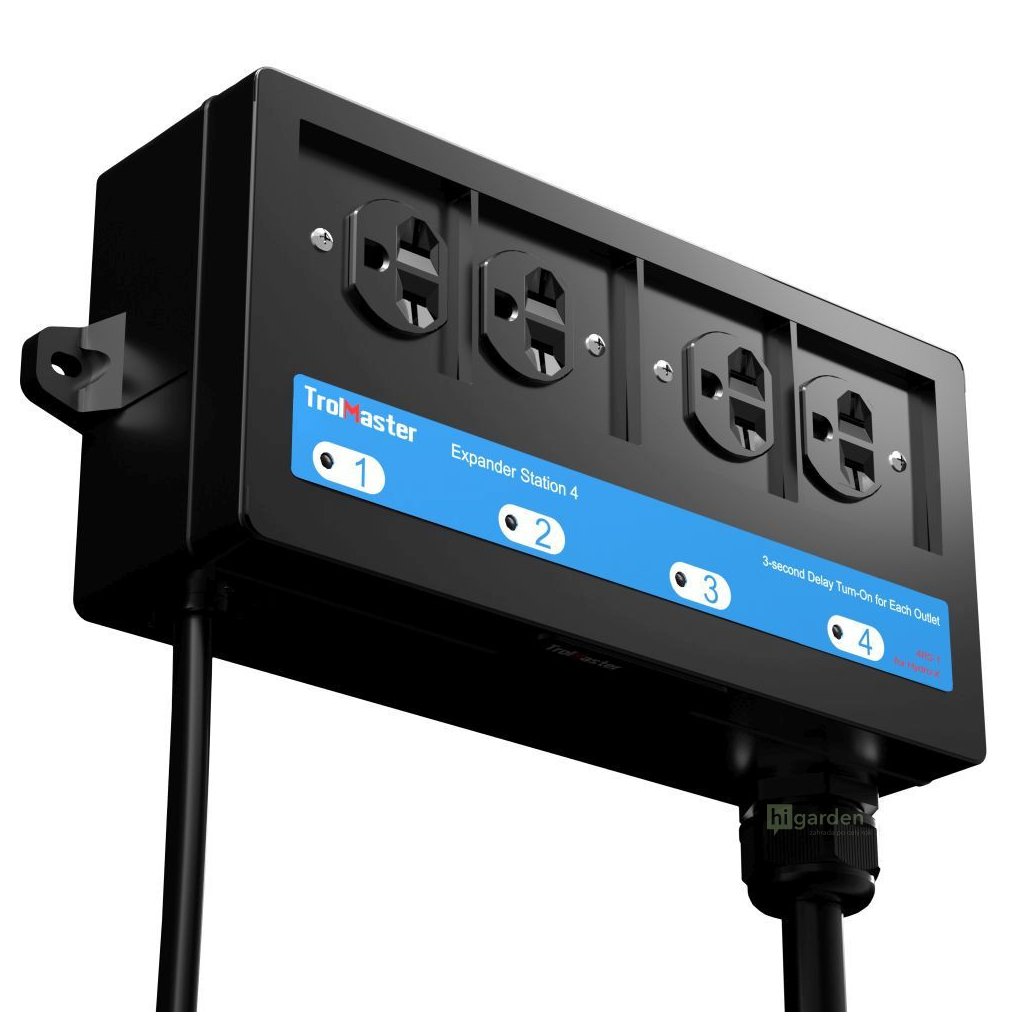

Trolmaster Expander Station 4 for controlling multiple devices (4RS-1)

Product detailed description

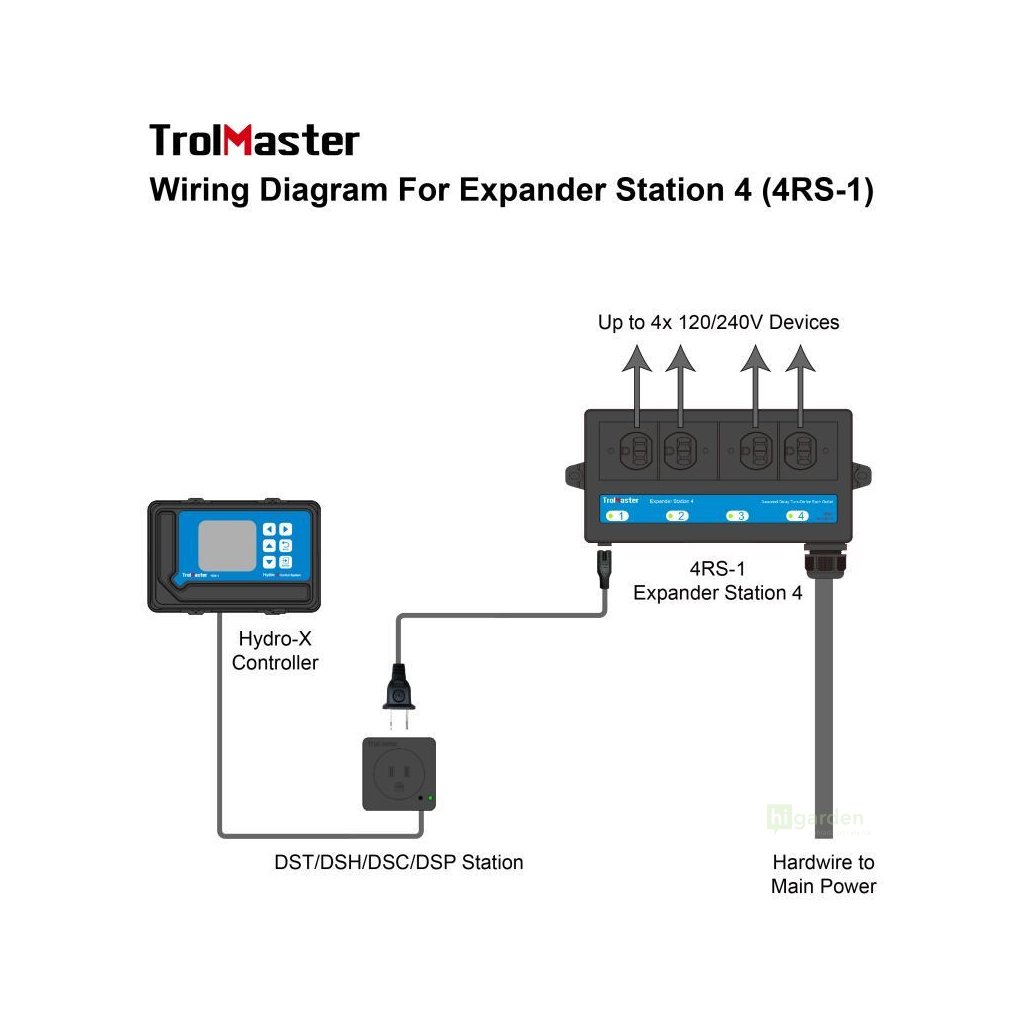

4RS-1 is a universal expansion module with 4 sockets. It can be used with any TrolMaster plug-in style device module to expand the number of devices that can be controlled using the Hydro-X system. The single 120-240 V "trigger" cable on the 4RS-1 module connects to your device / control module. When the device module is activated by the Hydro-x, the 4RS-1 trigger cable switches on each of the 4 sockets on the 4RS-1 with a 3-second delay between the activation of each socket. This minimises high inrush current and allows safe control of up to 4 devices. The 4RS-1 must be installed with a 120/240 V power circuit (up to 50 A at 240 V). Three wire terminals inside the unit allow connection of wires up to 6 AWG, making it easy to connect to the power source.

* This plug is NOT listed by U.L. or E.T.L.
