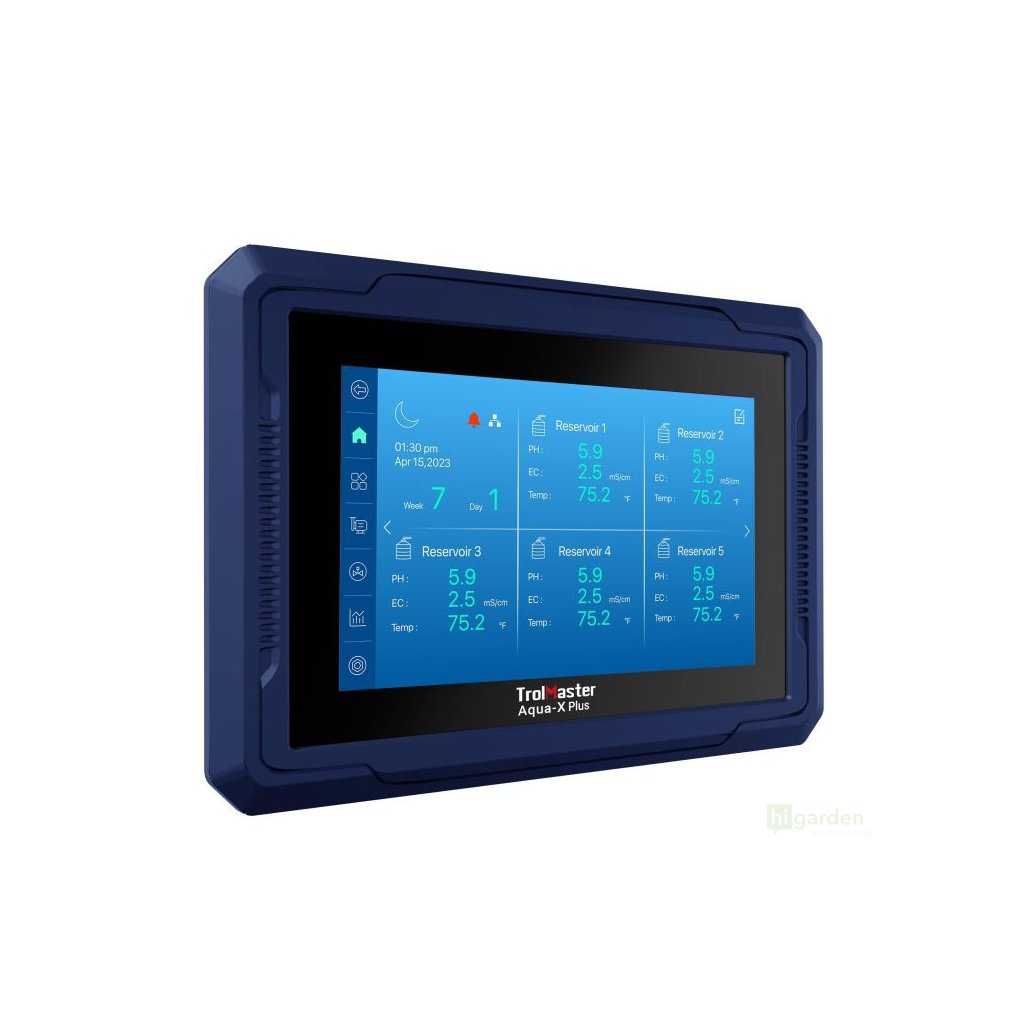

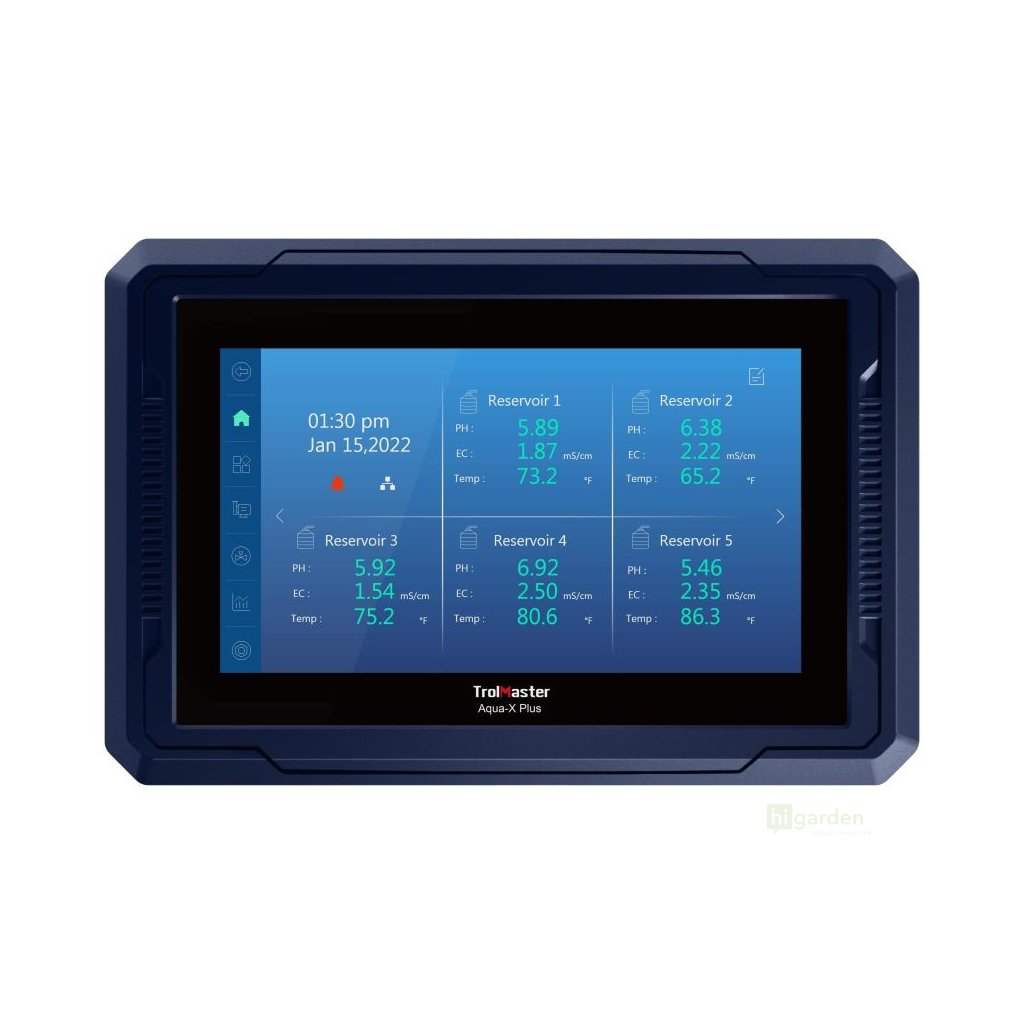

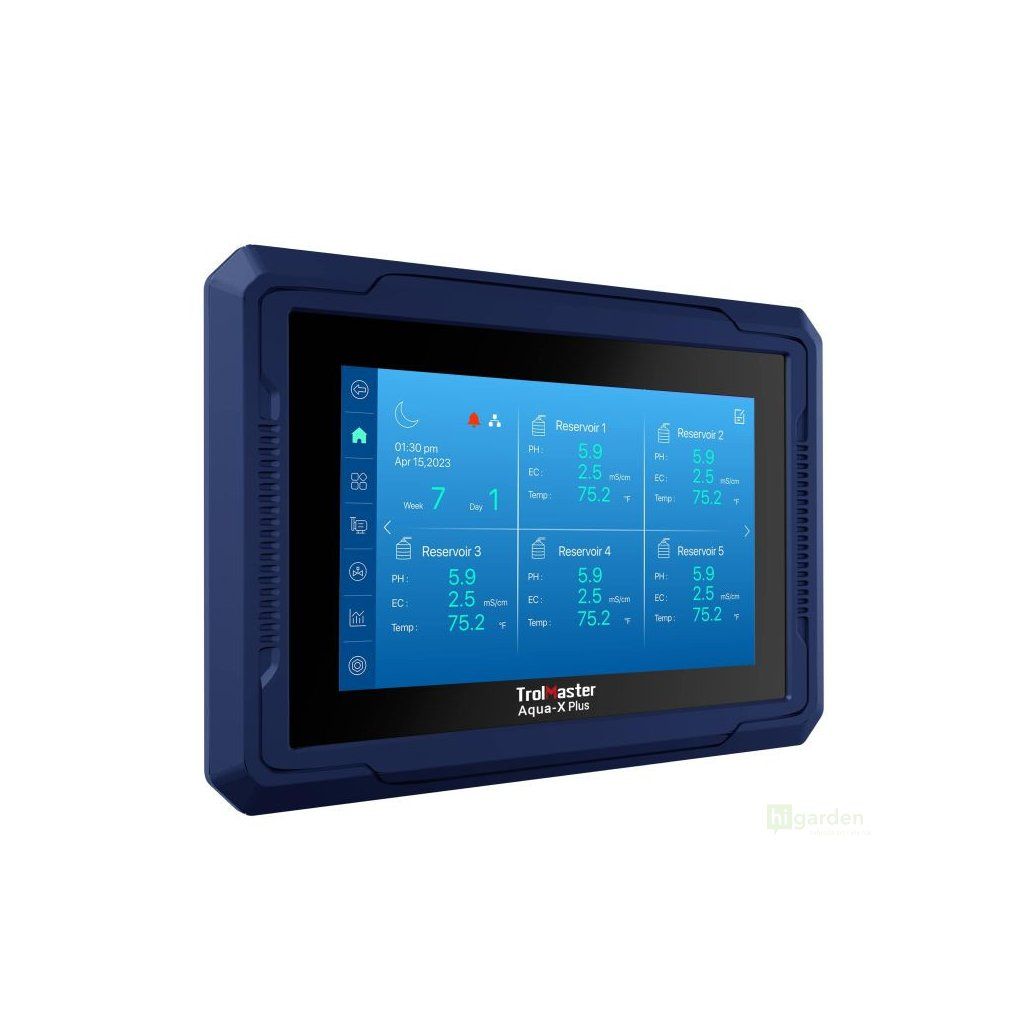

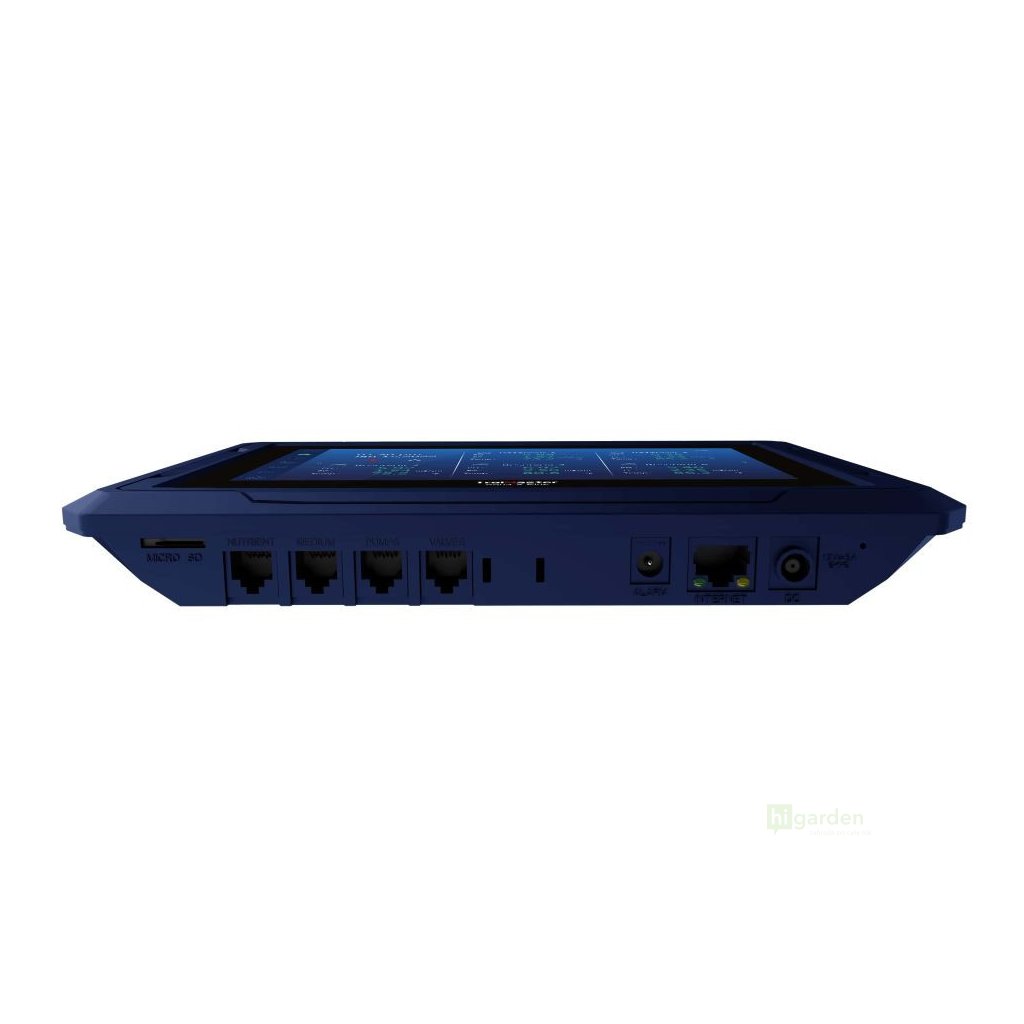

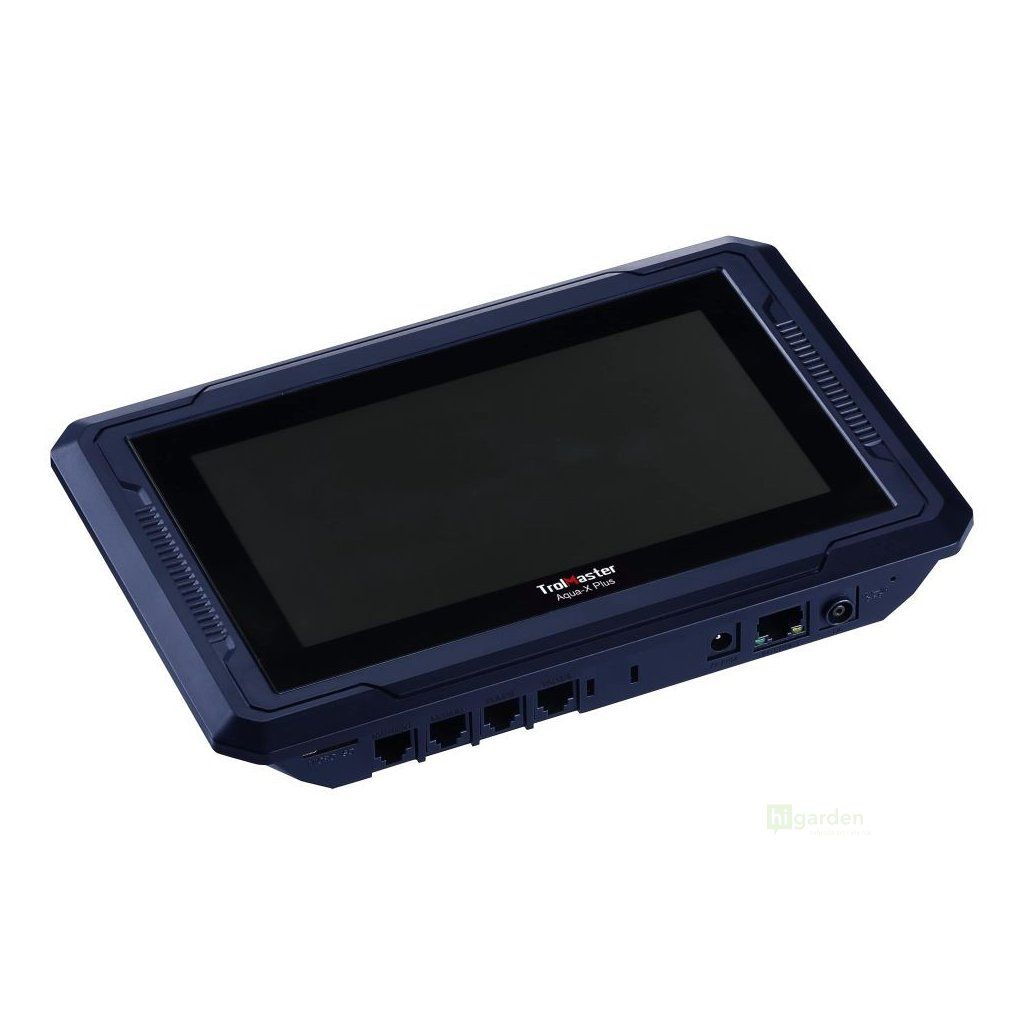

Trolmaster Aqua-X Plus Irrigation Control System (NFS-3)

Product detailed description

The Aqua-X Plus control unit is an improved version of the Aqua-X control unit.

It is a professional multi-zone irrigation control system. It has a 7“ LCD touchscreen monitor with a resolution of 800 × 480 pixels, features several advanced functions for controlling pumps and solenoid devices, and has a significantly expanded device control capacity.
As with all main control units from TrolMaster, Aqua-X Plus works with the free TrolMaster app and can be connected to the internet directly using a standard CAT5 network cable.
In addition to controlling a total of 240 devices, NFS-3 can also monitor up to 25 individual sensors including pH, EC, Temp, WC%, Grow Medium Temp and Grow Medium EC.
You can view the recorded historical data directly on the NFS-3 device or on your smartphone, and also receive warning messages / notifications if the growing environment exceeds the alarm set values you have selected on the NFS-3 device.

The optional WCS-1 or WCS-2 water content sensor monitors the water content and EC of the growing medium. WCS-1/2 helps visualise drying time and make adjustments to irrigation timers or irrigation settings.
You can even choose for the WCS-1/2 water content sensors to actively control irrigation cycles for automatic crop control based on the water content in the growing medium. Finally, a truly automated crop control controller with the flexibility to satisfy even the most demanding applications.
The NFS-3 control unit is also equipped with multiple pump link functions.
The Multiple Pump Link function gives users the option to connect/link different pumps with different valves to implement various irrigation functions.
NFS-3 offers amazing flexibility to suit all growers.

Features:
- 7“ touchscreen display
- New crop irrigation control function
- Expanded sensor and control module capacity
- Free control via smartphone app

Package includes:
- 1x NFS-3 control unit
- 1x AMP-3
- 1x 12V power adapter
- 1x RJ12 cable set
- 1x mounting plate

Technical specification:
- Weight: 0.5 kg
- Dimensions: 220x147x27 mm
