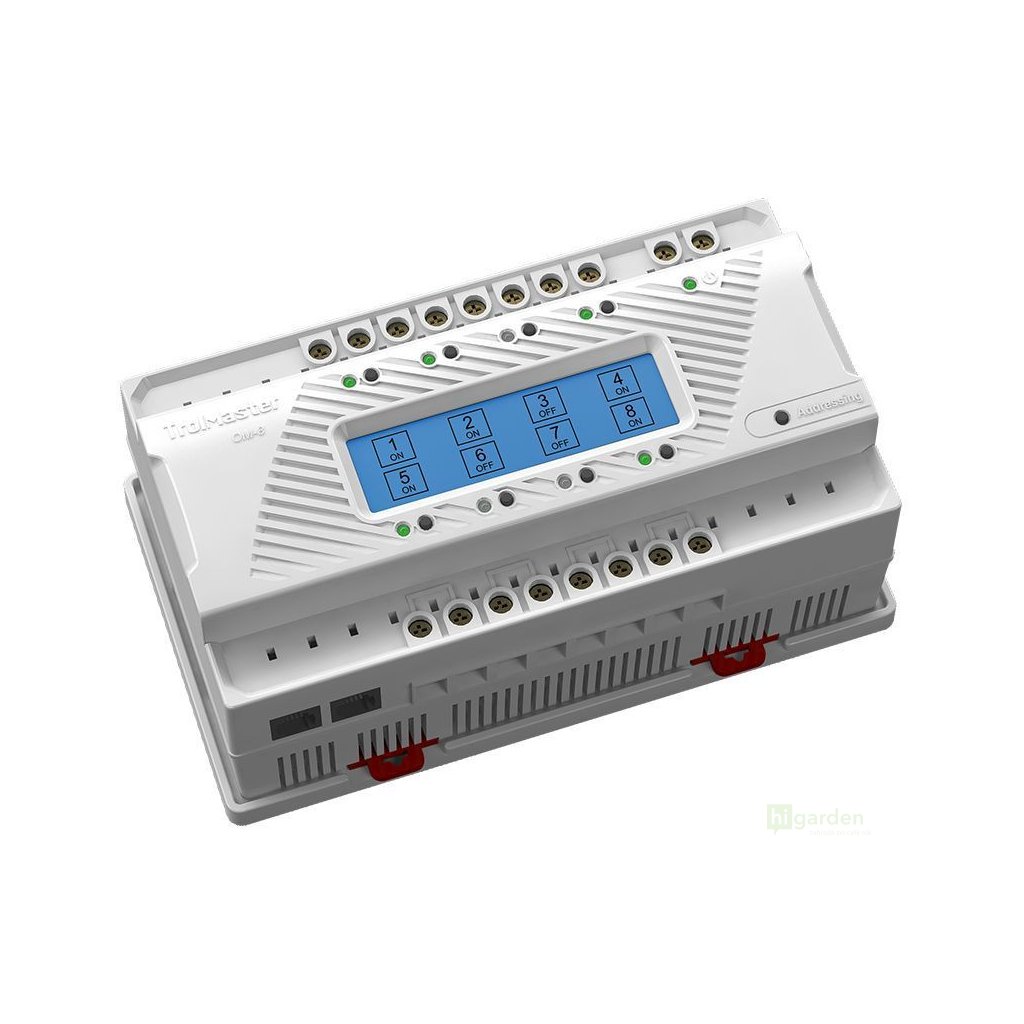

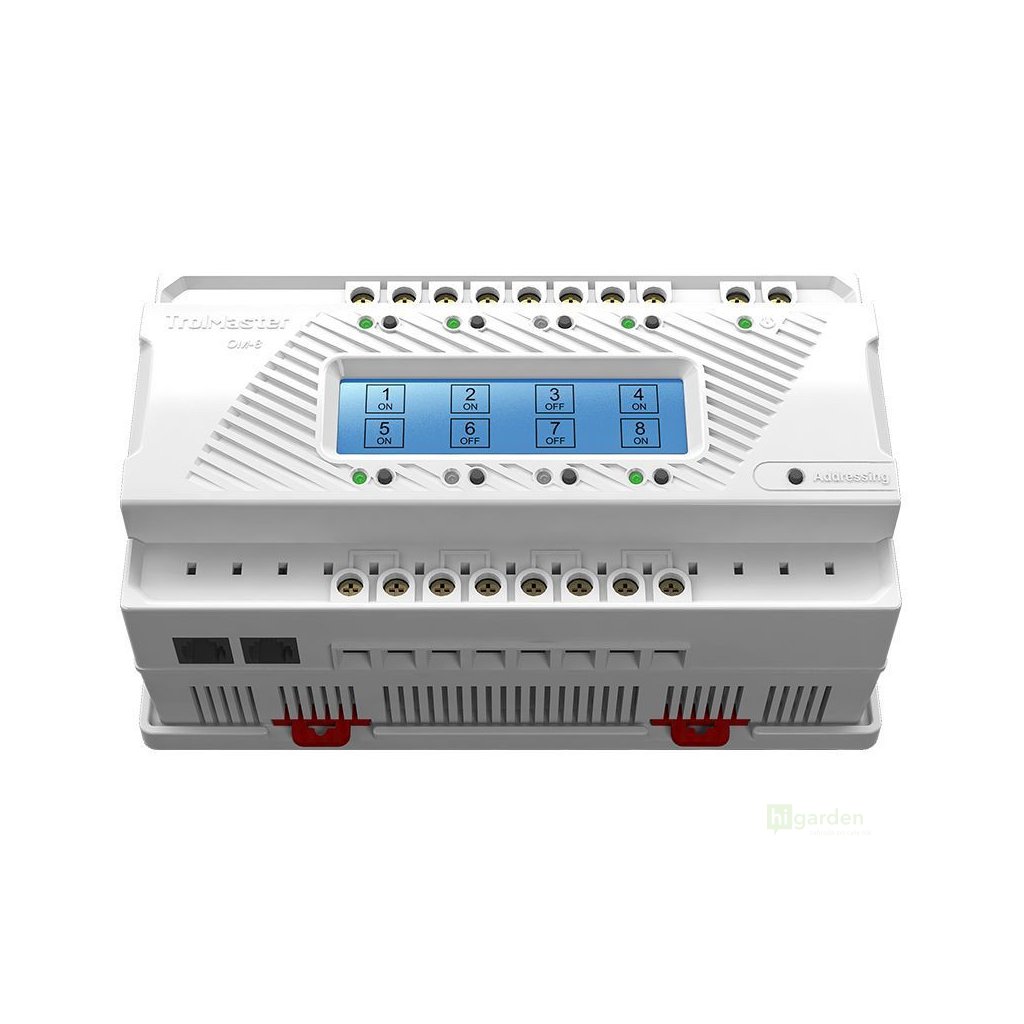

Trolmaster Dry Contact Board for Hydro-X Pro & Aqua-X PRO (OM-8)
Code: N43251Related products
Product detailed description

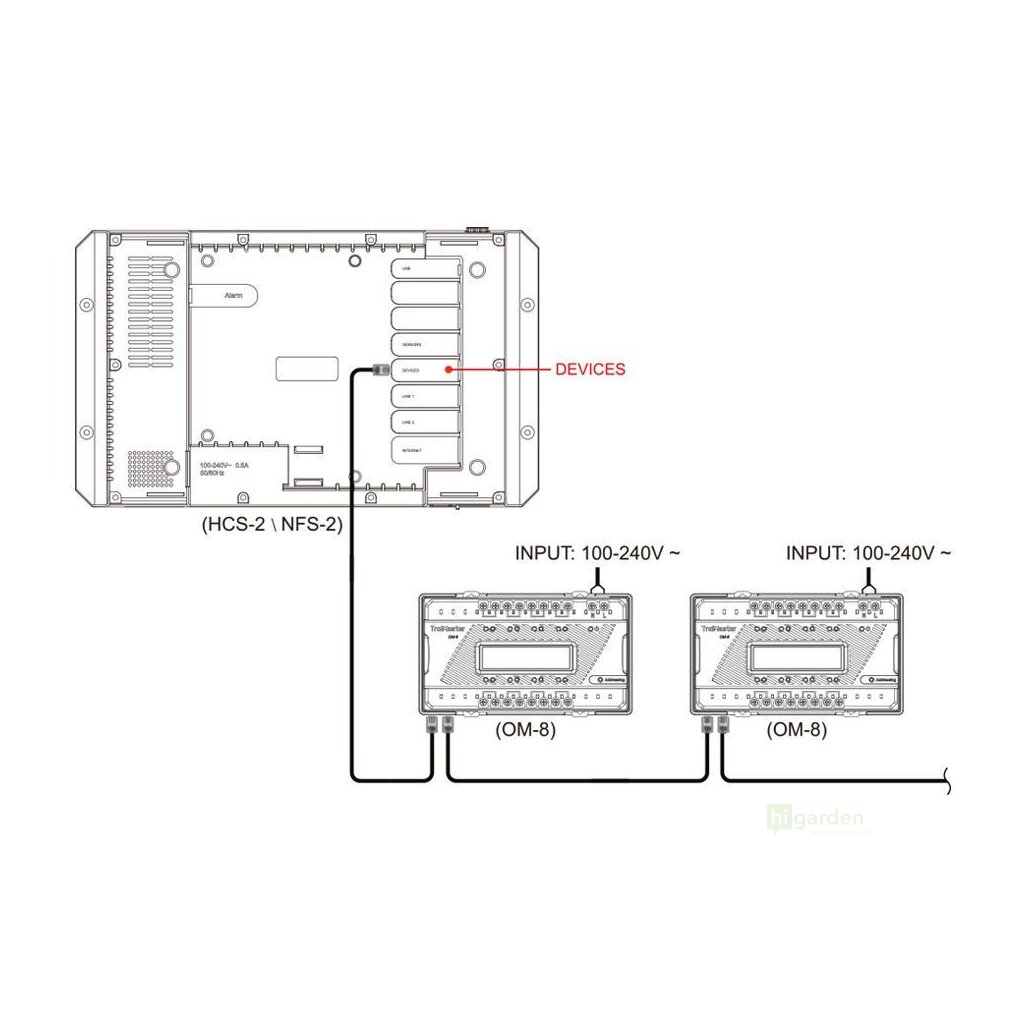

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts and allows current to pass up to 12 A through each contact. *The Om-8 should be mounted inside the electrical control cabinet and connected to a 100-240 V AC power supply.
*When used with the Aqua-X Pro system, the OM-8 can activate pumps/solenoids at a higher current of 12 A.
- LCD display, easy to set up and use
- Easy installation
- Overload protection on each of the 8 outputs at 12 A
- Each contact can be forcibly opened or closed for 30 minutes

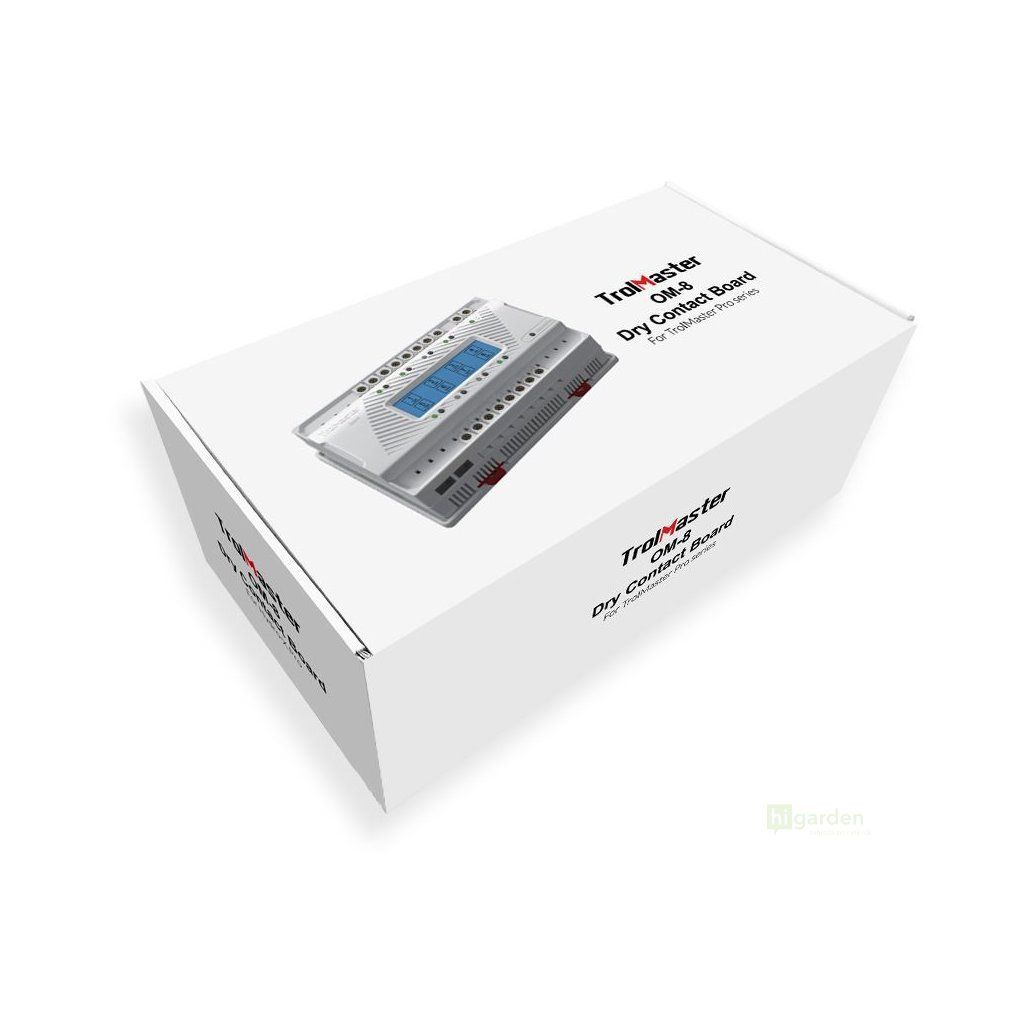

Package contains:
- 1x OM-8
- 1x 16 ft RJ12 Cable
