Trolmaster CO2 Emergency Stop Station & Cable Set (DSE-1E) DE

Product detailed description

The image is for illustration purposes only. We supply the product in an EU version including an adapter for trouble-free connection to the German mains.

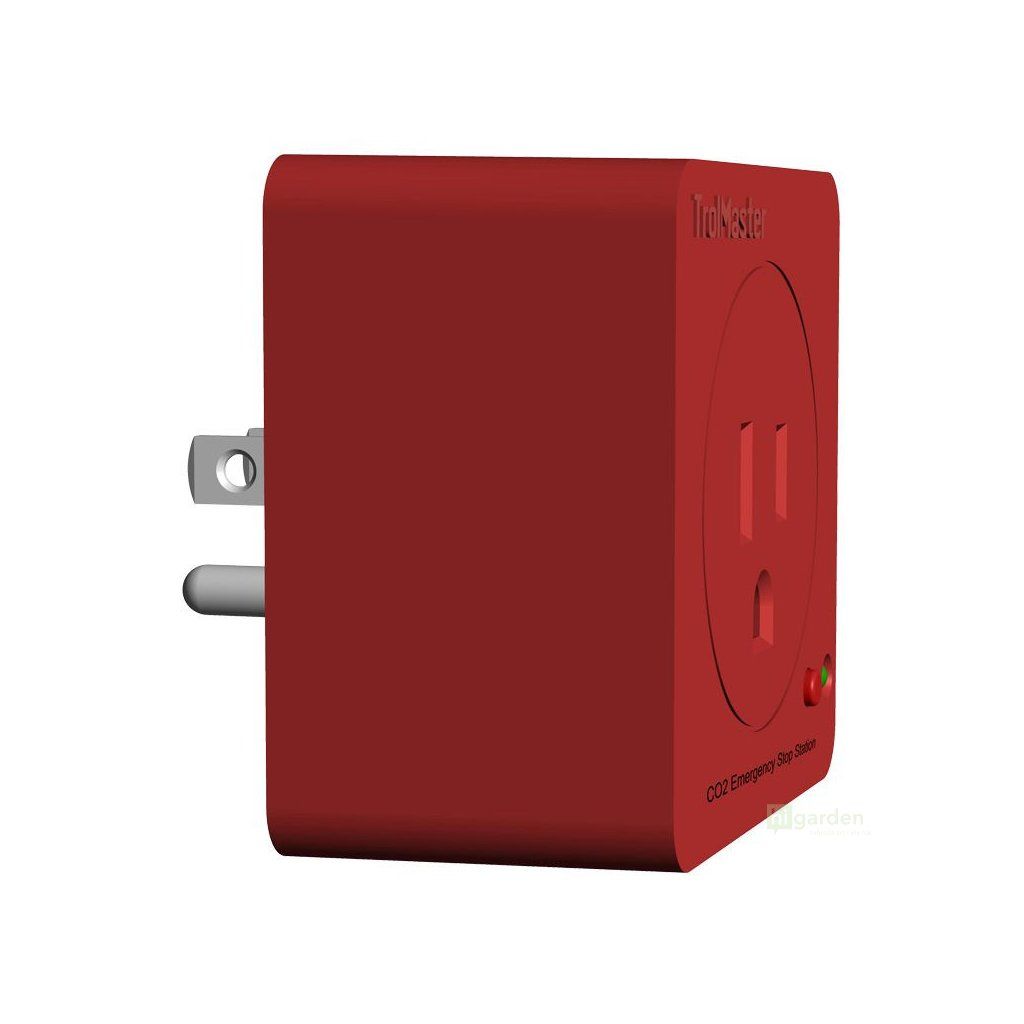

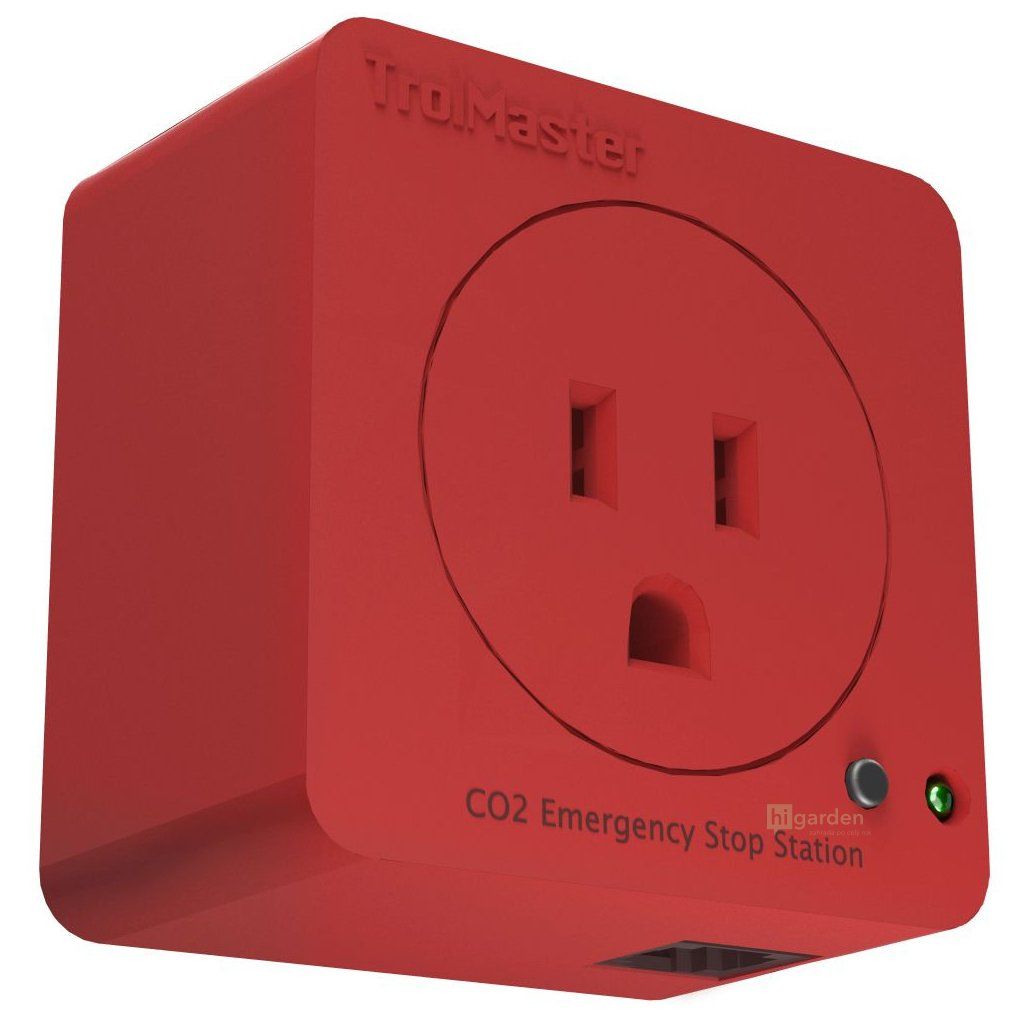

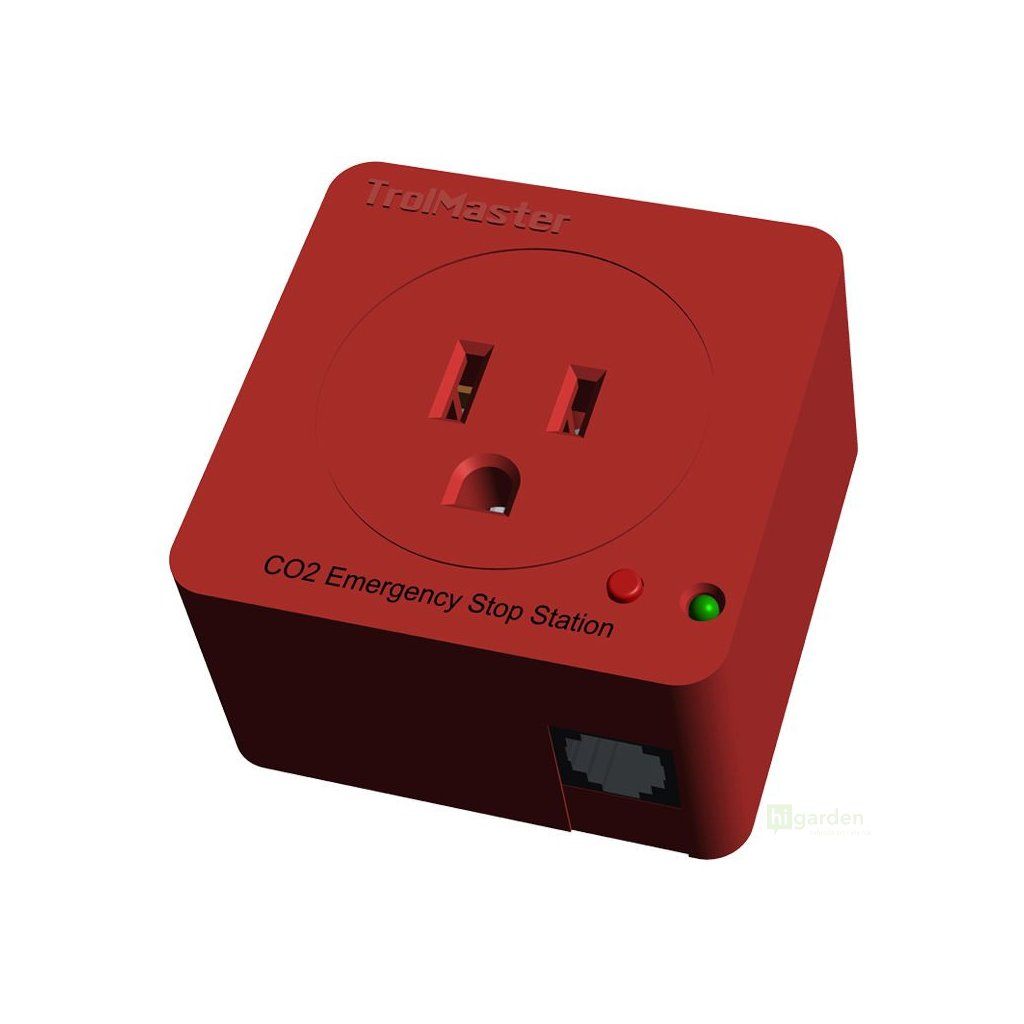

The CO2 DSE-1 emergency stop station provides a simple way to shut off the CO2 supply when any fault or high CO2 level is detected. It is a 120V controlled socket that powers CO2 solenoid valves during normal operation. Carbon-X then automatically switches off the power to the DSE-1 if any fault or high CO2 level is detected in any of the installed CO2 sensors. If the DSE-1 device loses communication with the Carbon-X device, the power is also switched off.

LED status:
- Blinking green FAST: If the LED blinks quickly, it means that the module has not been addressed to the control unit OR that the module does not have a good connection with the control unit.
- Pressing the small button on the module addresses/connects the module during the first installation
- Slowly blinking green SLOW: If you see a slowly blinking green LED, it means that the module is addressed and connected to the control unit and the module is currently switched off.
- STEADY green: If you see the LED light up continuously (not blinking), it means that the modules are addressed, connected and currently switched on.
- Blinking red: If the LED indicator changes to blinking red, it means that the module is overloaded. To reset the overload, disconnect the module from the power supply.

Main advantages:
- LED power indicator
- RJ12 cable socket
- Addressing
- Plug & Play

Package contains:
- 1 x Emergency Stop Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
