Trolmaster 240V Temperature Device Station (DST-2E)

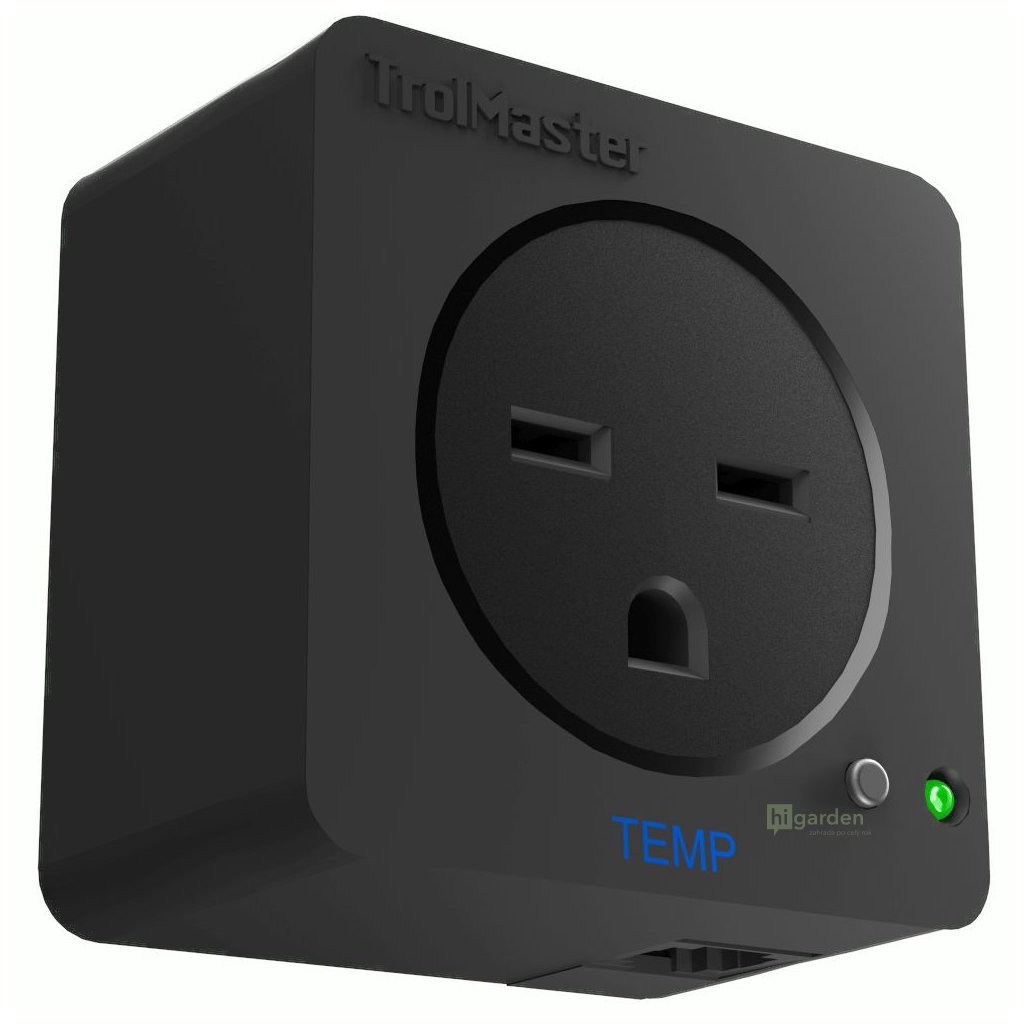

The picture is illustrative. The product is supplied in the EU version including an adapter for seamless connection to the Czech network.

The TrolMaster DST-2 temperature control modules allow the user to easily connect and control standard heating or cooling equipment to the Hydro-x system. This module allows the control of any heating or cooling device to world standard voltage (100-240 VAC, 50/60 Hz), up to 10 amps.

LED signalling:
- Flashes green FAST: If the LED flashes fast, it means that the module has not been addressed to the control unit OR that the module does not have a good connection to the control unit.
- Press the small button on the module to address/connect the module when it is first installed.
SLOW BLINKING GREEN LED: If you see a slowly blinking green LED, it means that the module is addressed and connected to the control unit and the module is currently powered off.
- BLINKING GREEN: If you see the LED steady (not flashing), it means the modules are addressed, connected and currently powered on.
- Flashing RED: If you see the LED turn to flashing red, it means the module is overloaded. To reset the overload, disconnect the module from power.
- By pressing and holding the button on the DST-2 module, users can manually reconfigure and power on/off the module.

Main advantages:
- Power LED indicator
- RJ12 cable socket
- Addressing
- Plug & Play

Package includes:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter

Technical Specifications:
- Voltage: 240 VAC, 50/60Hz
- Current: 10A
- Operating Temperature: 0-50°C
- Operating Humidity: <90% RH
- Weight: 0.34 kg
