TR40 - Tranformer Voltage Regulator 200W

Product detailed description

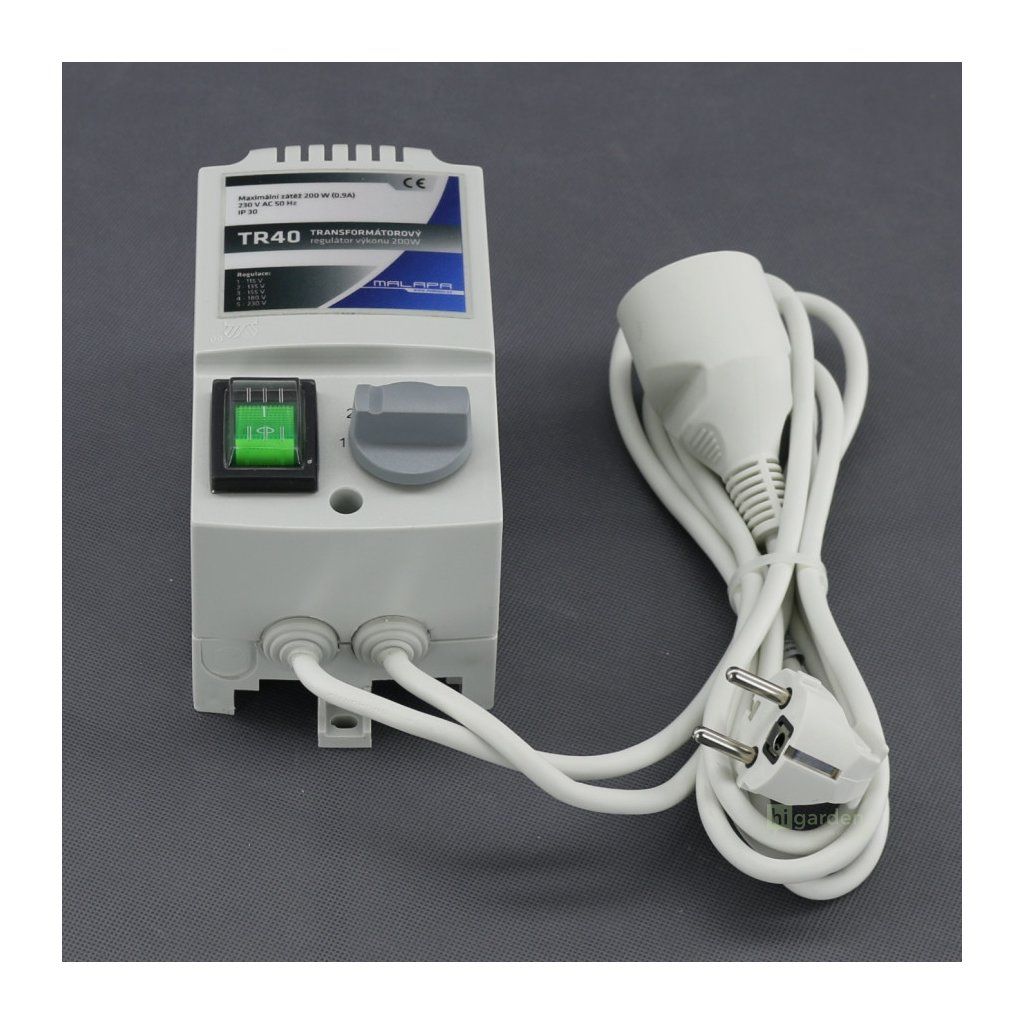

The TR40 transformer-based voltage regulator can regulate 200W (0,9A) inductive and resistive loads (ventilators, lights, drills, etc.). Increasing and decreasing the output voltage is easily set by the rotary knob with five steps. The durable plastic cover ensures flawless and long-lasting operation even in extreme conditions.

The TR40 regulator can control electromotors, dim lighting fixtures, and regulate ventilators, heaters, drills or engines. It's useful for devices which can't be controlled with classic regulators. The transformer-based regulator has individual coiling for each step. It's possible to connect more than one appliance, as long as the total load doesn't exceed 200W.

TR40 Specification:
- max. load: 200W (0,9A)
- regulation: 5 steps
- voltage regulation: 116V, 136V, 156V, 181V, 230V
- power input: 230V AC, 50Hz
- operating temperature: -20° to +70°C
- operating humidity: 0-90% RH (non-condensing)
- input power cable length: 2,5 m
- weight: 1696 g
- size: 125 x 80 x 70 mm
- ingress protection: IP30
- casing: ABS RoHS

- main off/on switch
- passive cooling
