Aqua Master Tools Controller C800 Pro (pH, EC, PPM, TDS& temp)

Product detailed description

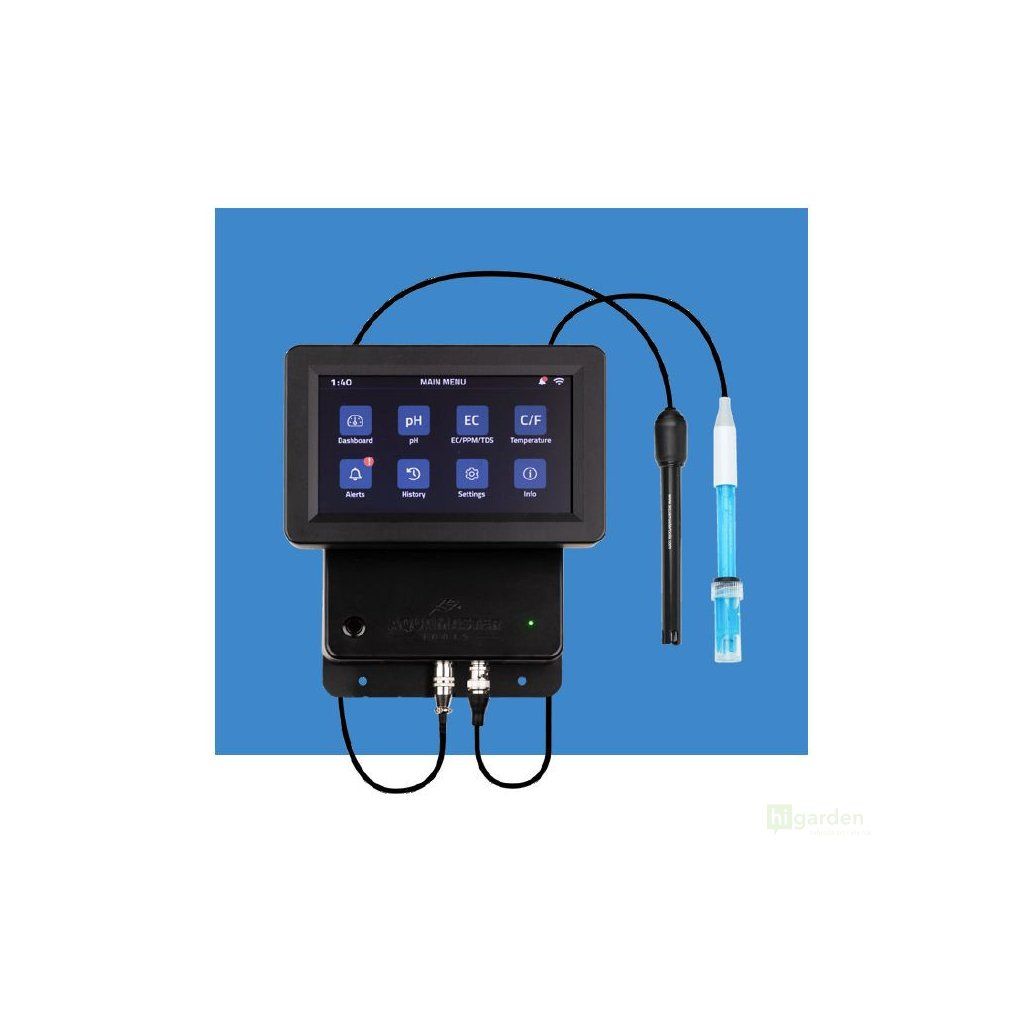

Aqua Master Tools C800 Pro Controller is a control unit for dosing in a tank. It measures pH, EC, PPM, TDS and temperature and, depending on the settings, can automatically adjust pH and EC using connected peristaltic pumps.

How the C800 Pro works

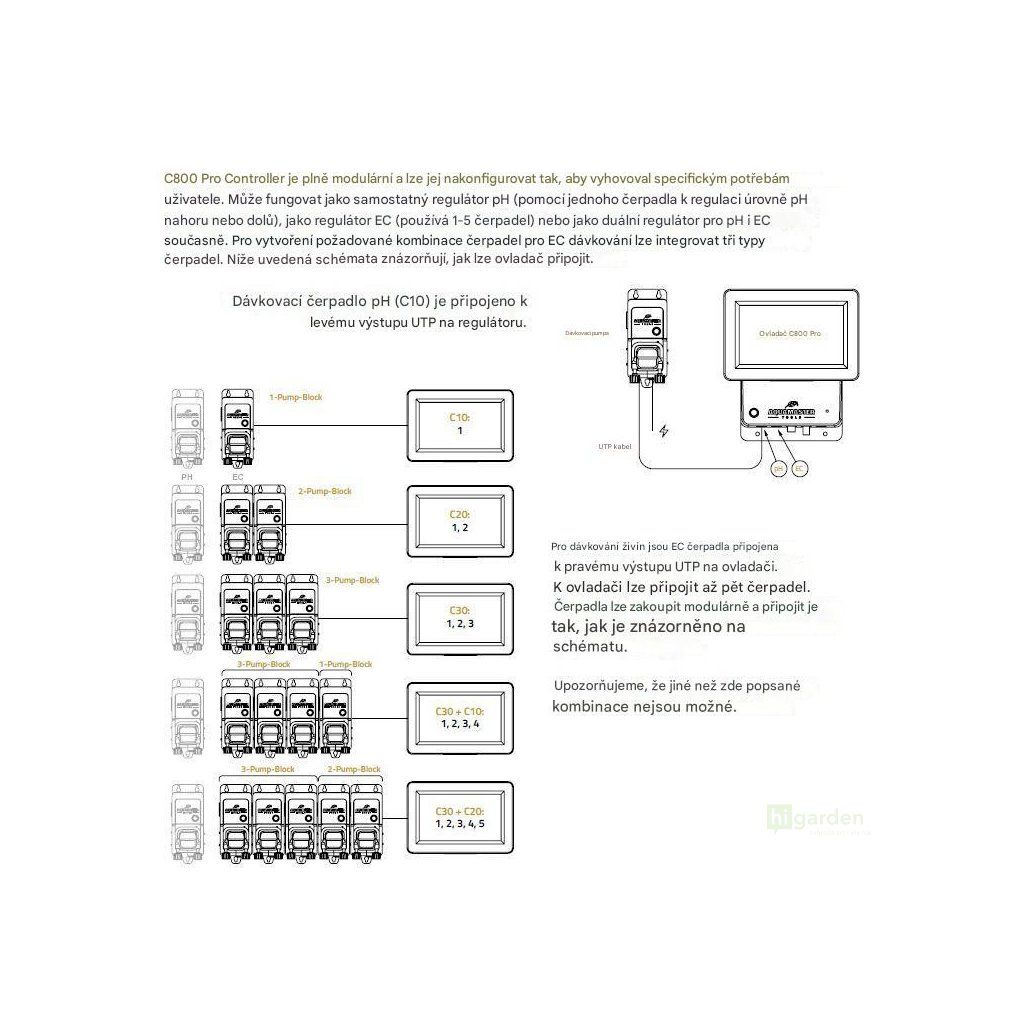

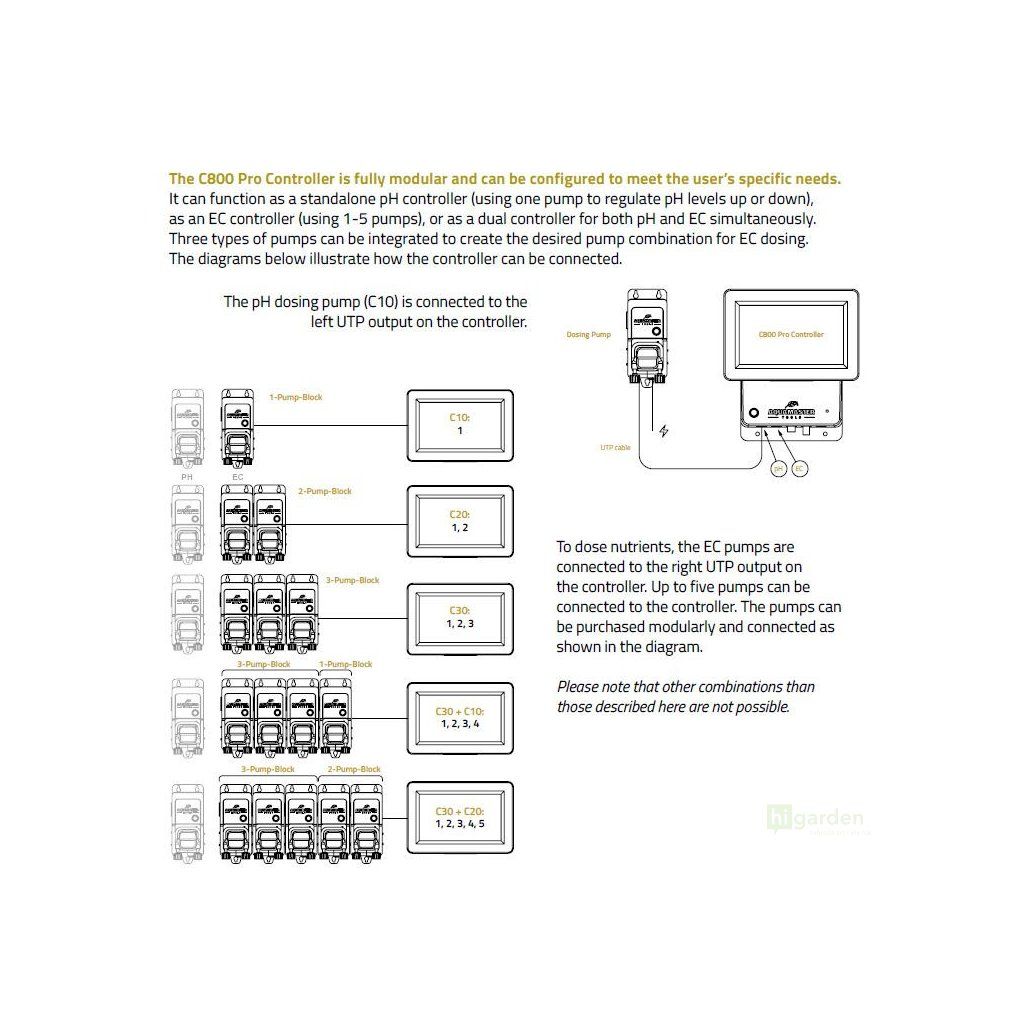

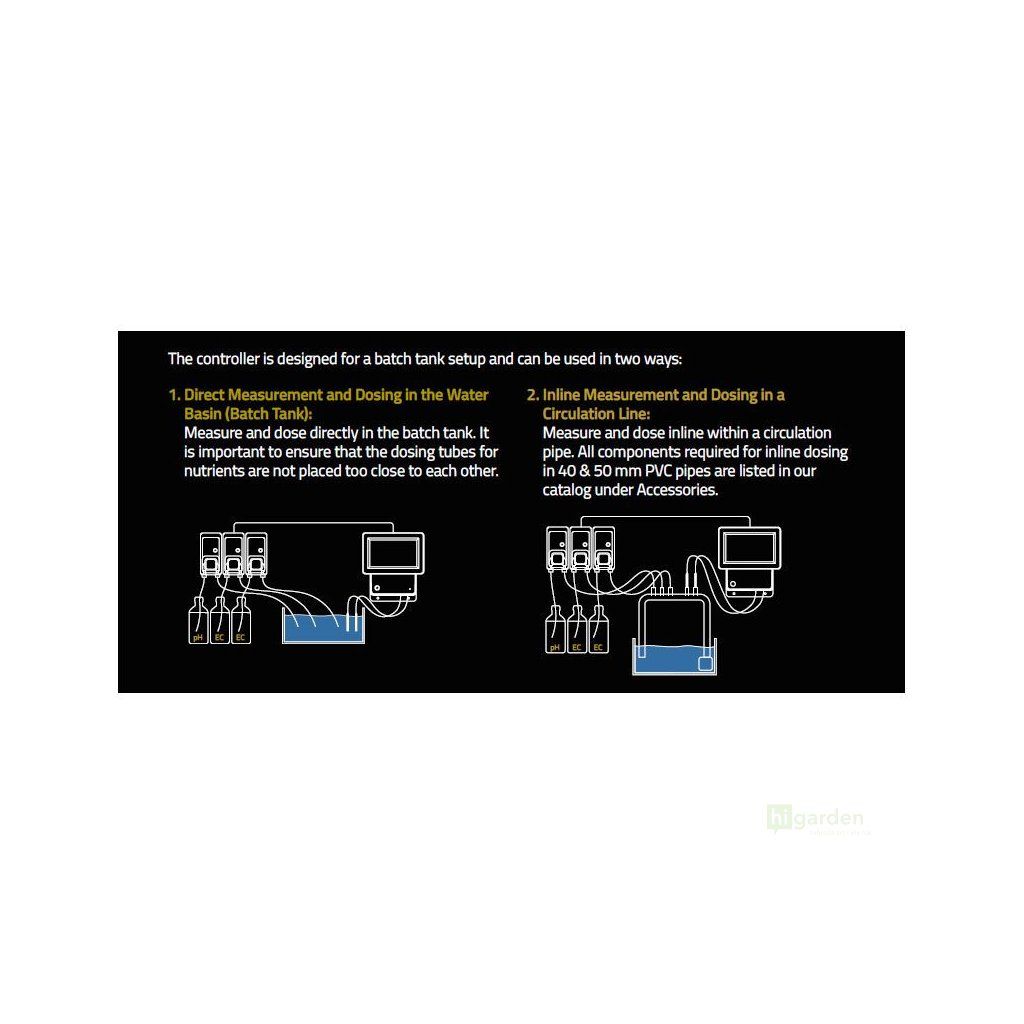

The controller has two UTP outputs. The left port is for one C10 pH dosing pump, the right port for 1 to 5 EC or nutrient pumps C10, C20 or C30. The maximum setup is 5 EC pumps and 1 pH pump per controller.

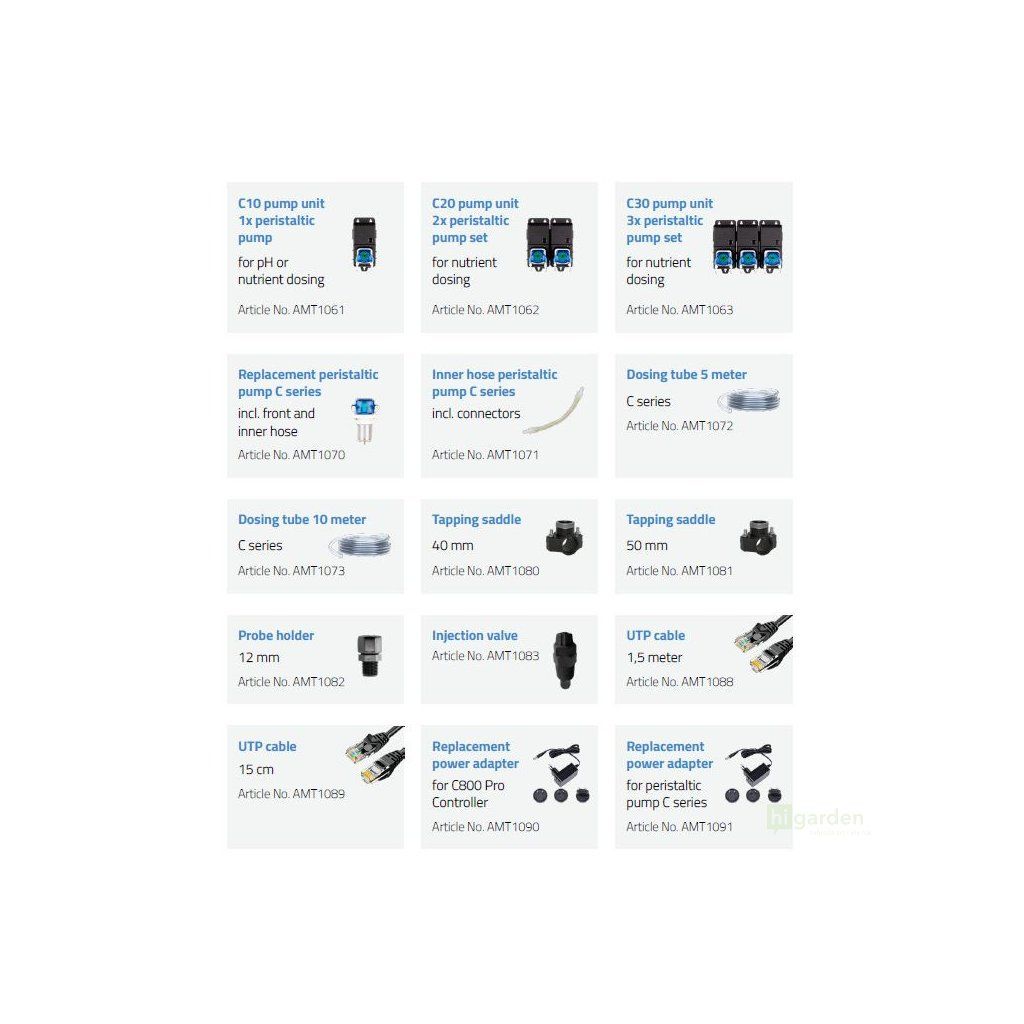

The dosing pumps are not included and are selected according to how many components you want to dose.

Measurement, alarms and app

The C800 Pro has low and high alarms for pH, EC and temperature, and in alarm mode it stops dosing. Measurement history is available for up to 1 year on the controller display and in the Aqua Master Tools mobile app.

Calibration

pH calibration uses pH 4.0, 7.0 and 10.0 points; among the available solutions, pH 4 and pH 7 are suitable. The EC section works with 1.4, 3.0 and 12.88 EC solutions, for example with EC 1,413.

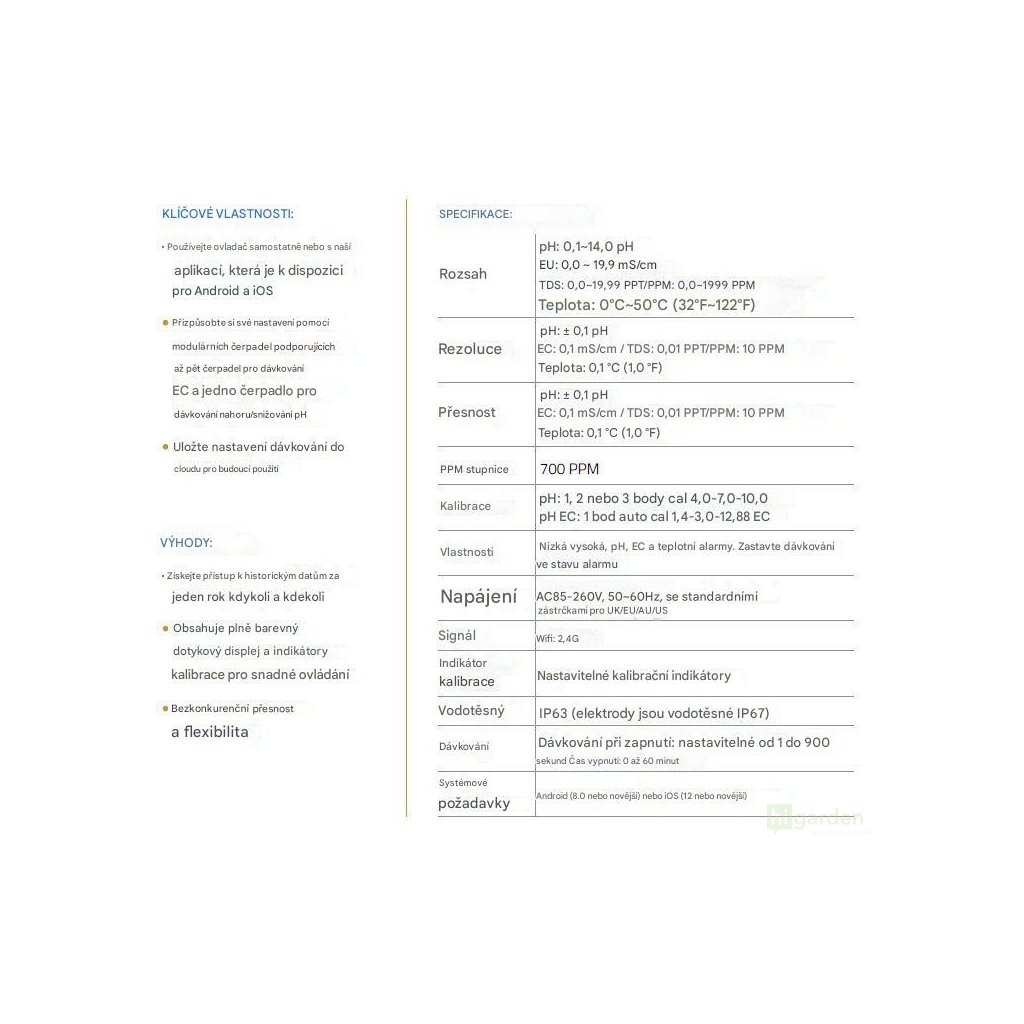

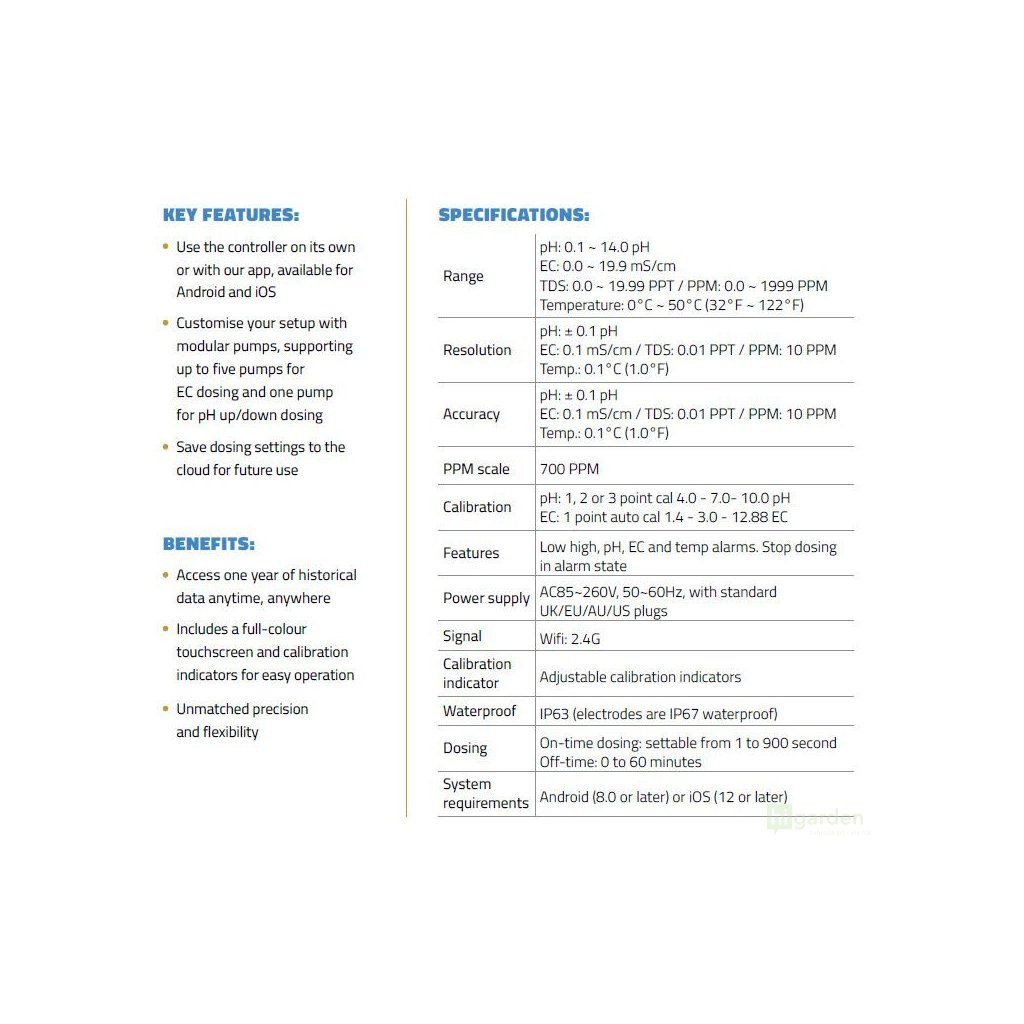

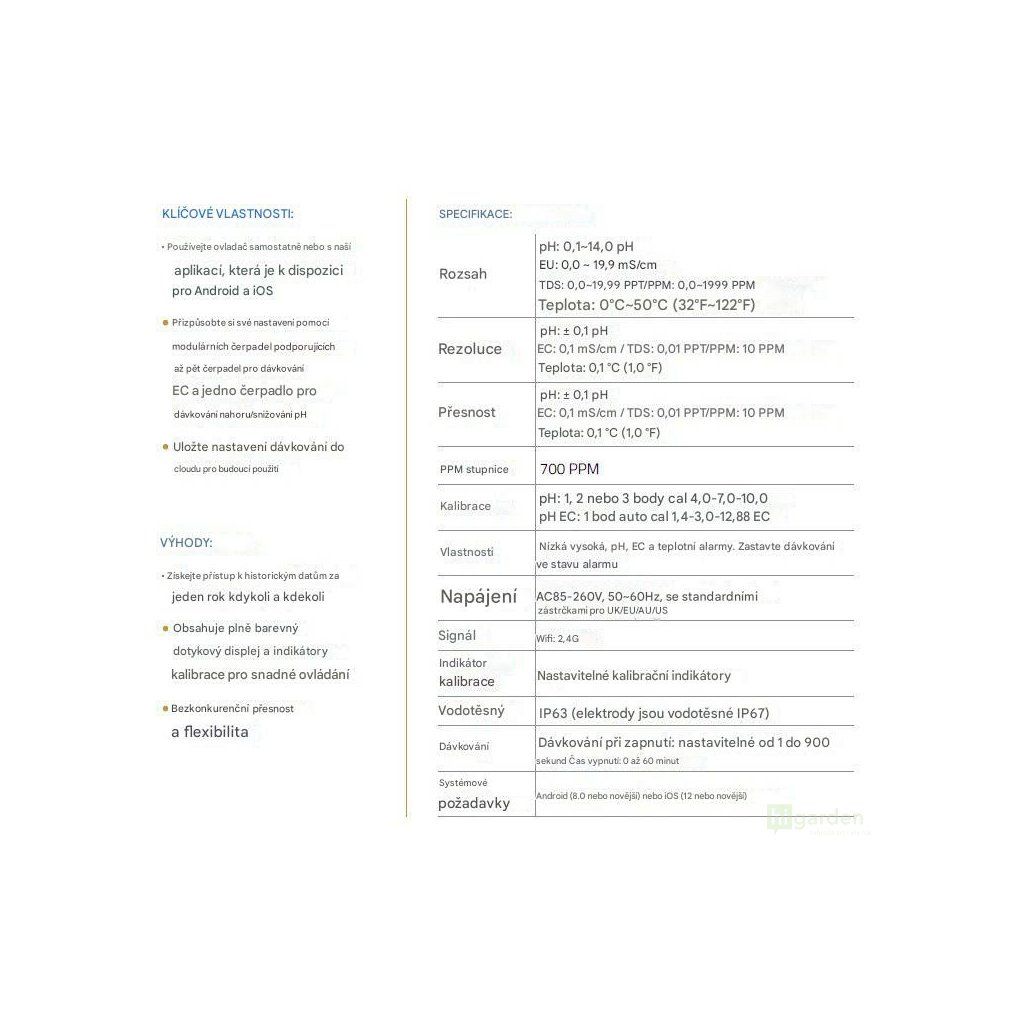

Parameters

• Installation type: tank system
• Outputs: 2x UTP port
• Maximum number of pumps: 5 EC + 1 pH
• pH calibration: 1, 2 or 3 points pH 4.0, 7.0, 10.0
• EC calibration: 1-point, solutions 1.4, 3.0 and 12.88 EC
• Power supply: AC 85 to 260 V, 50 to 60 Hz
• Measurement history: up to 1 year

Frequently asked question

Does the C800 Pro have pressure inline probes?

No. This version is for a tank system. For piping and pressure inline probes, choose the C800 Pro Inline.
