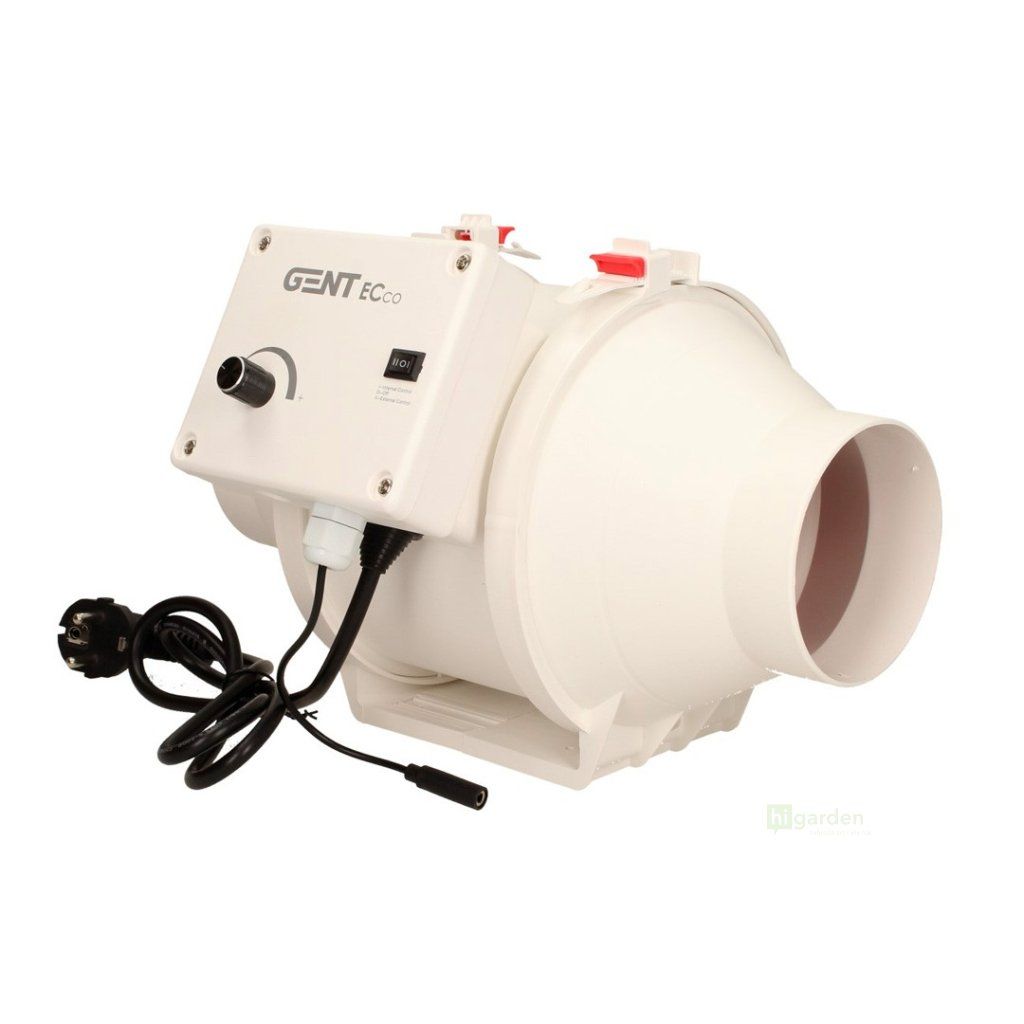

GENT ECco fan 100 mm with EC motor and control, 280 m3/h

Product detailed description

GENT ECco 100 mm duct fan with a maximum air flow of 280 m3/h features a reliable EC motor with smooth speed control. The fan includes a built-in power cable (1 m) + JACK (15 cm) for connection to a controller.

When using a controller, we recommend the GSE controller for EC fans.

Features:
- smooth power control 10-100%
- lower energy consumption
- higher efficiency
- longer service life
- low vibration
- low noise level
- continuous operation

Parameters:
- power input - 25-30 W
- maximum air flow - 188-280 m3/h
- input voltage/frequency - 115~230VAC / 50~60Hz
- current - 0.12-0.13 A
- air pressure - 93-205 Pa
- noise level - 26-31 dB
- speed - 1650-2450 rpm
- weight - 1.7 kg
