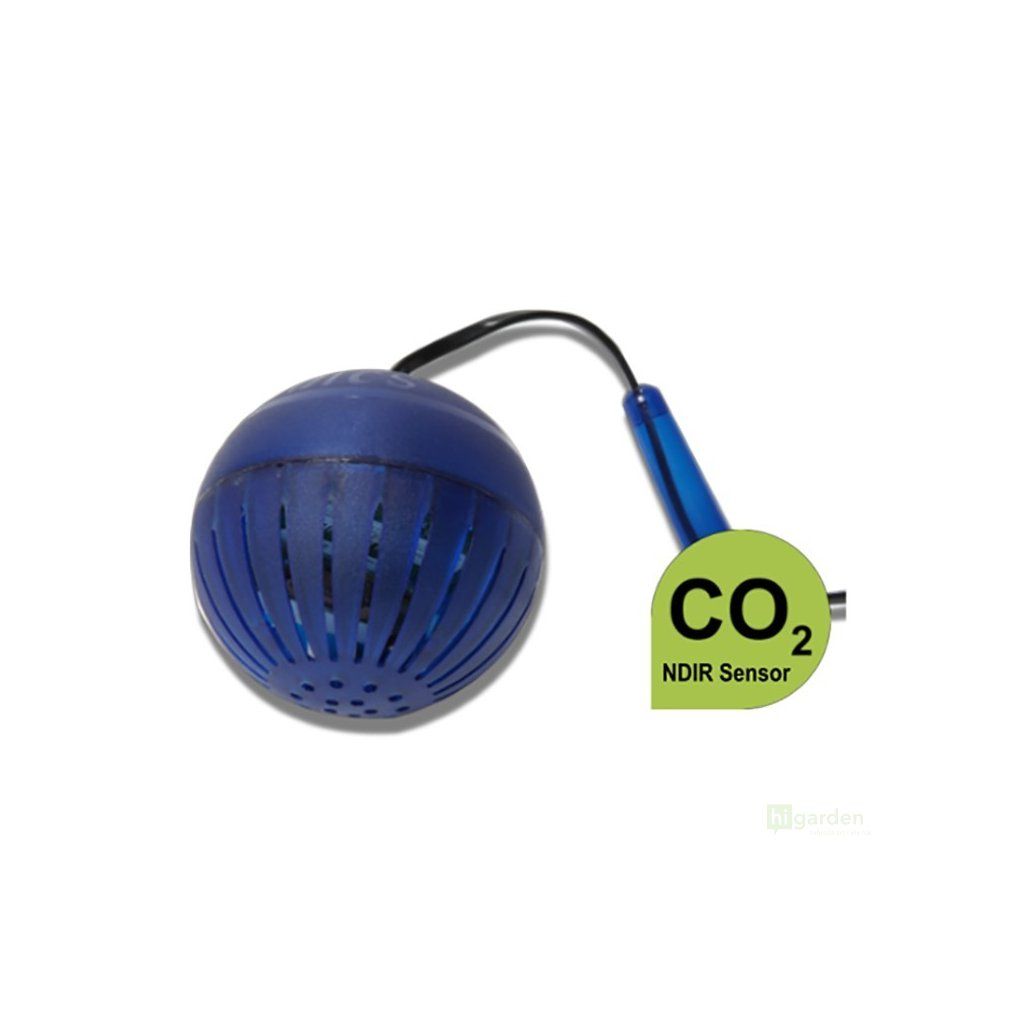

Ecotechnics Evolution CO2 Analyser (probe)

Product detailed description

Professional CO2 control for maximum harvest

Give your plants exactly what they need for explosive growth and a rich harvest. This analyser with a precision probe and integrated solenoid valve is a top solution for automatic control of carbon dioxide (CO2) levels in your growing space. The correct CO2 concentration is one of the most important factors for improving photosynthesis, which directly results in faster development, stronger plants and significantly higher yields from annual plants such as tomatoes, strawberries or chilli peppers.

Top technology for uncompromising accuracy

At the heart of the analyser is advanced NDIR (Non-Dispersive Infra-Red) technology, which uses modern antimonide LED diodes and detectors with gold-plated optics. This combination ensures lightning-fast response and exceptional real-time measurement accuracy across a wide range of 0–10,000 ppm. This gives you the certainty that your plants are receiving the optimal dose of CO2 exactly when they need it most.

Full automation and easy integration

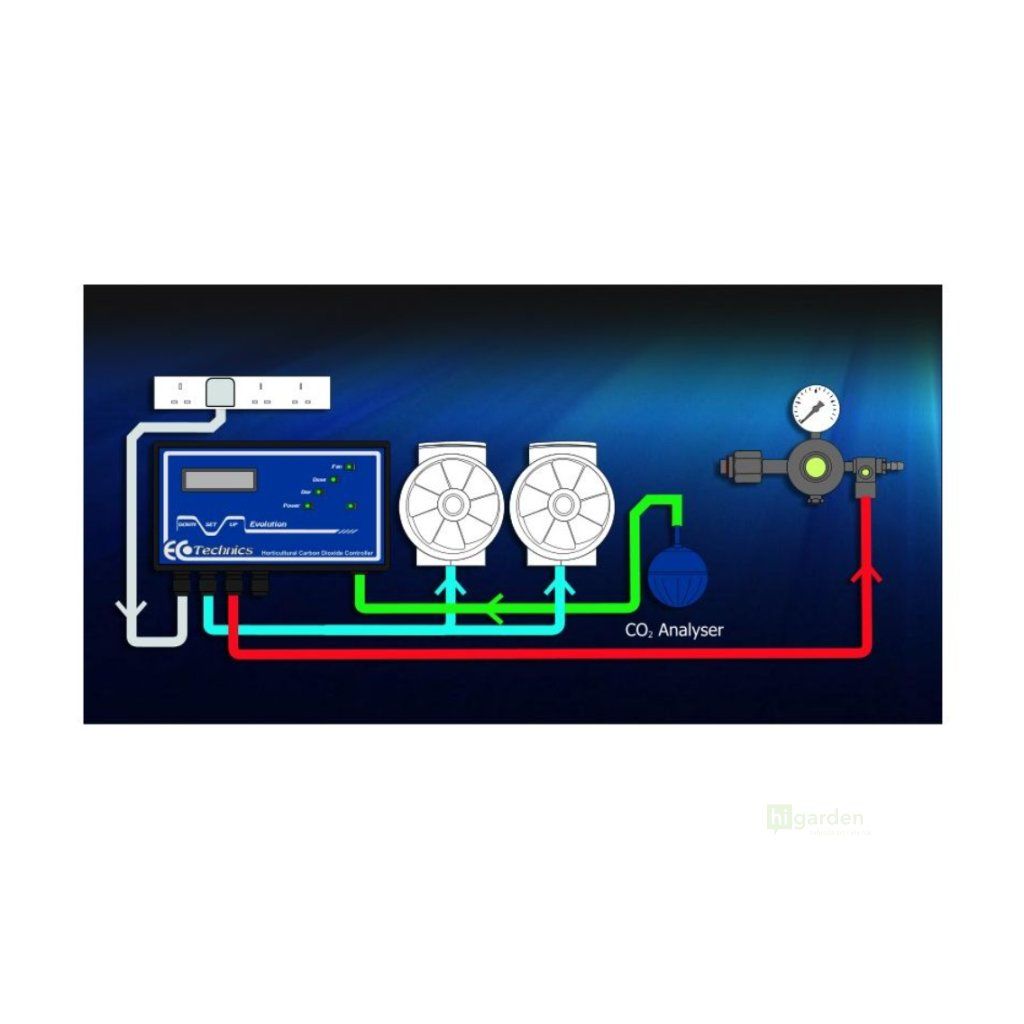

The analyser is designed for exclusive use with the Ecotechnics Evolution CO2 Controller, which serves as the brain of the entire system. Once these two devices are connected, you get a fully automated system that maintains the set CO2 level on its own. The solenoid valve simply fits onto the gas cylinder and the system takes care of everything else. For basic dosing, programmable timer switches can also be used, but to make full use of the probe’s potential and accuracy, the control unit is recommended.

Main advantages of the CO2 analyser:

• Accurate real-time measurement: Advanced NDIR technology guarantees reliable and fast results.
• Fully automated operation: In combination with the control unit, the system works completely independently.
• Maximised growth and yields: Provides ideal conditions for photosynthesis and healthy plant development.
• Optimised CO2 use: Precise dosing helps prevent waste and reduces operating costs.
• Reliable solenoid valve: Ensures smooth and controlled CO2 distribution with a flow rate of up to 17 litres per minute.

Parameters

• Measurement technology: NDIR (Non-Dispersive Infra-Red)
• Measurement range: 0–10,000 ppm
• Valve flow rate: 17 litres per minute
• Dimensions: 18 cm x 13 cm
• Compatibility: Exclusively with the Ecotechnics Evolution CO2 Controller
