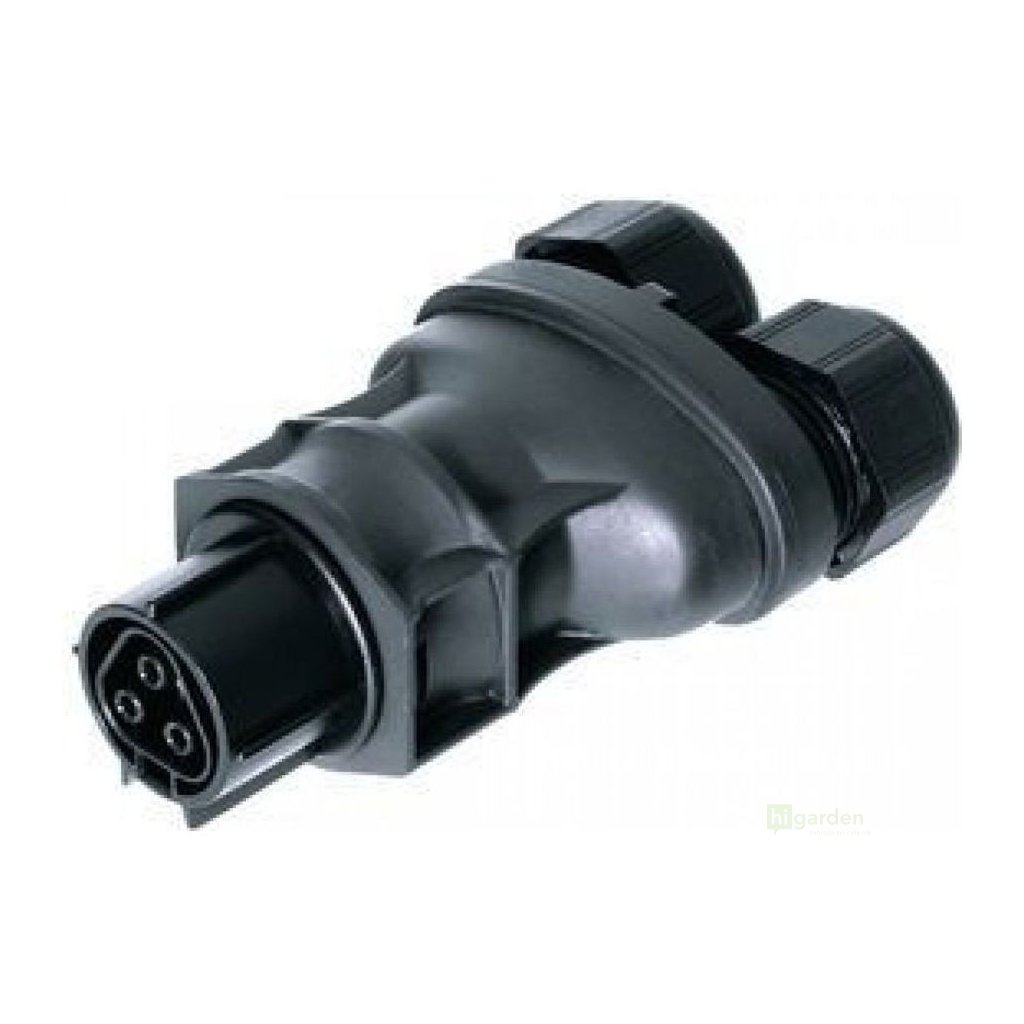

Wieland splitter connector, splitter for Sanlight LED lights

Product detailed description

Wieland splitter - two lights from one supply

The Wieland splitter will turn one power cable into two outputs, so you can connect two SANlight EVO 1.5 or Q-Series Gen2 lights to it. Instead of two separate supplies from the socket, you run just one and only split it at the assembly - there are fewer cables in the box, the installation is clearer and safer, and you gain space and peace of mind during maintenance.

Who it is suitable for and when

The splitter will be appreciated by professional growers and demanding hobby gardeners alike who are expanding their lighting setup or want to simplify existing cabling. The robust construction and waterproof connector can also withstand the more humid operation of a greenhouse or grow tent, so you can use the splitter where a standard household splitter is not enough. Typically, you will use it when you run a shared supply above two lights and do not want to pull a separate cable to each one all the way to the socket.

Parameters

• Type: power splitter - splitter (1 input, 2 outputs)
• Connector: Wieland RST20i3 (standard)
• Protection: IP65 (dust-tight, resistant to splashing water)

Compatibility

Compatible:

• SANlight EVO 1.5
• SANlight Q-Series Gen2
• SANlight EVO Compact 2C/3C/6CXB

Incompatible:

• EVO Compact 4CX (400 V) - different 400V connector
• STIXX - M19 5-PIN connector
• FLEX II - WDC19 connector

Wiring and expanding the setup

The splitter is part of the modular SANlight system: it fits into larger installations controlled by dimmers or a central controller without you having to change the rest of the cabling. You can connect two separate lights to it, or wire it into a larger setup with daisy-chained supply. Efficient power distribution from one source saves space and the cost of additional cabling. Need to distribute power to more than two lights? Choose the 4-way connector, which covers up to four lights from one supply.
