Trafika KIT Extractor 100 mm / 250 m3/h, complete ventilation set

Product detailed description

Trafika KIT Extractor 100 mm / 250 m3/h, complete ventilation set

Say goodbye to complicated choices and uncertainty! With this complete ventilation set from Trafika, you can be sure that all components fit together perfectly. This is a simple, reliable and complete solution for ventilation of growing spaces, where you do not need to choose anything complicated – just unpack and assemble.

Key benefits

• Perfect compatibility: All parts – fan, filter and ducting – have the same 100 mm diameter, which guarantees a maximally tight and efficient connection without the need for any reducers.
• Everything in one package: You get a complete solution from the fan to the hanging system.
• 100% odour elimination: The highly effective filter with a dense filling of activated carbon from coconut shells reliably absorbs all aromas from your growing space.
• Adjustable performance: The two-speed fan allows you to adapt the air extraction to the current growth stage and temperature, which is ideal for young plants as well as vigorous growth on warmer days.
• Quiet and reliable operation: At the heart of the fan is a high-quality motor made from 100% copper with ball bearings, which ensures quiet running and exceptional service life of up to 40,000 hours of continuous operation.
• Easy installation and maintenance: Thanks to the Rope Ratchet hanging system, installation is incredibly easy. In addition, the fan cover can be simply removed for quick cleaning without the need to dismantle the entire system.

Detailed look at the components

The heart of the system: TT 100 mm fan

This two-speed mixed-flow duct fan is the real workhorse of the entire set. It combines high pressure and strong airflow with a low noise level. The single-phase motor with 100% copper winding is equipped with ball bearings and overheating protection with automatic restart. The fan is supplied with connected wiring for immediate connection.

• Airflow: 145 / 187 m³/h
• Power input: 21 / 33 W
• Speed: 2180 / 2385 rpm
• Noise level: 27 / 36 dBA (at a distance of 3 m)
• Voltage: 230 V
• Protection rating: IPX4 (protection against splashing water)
• Weight: 1.45 kg
• Maximum operating temperature: 60 °C
• Material: Durable ABS plastic

Guardian of discretion: Trafika carbon filter 100 mm / 250 m³/h

Say goodbye to all unwanted odours! This lightweight yet robust carbon filter has been proven on the market for more than a decade. Inside is high-density activated carbon from coconut shells (730 g/m²), which reliably captures and neutralises all organic odours from your aromatic herbs, chilli peppers or tomatoes. Its capacity is ideally matched to the fan output, which guarantees 100% efficiency. The double-layer felt filter construction ensures a long service life.

• Flange: 100 mm
• Optimal airflow: 250 m³/h

Flexible connection: COMBI air duct 100 mm / 5 m

Durable and fully flexible ducting that connects the fan to the filter and vents air out of the growing space. The combination of aluminium and laminated polyester guarantees high mechanical resistance and, above all, 100% lightproofing – no light leaks, no air leaks.

• Diameter: 100 mm
• Length: 5 m

Firm and easy hanging: Rope Ratchet (load capacity up to 68 kg)

Installation could not be simpler. With these ultra-durable ratchet hangers, you can hang the fan and filter on the tent frame in no time. The system with carabiners made of galvanised steel and durable cord allows easy and precise height adjustment. A load capacity of 68 kg per pair gives you the confidence that everything will stay safely in place.

• Load capacity: up to 68 kg per pair
• Rope length: 1.5 m
• Material: Carabiner made of galvanised steel, rope made of a cotton and polyester blend

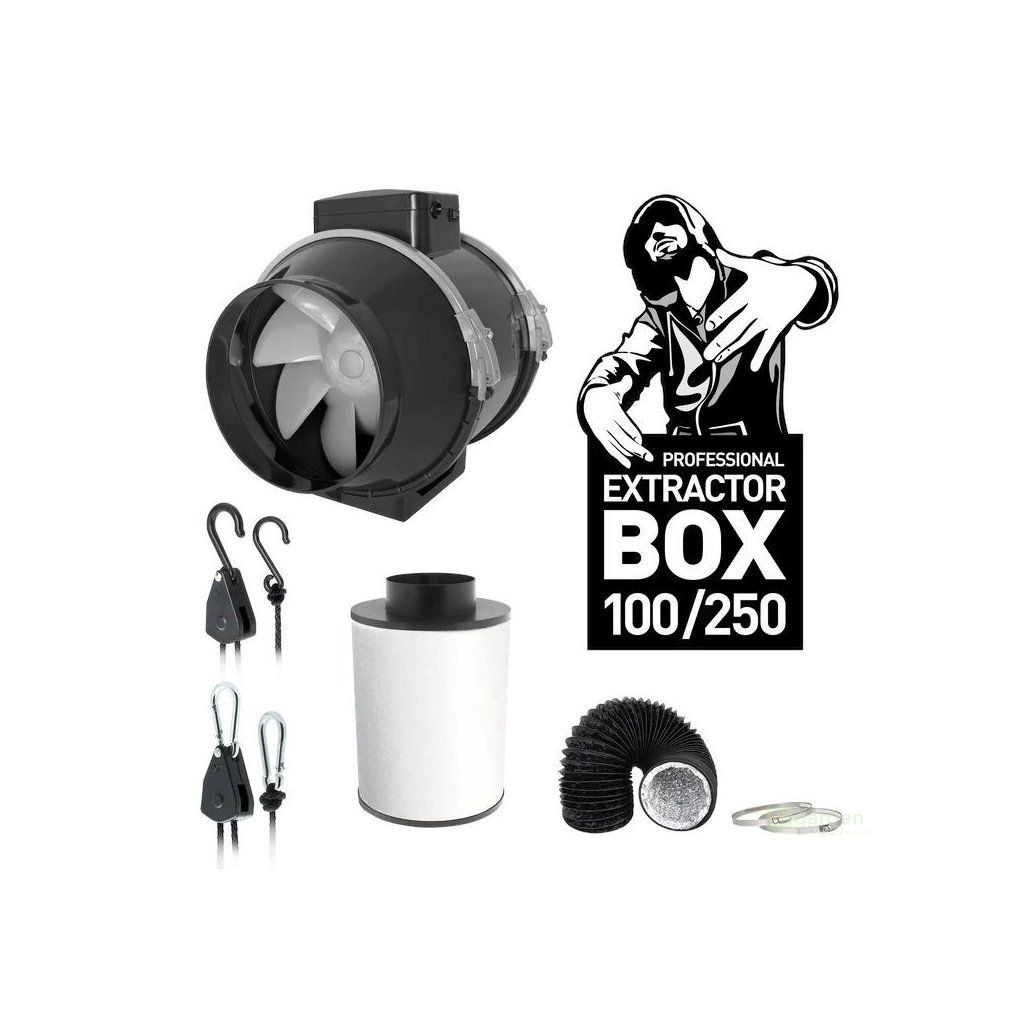

Package contents

• 1x TT 100 mm two-speed fan (145/187 m³/h) with wiring
• 1x Trafika carbon filter 100 mm (250 m³/h)
• 1x COMBI air duct 100 mm (length 5 m)
• 2x Rope Ratchet hanging system (load capacity 68 kg/pair)

Give your plants fresh air and yourself peace of mind with this perfectly matched ventilation kit. It is the easiest way to a rich and fragrant harvest (only when you want it)!
