TT Silent/Dalap AP Quiet fan 125 mm, 230/340 m3/h

Product detailed description

MOTOR:
The single-phase motor with ball bearings has two speeds that can be switched using an external switch (not included). The motor is fitted with a thermal fuse with automatic restart. IPX4 protection rating. The motor life is around 40,000 hours.

USE:
The Vents TT Silent-M 125 fan fully meets the requirements for high pressure and yet low noise. The fan is suitable for use in areas with high humidity such as toilets, kitchens, offices, greenhouses, growing rooms, etc. Thanks to its technical parameters, it is designed for extraction in duct systems up to 12 metres.

INSTALLATION:
The fan can be installed at any point in the duct system - horizontally. In addition, several fans can be mounted simultaneously to increase the pressure or capacity of the transported air. The fan body is equipped with a mounting plate for wall fixing.

Technical parameters:

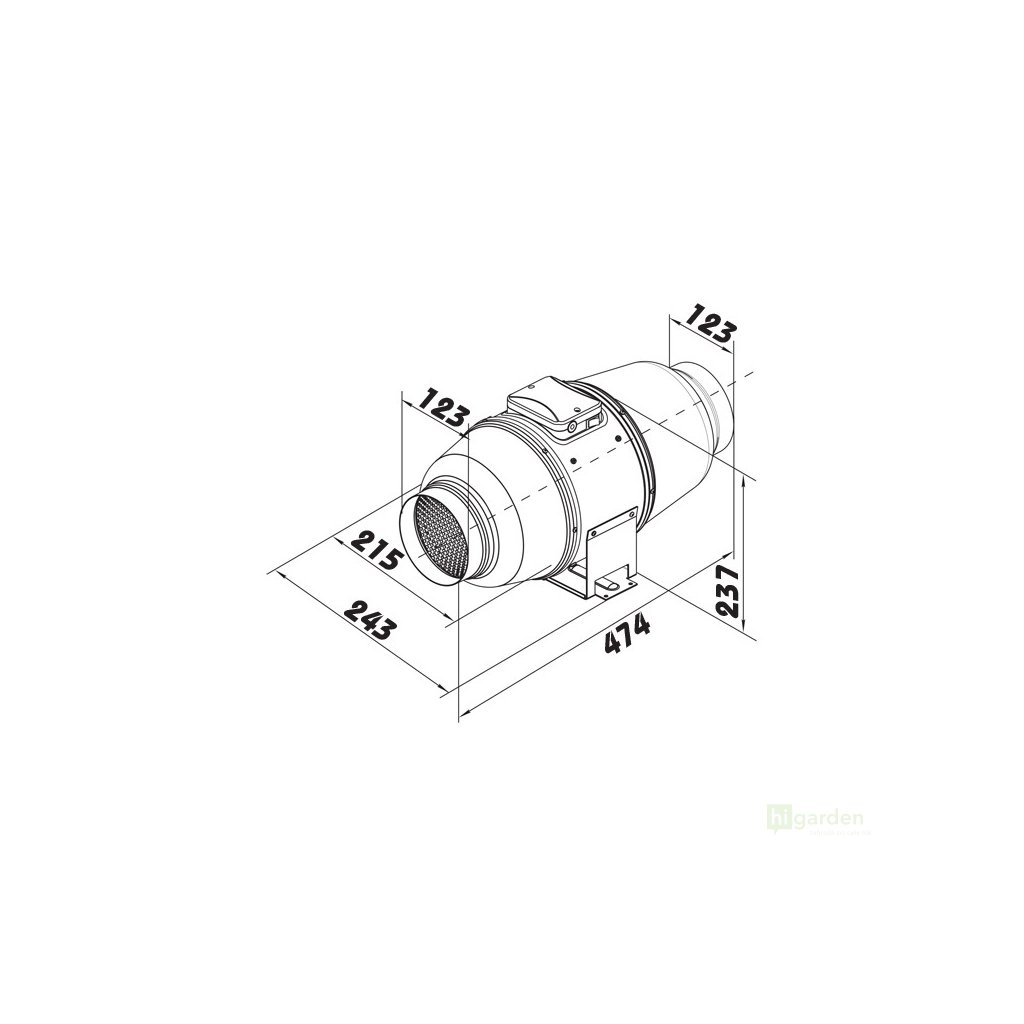

- diameter: 125 mm
- air flow: 230/340 m³/h
- ball bearings: yes
- max temperature: 60 °C
- speed: 1650/2310 rpm
- static pressure: 330/360 Pa
- acoustic pressure: 23/28 dB/1m
- power supply: 230/50 V/Hz
- input power: 25/30 W
- rated current: 0.11/0.13 A
- protection: X4 IP
- weight: 4.6 kg
