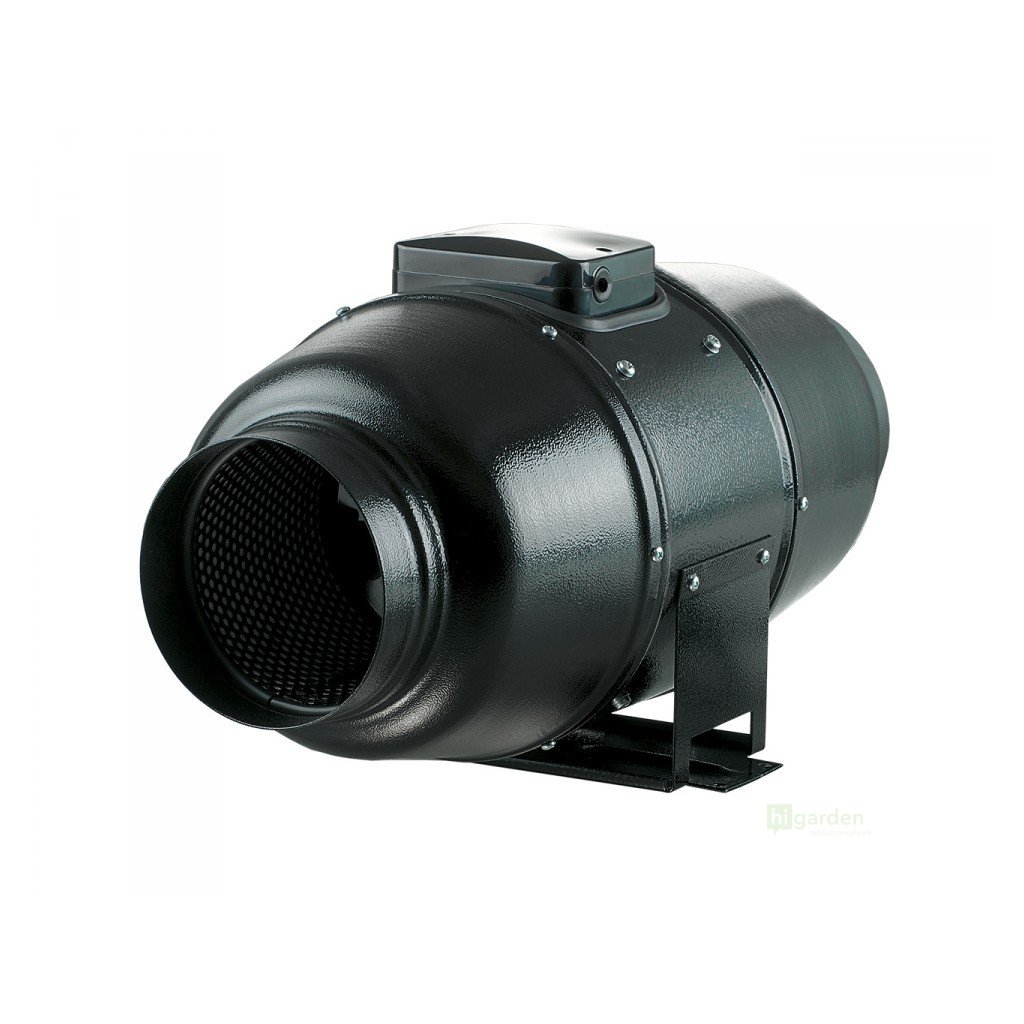

TT Silent/Dalap AP Quiet fan 100 mm, 170/240 m3/h

Product detailed description

MOTOR:
The single-phase motor with ball bearings has two speeds, which can be switched using an external switch (not included). The motor is fitted with a thermal fuse with automatic restart. IPX4 protection rating. The motor lifespan is around 40,000 hours.

USE:
The Vents TT Silent-M 100 fan fully meets the requirements for high pressure and yet low noise. The fan is suitable for use in areas with high humidity such as toilets, kitchens, offices, greenhouses, growing rooms, etc. Thanks to its technical parameters, it is designed for extraction in duct systems up to 12 metres. This duct fan is compatible with all round ducting with a diameter of 100 mm in our range.

INSTALLATION:
The fan can be installed at any point in the duct system - horizontally. In addition, several fans can be installed at the same time to increase the pressure or capacity of the transported air. The fan body is equipped with a mounting plate for fixing to a wall or ceiling.

Technical parameters:
- diameter: 100 mm
- air flow: 170/240 m³/h
- ball bearings: yes
- max temperature: 60 °C
- speed: 2030/2630 rpm

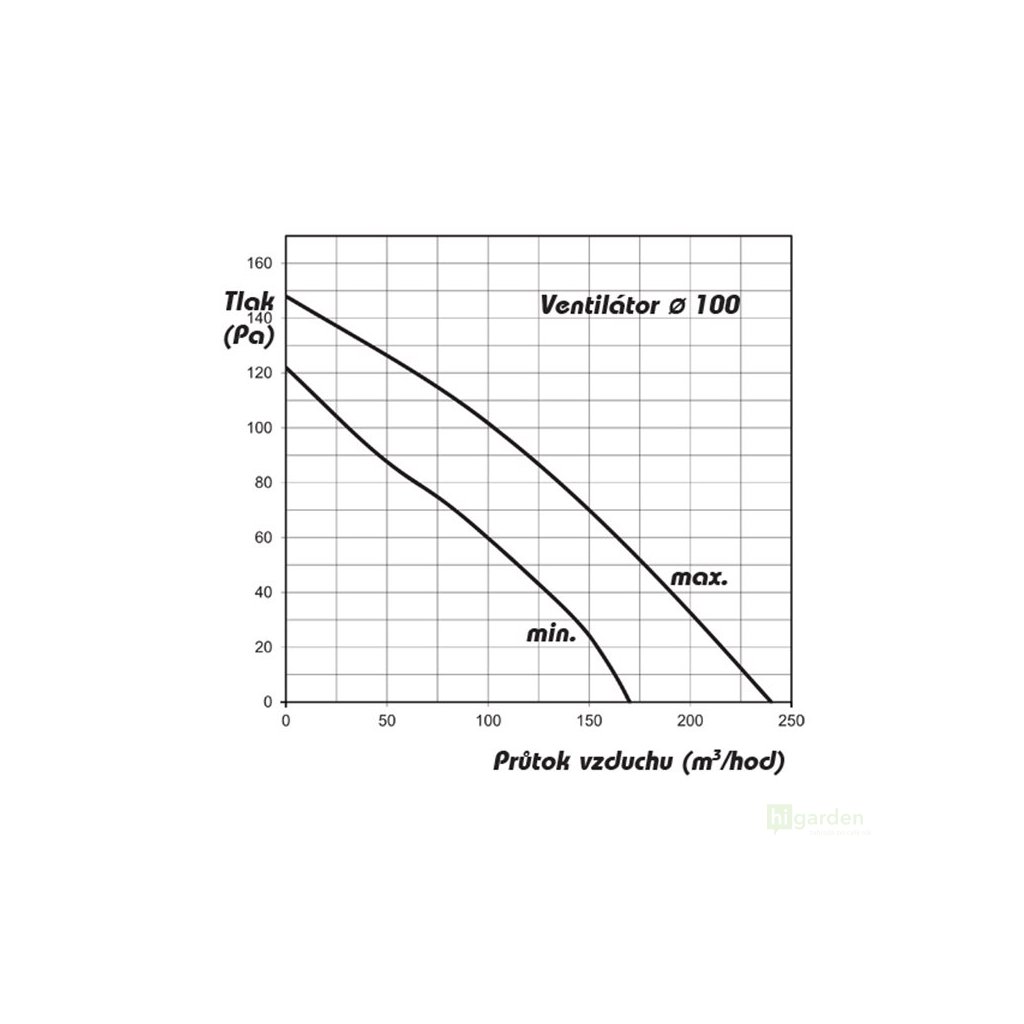

- static pressure: 122/148 Pa
- sound pressure: 24/29 dB/1m
- power supply: 230/50 V/Hz
- power input: 24/26 W
- protection: X4 IP
- weight: 4.6 kg
