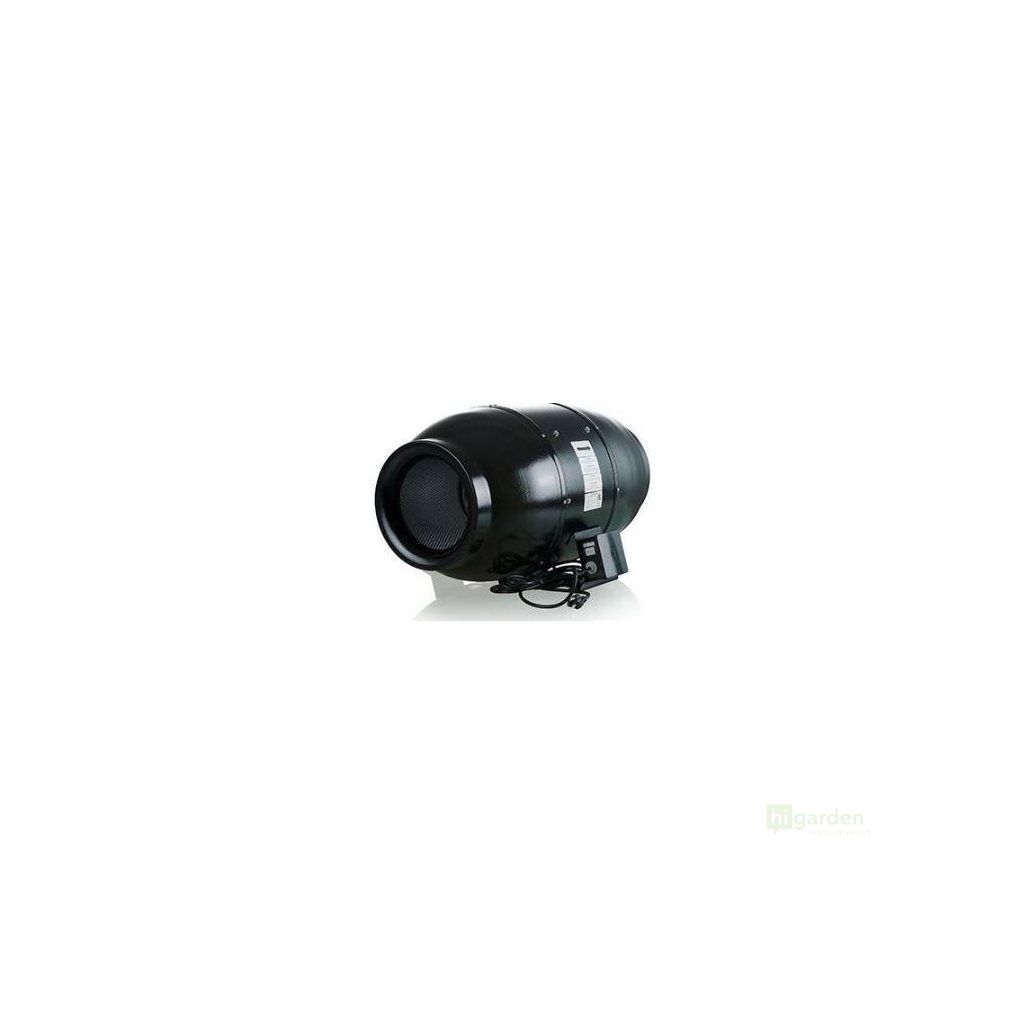

TT Silent/Dalap AP Quiet 250mm, 1050/1330m3/h

Main advantages of the TT Silent/Dalap AP 250, 1050/1330^m3/h

• Two-speed motor with thermal fuse
• Ball bearings increase service life up to 40,000 hours
• semi-radial metal blades guarantee increased air velocity
• the outer steel housing is coated with black polymer
• impeller made of rigid plastic
• extremely quiet and vibration-free operation
• external mounting box and easier connection to the mains
• allows horizontal connection



Technical parameters:
-maximum air capacity (power): 1050/1330^m3/h
- low consumption (power): 127/178 W
- 1965/2495 rpm
- sound pressure level: 34/38 dbA
- optimal operation with ducting up to max. 45 metres
- weight: 15 kg
- protection: IP X4
- max. operating temperature: 60 °C

How to make the best use of TT Silent/Dalap AP ducted fans?
- All ducted fans are designed for a wide range of applications in kitchens, apartments, offices, growing spaces and greenhouses. They also do their job in workshops, cellars and other areas with active ventilation requirements.
- the TT AP 250 silent fan can be mounted on a wall or ceiling thanks to the mounting plate.
- the single-phase motor and ball bearings guarantee maximum performance in the horizontal position.
- the speed can be set either fixed before the fan is started or by means of an external switch, which is not included in the package and must be purchased.

Detailed instructions for wiring and use can be found in the Czech manual.
