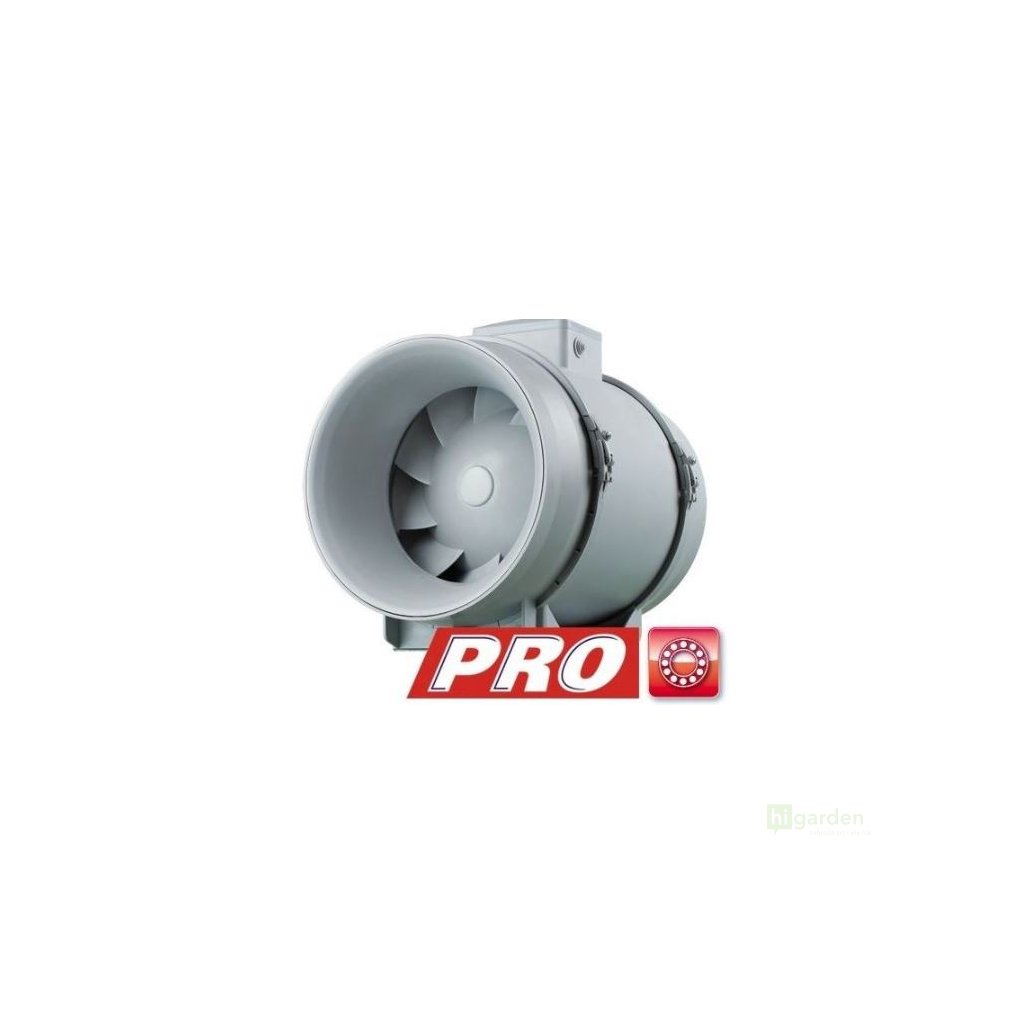

TT 200 PRO Fan, 830/1040 m3/h
Code: 340Related products
Product detailed description
MOTOR:
The single-phase motor with ball bearings has two speeds that can be switched using an external switch. The motor is fitted with a thermal fuse with automatic restart. IPX4 protection rating.
USE:
The Vents TT 200 fan fully meets the requirements for high pressure and yet low noise. The fan is suitable for use in areas with high humidity, such as toilets, kitchens, offices, greenhouses, growing rooms, etc. Thanks to its technical parameters, it is designed for extraction in duct systems up to 36 metres.
INSTALLATION:
The fan can be installed at any point in the duct system - horizontally. In addition, several fans can be installed at the same time to increase the pressure or capacity of the transported air. The fan body is equipped with a mounting plate for wall fixing.
Technical parameters:
- diameter: 200 mm
- air flow: 830/1040 m3/h
- ball bearings: yes
- max temperature: 60 °C
- speed: 1915/2380 /min
- static pressure: 280/345 Pa
- acoustic pressure: 45/52 dB/1m
- power supply: 230/50 V/Hz
- input power: 76/108 W
- rated current: 0.34/0.48 A
- protection: X4 IP
- weight: 6.4 kg
- service life: 40,000 hours
This product is supplied without a power cable, which you can buy here.
Here you can find the catalogue sheet.
Additional parameters
| Category: | TT Duct Fans |
|---|---|
| EAN: | 4824032089132 |
| Flange (mm): | 200 |
| Speed Control: | No regulation |
| Technology: | Axial |
| Airflow (m3/h): | 1040 |
| PFHGX: | Levné, Best-selling, Doporučené, High-quality, Značkové, Základní |
