TT 100 Smart Dual Fan, 145/187 m³/h – 2 speeds

Product detailed description

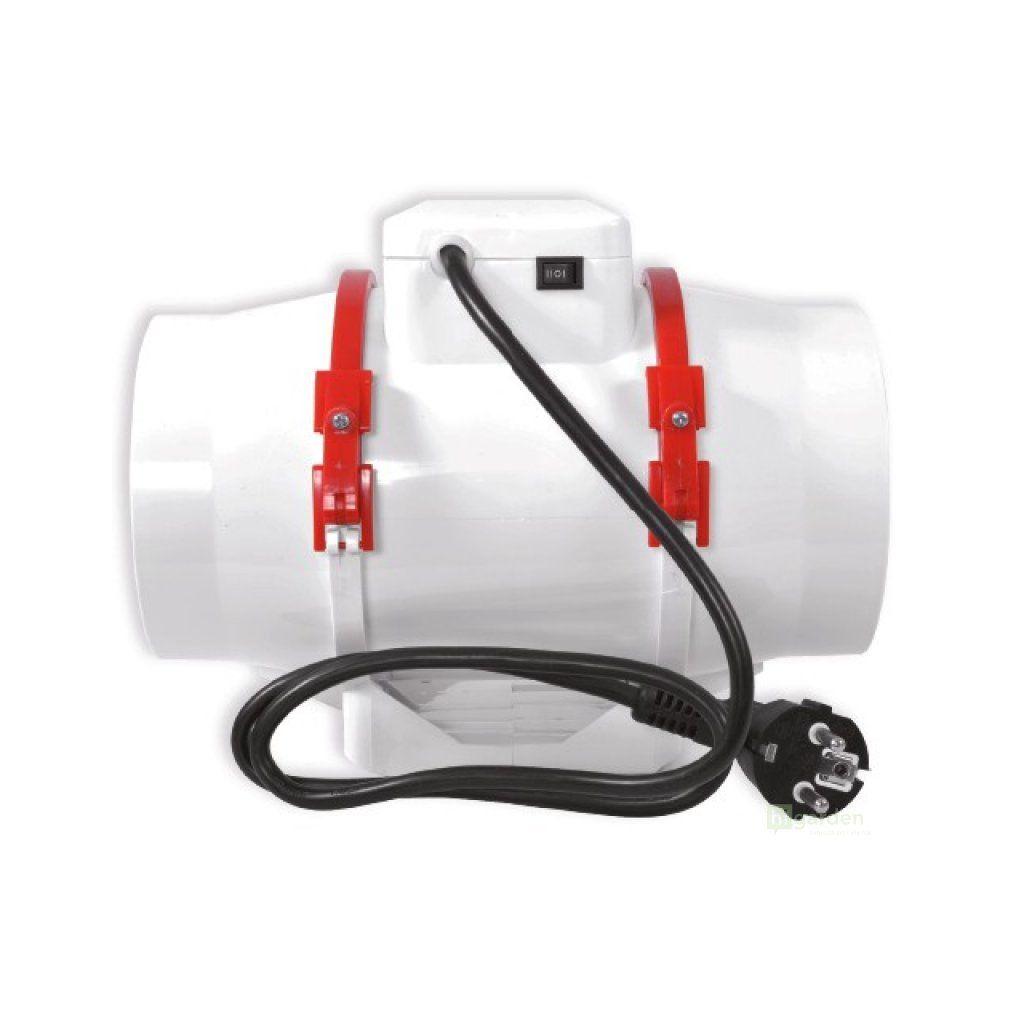

Includes connected cable and speed switch. Improved version of the basic TT 100 Fan.

Plastic TT 100 Smart Dual duct fan with a two-speed single-phase motor with ball bearing. Low weight and minimal noise during continuous operation.

USE:
The plastic TT 100 fan has a maximum capacity of 145/187 m³/h and is designed for ventilation ducts with a diameter of 100 millimetres. The fan fully meets the requirements for high pressure while maintaining low noise. The fan is suitable for areas with high humidity, such as toilets, kitchens, offices, greenhouses, growing rooms, etc. Thanks to its technical parameters, it is designed for extraction in duct systems up to 10 metres.

MOTOR:
Two-speed single-phase motor with a ball bearing, which can be switched using an external switch. The motor is equipped with a thermal fuse with automatic restart. Protection rating IPX4.

INSTALLATION:
The fan can be installed anywhere in the duct system – horizontally. Several fans can also be installed simultaneously to increase the pressure or capacity of the transported air. The fan body is equipped with a mounting plate for wall mounting.

Main characteristics of the TT 100 Smart Dual duct fan

• single-phase two-speed motor with ball bearings and a service life of up to 40,000 hours
• the casing is made of high-quality ABS plastic
• semi-radial plastic blades
• special locking clamps for easy installation and removal
• motor overheating protection with automatic restart
• allows connection at any angle and anywhere in the duct system
• maximum air capacity (output) 145/187 m3/h
• consumption (power input) 21/33 W
• 2,450/2,500 rpm
• sound pressure level 28/35 dBA
• compatible with round ducts with a diameter of 100 mm
• weight 1.4 kg
• protection rating IP X4
• maximum operating temperature 60 degrees

Why are TT plastic fans attractive and popular?

Affordable yet reliable TT duct fans are designed for ventilation systems that operate at high pressure and require minimal noise. Their versatility allows them to be used in all small spaces that require frequent or continuous air exchange (offices, kitchens, bathrooms, greenhouses, workshops or growing spaces). The plastic fan body features a mounting plate for wall mounting.
