TD Mixvent 800/200 N 3V three-speed fan

Product detailed description

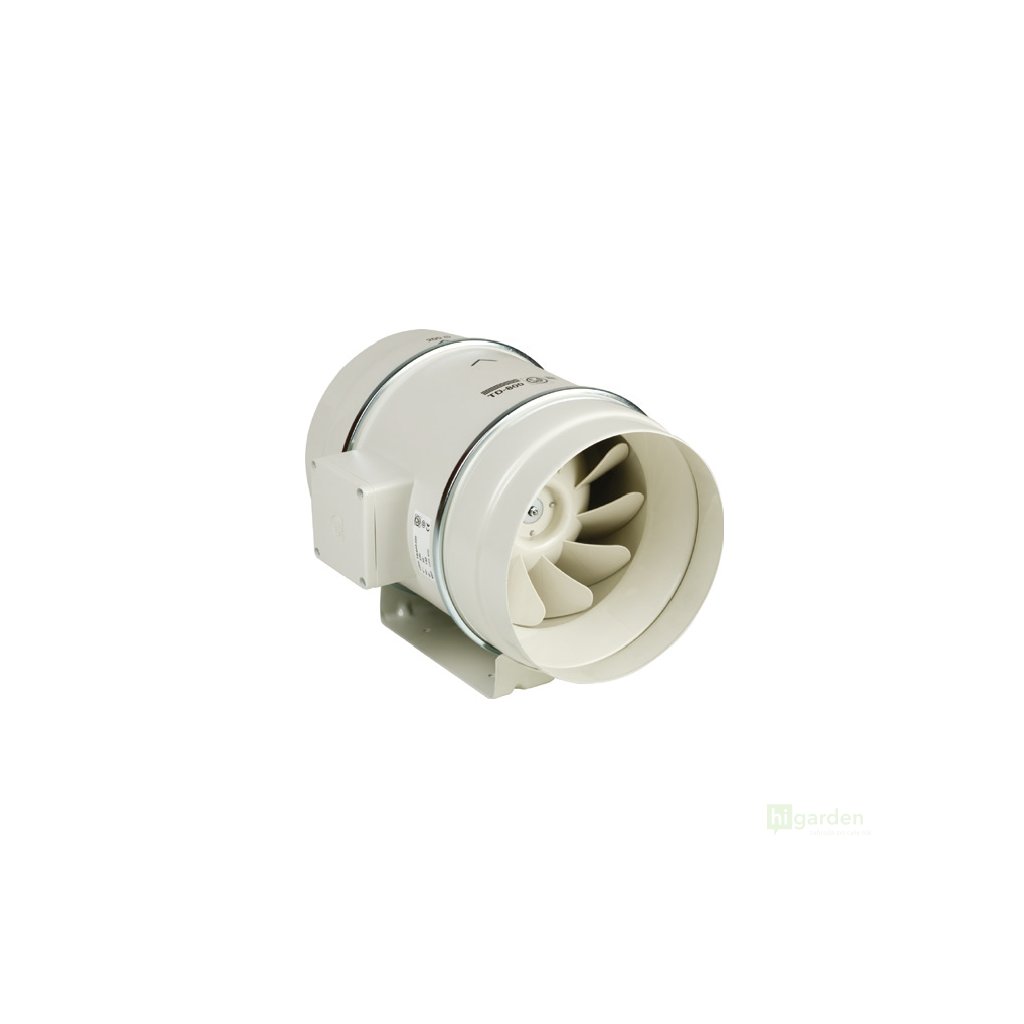

The housing of the TD-800 fan is made of plastic. The housing consists of a mounting rail with two connections and a motor connected to the connections by quick-release clamps. The design allows the motor section to be dismantled without disconnecting the ducting.

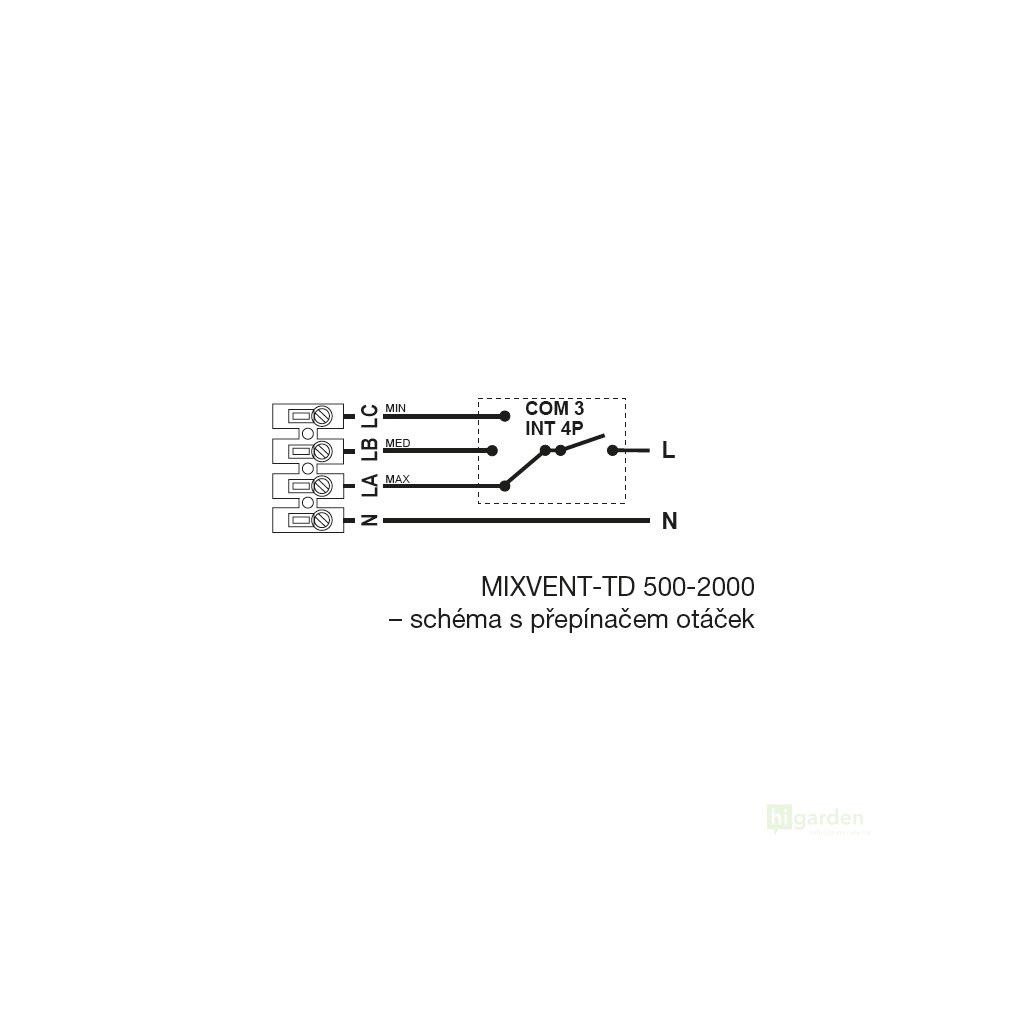

The motors of TD- 500 to TD-2000 fans have three windings. On motors with three windings (TD 500 – TD 2000), the speed is switched in three stages using COM 3 or INT 4P controllers, or voltage regulation can be used with REB controllers (continuous regulation) or REV controllers (five-stage regulation). The terminal box is located on the fan housing.

The fans can be installed in any position. The housing must not carry mechanical loads from the ducting system. A flexible connection to the ducting must be used.

Specifications:
- air flow rate: 890/750/660 m³/h
- speed: 2190/1870/1660 rpm
- duct diameter: 200 mm
- power: 103/93/88 W
- voltage: 230 V
- current: 0.50/0.47/0.45 A
- max. temperature: -20 to +60 °C
- weight: 4.9 kg

Operating instructions here: TD instructions
Catalogue with product information: TD catalogue

Dimensions (in mm):

*the fan drawing can be found in the photo gallery
