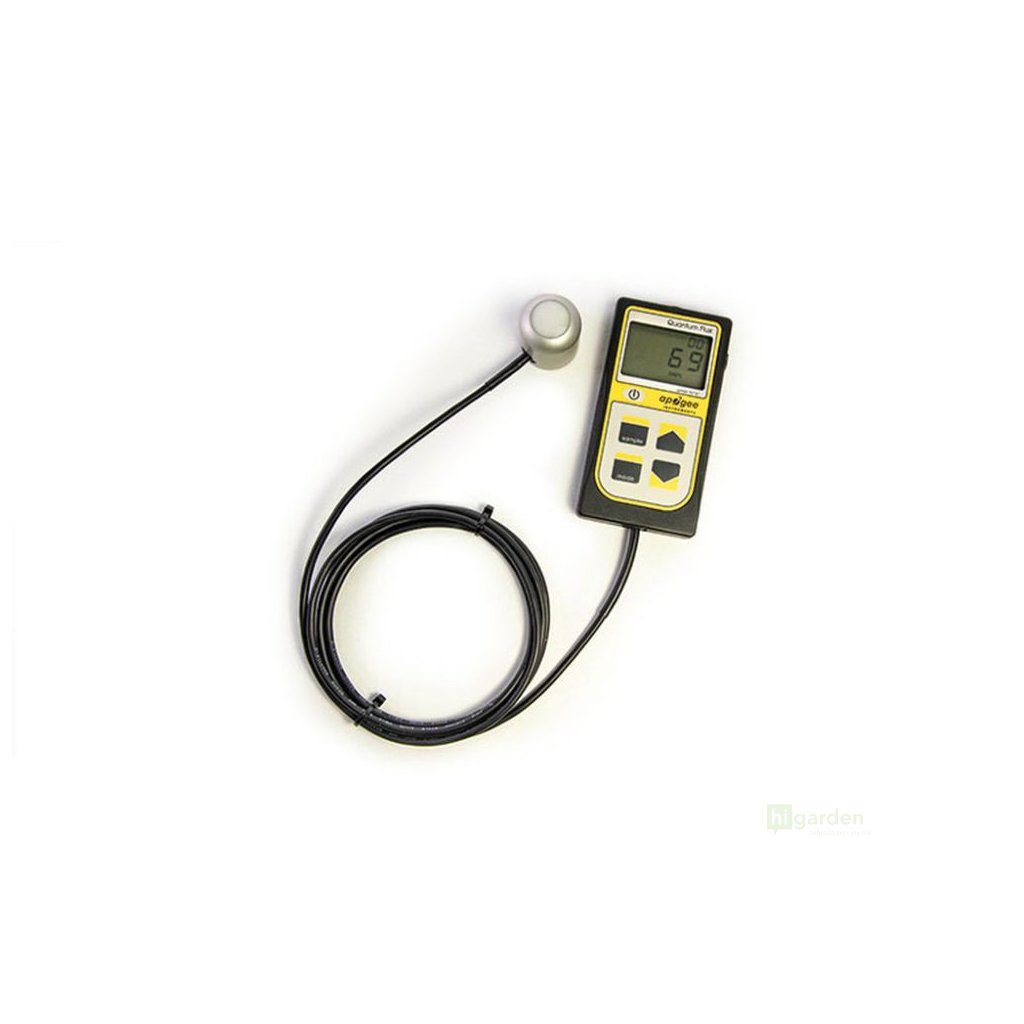

Apogee Instruments MQ-610 400-750nm ePAR metre

Product detailed description

It has been found that laboratory measurements of the newly defined wavelength range 400-750 nm (ePAR) are more photosynthetically active than the traditional wavelength range 400-700 nm (PAR). The MQ-610 instrument can accurately measure far-red photons (700-750 nm), which occur in many new-generation LED fixtures, in sunlight and in other light sources, and which cannot be measured by traditional PAR metres.

Specifications:
- calibration uncertainty ± 5
- measurement range 0 to 4000 µmol m-2 s-1
- measurement repeatability Less than 0.5
- long-term drift (instability) Less than 2 % per year
- non-linearity Less than 1 % (up to 4000 µmol m-2 s-1)
- response time Less than 1 ms
- field of view 180°
- spectral range 400 to 750 nm ± 5 nm (wavelengths where the response is greater than 50 %)
- directional (cosine) response ± 2 % at a zenith angle of 45°, ± 5 % at a zenith angle of 75°
- azimuth error Less than 0.5 %
- tilt error Less than 0.5 %
- temperature response -0.11 ± 0.04 % per C
- daily total uncertainty Less than 5 %
- housing Body made of anodised aluminium with an acrylic diffuser
- ingress protection rating IP68
- operating environment -40 to 70 C; relative humidity 0 to 100 %; can be submerged in water to a depth of 30 m
- metre dimensions 126 mm length, 70 mm width, 24 mm height
- sensor dimensions diameter 30.5 mm, height 37 mm
- weight (with 5 m cable) 140 g
- cable 2 m of two-wire shielded twisted pair; additional cable available; sheath made of TPR
- warranty 4 years against defects in materials and workmanship
- made in US
