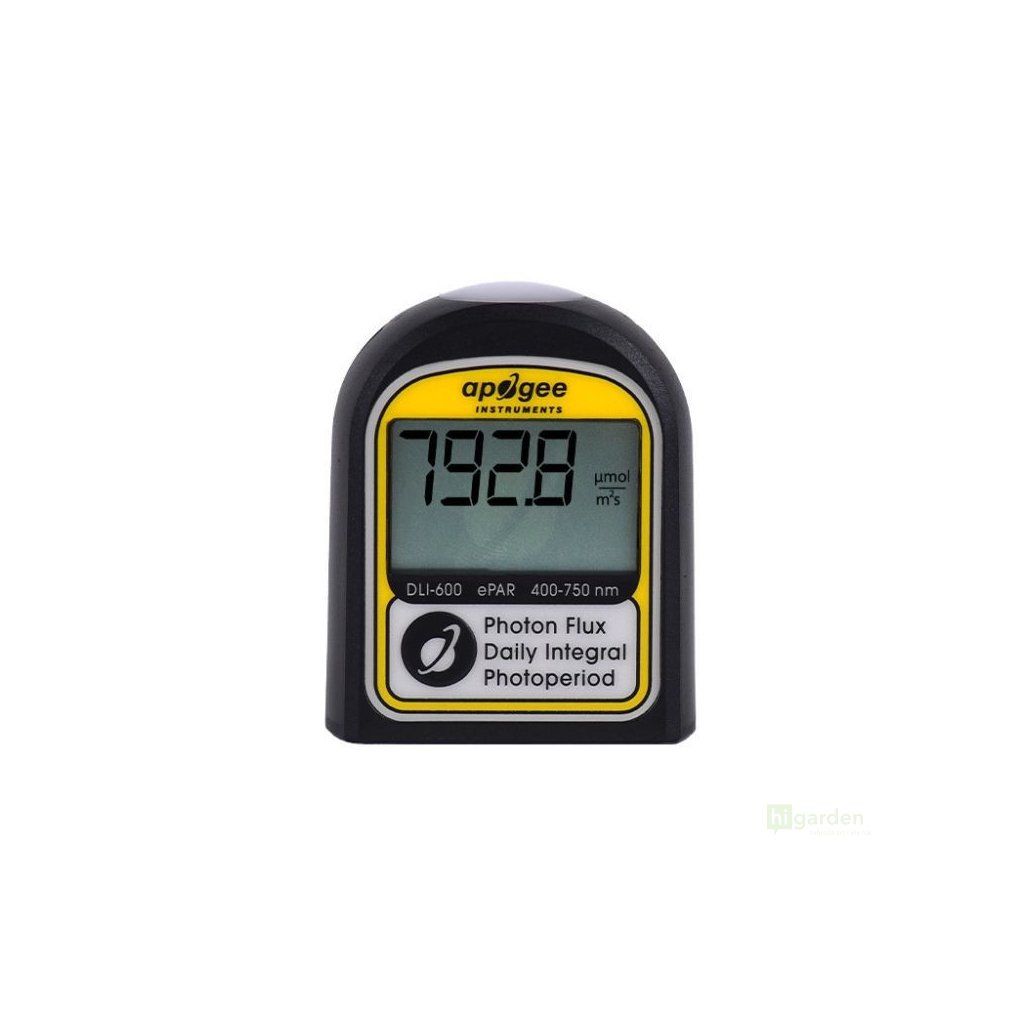

Apogee Instruments DLI-600 ePAR metre

Product detailed description

New for 2022, the DLI-600 from Apogee Instruments is an elegant, easy-to-use device for spot checking photosynthetically active radiation (PAR) outside the traditional 400-700 nm range.

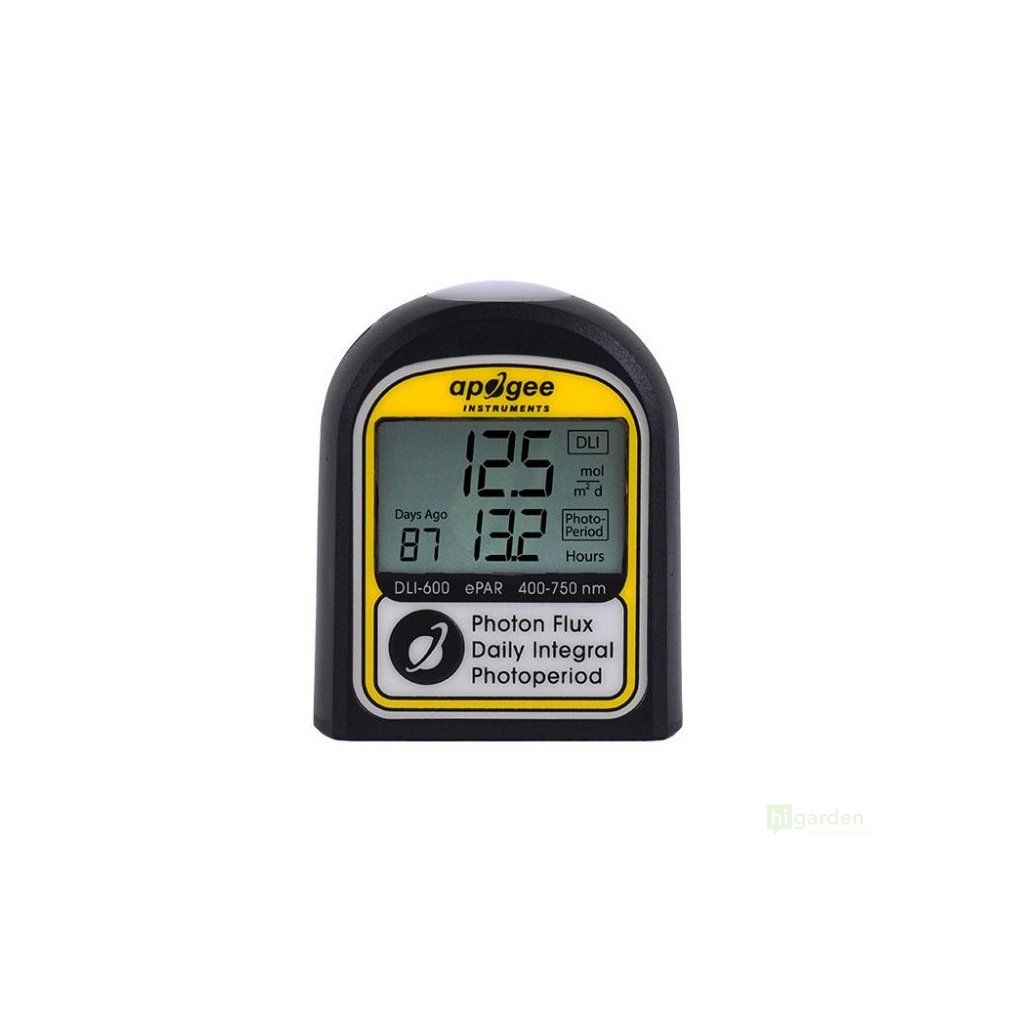

The DLI-600 measures the newly defined ePAR radiation range of 400-750 nm, which has been shown to have extended photosynthetically active properties. In addition to measuring ePAR, the DLI-600 metre also calculates daily light integral (DLI) and photoperiod.

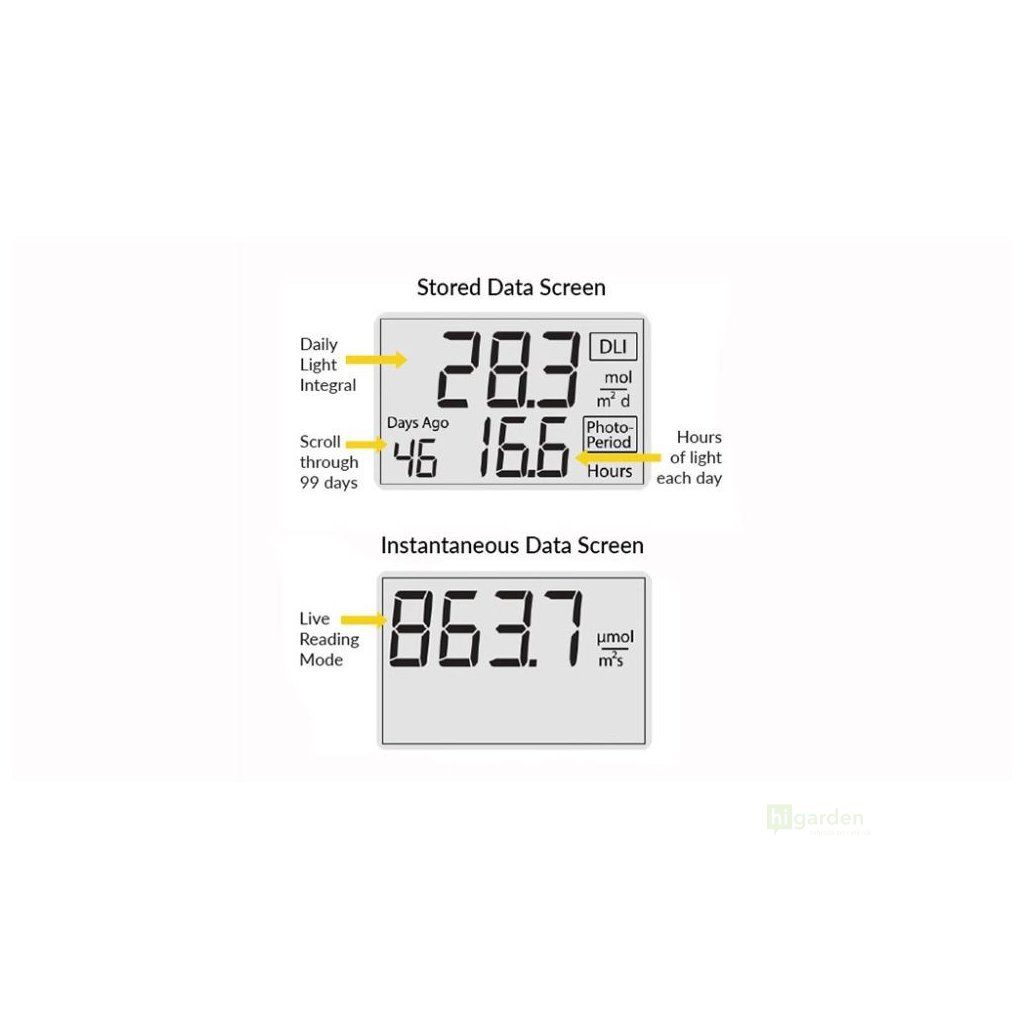

DLI refers to the total amount of PAR or ePAR falling on a plane over 24 hours, expressed in units of moles per square metre per day (mol m-2 d-1). Photoperiod is the total time during which PAR or ePAR falls on a plane over 24 hours, and is expressed in units of hours (h). ePAR, DLI and photoperiod affect plant growth and development and are often measured in greenhouses and growth chambers to help with lighting control and decision-making.

Specifications:
- calibration uncertainty ± 5 %
- measurement repeatability Less than 0.5 %
- measuring range 0 to 4000 µmol m?2 s?1
- long-term drift Less than 2 % per year
- field of view 180?

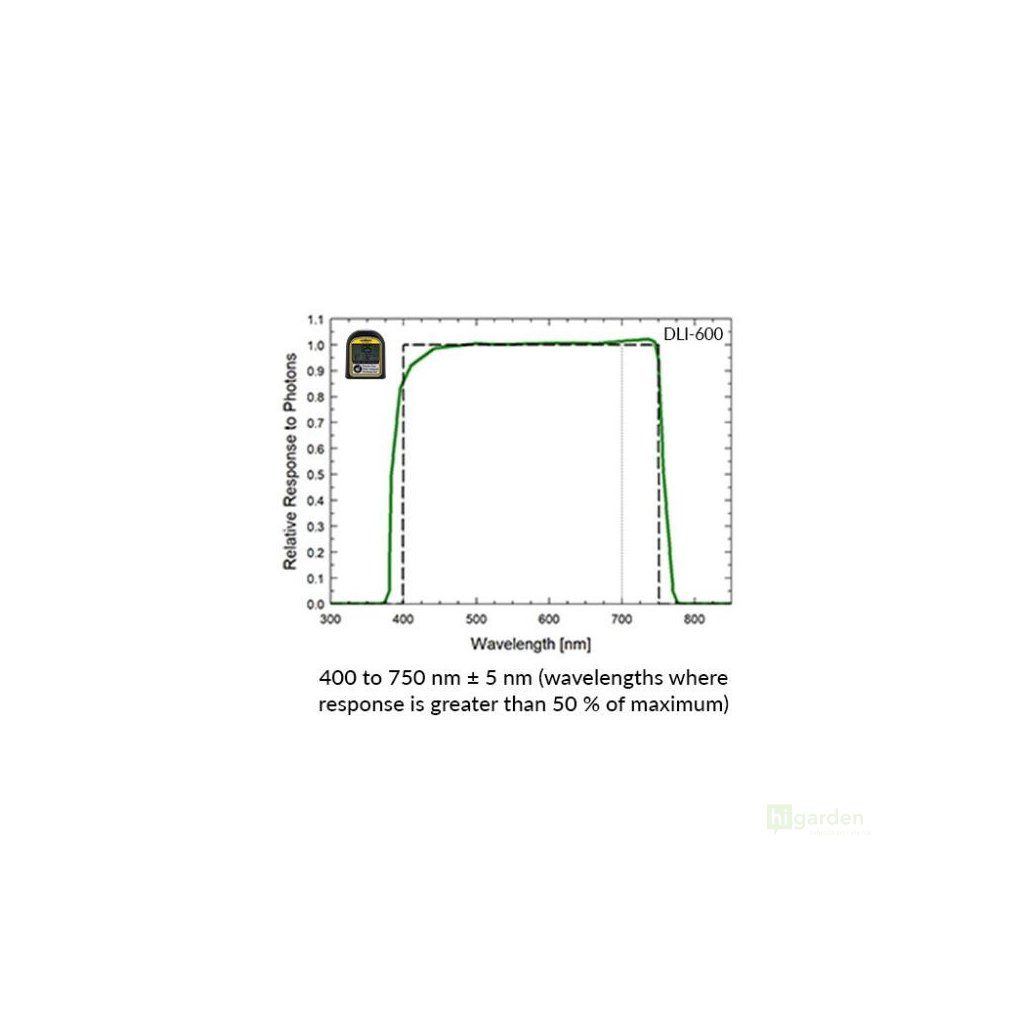

- spectral measurement range (± 5 nm) 383 to 757 nm
- directional (cosine) response ± 5 % at a zenith angle of 75?
- temperature response -0.11 ± 0.04 % per C
- response time 2.5 seconds
- measurement frequency 3 minutes
- data logging capacity 99 days (DLI and photoperiod), 10 days (30-minute averages PPFD/ePPFD)
- non-linearity Less than 1 % (up to 4000 µmol m?2 s?1
- stored data resolution (PPFD) 0.1 µmol m?2 s?1 (at >= 1000 the decimal number is not displayed on the screen)
- stored data resolution (DLI) 0.1 mol m?2 day?1
- stored data resolution (photoperiod) 0.1 hours
- connection CSV file via USB-C data transfer
- ADC resolution 24 bits
- operating environment -40 to 70 C; relative humidity 0 to 100 %.
- ingress protection IP6
- mounting compatibility Brass holder with 1/4-20 thread
- battery life Approximately 6 months
- dimensions 5x6x2.5 cm
- weight 67
- warranty 4 years for defects in materials and workmanship
- made in US
