Urban Digital Water Flow Metre, digital flow metre

Product detailed description

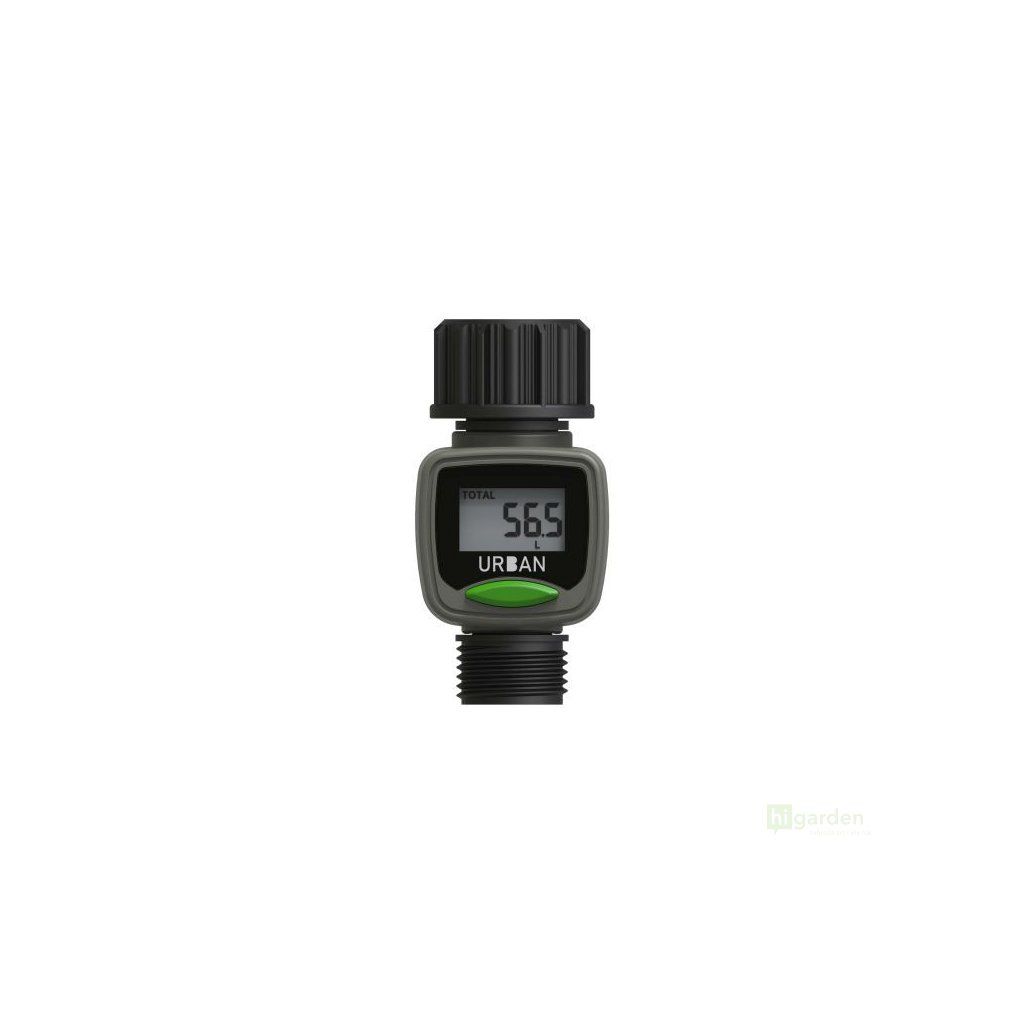

Urban Digital Water Flow Metre

Features

• ¾” internal inlet thread, ¾” external outlet thread with hose tail
• Real-time water flow measurement
• Measurement of water consumption during the last use
• Measurement of total water consumption
• Built-in Hall sensor for more accurate and reliable measurement
• Low battery indication
• Switchable units: litres / gallons

Technical specifications

• 4 water flow display modes
• Flow mode: current water flow
• Consumption: water consumption during the last use
• Average: average daily water consumption over a week
• Total: total water consumption
• Operating pressure: 0.5–8 bar (7–116 PSI)
• Flow rate: 1–40 l/min (0.3–10.6 GPM)
• Dimensions: 46 × 91.2 × 41.9 mm
• Maximum measuring range: 99 999 l or 99 999 gallons
• Protection rating: IPX6
• Power supply: 1× CR2032 battery

If the flow rate decreases, a clogged filter is usually the cause. We recommend replacing it with replacement filter for Urban irrigation timers.
